Model: PB36 Series 3600mAh
Power Bank
User Manual v1.4

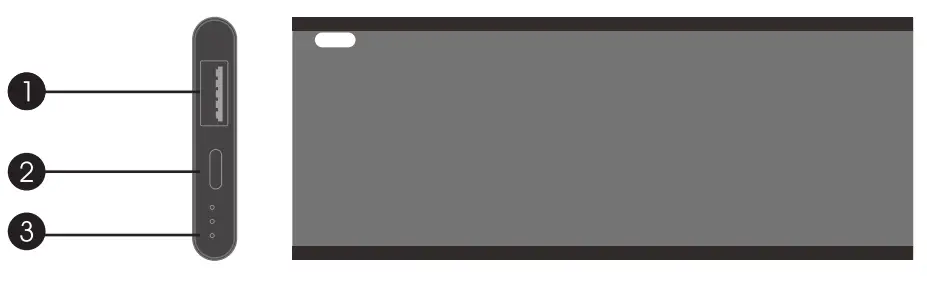

Power Bank Layout
- USB Output: DC 5V
- 1A Micro USB Input: DC 5V 2A
- LED Indicators
Suitable for
- iPhone/iPad/iPod
- Most smartphones including Samsung, LG, Sony, HTC, Nokia, Microsoft, Huawei, Motorola, Google, OnePlus, Oppo & more
- Smartwatches, fitness trackers, digital cameras, portable gaming consoles, Readers, and drones
- Bluetooth devices such as speakers, headsets or earphones
Features
- 3600mAh provides 130% extra battery for an average smartphone*
- Get an extra 18 hours of talk time on an iPhone X or 17 hours on a Samsung Galaxy S9
- Rechargeable more than 500 times
- 2.1A high output for fast charging an iPad or tablet
- Three LED indicators to show the remaining capacity
- Includes 20cm micro USB cable for charging and re-charging
- Built-in overcharging and short circuit protection
- Watt-Hour Rating: 13.3Wh
- Input: DC 5V 2A
- Output: DC 5V 2.1A
- Charging Time: 3 to 6 hours depending on the charger output
- Size: 118mm (L) x 42mm (W) x 7.5mm (H)
- Weight: 61g
- Certifications: RCM, RoHS, UN38.3
* Based on iPhone 8 with a battery capacity of 1821mAh

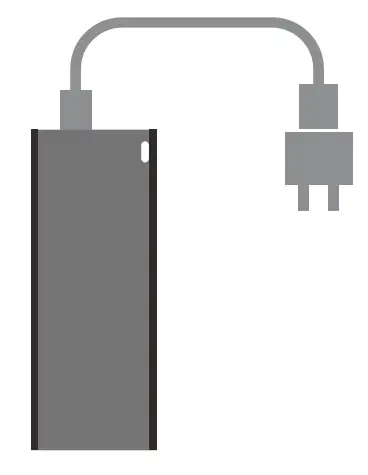

To Charge Power Bank
- Using the included micro USB cable, connect the larger USB-A connector to a USB wall charger
- Connect the smaller micro USB connector to the input port on the power bank
- During charging the LED indicator will flash to show the charging status
- When charging is complete the LED indicator will remain on

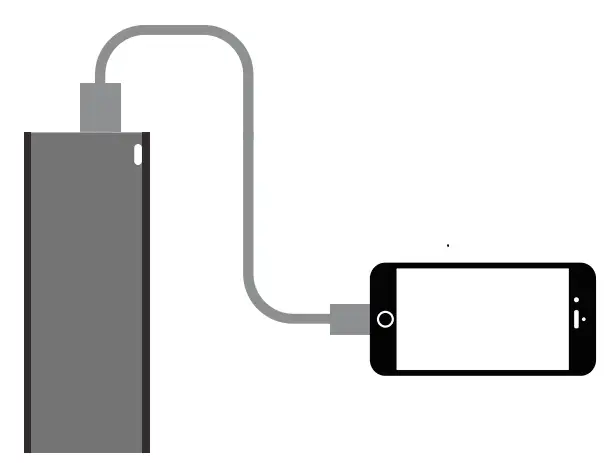

To Charge Phone or USB Device
- Using your phone or other USB device’s charging cable, connect the USB-A connector to the output connector on the power bank
- Connect the other end of the cable to your device
- Charging should commence automatically
- If your phone or device uses a standard micro USB Type B connector then you can also use the included cable to charge your device
- When your phone or device is fully charged, the power bank will automatically turn itself off
CAUTION
- Do not drop, misuse or apply excessive force to your power bank. Power banks contain batteries and a circuit board with fragile components that can be damaged if misused. If you drop or damage your power bank, discontinue use immediately.
- If crushed, punctured, exposed to fire or high temperatures or disassembled, batteries may catch fire, explode or cause burns.
- If your power bank swells or bulges, stop use immediately and dispose of the power bank in an appropriate manner.
- Continued use may cause the power bank to catch fire or explode.
- Do not charge the power bank and your device at the same time. It may cause the power bank to overheat.
- Store the power bank in a cool and dry place. Do not store in hot or humid environments. Eg. In a car or directly in the sun.
- Power bank usage by children should be supervised.
- Do not put your power bank in a handbag, backpack
or another bag where small metal objects can cause a short circuit. - Do not dispose of the power bank in heat or fire.
- All Comsol power banks have safety power cut-off features to stop overcharging & overheating. However, we recommend disconnecting the power bank once it is fully charged and removing all cables.
- When charging a device, the power bank may feel warm, this is a normal operating condition & should not be cause for concern.
- In normal conditions, battery performance will decline over several years.
- The operating temperature should be between -10°c to 45°c.
Made in China
