CLEAR DESIGN BLLBFV2 36 Inch Laminate Low Box
General Installation Guide

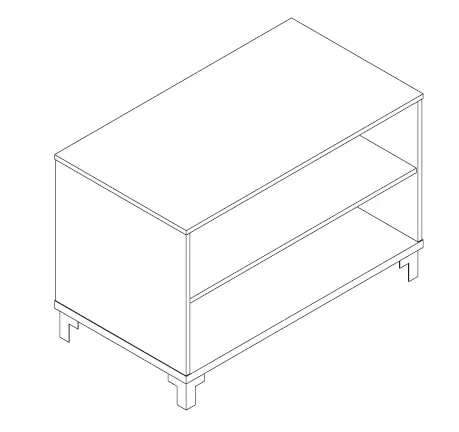

OPEN SHELF
OVERVIEW
Laminate Low Lateral
All parts listed are for a single open-shelf lateral; additional parts will be needed for additional open-shelf lateral.
| CODE | QTY | DESCRIPTION | |
| BLLOSV2 | 1 | Top Panel* |  |
| 1 | Bottom Panel | | |
| 1 | Fixed Shelf Panel |  | |
| 2 | End Panels |  | |
| 1 | Back Panel |  | |
| 4 | Corner Feet |  | |

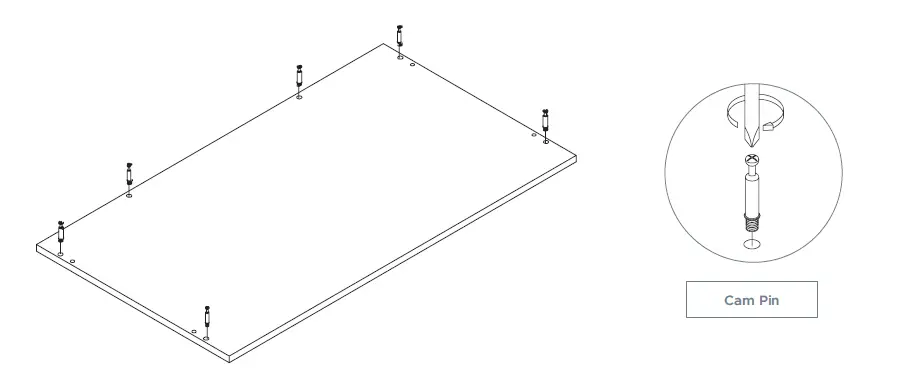

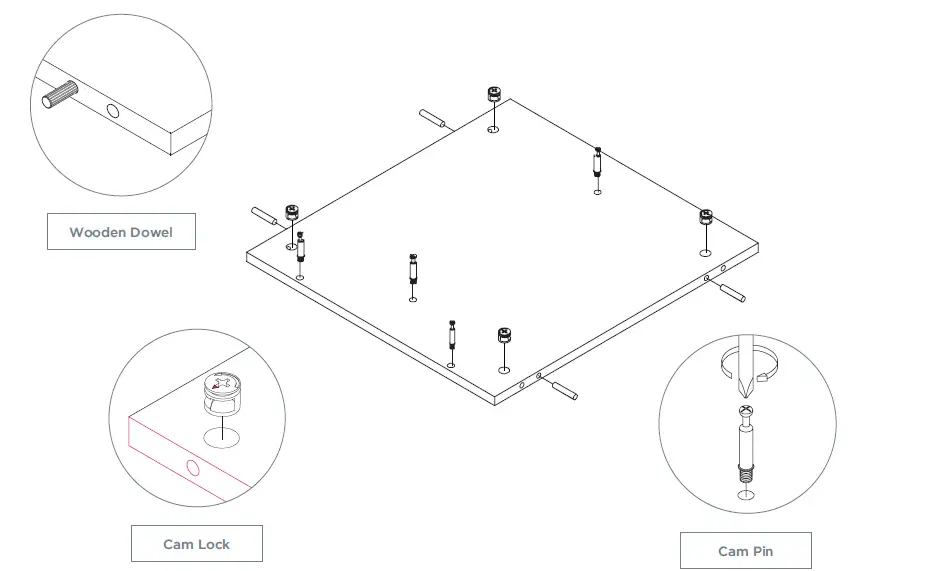

- SCREW CAM PINS INTO BOTTOM PANEL
Requires 6 cam pins.
- INSERT HARDWARE INTO END PANELS
Requires 4 wooden dowels, 4 cam locks, and 4 cam pins.
- INSERT HARDWARE INTO BACK PANEL
Requires 2 cam pins and 8 cam locks.

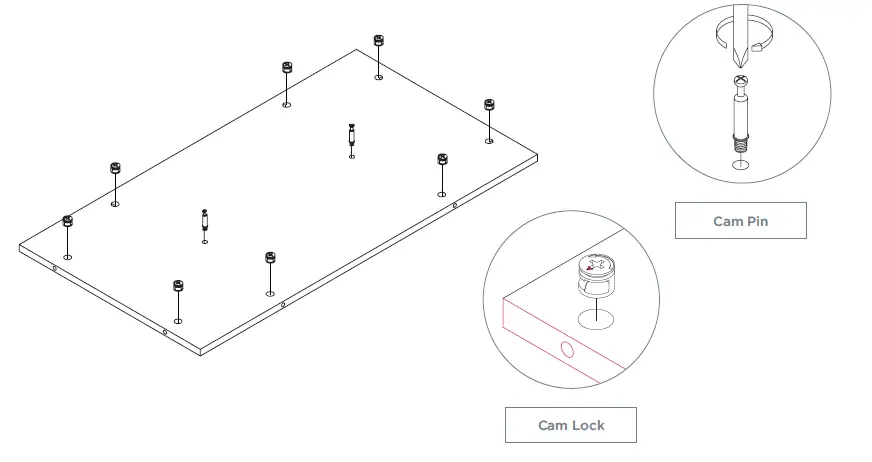

- INSERT CAM LOCKS INTO FIXED SHELF
Requires 6 cam locks.

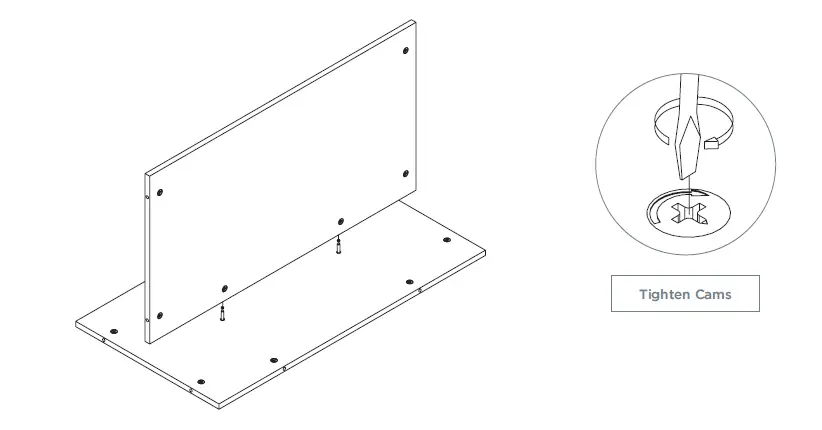

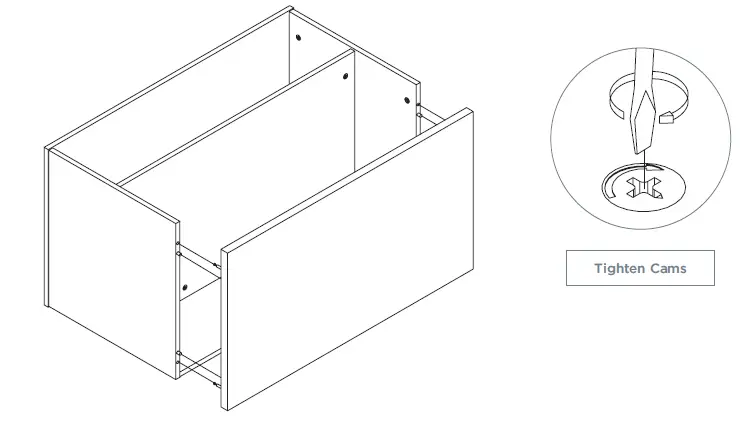

- SECURE FIXED SHELF TO BACK PANEL
Align the cam pins so they sit inside of open cam locks. Use a screwdriver to turn cam locks clockwise and lock into place.

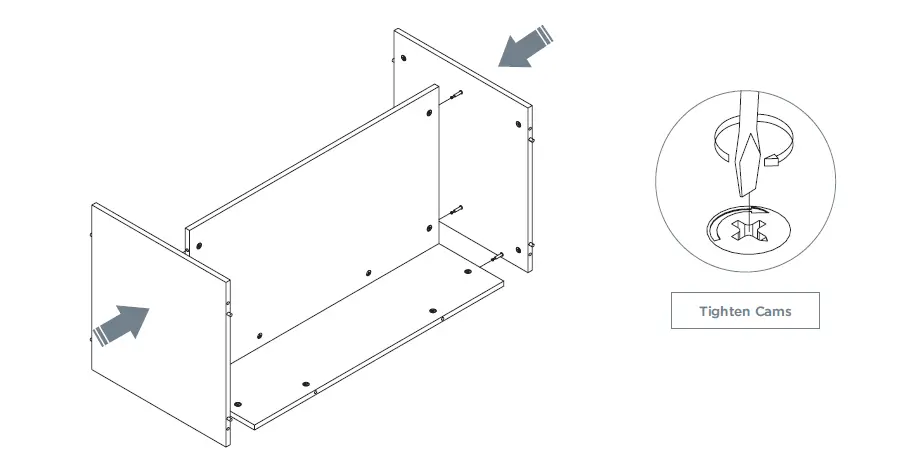

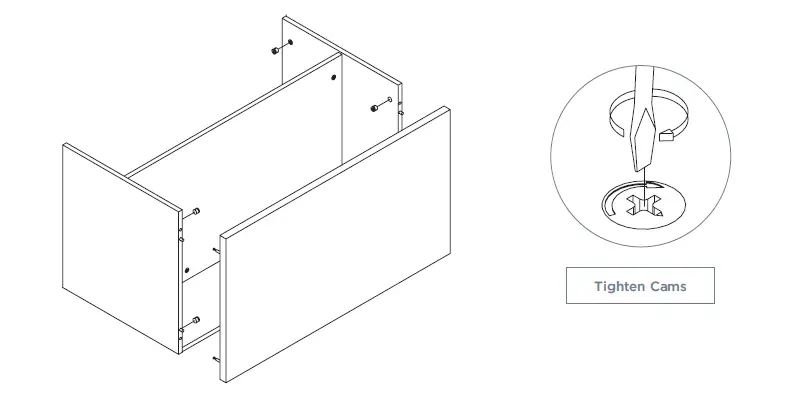

- SECURE END PANELS
If working with a surface 72” or longer, use 10 wood screws to install support bar under the surface.
- SECURE BOTTOM PANEL
Align the cam pins so they sit inside of open cam locks. Use a screwdriver to turn cam locks clockwise and lock into place.
- SECURE TOP PANEL
Note: DO NOT Install top panel if you are merging storage.
Align the cam pins so that they sit inside of open cam locks. Use a screwdriver to turn cam locks clockwise and lock into place.
- SECURE FEET TO BOTTOM PANEL
Attach corner feet to the bottom panel with 4 wood screws per foot.
END OF OPEN SHELF SECTION
BOX/FILE
OVERVIEW

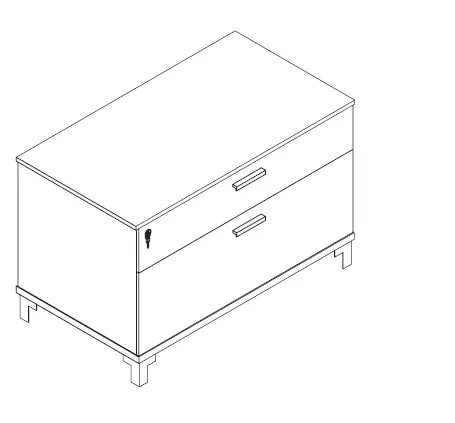

Laminate Low Lateral
All parts listed are for a single low box/file lateral; additional parts will be needed for additional low box/file laterals.
| CODE | QTY | DESCRIPTION | |

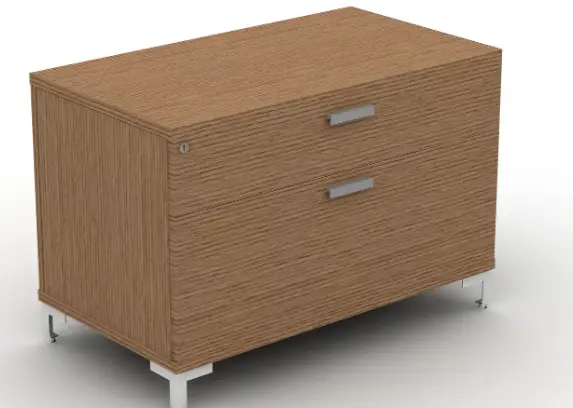

| BLLBFV2 | 1 | Low Box/File Lateral |  |
| 2 | Handles |  | |
| 4 | Corner Feet | | |
- SECURE FEET TO STORAGE AND FLIP

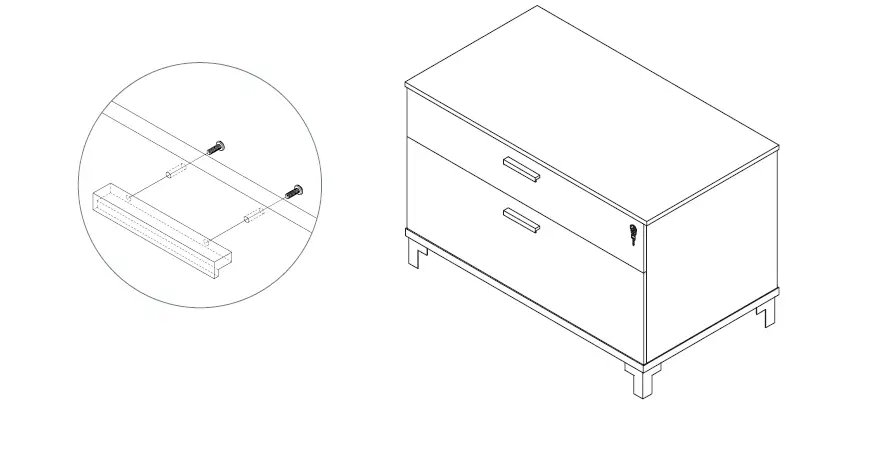

Flip storage piece so it is laying on its back; secure foot to each corner using 4 wood screws. - ATTACH HANDLES
Using 2 bolts each, attach handles to front of drawers.
END OF OPEN SHELF SECTION

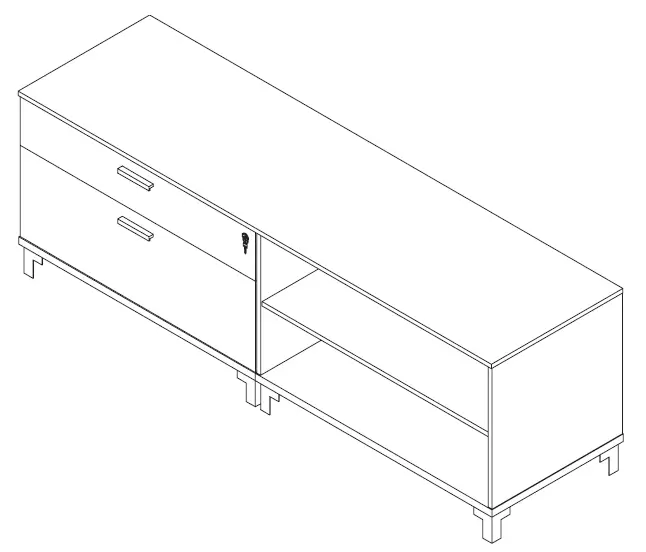

MERGING TOP
OVERVIEW
Laminate Low Lateral
All parts listed are for a single merging top; additional parts will be needed for additional merging tops.
PARTS LIST
| CODE | QTY | DESCRIPTION | |
| BLLBFV2 | 1 | Low Box/File Lateral |  |
| BLLOSV2 | 1 | Low Open-Shelf Lateral |  |
| GBLLT2 | 1 |
Laminate Merging Top |  |
| PLB.1 | 12 | Laminate Storage L-Bracket |  |
| WD.2 | 24 | Wood Screws |
|

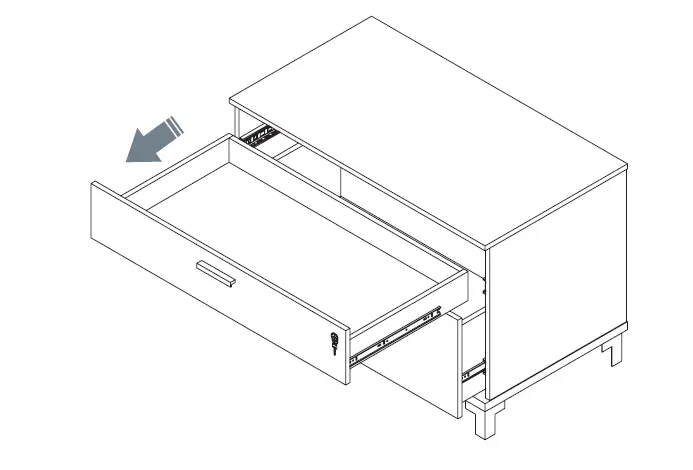

- REMOVE DRAWERS FROM LOW BOX/FILE LATERAL

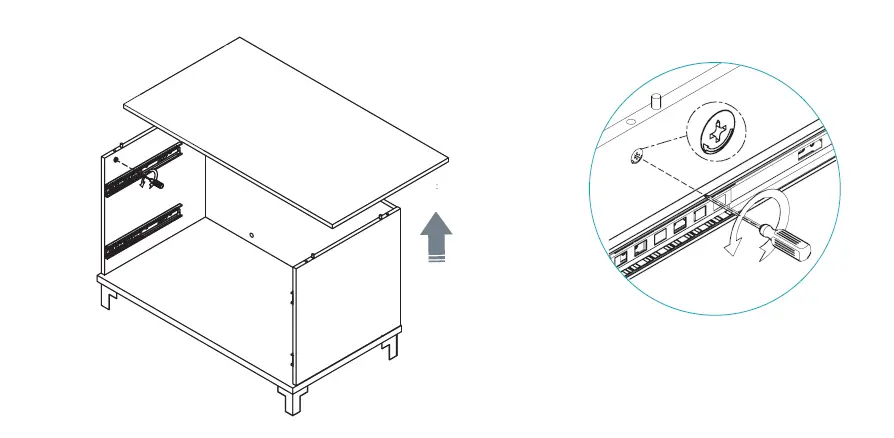

- REMOVE STORAGE TOP
Locate the 6 cam locks across top edge on the inside of the storage piece. Then, use a screwdriver to turn cam locks counterclockwise to unlock. Carefully lift top from storage.

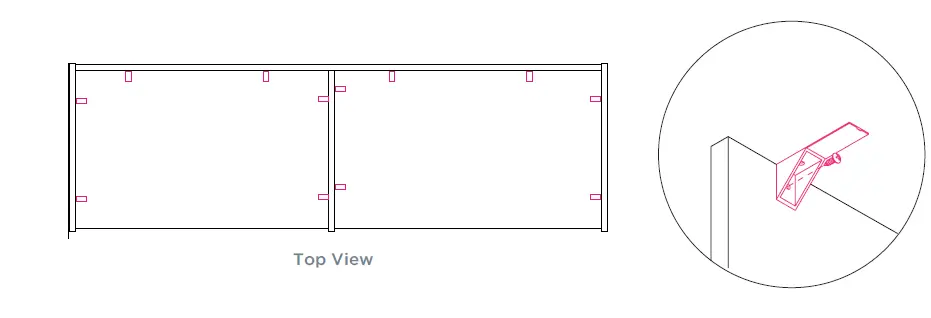

- CONNECT BRACKETS TO TOP PANEL
Attach 12 laminate storage L-brackets to inside of storage using wood screws in the places shown below.

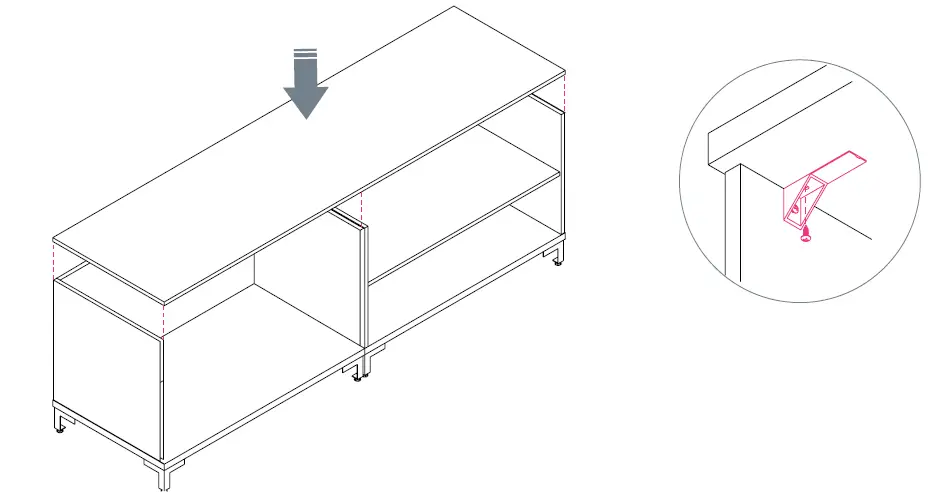

- ATTACH TOP TO STORAGE
Set storage side-by-side then align top panel so it is flush with sides, back, and front of storage. Secure the 12 laminate storage L-brackets to top panel using wood screws.
- INSERT DRAWERS
END OF OPEN SHELF SECTION
