CLEAR DESIGN BLCC## Storage Laminate Conference Credenza Installation Guide

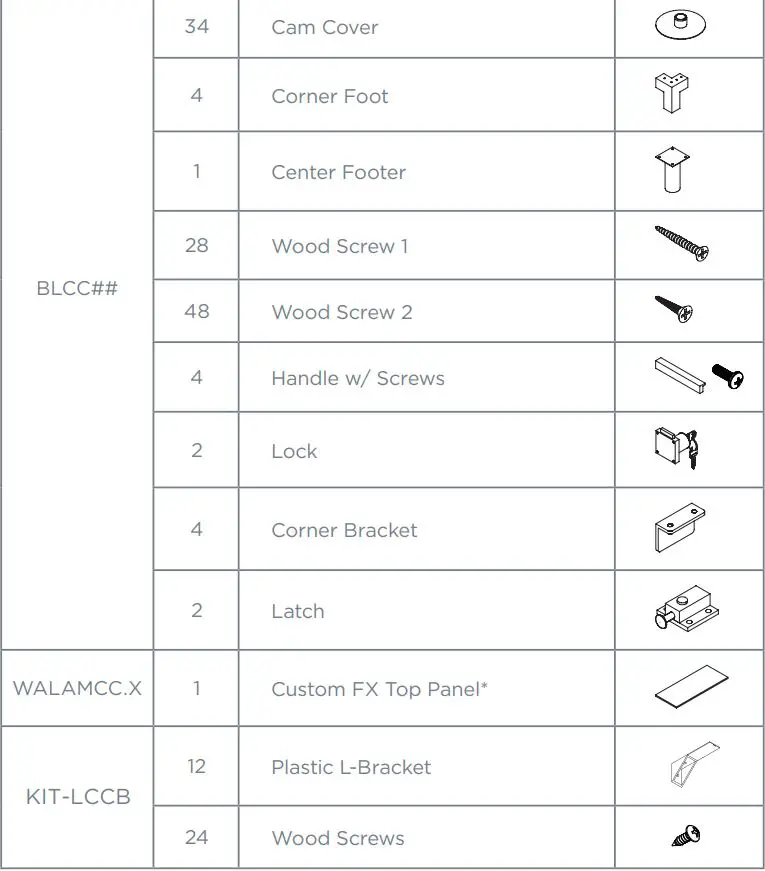

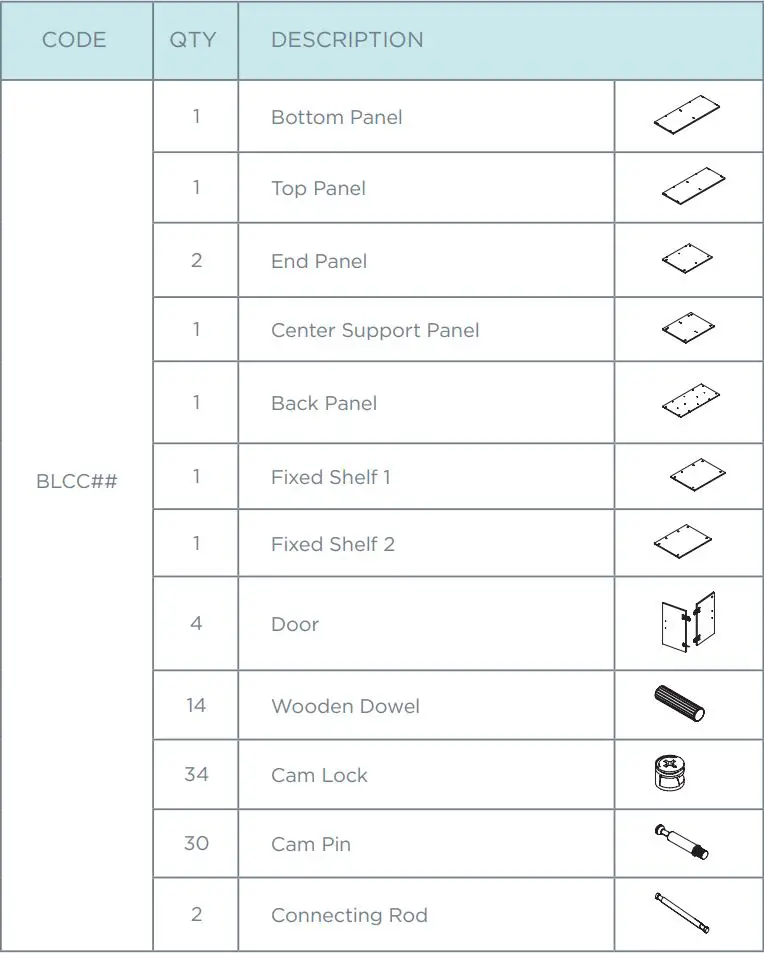

PARTS LIST
*If applicable. FX Top Panel does not include pre-drilled holes.

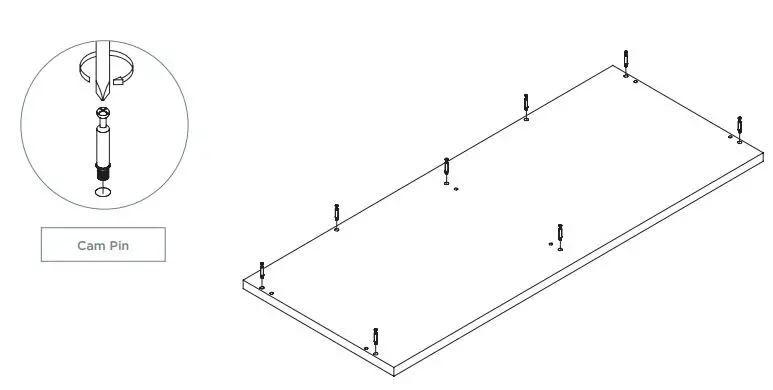

1 | INSERT HARDWARE INTO BOTTOM PANEL
Using a screwdriver, secure 8 cam pins into the pre-drilled holes on the bottom panel of the credenza.
Cam Pin

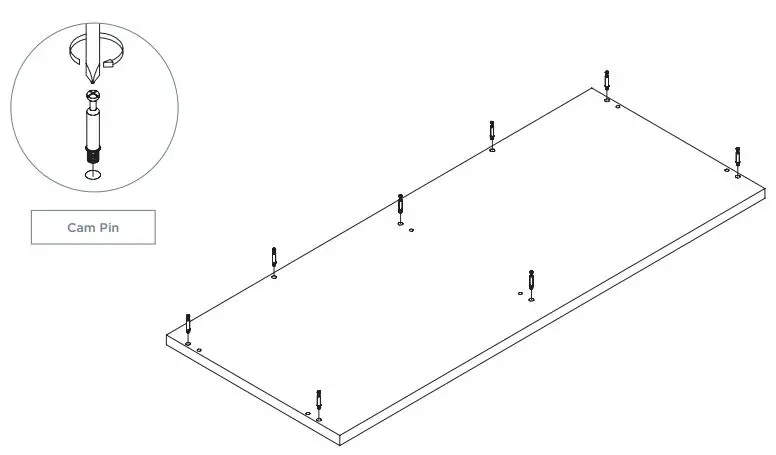

2 | INSERT HARDWARE INTO TOP PANEL
Using a screwdriver, secure 8 cam pins into the pre-drilled holes on the top panel of the credenza.

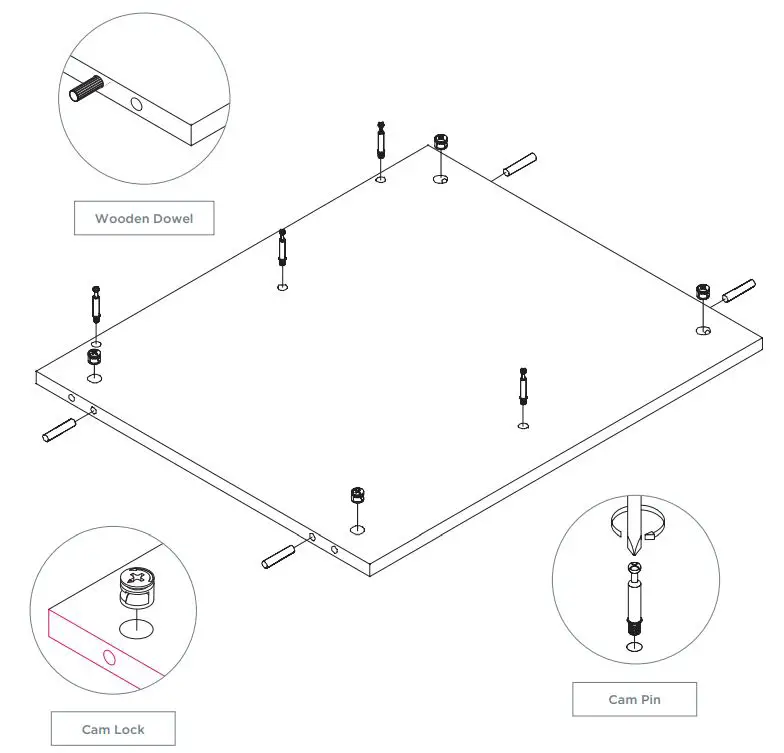

3 | INSERT HARDWARE INTO FIXED SHELF
Using a screwdriver, secure 4 cam pins into the pre-drilled holes as they are shown below, for each panel. Insert 4 wooden dowels and 4 cam locks into the pre-drilled holes at the top and bottom of the panel.
Note: Repeat steps for both side panels.

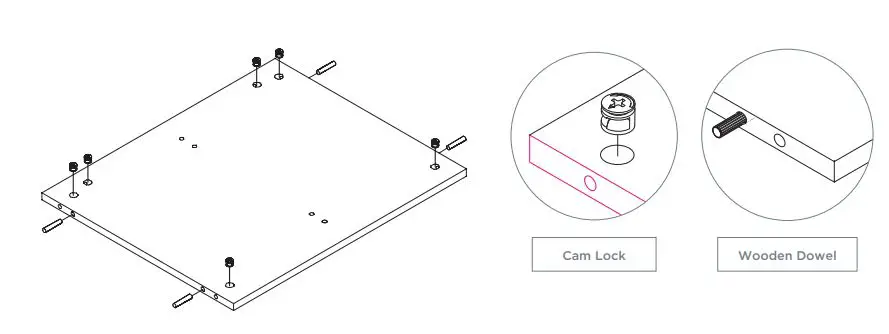

4 | INSERT HARDWARE INTO CENTER SUPPORT PANEL
Insert 4 wooden dowels and 6 cam locks into the pre-drilled holes in the panel.

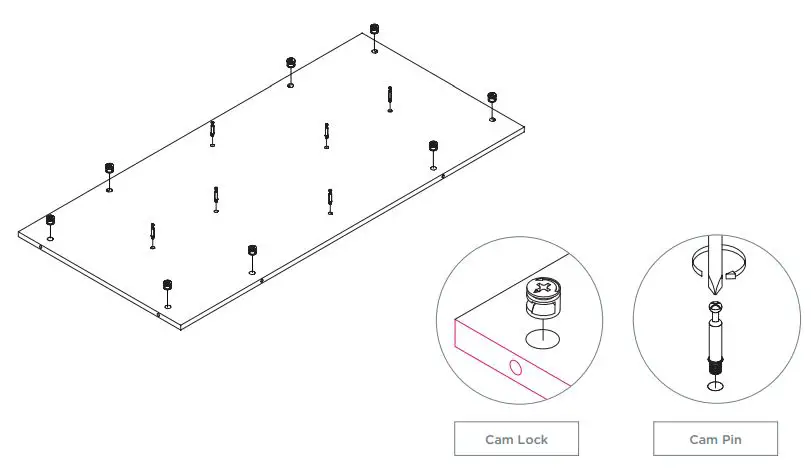

5 | INSERT HARDWARE INTO BACK PANEL
Using a screwdriver, secure 6 cam pins and 8 cam locks into the pre-drilled holes in the panel.

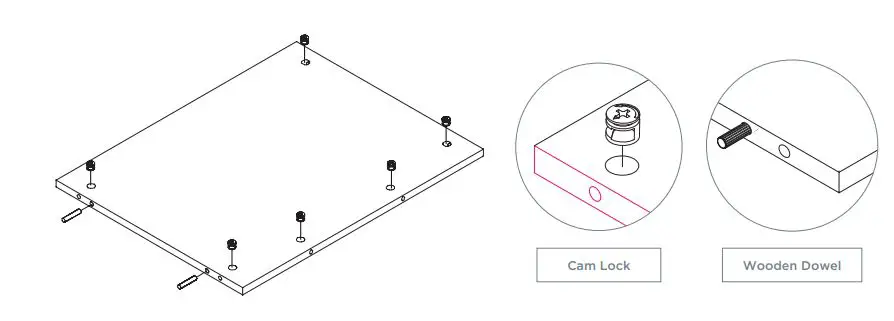

6 | INSERT HARDWARE INTO FIXED SHELF 1
Insert 2 wooden dowels into the pre-drilled holes at the bottom of the panel. Insert 6 cam locks into the pre-drilled holes on the side of the panel.

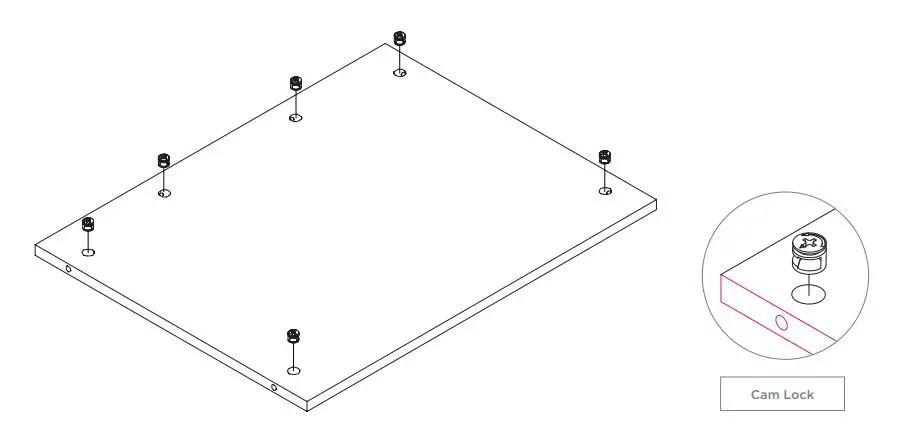

7 | INSERT HARDWARE INTO FIXED SHELF 2
Insert 6 cam locks into the pre-drilled holes at the top and bottom of the panel.
Note: Repeat steps for both side panels.

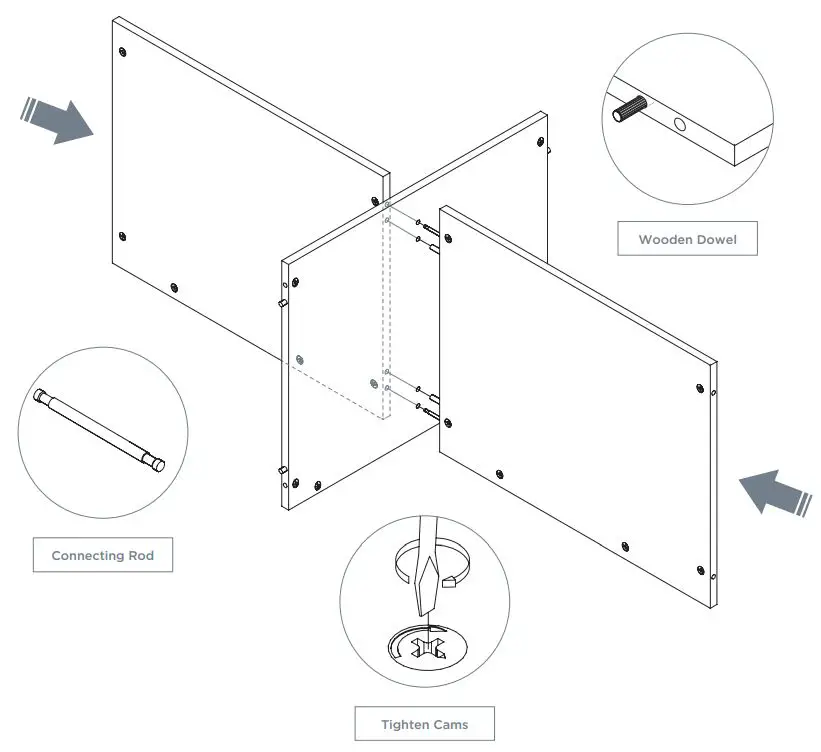

8 | SECURE FIXED SHELVES TO CENTER SUPPORT PANEL
Pass 2 wooden dowels and 2 connecting rods through the center support panel and insert into the sides of both of the fixed shelf panels. Using a screwdriver, turn the 4 cam locks to lock the connecting rods in place.

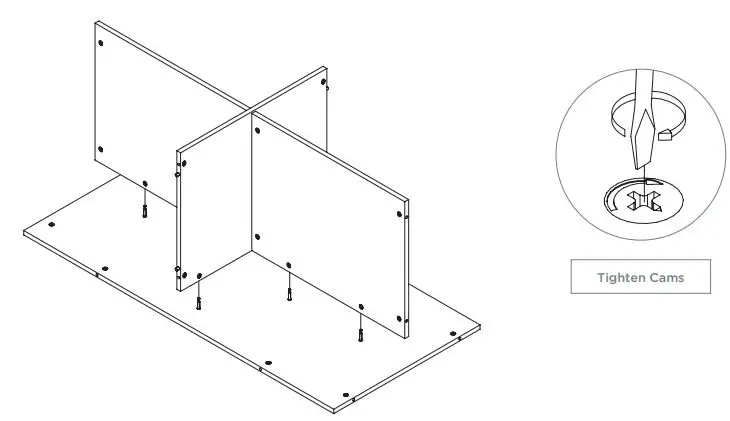

9 | SECURE BACK PANEL TO ASSEMBLED STRUCTURE
Align the cam pins with the open cam locks on the assembled structure. Using a screwdriver, turn the 6 cam locks to lock the cam pins in place.

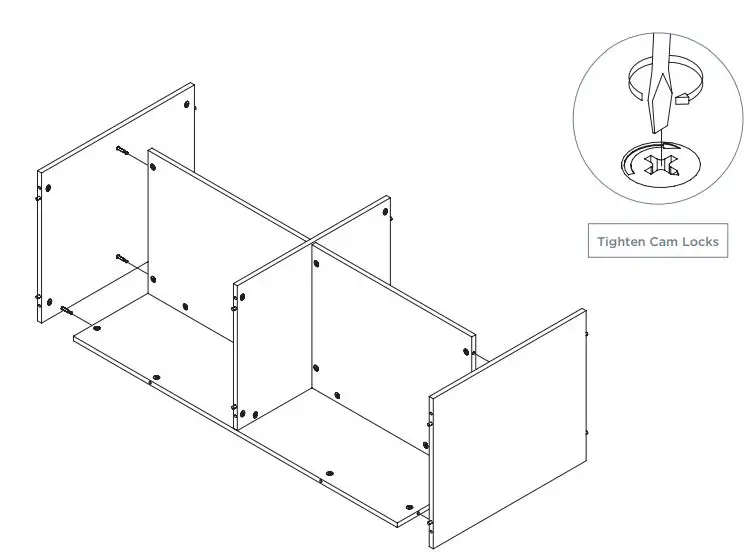

10 | SECURE END PANELS TO ASSEMBLED STRUCTURE
Align the cam pins with the open cam locks on the assembled structure. Using a screwdriver, turn the 8 cam locks to lock the cam pins in place.

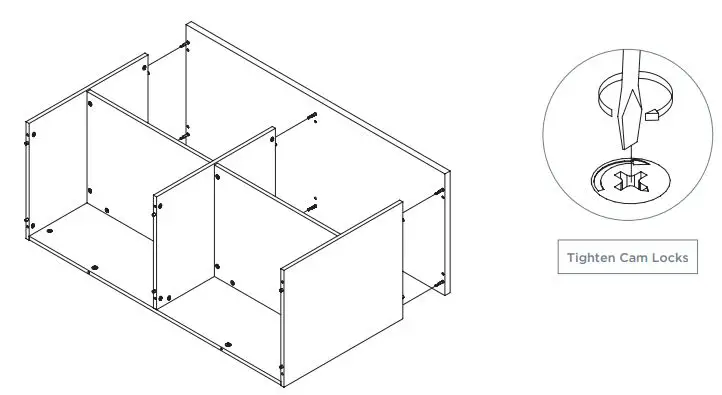

11 | SECURE BOTTOM PANEL TO ASSEMBLED STRUCTURE
Align the cam pins with the open cam locks on the assembled structure. Using a screwdriver, turn the 8 cam locks to lock the cam pins in place.

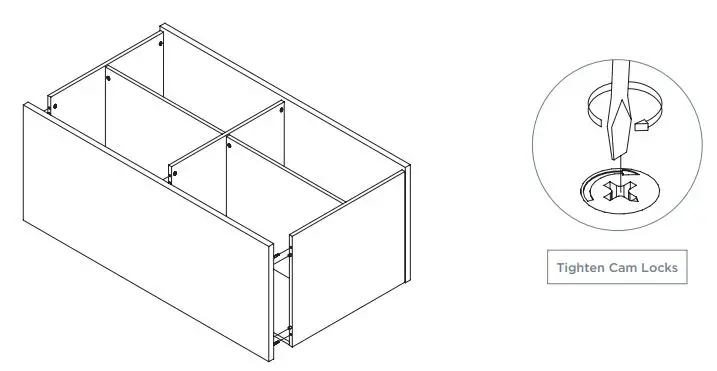

12 | SECURE TOP PANEL TO ASSEMBLED STRUCTURE
(A) FAST (1″ Thick) Top: Align the cam pins with the open cam locks on the assembled structure. Using a screwdriver, turn the 8 cam locks to lock the cam pins in place.
Note: If Credenza has an 1.25″ top, skip to 12B.

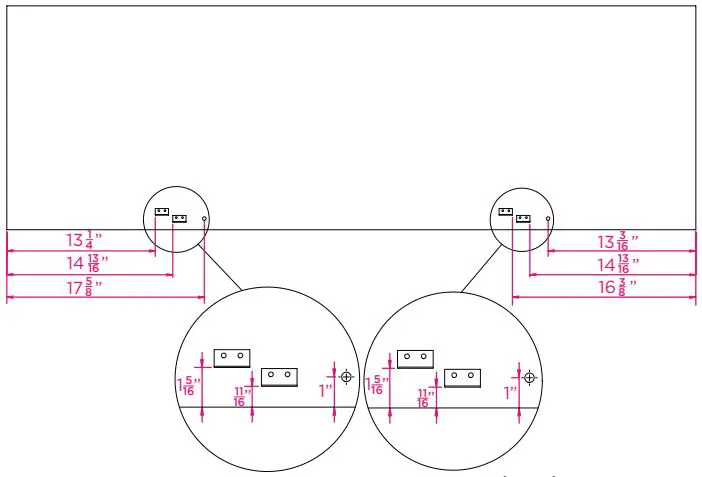

(B) FX (1.25″ Thick) Top: Drill 2.5″ deep holes with a 5/16″ drill bit. Holes should be 17 5/8″ from the left edge, 16 3/8″ from the right edge and 7″ from the bottom edge.

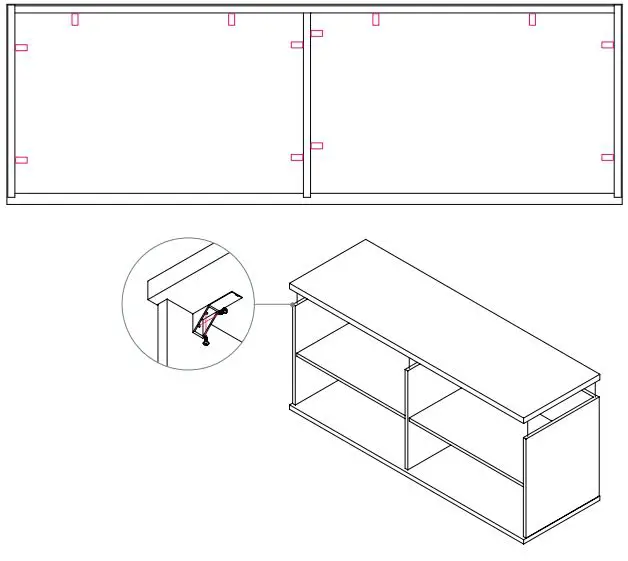

Attach corner braces in the location shown below. Insert 2 wood screws through each of the corner braces into the top and side panels.

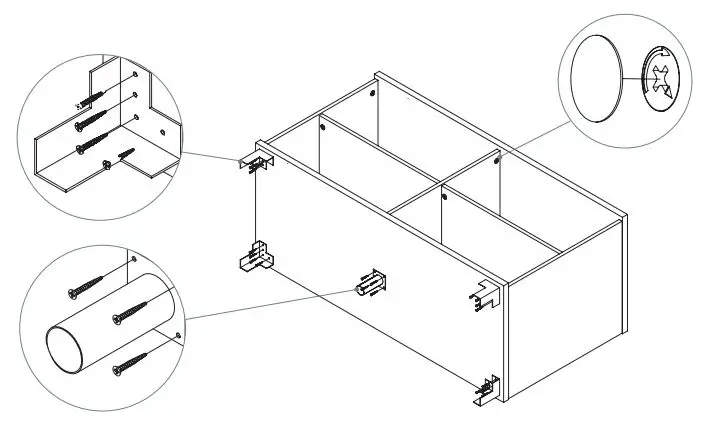

13 | SECURE FEET TO BOTTOM PANEL
Attach corner feet and center foot to the bottom panel with 4 wood screws per foot. Cover all exposed cam locks with cam covers.
14 | SECURE DOORS TO CREDENZA
Use 4 wood screws to the side and center panels.

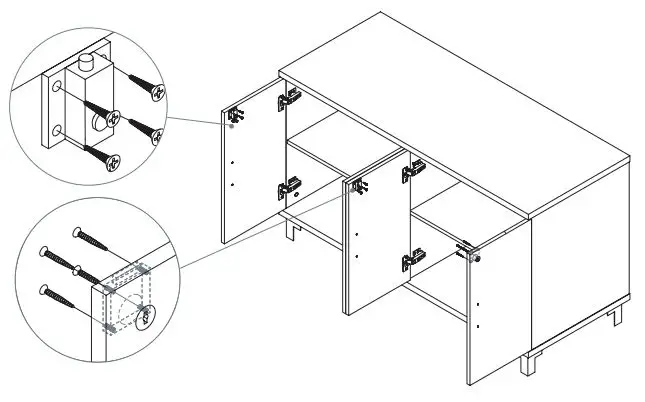

15 | SECURE LOCKS AND LATCHES TO DOORS
Align the cam pins with the open cam locks on the assembled structure. Using a screwdriver, turn the 6 cam locks to lock the cam pins in place.

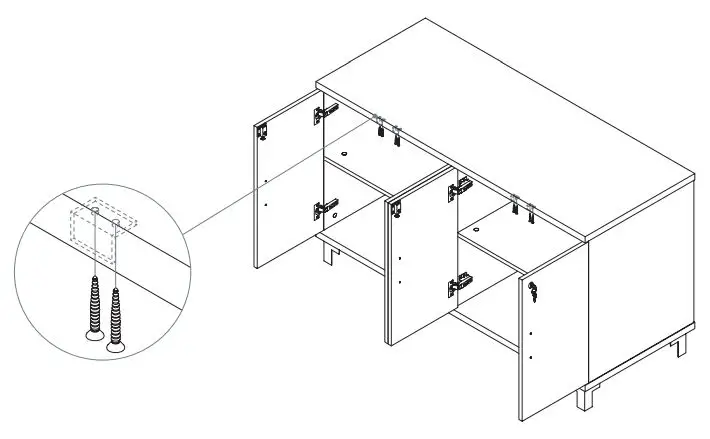

16 | ATTACH CORNER BRACKETS TO THE TOP PANEL
Attach brackets to the underside of the top panel using 2 wood screws each.

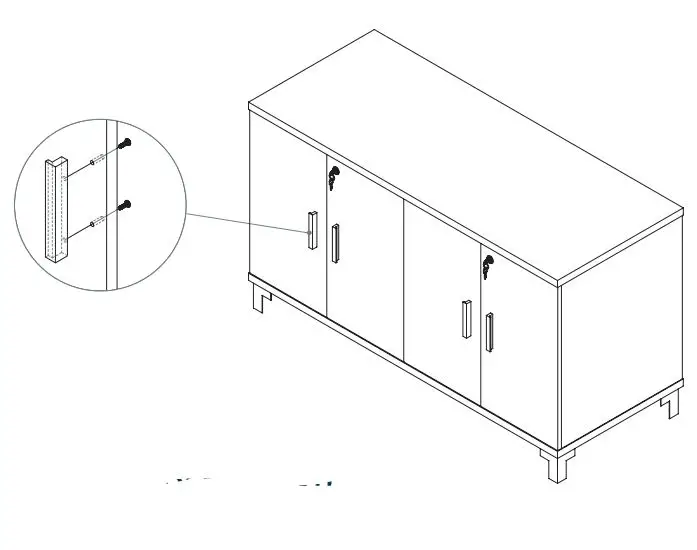

17 | ATTACH HANDLES TO EACH DOOR
Attach using 2 wood screws for each handle.

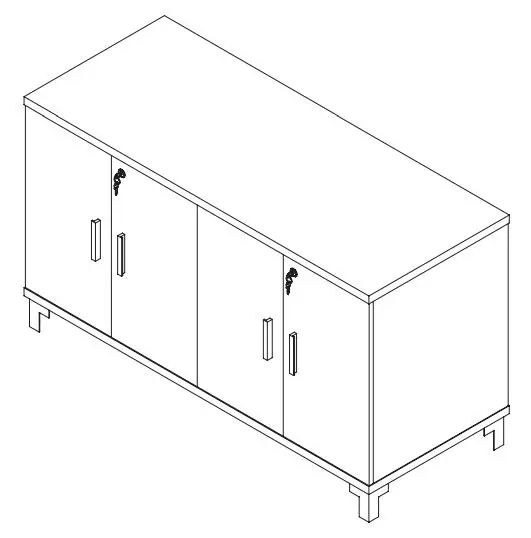

18 | ASSEMBLY COMPLETE
1-866-304-7197 | [email protected] | mycleardesign.com © 2022 Clear Design | Version 22.1.2
