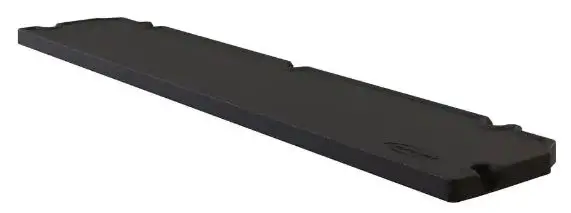

Suncast BMSASHELFK1 24 Inch Resin Storage Shelve Kit
Tools Required
Register your product for Limited Warranty!
Must register product within 90 days of purchase for limited warranty
www.suncast.com/warranty or call US 1 (800) 846-2345
Have Questions?
We are here to help. Check out our resource library along with helpful tips, videos and FAQ’s.
You may call the Contact Center directly at: 1 (800) 846-2345 or write Suncast Corporation, Contact Center, 701 N. Kirk Road, Batavia, IL 60510 (USA)
To purchase Suncast replacement parts and learn about other Suncast products visit us online or call.
www.suncast.com
1-800-846-2345 or 1-630-879-2050.

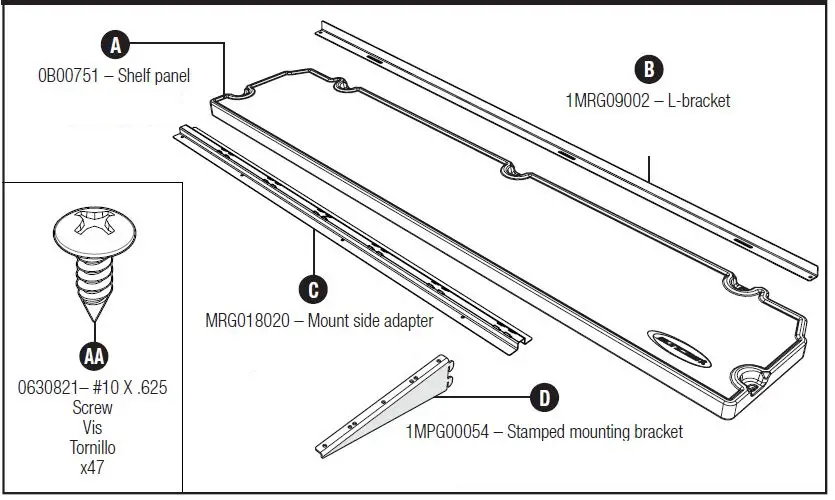

Parts and Hardware
Pre-Assembly

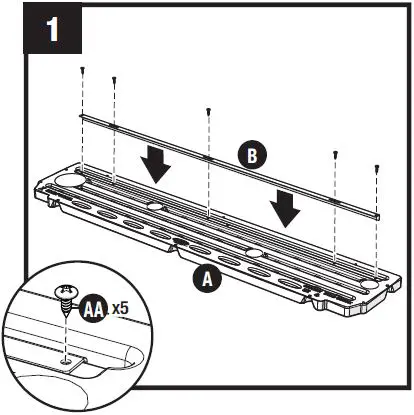

Pre-AssemblyFasten the L-bracket (B) to the shelf panel (A) with five (5) screws (AA).
Note: Hand-tighten the screws to prevent stripping holes.
Assembly

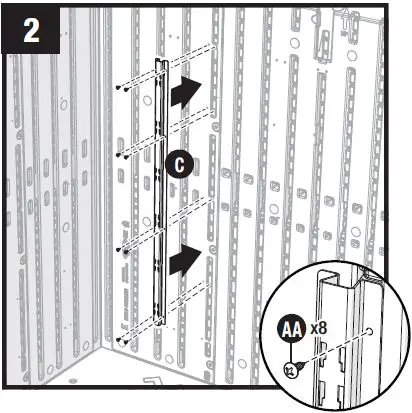

Align the mount side adapter (C) with the mounting holes near the backmost side panels joint as shown. Secure using eight (8) screws (AA).
NOTE: Some mounting holes may be slightly misaligned or missing for some panels. Hand-tighten the screws to prevent stripping holes.

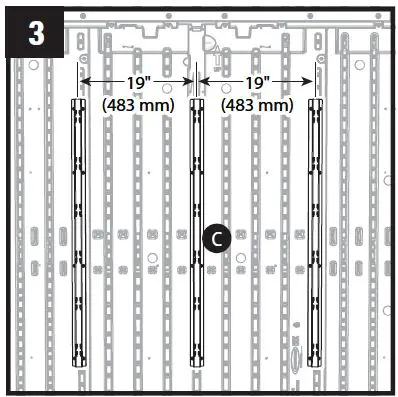

Repeat step 2 for the other two shelf mount side adapters (C).
NOTE: Be sure to mount side adapters (C) 19″ apart from each other for proper shelf installation. Hand-tighten the screws to prevent stripping holes.

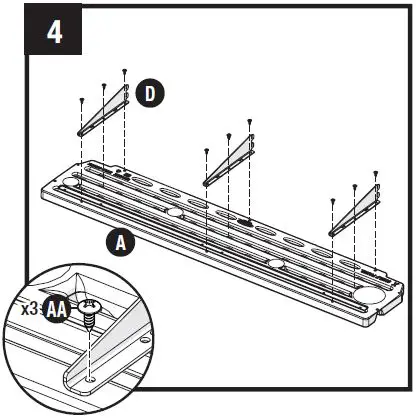

Install three shelf brackets (D) to underside of one shelf (A) with three screws (AA) each. Repeat for remaining shelf and brackets.

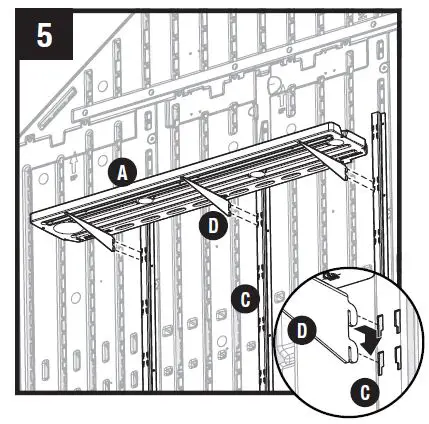

Install shelf with brackets (A, D) onto mount side adapters (C).

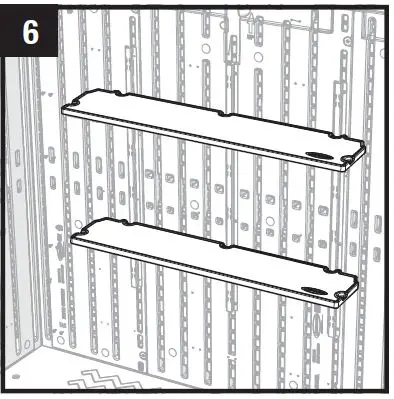

Repeat steps 1-5 for remaining shelf.
