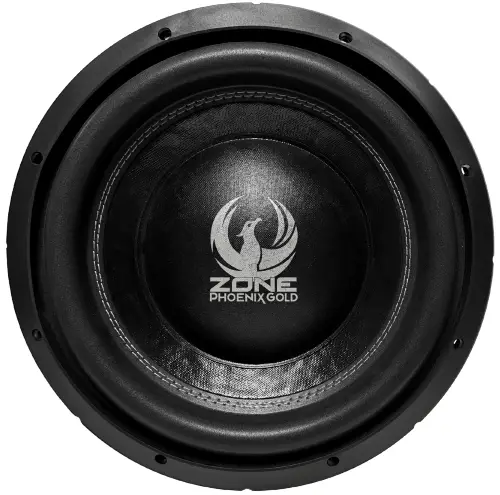

PHOENIX GOLD LogoZONE122 12 Inch High Power SPL Subwoofer
InstructionsPHOENIX GOLD ZONE122 12 Inch High Power SPL Subwoofer

FEATURES

MAX Power– Able to take an incredible 6000 watts of pure power
Aluminium basket– PG designed, powder coated aluminium baskets help deliver exceptional bass
High roll foam surround– Helps to maximize the performance of the subwoofers
Vented frame & motor– Better thermal efficiency, reduces motor compression and provides extended low frequency response
Big quality motor– Triple stacked, high quality magnets weighing in at 235 ounces

SPECIFICATION

SPECIFICATIONZONE122
Speaker Size12” / 300mm
Nominal Impedance (Z)2 x 2 ohms
Resonance Frequency (Fs)33.948 Hz
Piston Area (Sd)510.71 cm²
Force Factor (BL)14.033 Tm
Mechanical Q Factor (Qms)7.878
Electrical Q Factor (Qes)0.446
Total Q Factor (Qts)0.422
Sensitivity 1W/1M (SPL)84.7 dB
Mechanical Compliance (Cms)58.735 μM/N
Moving Mass (Mms)374.2 g
Volume Acoustic Compliance (Vas)21.754 Ltr
Nominal Power (Pe)2000 Watts
Peak Power6000 Watts
Voice Coil Diameter3” / 75mm
Overall Diameter (A)12.95in/329.00mm
Cut Out Diameter (B)11.32in/287.53mm
Mounting Depth (C)7.55in/192.00mm

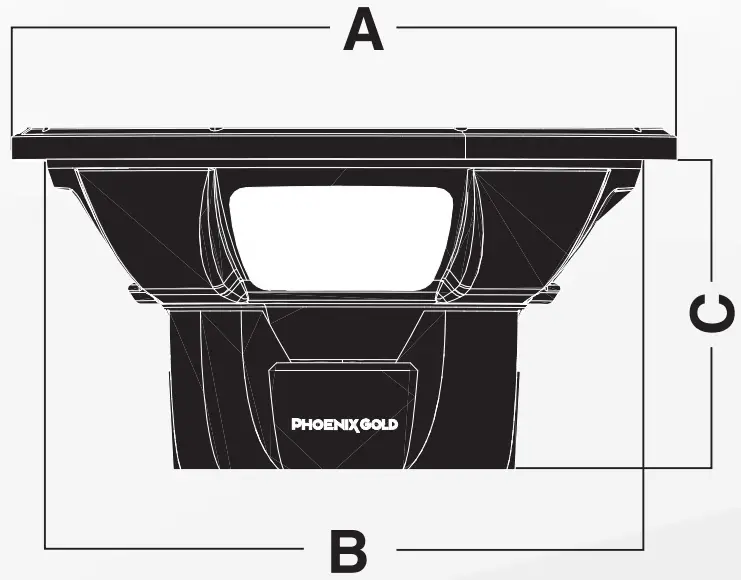

PHOENIX GOLD ZONE122 12 Inch High Power SPL Subwoofer - SPECIFICATION

Enclosure Recommendations

Speaker and port displacement are already taken into account for recommended enclosures
ZONE122

Ported Enclosure
Net Internal Volume60 Ltr
Slot Port Area230cm²
Slot Port Length81cm
Port Tuning35Hz

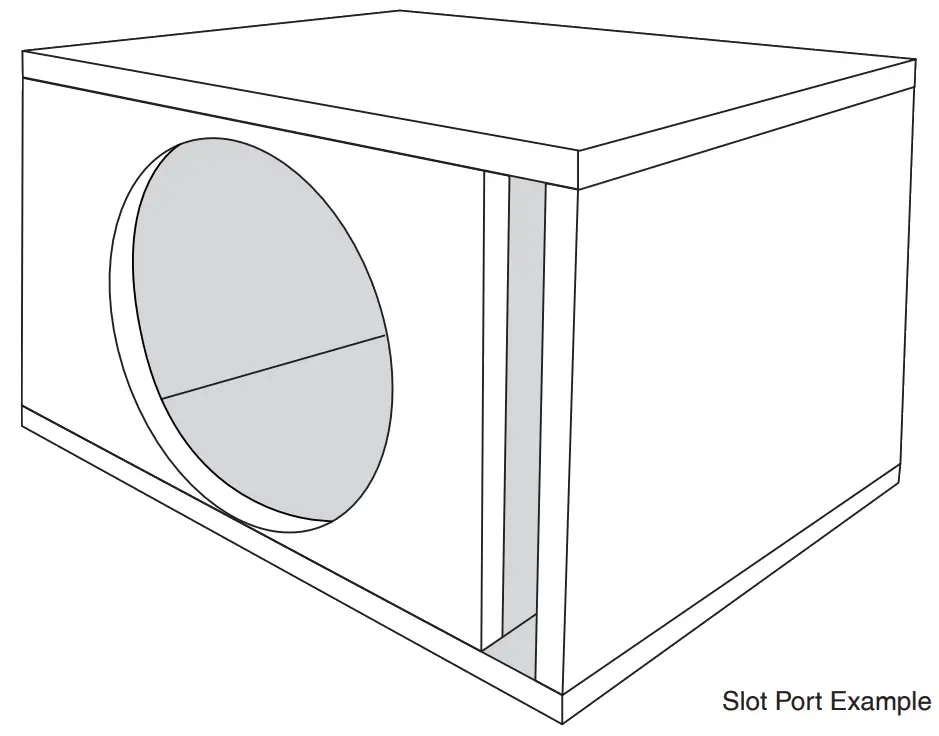

PHOENIX GOLD ZONE122 12 Inch High Power SPL Subwoofer - Ported Enclosure

SINGLE SUBWOOFER SYSTEM
WIRED IN PARALLEL

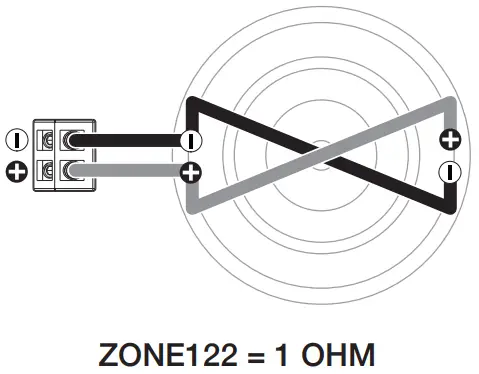

SINGLE SUBWOOFER SYSTEM

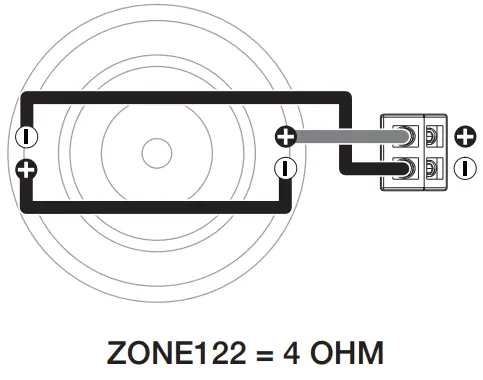

WIRED IN SERIES
PHOENIX GOLD ZONE122 12 Inch High Power SPL Subwoofer - SINGLE SUBWOOFER SYSTEMPHOENIX GOLD ZONE122 12 Inch High Power SPL Subwoofer - WIRED IN SERIES
DUAL SUBWOOFER SYSTEM

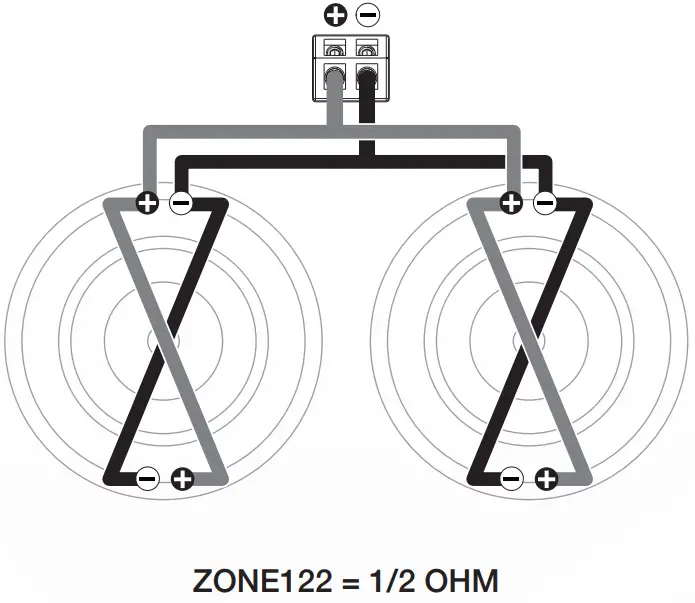

WIRED IN PARALLEL
DUAL SUBWOOFER SYSTEM

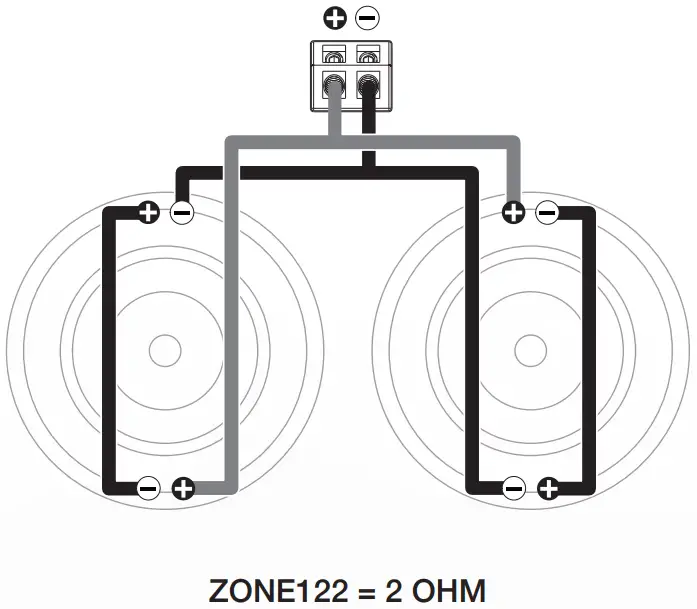

WIRED IN SERIES – PARALLEL
PHOENIX GOLD ZONE122 12 Inch High Power SPL Subwoofer - WIRED IN PARALLELPHOENIX GOLD ZONE122 12 Inch High Power SPL Subwoofer - WIRED IN SERIES - PARALLEL

Disclaimer
Always ensure the enclosure is securely attached, to avoid movement. PHOENIX GOLD accepts no responsibility for damage or injury in relation to inappropriate securing of this product.

Phoenix Gold Product Warranty

LIMITED WARRANTY ON SUBWOOFERS
Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold or it’s Country distributor / reseller will (at its discretion) repair or replace the defective product with new or re-manufactured product at no charge. Damage caused by the following is not covered under warranty: accident, misuse, abuse, product modification or neglect, failure to follow installation instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under warranty.

PHOENIX GOLD Logo© 2022 Phoenix Gold
A Brand of AAMP Global
www.phoenixgold-eu.com
REV1.121222PHOENIX GOLD ZONE122 12 Inch High Power SPL Subwoofer - Logo
