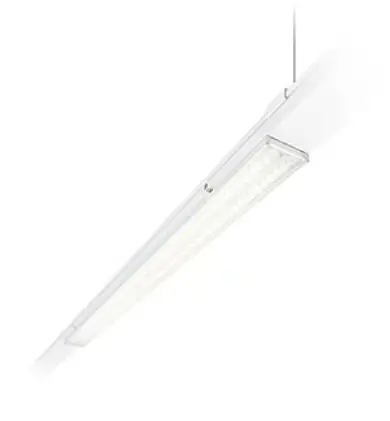

PHILIPS LL500T Gen2 Maxos Fusion Hanging Light Fixture

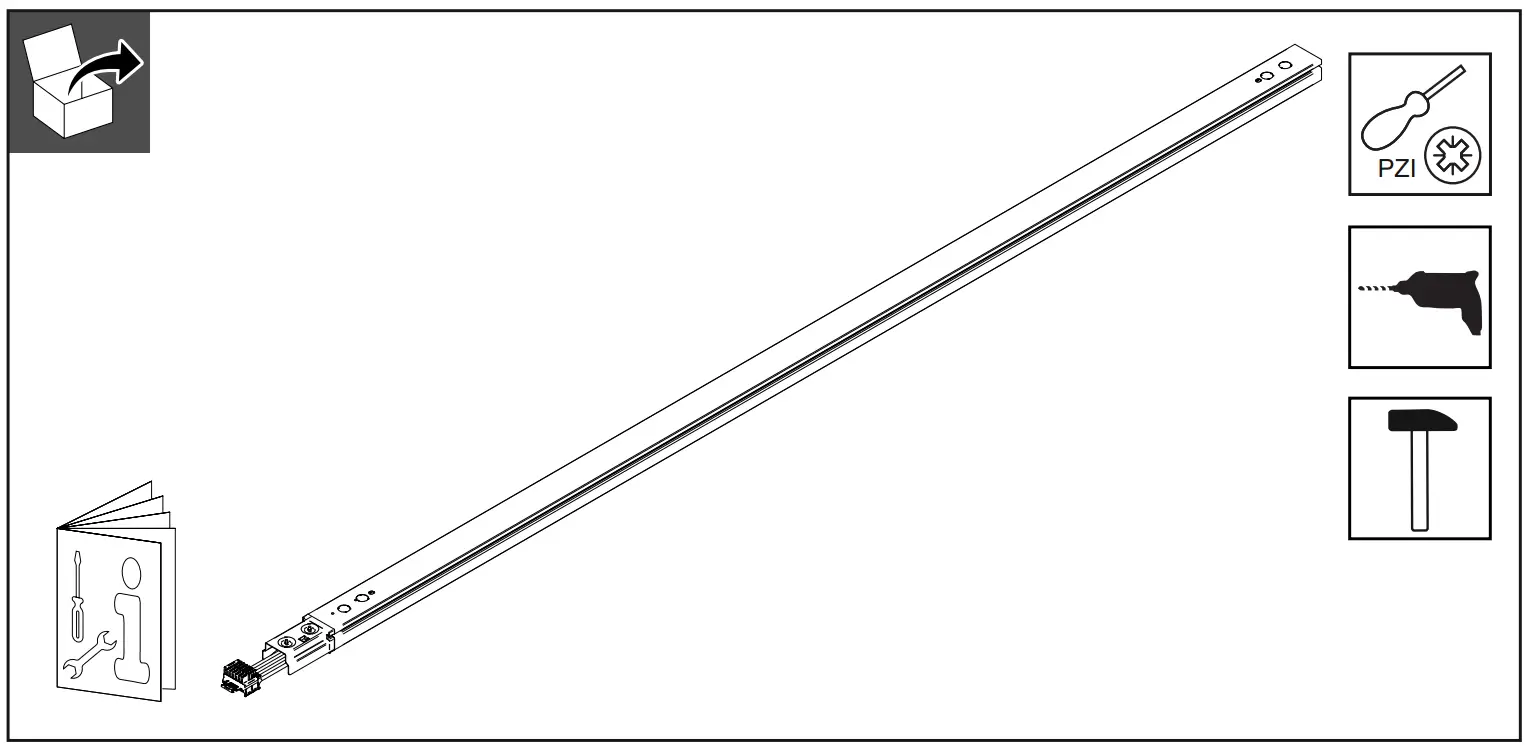

In the Box
Symbols

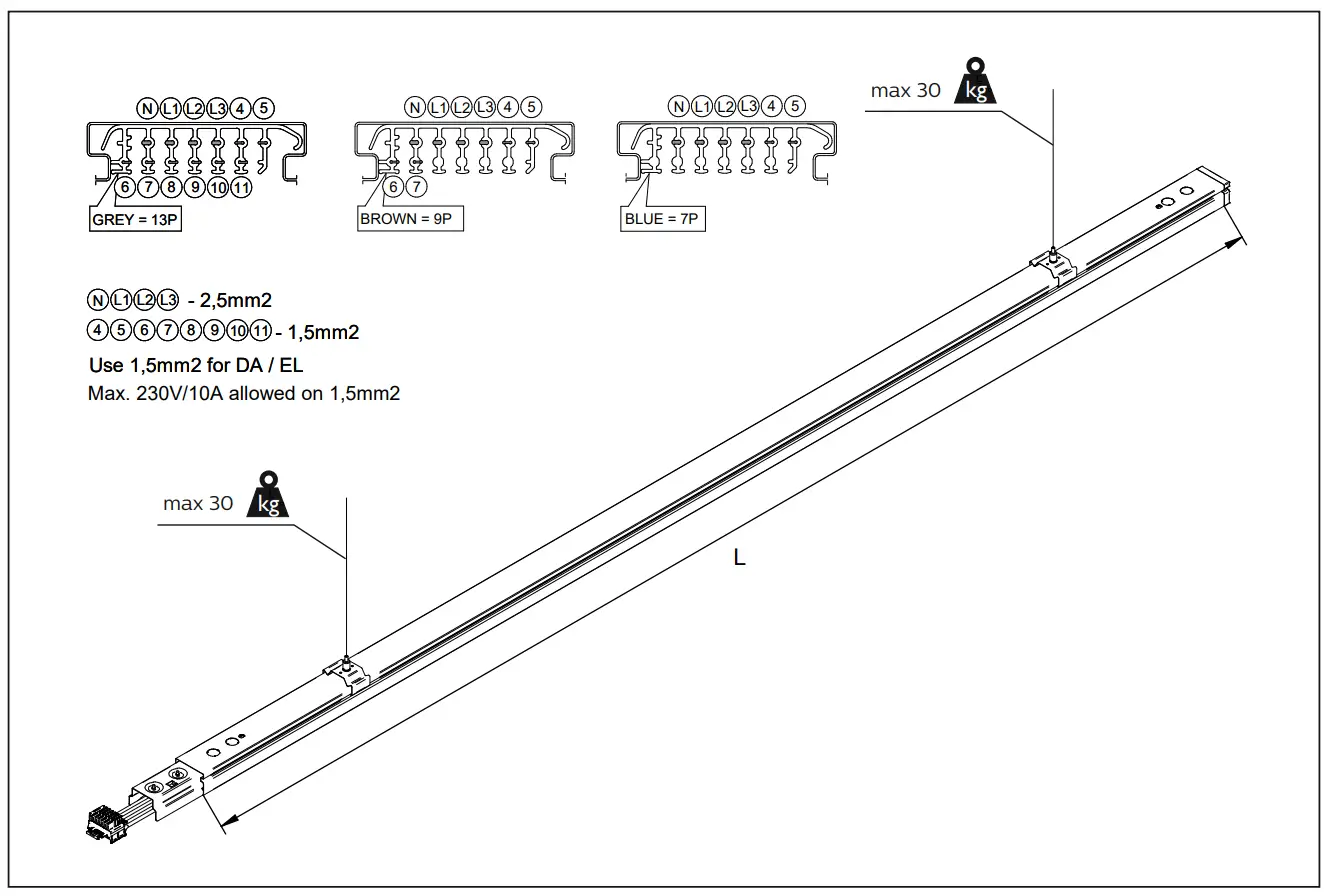

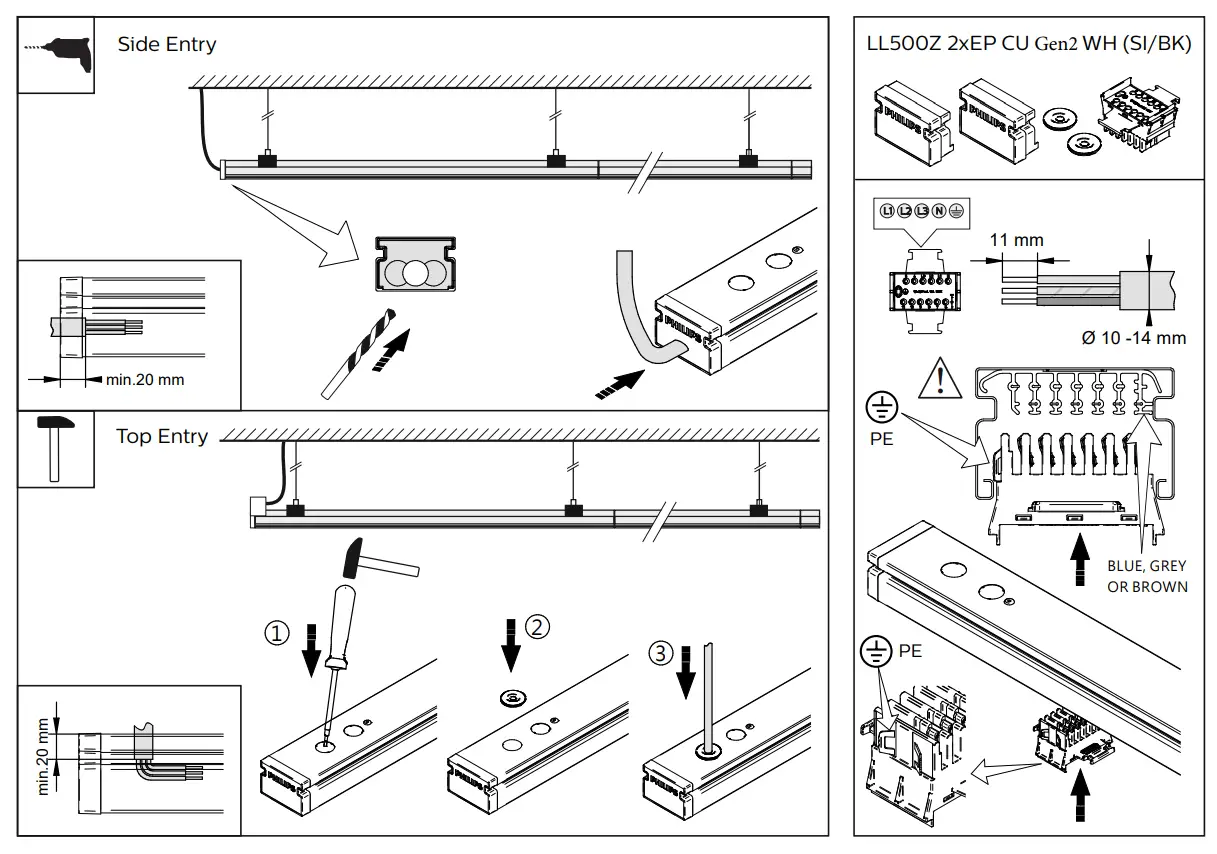

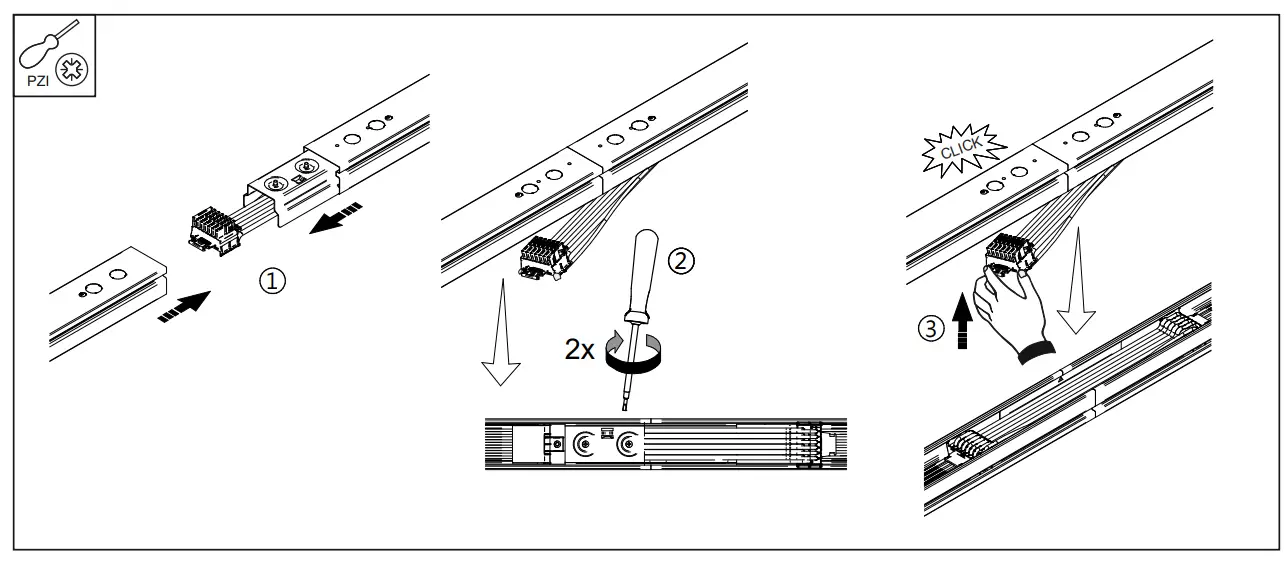

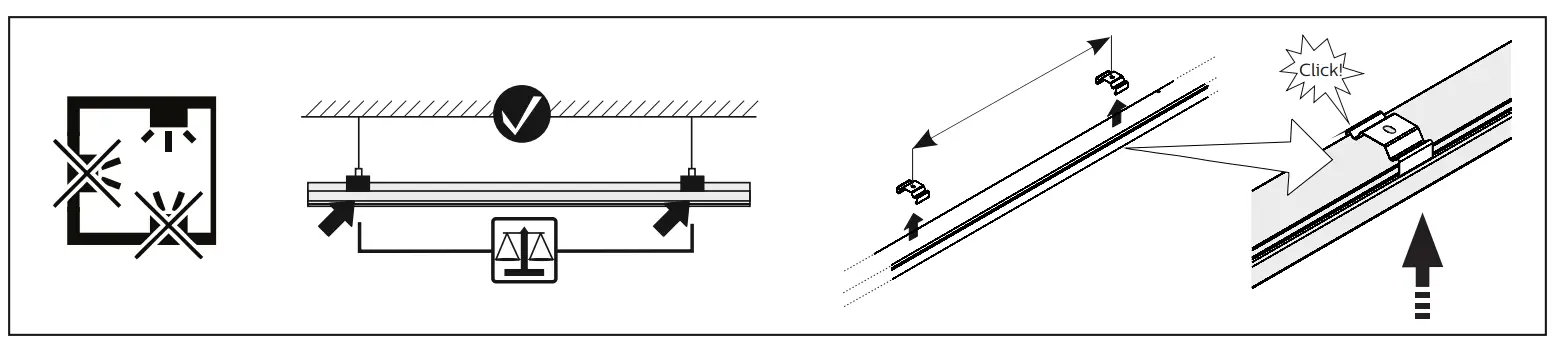

Installation Instruction

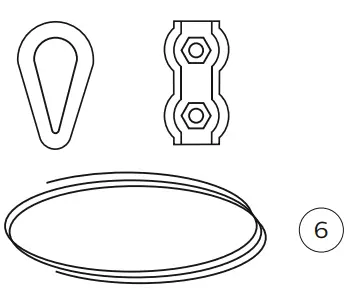

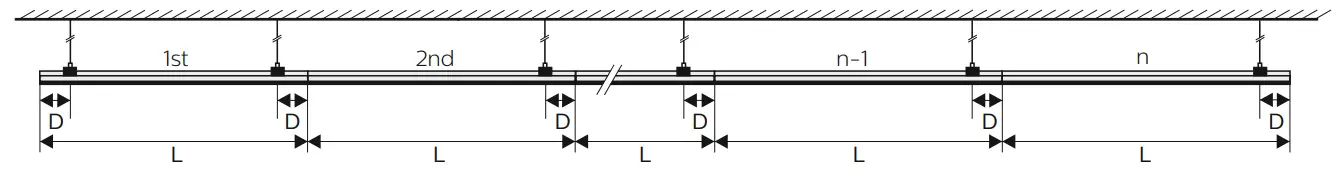

Suspension Brackets
| Pos | Description |
| LL500Z SMB WH | Surface mounted bracket white |
| LL500Z SMB SI | Surface mounted bracket silver |
| LL500Z SMB BK | Surface mounted bracket black |

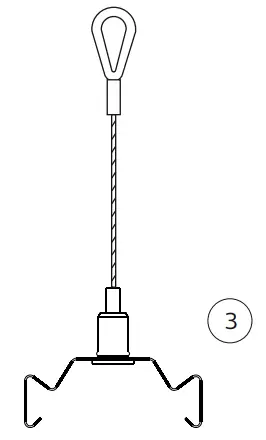

| LL500Z MB-SW WH | Mounting bracket for suspension wire (2 mm), white |
| LL500Z MB-SW SI | Mounting bracket for suspension wire (2 mm), silver |
| LL500Z MB-SW BK | Mounting bracket for suspension wire (2 mm), black |
| LL500Z MB-SW2 L5000 WH | Mounting bracket with suspension wire l = 5000 mm, white |
| LL500Z MB-SW2 L5000 SI | Mounting bracket with suspension wire l = 5000 mm, silver |
| LL500Z MB-SW2 L5000 BK | Mounting bracket with suspension wire l = 5000 mm, black |

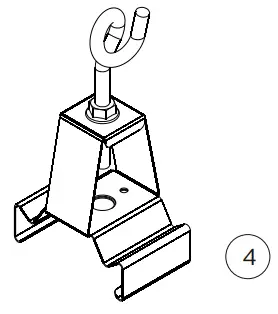

| LL500Z CB-CH WH | Chain bracket, white |
| LL500Z CB-CH SI | Chain bracket, silver |
| LL500Z CB-CH BK | Chain bracket, black |

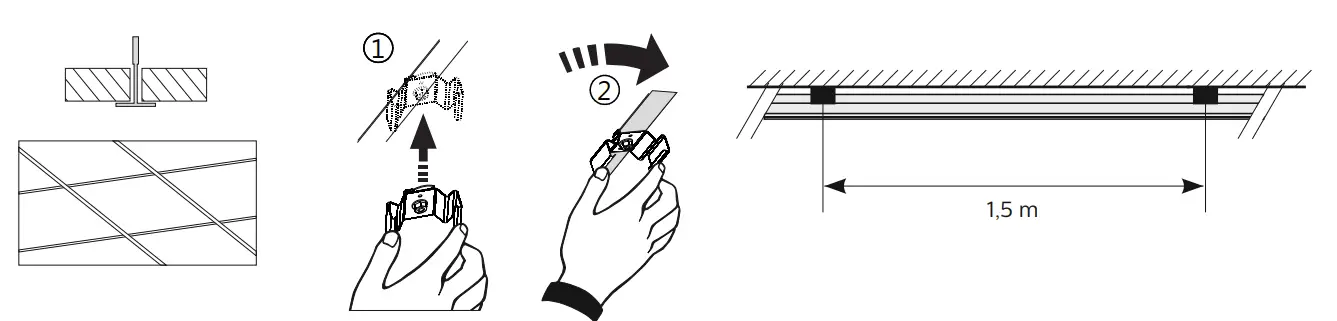

| LL500Z PB WH | profile bracket for visible T-profiles, white |
| LL500Z PB SI | profile bracket for visible T-profiles, silver |
| LL500Z PB BK | profile bracket for visible T-profiles, black |
| LL500Z SW2 L1250 | suspension wire diameter 2 mm, L=1250mm |
| LL500Z SW2 L3000 | suspension wire diameter 2 mm, L=3000mm |
| LL500Z SW2 L5000 | suspension wire diameter 2 mm, L=5000mm |
