Samsung EP-P3105 Fast Wireless Charger Pad
Read me first
Please read this manual before using the device to ensure safe and proper use.
- Images may differ in appearance from the actual product. Content is subject to change without prior notice.
- Before using the wireless charger, make sure it is compatible with your device.
Instructional icons
- Warning: situations that could cause injury to yourself or others
- Caution: situations that could cause damage to your device or other equipment
- Notice: notes, usage tips, or additional information
Package contents
Check the product box for the following items
- Wireless charger
- USB power adaptor
- USB cable
- Quick start guide
- Wireless charging covers are sold separately.
- The items supplied with the device and any available accessories may vary depending on the region or service provider.
- The supplied items are designed only for this device and may not be compatible with other devices.
- Appearances and specifications are subject to change without prior notice.
- You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase.
- Use only Samsung-approved accessories. Using unapproved accessories may cause performance problems and malfunctions that are not covered by the warranty.
- Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website.

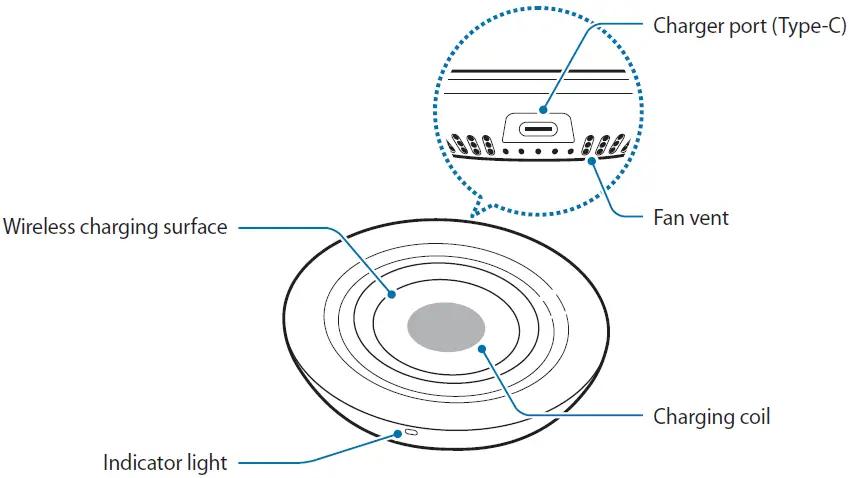

Device layout
Using the wireless charger
Charging your device

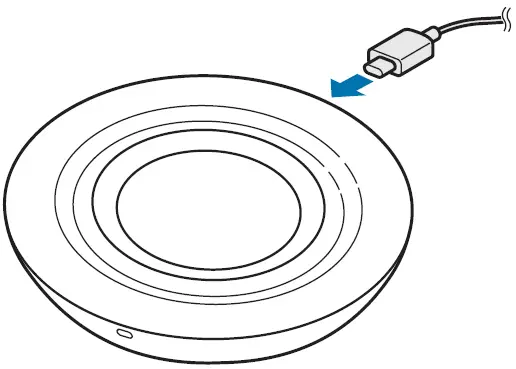

- Connect the charger to the wireless charger.

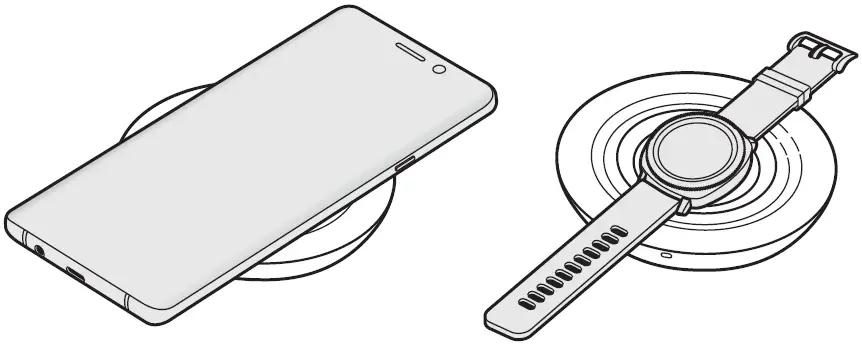

When the charger is correctly connected to the wireless charger, the indicator light flashes red, green, and orange, and then turns off. Use Samsung-approved chargers (9.0 V/1.67 A) provided with the wireless charger. - Place a supported mobile device or Galaxy Watch on the wireless charging surface.
- Charging will begin when the wireless charging surface comes into contact with the wireless charging coil of the mobile device or the Galaxy Watch.
- Check the charging icon displayed on the screen of the mobile device or the Galaxy Watch for the charging status.
- To begin fast wireless charging, place a mobile device that supports fast wireless charging on the wireless charger. For more information, refer to the mobile device’s user manual.
- When the mobile device or the Galaxy Watch is fully charged, remove the mobile device or the Galaxy Watch from the wireless charger.
Precautions for the mobile device or the Galaxy Watch charging
- Do not place the mobile device on the wireless charger with a credit card or radio-frequency identification (RFID) card (such as a transportation card or a key card) placed between the back of the mobile device and the mobile device
- Do not place the mobile device or the Galaxy Watch on the wireless charger when conductive materials, such as metal objects and magnets, are placed between the mobile device or the Galaxy Watch and the wireless
- The mobile device or the Galaxy Watch may not charge properly or may overheat, or the mobile device, the Galaxy Watch, or the cards may be damaged.
- You may need to purchase a charger separately depending on the wireless charger you
- Depending on the location of the wireless charging coil of the mobile device or the Galaxy Watch, your mobile device or your Galaxy Watch may not charge
- Wireless charging may not work properly if you have attached a thick case to your mobile If your case is thick, remove it before placing your mobile device on the wireless charger.
- If you connect a charger to the mobile device during wireless charging, the wireless charging feature will be
- If you use the wireless charger in areas with weak network signals, you may lose network
- The fan inside the wireless charger may produce noise during fast wireless When you deactivate the fast wireless charging feature, the fan noise will be reduced. To see how to deactivate the fast wireless charging feature, refer to the mobile device’s user manual.
- If you place a Galaxy Watch with both connecting bands together on the wireless charging surface, the Galaxy Watch may not charge because the charging coil is not coming into contact with the wireless charging coil of the Galaxy
- The Gear S2 does not support the wireless charging
- To save energy, unplug the charger when not in The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging.
Indicator light identification
The indicator light alerts you to the wireless charger’s status.
| Color | Status |
| Red → Green →
Orange | • When connected to a power outlet |
| Red | • When charging |
| Green | • When fully charged |
| Flashing red | • When not charging properly due to a general error |
| Flashing orange | • When connected to an unsupported charger |
|
Off | • When the mobile device or the Galaxy Watch is removed from the wireless charger or when the wireless charger is not connected to a power outlet |
- If the indicator light does not work as described, disconnect the charger from the wireless charger and reconnect it.
- The indicator light may work differently depending on the mobile device, the Galaxy Watch, or the wireless charging.
Copyright
Copyright © 2019 Samsung Electronics
This manual is protected under international copyright laws. No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system.
Trademarks
- SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung
- All other trademarks and copyrights are the property of their respective
FAQ’s
Yes! They function perfectly with my Samsung earbuds.
On my watch, yes. No problems, no overheating
Yes, the Galaxy S6 is compatible with it with no issues.
If your gadget has wireless charging capabilities, it should.
Once the charger reduces its current flow, the battery will continue to get heated for a while. Your gadget, however, is safe and won’t suffer any damage.
Yes, it performs flawlessly. It depends on how empty the device is before you start charging it whether it will charge up rapidly. Any smartphone that supports Qi fast charging will charge quickly thanks to this fast wireless charger.
Yes, I charge my iPhone 8 Plus through its case, and there are no issues with the charger detecting it or charging it all the way to 100%.
It’s an excellent charger, and yes, it is compatible.
The ideal size is 3.75″ wide by.75″ high.
It Works with any wireless-charging Samsung gadget.
No, the wireless charger is not designed to charge other devices.
Yes, but you should remove the case first.
Yes, when charging your device using a wireless charger, it is normal for your device to become warm or hot. This is due to the nature of wireless charging.
Yes, you can use your device while charging, but using certain features like watching videos may affect the charging speed.
Yes, if your device vibrates during charging, it is normal and should not be considered a malfunction.
The charger will stop charging if your device becomes too hot. Remove the device from the charger and let it cool down before resuming charging.
