QUICK START GUIDE
CHARGE5

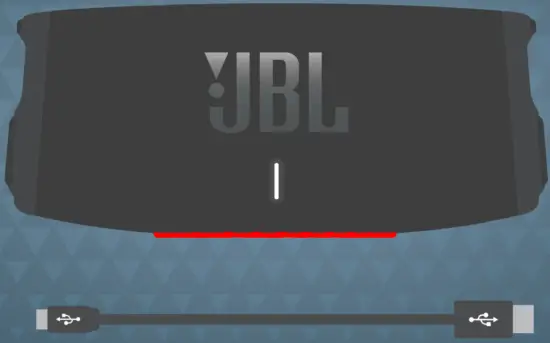

WHAT’S IN THE BOX

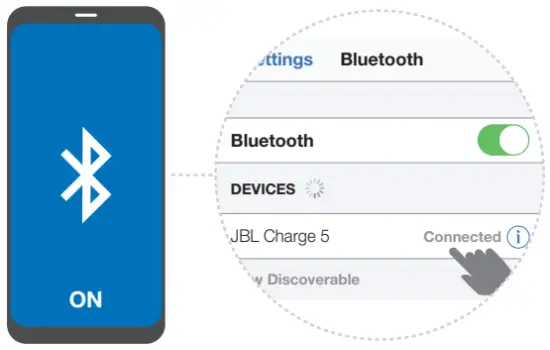

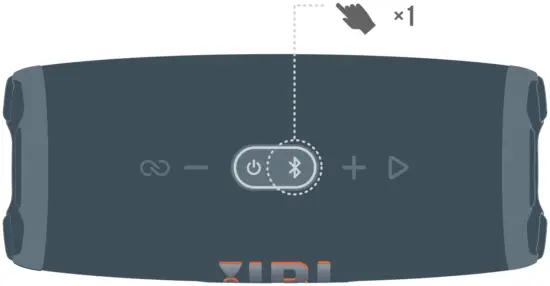

BLUETOOTH PAIRING

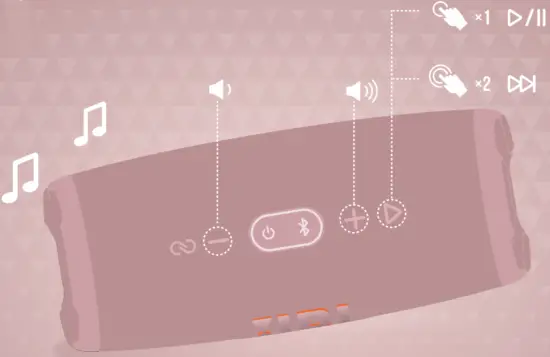

PLAY

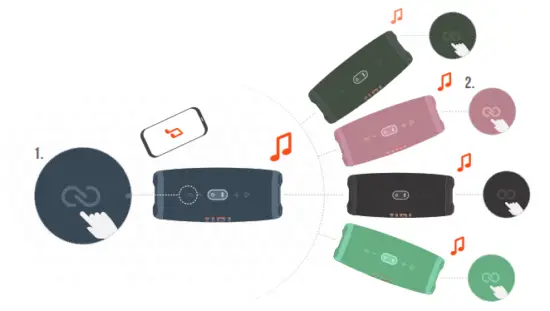

PARTYBOOST

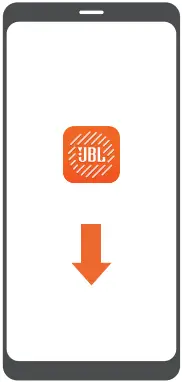

APP
JBL PORTABLE
Use the JBL PORTABLE app for speaker configuration and software upgrades.

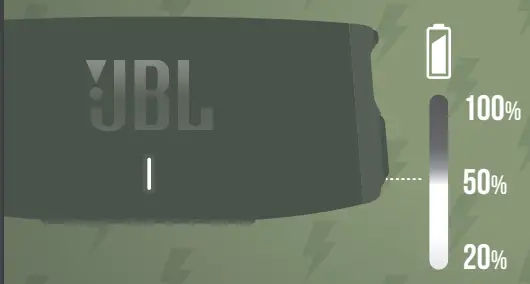

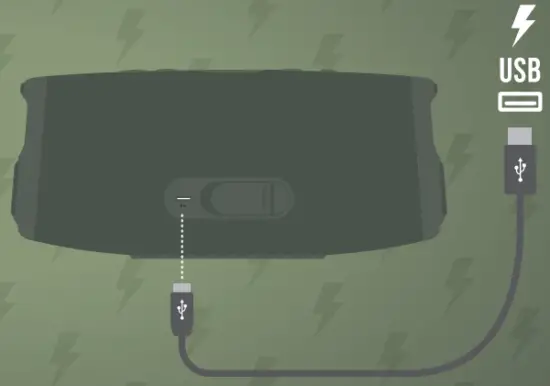

CHARGING

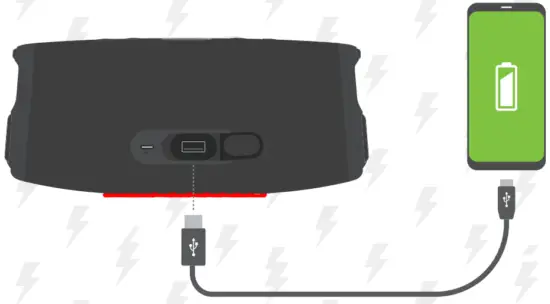

POWERBANK

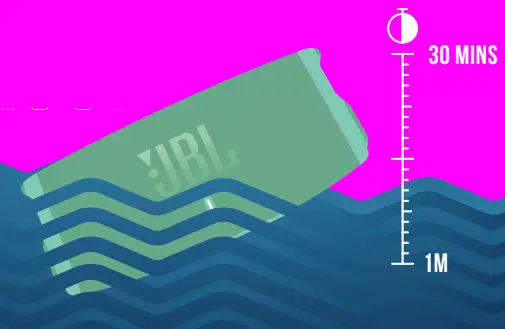

WATERPROOF DUSTPROOF IP67
TECH SPEC
| Transducer: | 52 mm x 90 mm woofer, 20 mm tweeter |
| Rated output power: | 30 W RMS for the woofer, 10 W RMS for the tweeter |
| Frequency response: | 65 Hz – 20 kHz |
| Signal-to-noise ratio: | > 80 dB |
| Battery type: | Li-ion polymer 27 Wh (equivalent to 3.6 V/ 7500 mAh) |
| Battery charge time: | 4 hours (5 V / 3 A) |
| Music playtime: | up to 20 hours (dependent on volume level and audio content) |
| USB port: | Type C |
| USB rating: | 5 V / 2 A (maximum) |
| Bluetooth® version: | 5.1 |
| Bluetooth® profile: | A2DP 1.3, AVRCP 1.6 |
| Bluetooth® transmitter frequency range: | 2400 MHz – 2483.5 MHz |
| Bluetooth® transmitter power: | ≤ 10 dBm (EIRP) |
| 2.4GHz SRD frequency range: | 2407 MHz – 2475 MHz |
| SRD transmitter power: | < 10 dBm (EIRP) |
| Dimensions (W x H x D): | 223 x 96.5 x 94 mm / 8.7 x 3.76 x 3.67 inch |
| Weight: | 0.98 kg / 2.16 lbs |
To protect battery lifespan, fully charge at least once every 3 months. Battery life will vary due to usage patterns and environmental conditions.
Do not expose the JBL Charge 5 to liquids without removing the cable connection. Do not expose JBL Charge 5 to water while charging. After a liquid spill, do not charge your speaker until it’s completely dry and clean. Charging when wet may result in permanent damage to the speaker or power source.
When using an external adapter or USB-C cable, the speaker performance will be affected during charging.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
PA_JBL_Charge 5_QSG_SOP_V8
Anatel — Agência Nacional de Telecomunicações
