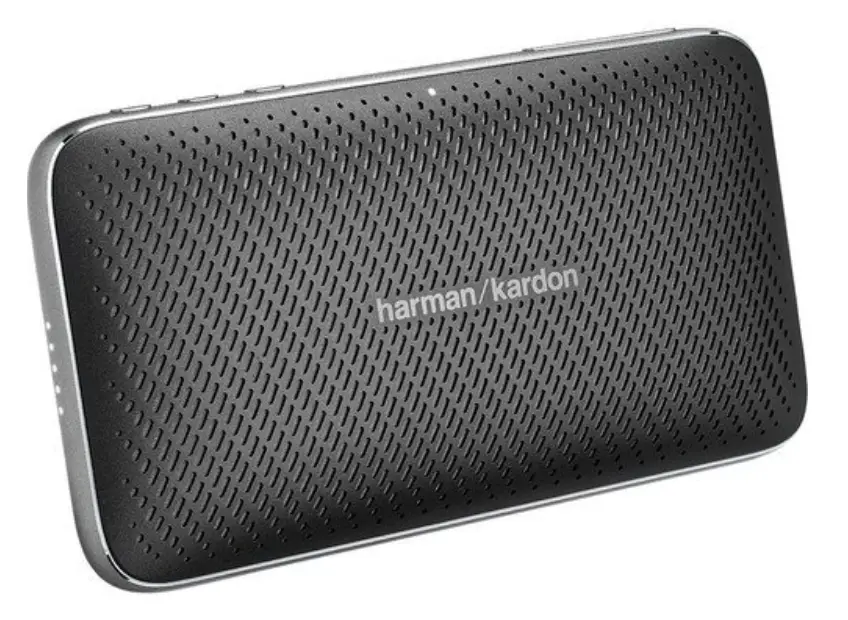

HARMAN Esquire Mini 2 Portable Bluetooth Speaker

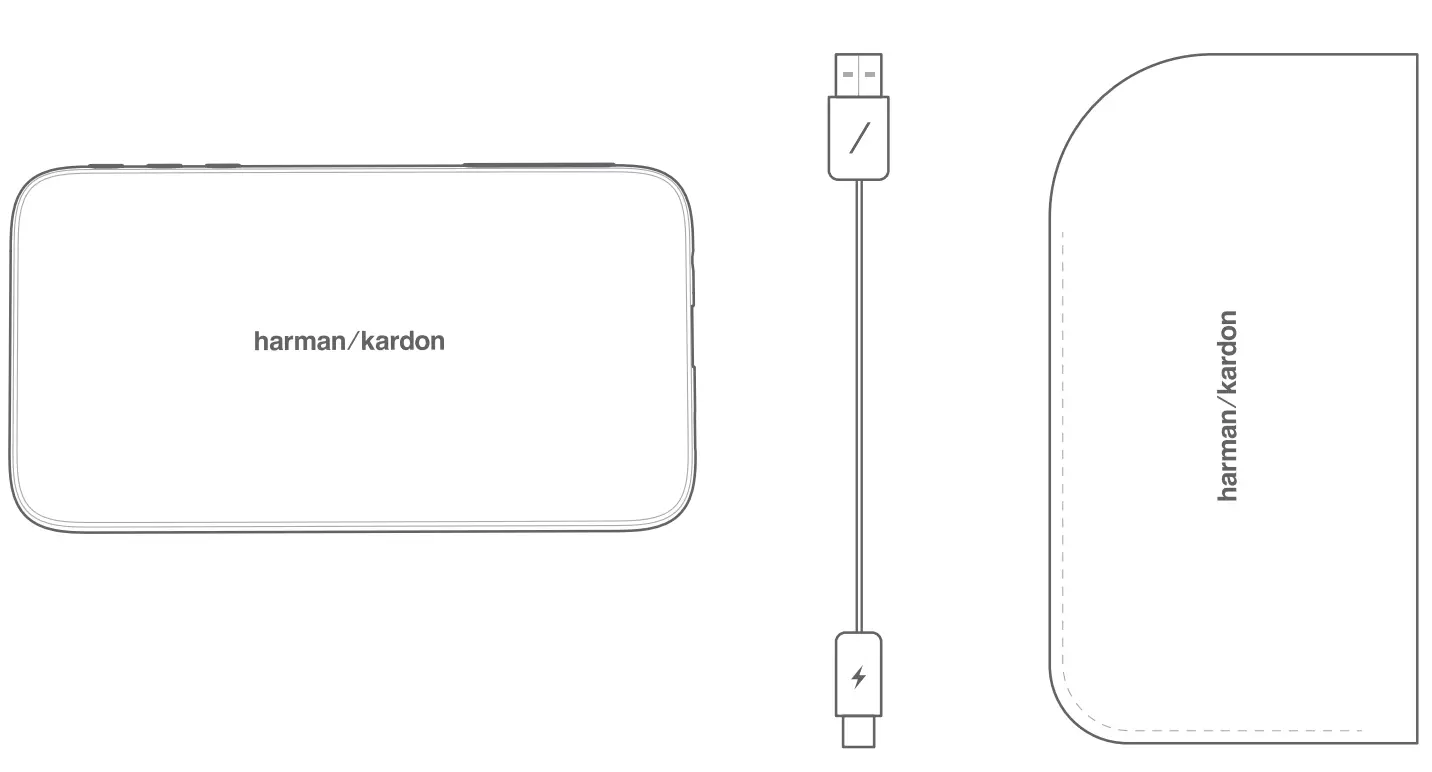

WHAT’S IN THE BOX

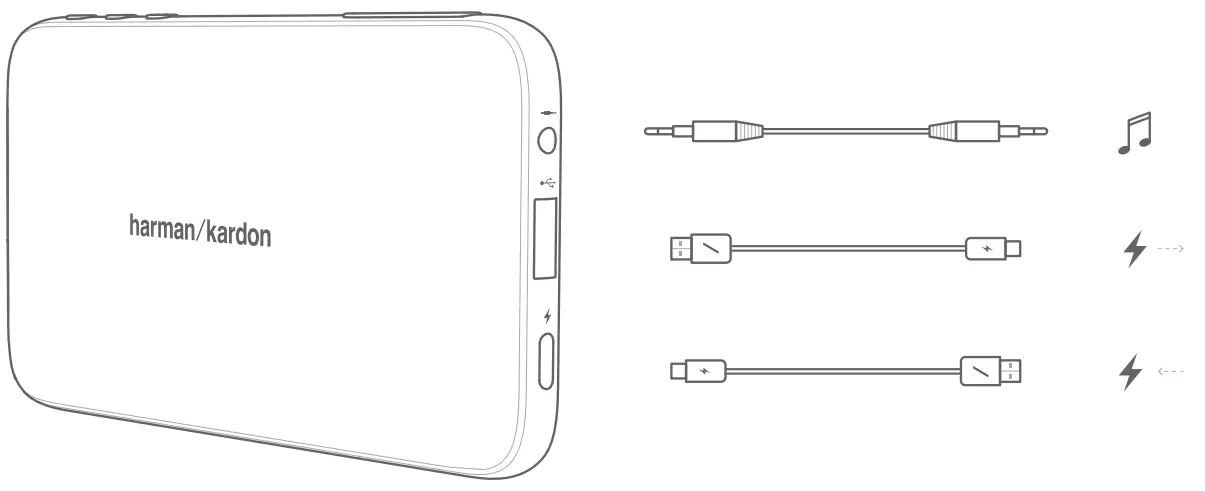

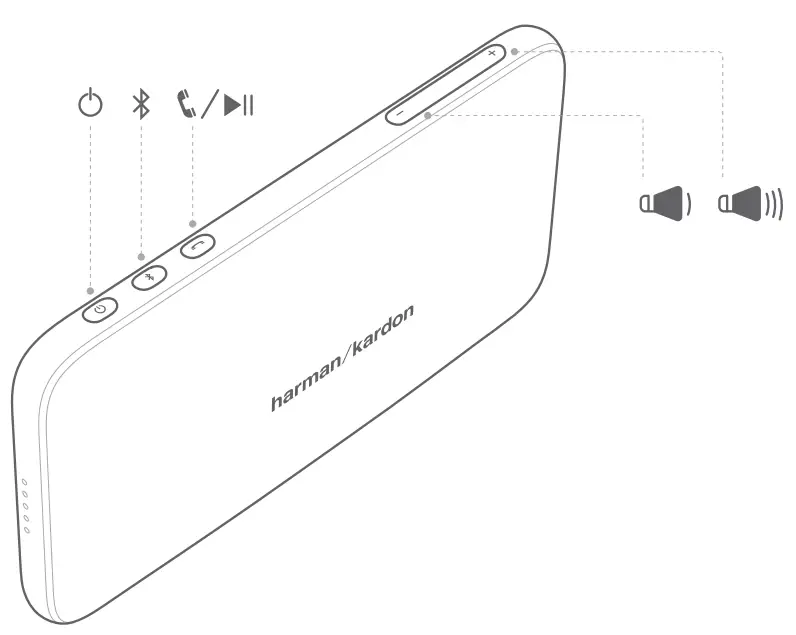

CONNECTIONS

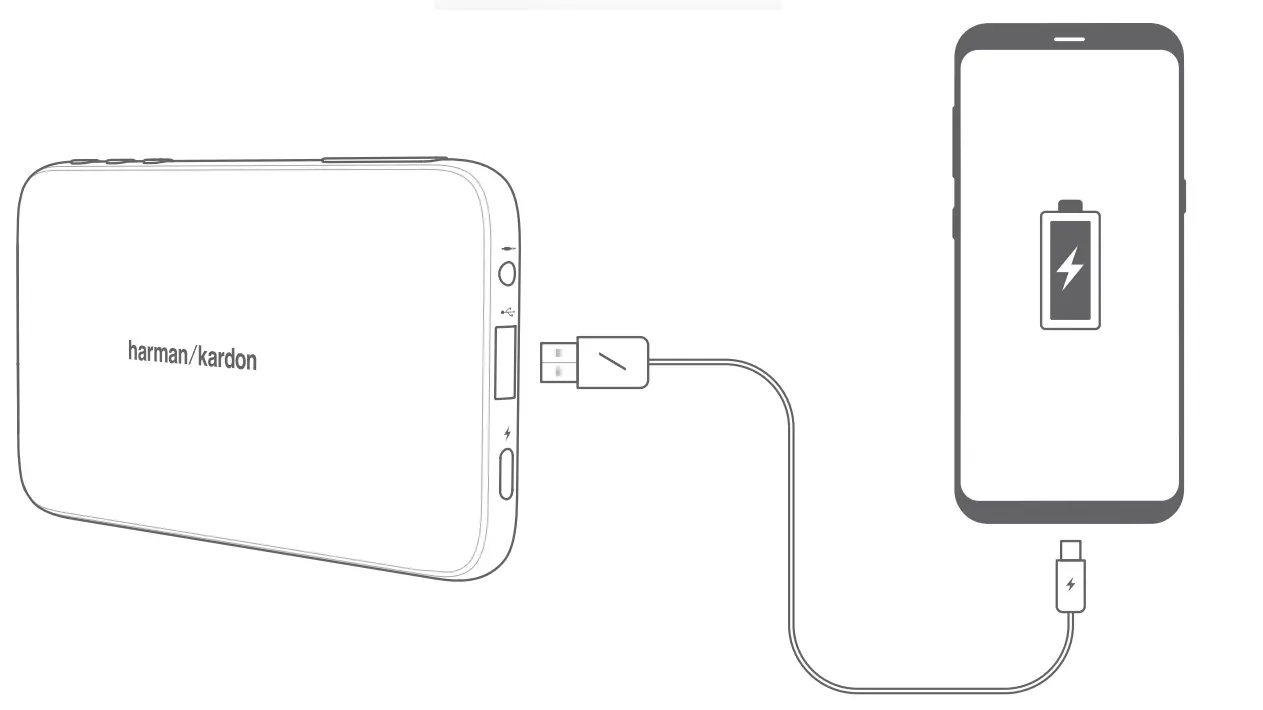

POWERBANK
BLUETOOTH

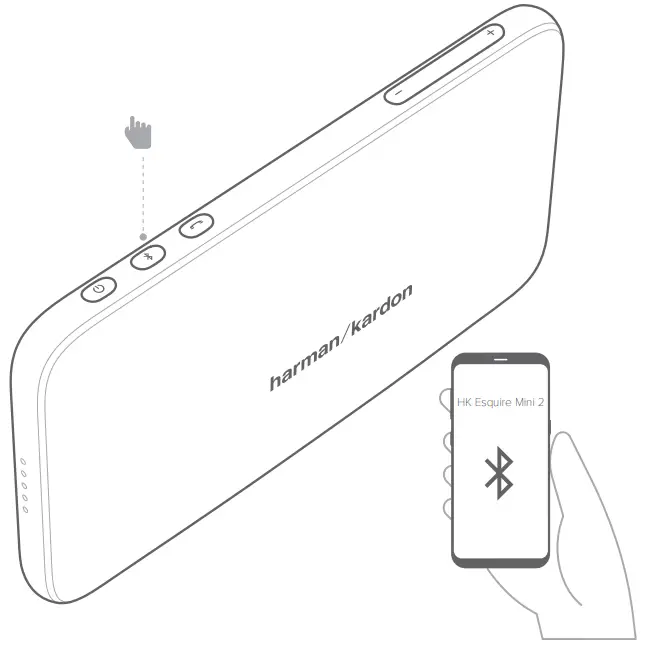

Bluetooth connection

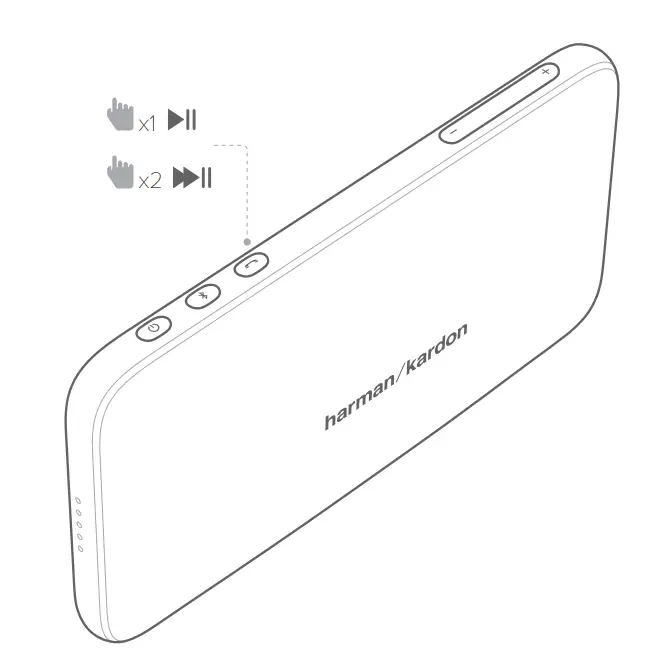

Music control

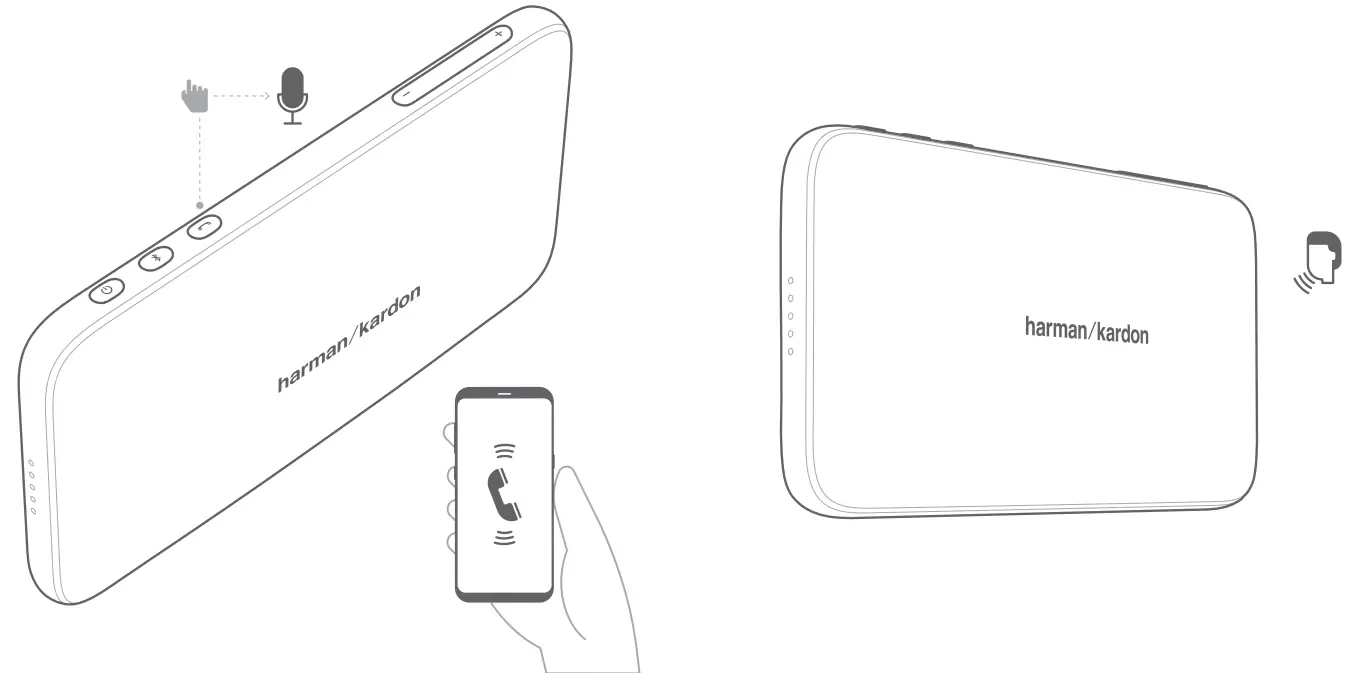

SPEAKERPHONE

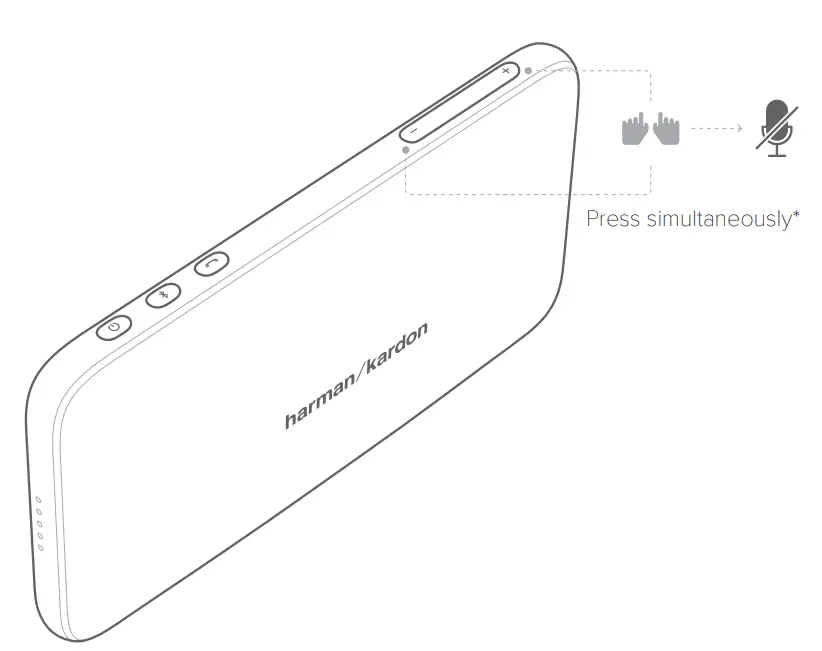

MUTE

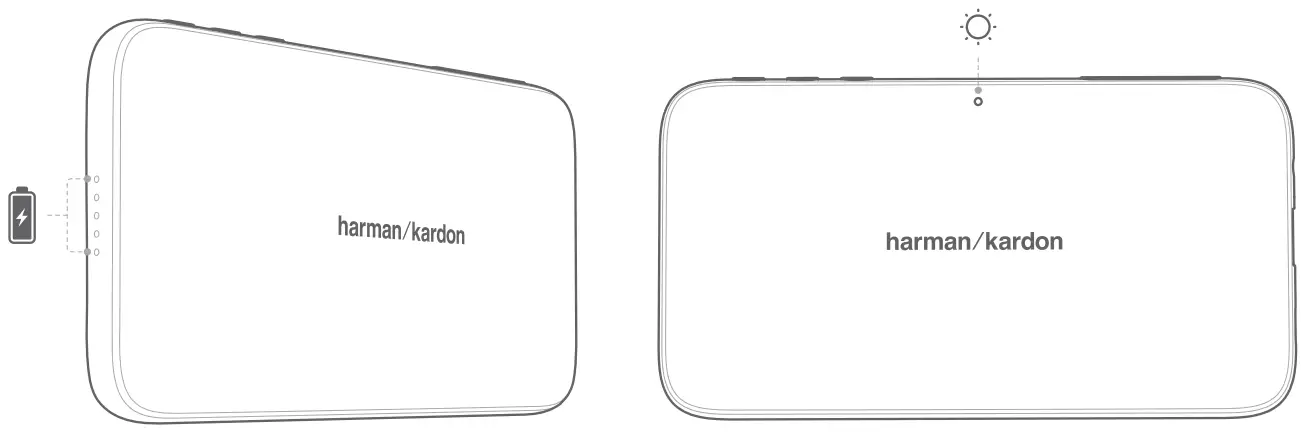

LED INDICATION
Battery charging indication
Main LED indication
| LED indication | Status | |
 | On | Battery > 15% |
 | Regular blinking | Battery < 15% |
| Regular blinking | Charging |
 | Fast blinking | Pairing mode / incoming call |
 | Slow blinking | Bluetooth not connected |
 | On | Bluetooth connected |
| On | Having phone call |
 | On | Mute |
TECHNICAL SPECIFICATIONS
- Bluetooth version: 4.2
- Support: A2DP 1.3, AVRCP 1.5, HFP 1.6
- Transducers: 1.75 inch full range *1
- Rated power: 8W RMS
- Frequency response: 130Hz – 20kHz(-6dB)
- Signal-to-noise ratio: 80dB
- Charging input: 5V 1A
- Battery type: Lithium-ion Polymer (3.8V/2200mAh)
- Battery charge time: 3 hours
- Music playing time: up to 10 hours (varies by volume level and content)
- USB charge out: 5V 1A (Maximum)
- Bluetooth transmitter power: 0 – 9dBm
- Bluetooth transmitter frequency range: 2402MHz – 2480MHz
- Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
- Dimensions (H x W x D): 75.20 x 140 x 26.10mm
- Weight: 250.5g
For more information, please visit harmankardon.com
