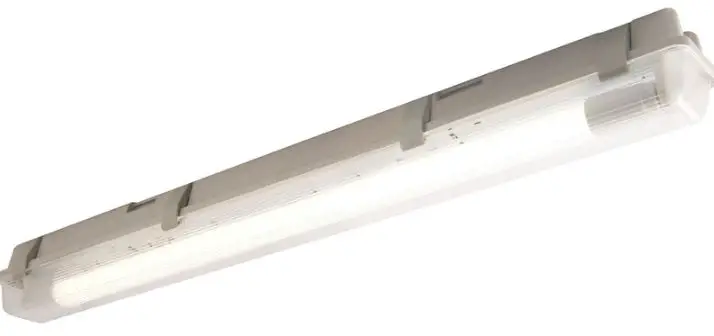

luceco ECT6W16S40-01 LED Eco Climate T8 Tube

ASSEMBLY AND INSTALLATION

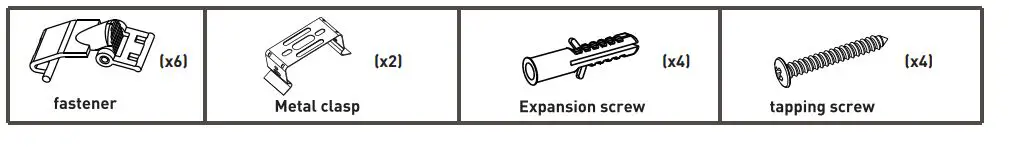

ACCESSORIES

This luminaire is made from polycarbonate with polycarbonate clips. Ensure the product is suitable for the installation area. This Luminaire is suitable for use in temperatures of -10°C to +40°C. Surface-mounted only.
Disconnect the power supply before installation.

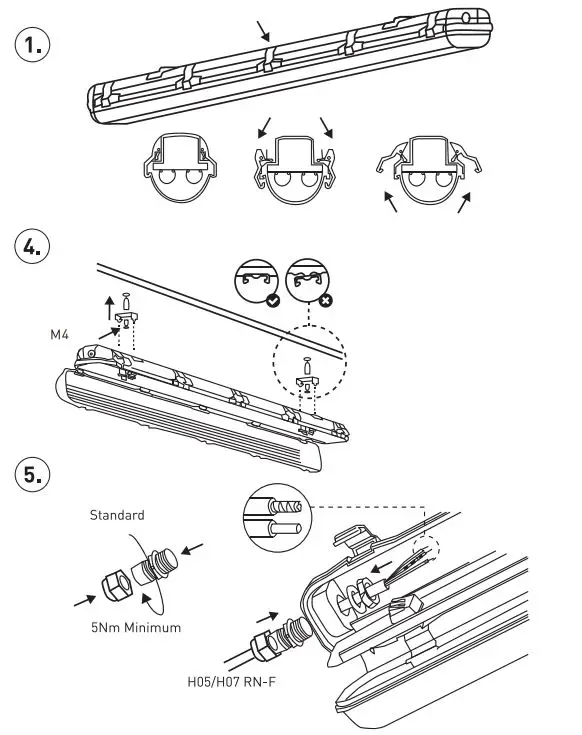

1. Fix plastic retainer clips to bottom fitting housing.
2. Remove gear tray by rotating holders or releasing fixing clips. Lift to remove.
3. Fix lamp holders from the rear of the gear tray [the two wired to the terminal block and the two included in the accessories pack to be installed at opposite ends.)
4. Drill the fixing holes at a suitable place for installation [wall/ceiling) fix the body to the fixing clips.
5. Fit cable gland and suitable cable through gland entry at end of the base. Ensure the hole is removed of burrs to ensure IP65 seal.
