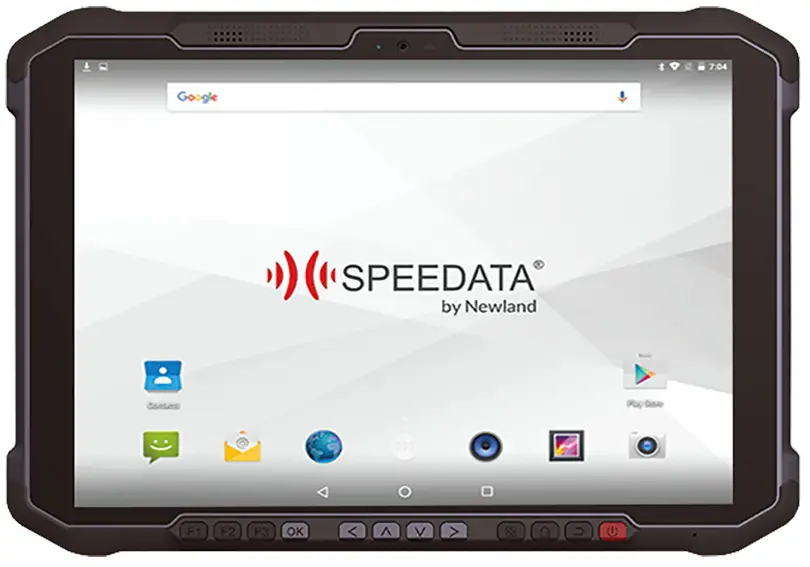

SPEEDATA SD100 Orion II Mobile Computer

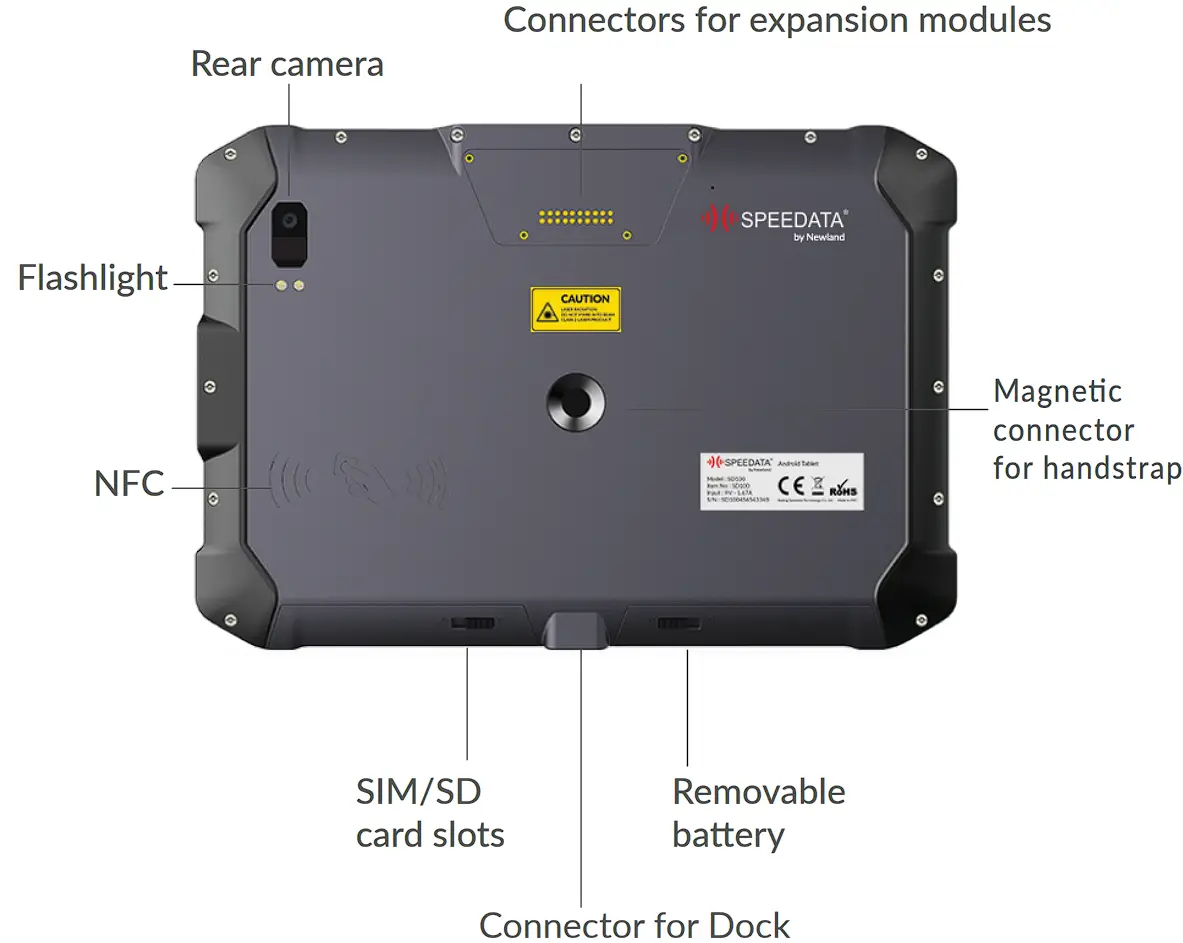

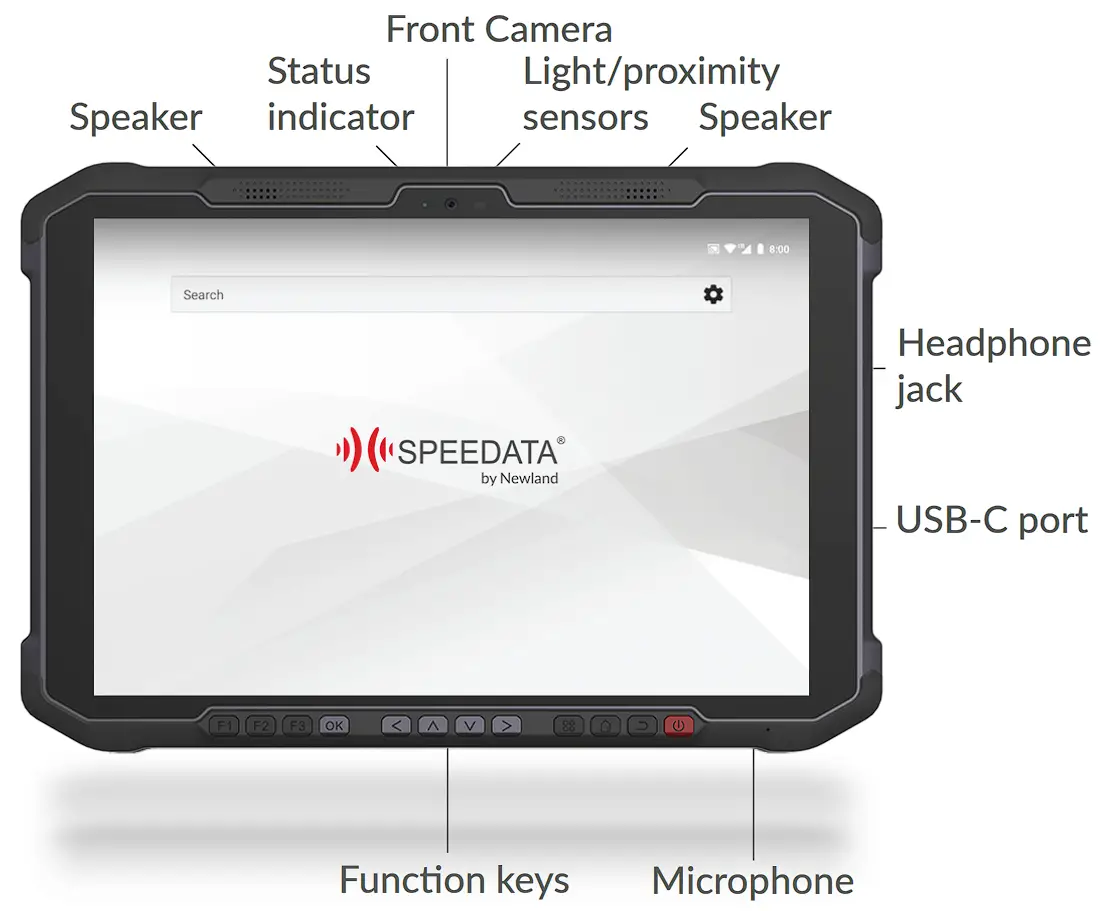

Overview
General Specifications
| Dimensions | 254mm*176mm*17.4mm |
| Weight | 800g |
| OS | Android 11 GMS (AER) |
| CPU | Octa-core 2.2GHz |
| RAM | 4GB |
| ROM | 64GB |
| Camera | 5MP Pixels Front camera FF / 13MP Pixels Rear camera AF |
| Display/ Touchscreen | 10.1” IPX 1200*1920 LCD resol 5 points capacitive touch screen |
| GPS | GPS/BeiDou/GLONASS |
| NFC | NFC |
| Battery | 9000mAh Li-ion battery |
Wireless Specifications
| Wi-Fi | IEEE 802.11 a/b/g/n/ac 2.4G, 5G Dual band |
| 2G/3G/4G/5G | FDD-LTE B1/B3/B5/B7/B8/ B28A |
Data Collection
Supported symbologies
AZTEC, CODABAR, CODE11, CODE128, EAN128, CODE39, CODE49, CODE93, COMPOSITE, DATAMATRIX, EAN8, EAN13, INT25, MAXICODE, MICROPDF, PDF417, POSTNET, OCR, QR, RSS, UPCA, UPCE, ISBT, BPO, CANPOST, AUSPOST,IATA25, CODABLOCK, JAPOST,PLANET, DUTCHPOST,MSI, TLC39, TRIOPTIC, CODE32, STRT25
Interface
| SIM card slot | 2 Micro SIM card slot |
| SD card slot | 1 Micro SD card slot, up to 128gb |
| Earphone jack | 3.5mm earphone jack |
| USB | USB TYPE-C, support OTG |
| Connectors | Docking, expansion interface |
Performance
| Working temperature | -20 °C to 55 °C |
| Storage temperature | -30 °C to 70 °C |
| Humidity | 5%~95% |
| ESD protection | Air discharge ±15kv, contact discharge ±8kv |
