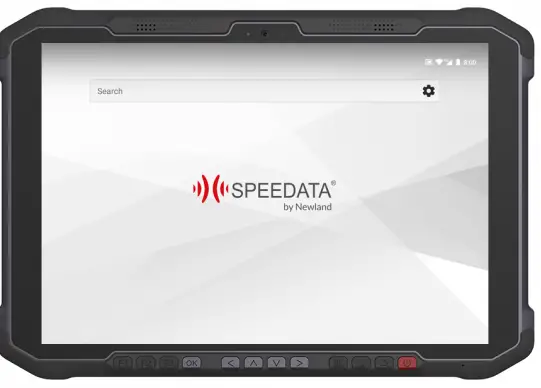

Newland SD100 Orion II MD Speedata Mobile Computers User Guide

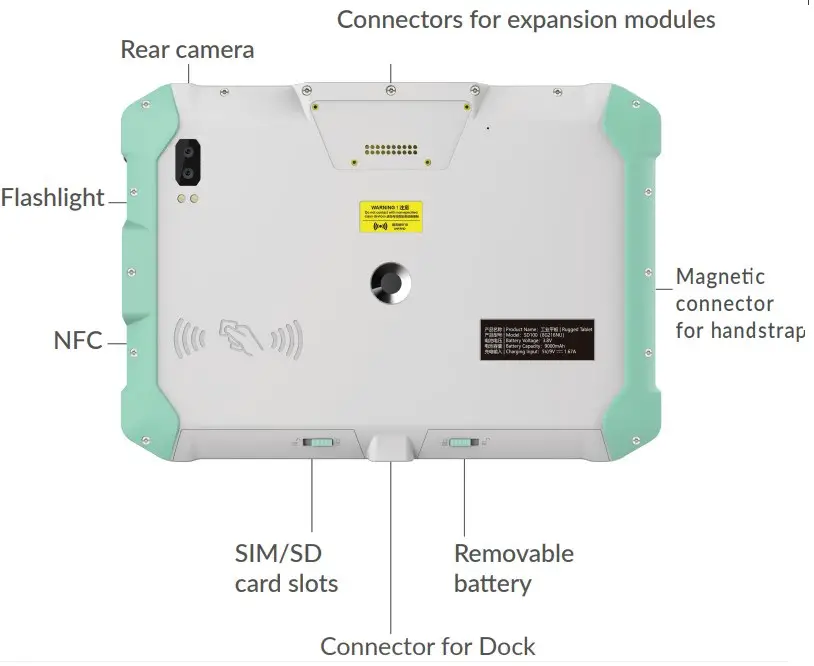

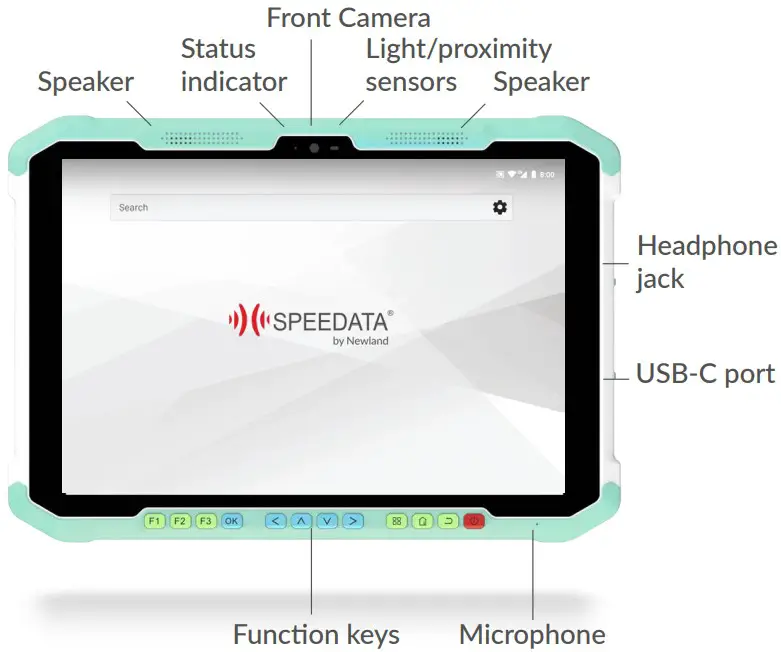

INSTALLATION INSTRUCTON
Dimensions: 254mm*176mm*17.4mm
Weight: 800g
OS: Android 11 GMS (AER)
CPU: Octa-core 2.2GHz
RAM: 4GB
ROM: 64G B
Camera: 5MP Pixels Front camera FF / 13MP Pixels Rear camera AF
Display/ Touchscreen: 10.1” IPX 1200*1920 LCD resol 5 points capacitive touch screen
GPS: ISO14443A/B & ISO15693, reading distance: 0~5cm
NFC: ISO14443A/B & ISO15693, reading distance: 0~5cm
Battery: 9000mAh Li-ion battery
Wireless Specifications
Bluetooth: BT5.1, BLE
Wi-Fi: IEEE 802.11 a/b/g/n/ac 2.4G, 5G Dual band
2G/3G/4G/5G: FDD-LTE B1/B3/B5/B7/B8/ B28A TDD-LTE B34/B38/B39/B40/B41 WCDMA B1/B2/B5/B8 GSM B2/B3/B5/B8 CDMA1x/CDMA2000 BC0 NR N1/N3/N28A/N41/N77/N78/N79
Data Collection
Supported symbologies: AZTEC, CODABAR, CODE11, CODE128, EAN128, CODE39, CODE49, CODE93, COMPOSITE, DATAMATRIX, EAN8, EAN13, INT25, MAXICODE, MICROPDF, PDF417, POSTNET, OCR, QR, RSS, UPCA, UPCE, ISBT, BPO, CANPOST,AUS POST, IATA25, CODABLOCK, JAPOST, PLANET, DUTCHPOST, MSI, TLC39, TRIOPTIC, CODE32, STRT25
Interface
SIM card slot: 2 Micro SIM card slot
SD card slot: 1 Micro SD card slot, up to 128gb
Earphone jack: 3.5mm earphone jack
USB: USB TYPE-C, support OTG
Connectors: Docking, expansion interface
Performance
Working temperature: -20 °C to 55 °C
Storage temperature: -30 °C to 70 °C
Humidity: 5%~95%
ESD protection: Air discharge ±15kv, contact discharge ±8kv
