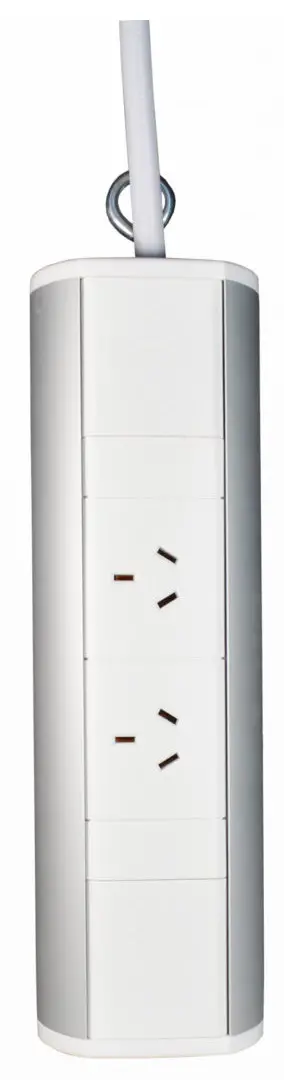

CMS Electracom EL04UAA Series Elevate Curly Cord Retractor Instruction Manual
WARNING
This product must only be installed by a qualified electrician.
Disconnect power supply before removing the cover, connecting or disconnecting the product
Installation instructions

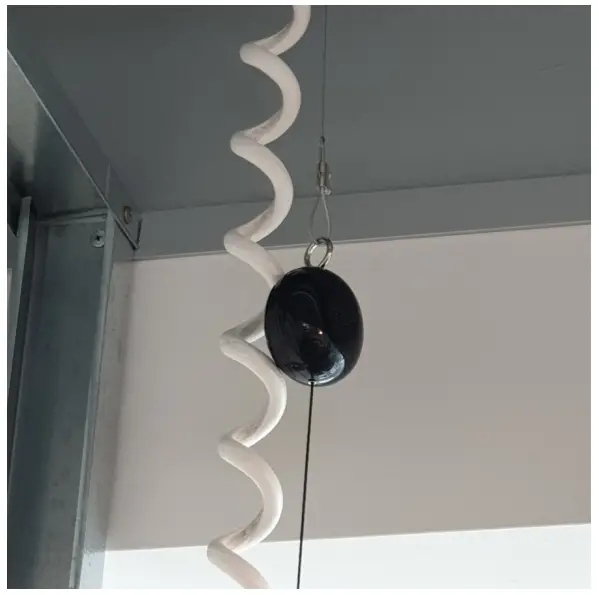

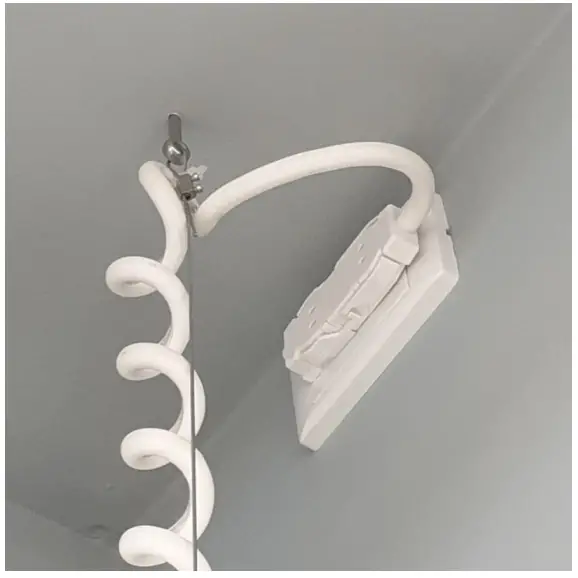

Step 1. Fasten the eye-bolt into the ceiling and loop and crimp the supplied SS cable around the eye-bolt.
Step 2. Measure distance from eye-bolt to the desired height for the retractor module. Once decided, loop and crimp SS cable to the retractor module.
Note A: The retractor has approx. 1500mm lead-length to use the Elevate power module.
Note B: To adjust the resistance of the retractor, turn the adjuster clockwise to increase, and anti-clockwise to decrease to suit weight of Elevate unit.

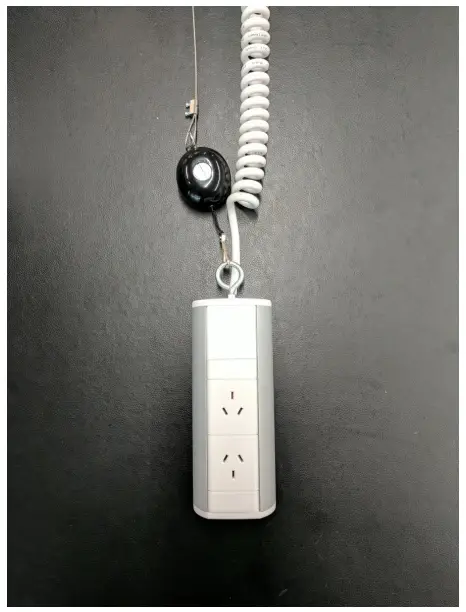

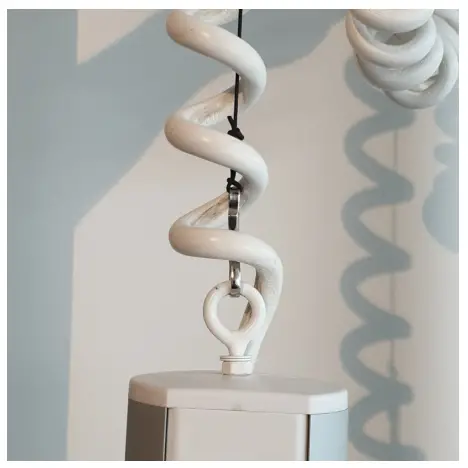

Step 3. Fasten the clip from the retractor cord to the elevate module.
