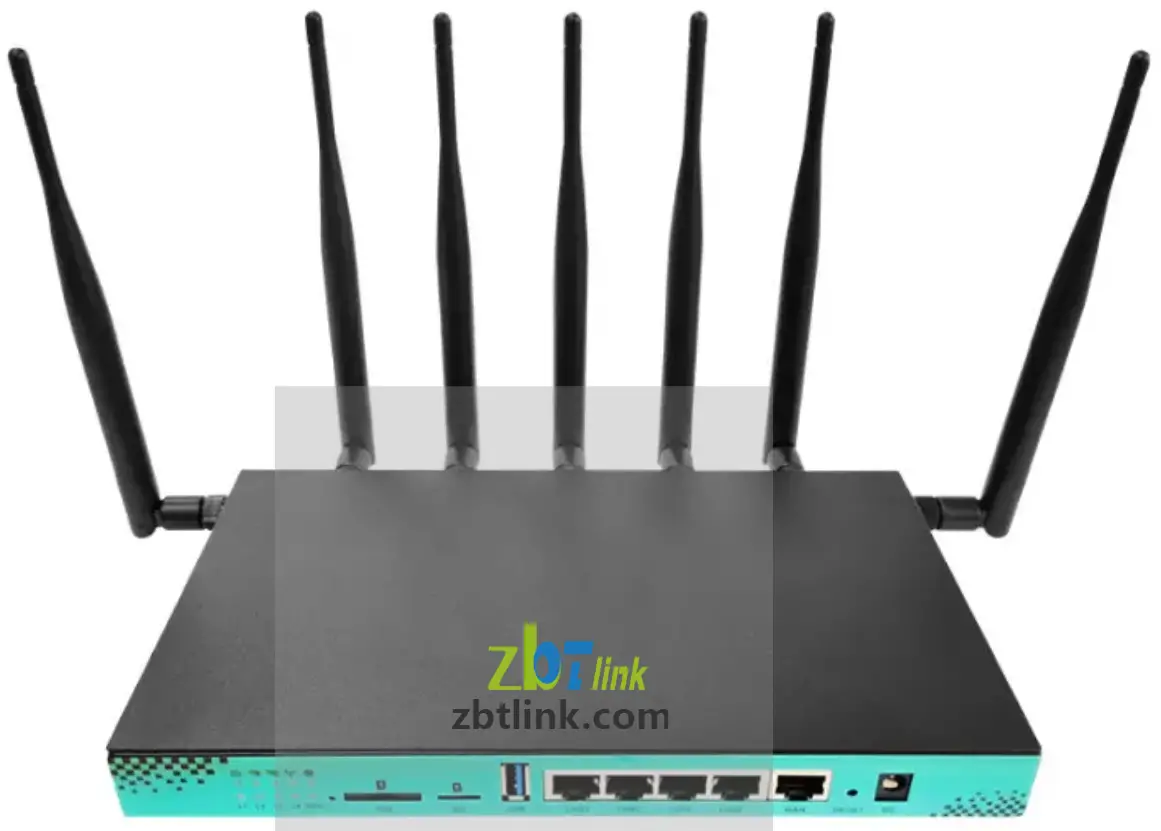

ZBT Z100 Gigabit Ports WIFI 6 Router
Overview
Brief overview
This document describes the electrical characteristics, RF performance, dimensions and application environment of z100ax. Under the introduction of this document, end users or developers can quickly understand the hardware functions of z100ax. Z100ax is a WiFi 6 home router, which can access the Internet through WAN port, and then share the Internet through wireless WiFi 6 and 1000Mbps wired LAN.
Reference standard
Relevant standards and specifications:
- USB3.0/USB2.0 Bus Standard
- IEEE802.11n/g/b/a/ac/ax
- IEEE802.3/802.3u/802.ab
Main features of the product
- Adopt mt7621a scheme, MIPs dual core CPU, main frequency up to 880mhz
- Using independent WiFi 6 chip, mt7905d and mt7975d, the speed is up to 1800mbps
- High speed 256MB DDR3 with 16MB NOR Flash
- 1wan + 2lan 1000m adaptive network ports(Auto MDI/MDIX)
- Support “one button brush mode”, that is, long press the reset button to enter the rescue brush mode
- It supports USB3.0 interface and can be used to expand USB storage
- External high gain wifi antenna, wireless signal 360 degrees without dead angle
Hardware
Interface
|
Ports | 1*1000M WAN Port (Auto MDI/MDIX) IEEE 802.3/802.3u/802.ab |
| 3* 1000M LAN Ports(Auto MDI/MDIX) IEEE 802.3/802.3u/802.ab | |
| USB | 1* USB3.0 |
| DC port | DC5.0*2.1MM interface |
ZBT International Limited
| Button | 1* Reset button |
| antennas | 2* omnidirectional 5dBi 2.4G antennas, external |
| 2* omnidirectional 5dBi 5.8G antennas, external |

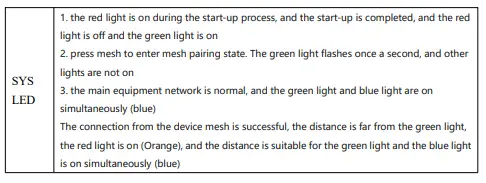

Function of indicator light
Introduction of hardware platform
| Processor | MT7621A MIPS Dual-Core CPU, 880MHZ Main Frequency |
| WIFI chipset | MT7905D+MT7975D IEEE 802.11n/g/b/a/ac/ax,High speed up to 1800Mbps |
| Ram | DDR3 256MB |
| Frash | Nor Flash 16MB |
| Don’t support NAND Flash |
Description of power supply and power consumption
| Test conditions | minimum value | Rated Value | Maximum Value | |
| working voltage | T A = 25°C | 6V | 12V | 14V |
| Absolute working voltage | T A = 25°C | 5.5V | 16V | |
| Working current | VIN=12V, T A = 25°C | 0.6A | 0.8A | 1A |
WIFI Introduction of wireless parameters
WIFI 2.4G
It is compatible with IEEE 802.11 B / g / N / ax and supports IEEE 802.11 D / h / K; Support 20MHz, 40MHz, adopt 2T2R MU-MIMO antenna technology, the maximum connection rate is up to 573.5mbps. The following is the description of power frequency, receiving sensitivity and transmitting power of 2.4G WiFi.
| illustration | Maximum Value | Rated Value | Minimum Value | |
| working frequency | 2484Mhz | 2412Mhz | ||
|
Receiving sensitivity | 11 Mbps CCK | -86dBm | -87.5dBm | -89dBm |
| 54 Mbps OFDM | -70dBm | -71dBm | -72dBm | |
| HE20, MCS 11 | -67dBm | -68dBm | -69dBm | |
| HE40, MCS 11 | -65dBm | -66dBm | -67dBm | |
|
Transmitting power | 11 Mbps CCK | 19dBm | 18dBm | 17dBm |
| 54 Mbps OFDM | 18dBm | 17dBm | 16dBm | |
| HE20, MCS 11 | 17dBm | 16dBm | 15dBm | |
| HE40, MCS 11 | 16dBm | 15dBm | 14dBm |
WIFI 5.8G
Compatible with IEEE 802.11 a / AC / ax, supporting IEEE 802.11 D /E / h / I / K / R / W; Support 20MHz, 40MHz, 80MHz, adopt 2T2R MU-MIMO antenna technology, the maximum connection rate is up to 1201mbps. The following is a description of power frequency, receiving sensitivity and transmitting power of 5.8G WiFi.
| illustration | Maximun Value | Rated Value | minimum value | |
| working frequency | 5825MHz | 5180Mhz | ||
|
Receiving sensitivity | 54 Mbps OFDM | -70dBm | -71dBm | -72dBm |
| HE20, MCS 11 | -67dBm | -68dBm | -69dBm | |
| HE40, MCS 11 | -66dBm | -67dBm | -68dBm | |
| HE80, MCS 11 | -55dBm | -56dBm | -57dBm | |
|
Transmitting power | 54 Mbps OFDM | 18dBm | 17dBm | 16dBm |
| HE20, MCS 11 | 17dBm | 16dBm | 15dBm | |
| HE40, MCS 11 | 16dBm | 15dBm | 14dBm | |
| HE80, MCS 11 | 15dBm | 14dBm | 13dBm |
Introduction of structural parameters and accessories
| weight（KG） | TBD | |
| Size | L*W*H=171*220*47.5 MM | |
| Color | Black | |
|
Accessories | Power adapter | 12V/1A 1PCS |
| User Manual | 1PCS | |
| certificate | 1PCS | |
| Ethernet cable | Super 5 cable 1PCS | |
Product working environment requirements
| working temperature | 0℃ – 40℃ |
| Store temperature | -40℃ – 70℃ |
| Working humidity | 10% – 90%RH Non condensing |
| Store humidity | 5% – 90%RH Non condensing |
Software configuration information
| Default IP | 192.168.1.1 |
| Username/password | root/admin |
| 2.4G SSID | WIFI6-XXXXXX (X is the last 6 bits of MAC address), default no password |
| 5.8G SSID | WIFI6-5G-XXXXXX (X is the last 6 bits of MAC address), default no password |
