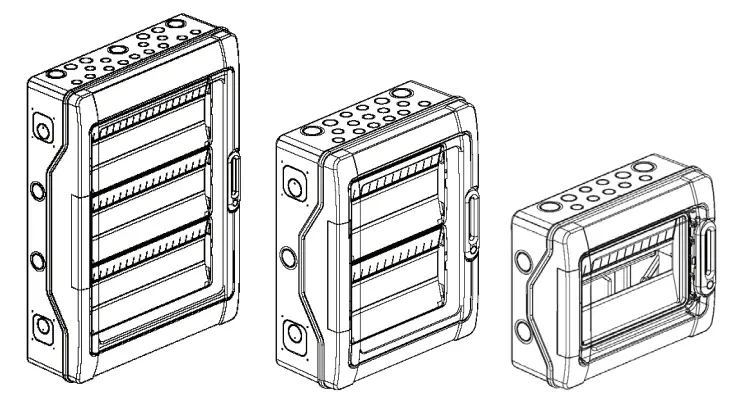

PLEXO³ HEAT REFLECTIVE PANEL
PLEXO3 Heat Reflective Panel

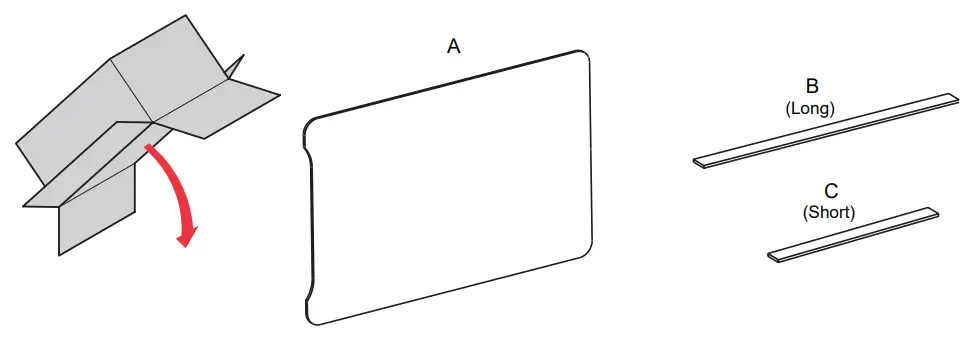

| Cat.No. | A | B | C |
| 601981-HRP | 1 | – | 2 |
| 601982-HRP | 1 | – | 2 |
| 601983-HRP | 1 | 1 | 2 |
| 601985-HRP | 1 | 2 | – |
| 601986-HRP | 1 | 2 | 1 |
| 601987-HRP | 1 | 1 | 2 |
NOTE: For 601988 use 2× 601986-HRP

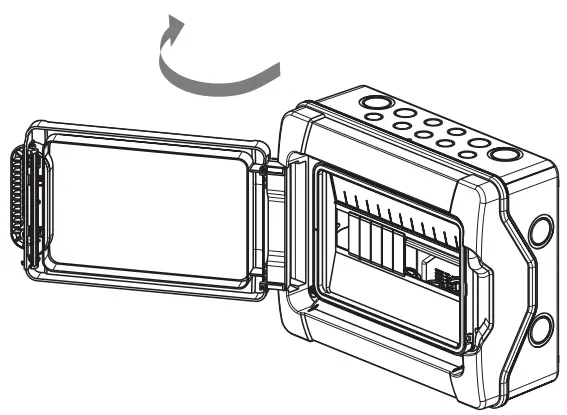

To install the Heat reflective panel open the door first ( This can be done after the full installation or by removing the door and applying it separately)

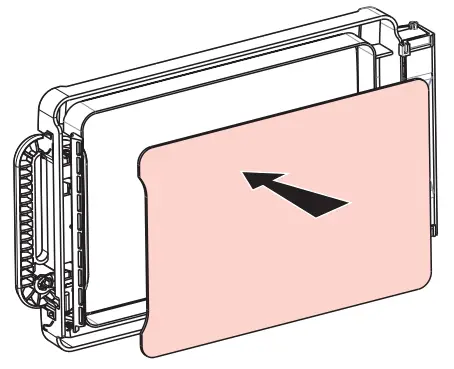

Main Heat Panel Installation
Position the Eeat reflective panel inside the door cavity.

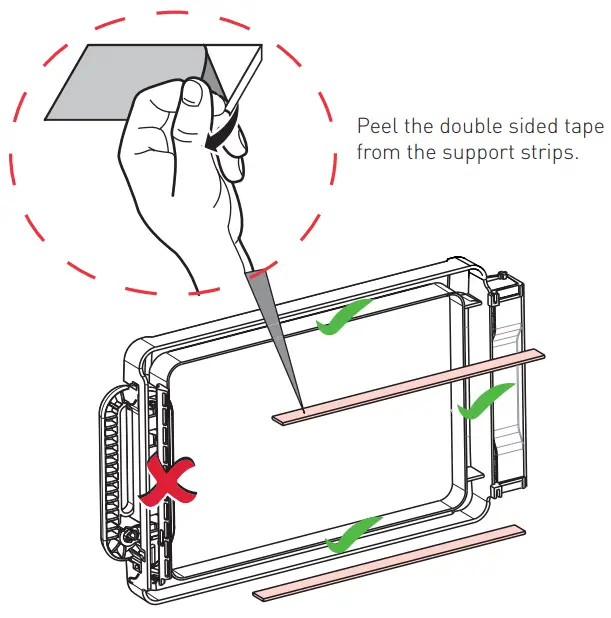

Support Strip Installation
Long strip is always meant to be used in the door length, and the shorts strips are to be used top/bottom.
Note: Don’t use the strip on the handle side were crossed out
*- only for 601982-HRP all 3 strips are the same size.
Note: Some doors require 3 strips to be fixed depending on the size.
No strip is required for the handle side.

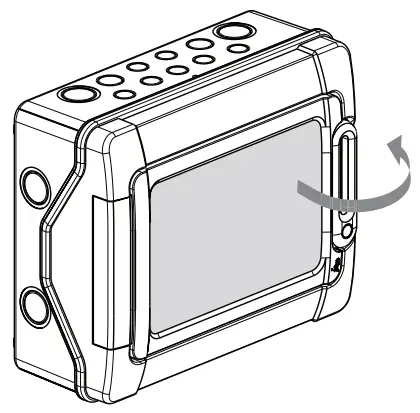

After installing the panel & support strips, make sure the door closes properly and locks in position.

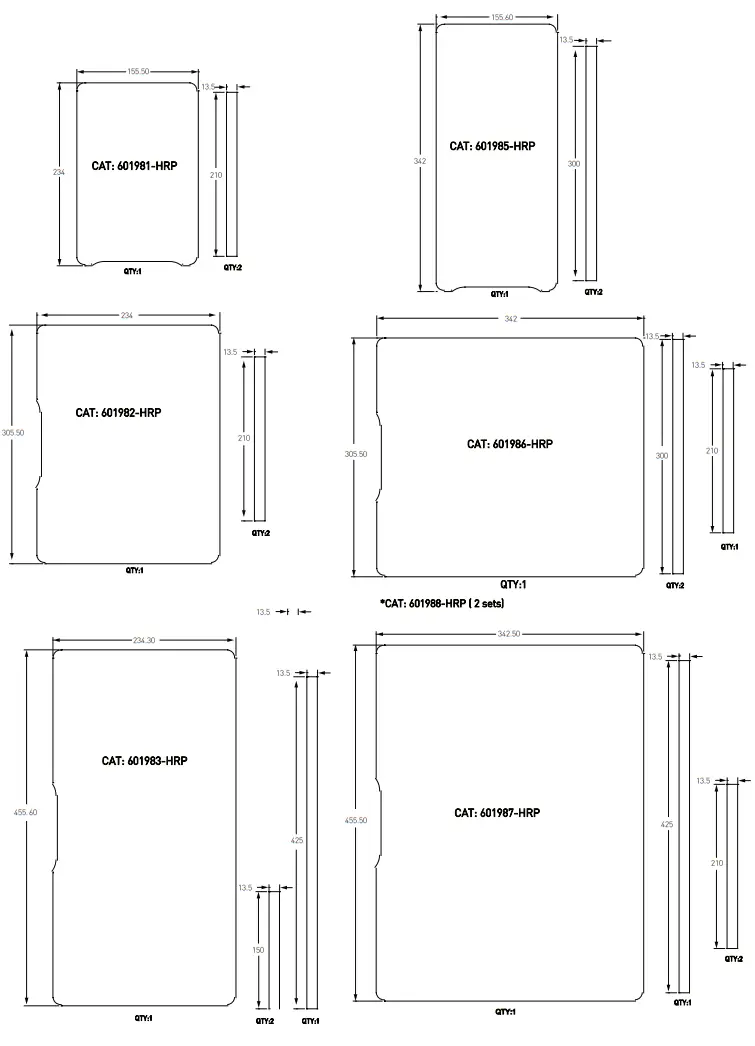

Dimensions of the Panel/Strip
Warranty
Legrand Australia Pty Ltd will honor all statutory guarantees that you as a consumer are entitled to rely upon under the Australian and New Zealand Consumer Laws against a manufacturer, including a guarantee that this product is of acceptable quality.
To make a claim under any statutory guarantee you should first contact the supplier, or retailer from whom you purchased this product.
Customer Service
For all Customer Service and Technical Support please call Monday to Friday during business hours.
Legrand Australia
1300 369 777
www.legrand.com.au
Legrand New Zealand
0800 476 009
www.legrand.co.nz
ABN: 31 000 102 661
arl.org.au
LE13453AA 01/2022
