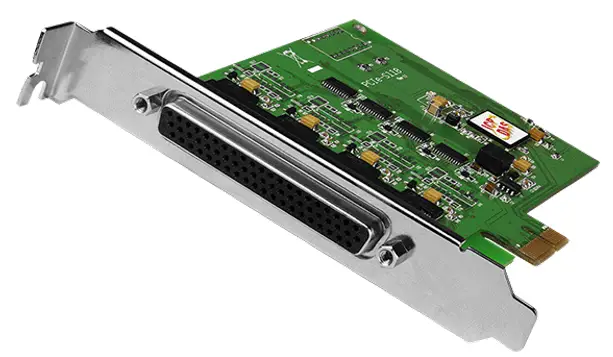

Icpdas Pcie-s118 Serial Communication Card User Guide

QQuuiicckk SSttaarrtt
for PPCCIIee–SS111188
PPCCIIee–SS114488

What’s in the Shipping Package?

The package includes the following items:

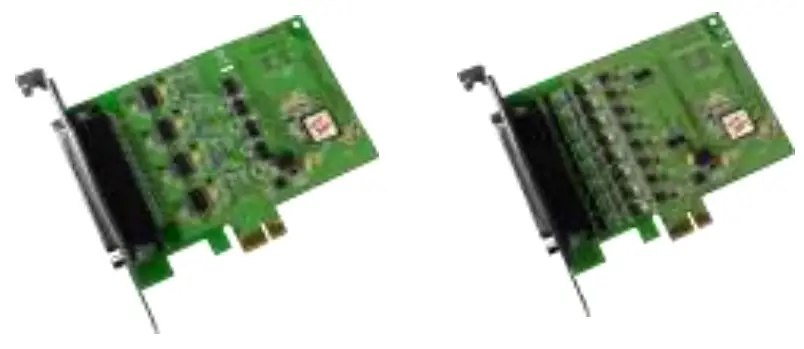

1. PCIe-S118 or PCIe-S148

2. Quick Start Gide (This Guide)

3. Software CD (V6.1 or later)

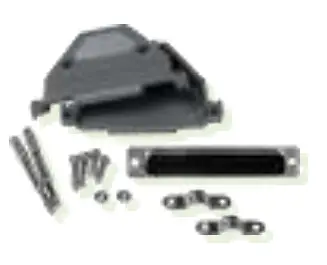

4. CA-PC62M Connector


Installing Windows Driver

1. Launch the Windows XP/7/8/10/2012/ 2016 (32/64-bit) driver setup program (PCIe_SPCard_Win_Setup_1.00.02.exe), which can be obtained from either the companion CD-ROM or the web site:
   CD: \Napdos\multiport\windows\
   https://www.icpdas.com/en/download/index.phpnation=US&kw=PCIe+Series+Card+Windows+Drive
2. Click the “Next>” button to start the installation.
3. Click the “Next>” button to install the driver into the default folder.
4. In the installation process, the Command Prompt windows will be displayed, don’t care. And please do not close this Command Prompt window in the installation process.
5. Select the “NO, I will restart the computer later” and click the “Finish” button.

Installing the Hardware

1. Shut down and power off your computer.
2. Remove the cover from the computer.
3. Select an unused PCI Express slot.
4. Carefully insert your PCIe-S1x8 card into the PCI Express slot.
5. Replace the PC cover.
6. Power on the computer.
7. Follow the prompt message to finish the Plug & Play steps.

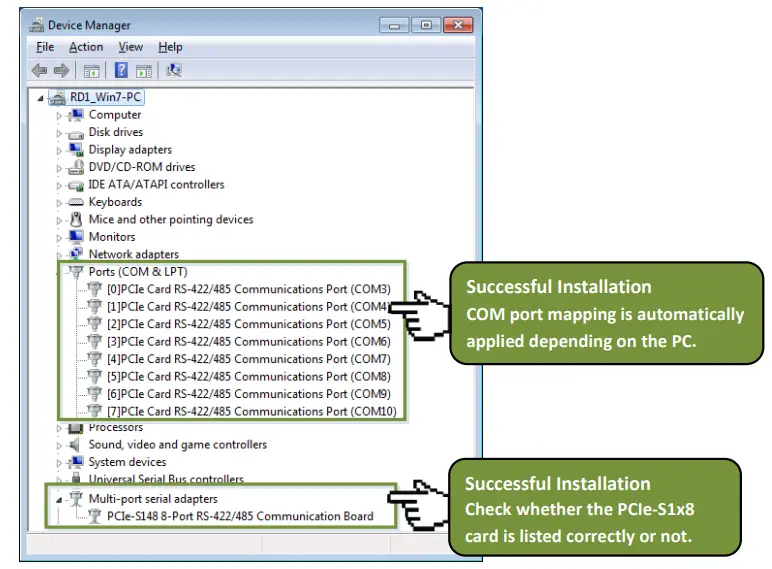

8. Please open the “Device Manager” to verify the COM port installation, as follows steps:
   8-1: In Windows 7, Click “Start” button, and then click “Control Panel”.
   8-2: Click “System and Maintenance”, and then click “Device Manager”.
   8-3: Verify that the COM ports of PCIe-S118/S148 card are listed correctly.

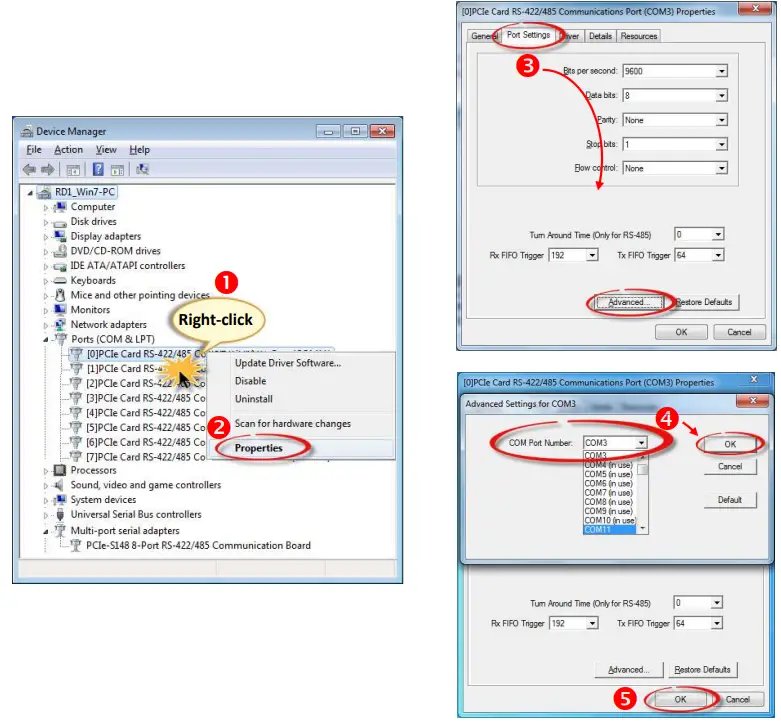

Manual COM Port Configuration

If the auto-configuration for COM Port is messy or that is not what you need, you can change the COM port mappings. For detailed configuration steps, please refer to the following:

1. Open Windows Device Manager and right-click on the serial port of the PCIe-S1x8 series card.
2. Select the “Properties” item from the popup menu.
3. Click the “Port Settings” tab and click the “Advanced…” button.
4. Select the appropriate COM Port number from the “COM Port Number:” drop-down options and click the “OK” button. Note that the COM port display “(in use)” means this COM port is being used.
   Therefore, please do not select it.
5. Click the “OK” button in the “Properties” dialog box.
6. Restart your computer to complete the configuration.

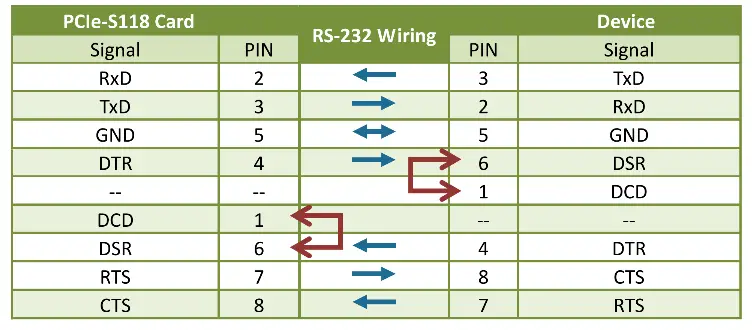

Pin Assignments and RS-232 Cable Wiring for PCIe-S118

Pin Assignments and RS-422/485 Cable Wiring for PCIe-S148

Note: The RS-485 bus is a differential (balanced) signal, thus you cannot wire the Data+ with Data- directly for a single port loop-back test. It will not work at all.

PCIe-S148 Card		RS-422 Wiring  Ob.	Device
Signal	PIN  1		PIN	Signal –
TxD-			4	RXD
TxD+			3	RxD+
RxD+	3		2	TxD+
RxD-			1	TxD-
GND			5	GND

Self-Test Wiring

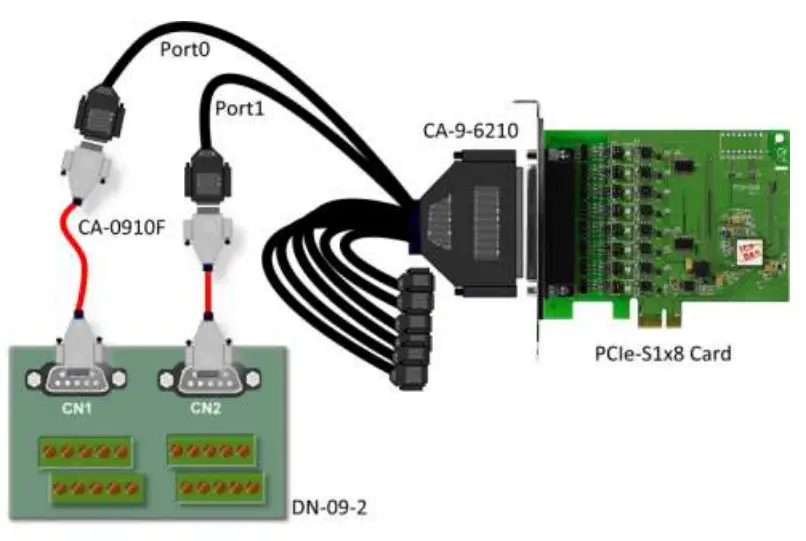

Step 1: Connect the DN-09-2 terminal board (optional) to the PCIe-S1x8 series card using the CA-9-6210 and
CA-0910F cables (optional).

Step 2: Wire the Port 0 and Port1.

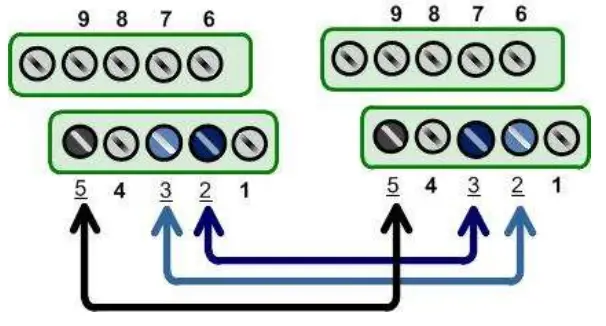

• PCIe-S118 card (RS-232 Wiring): Shorting the RxD, TxD and GND pins of both Port0 and Port1.

Port0 Signal	PIN		PIN	Signal
TxD0	3		2	RxD1
RxD0	2		3	TxD1
GND	5		5	GND

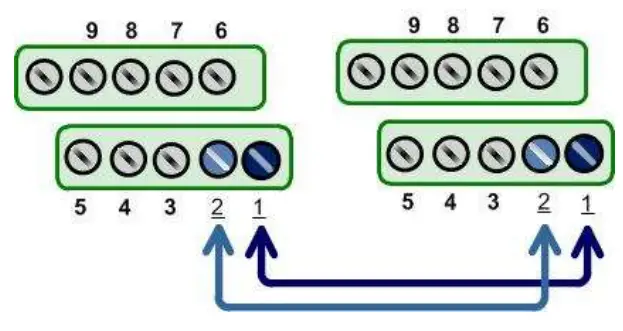

• PCIe-S148 card (RS-485 Wiring): Shorting the Port0 Data+ and Port1 Data+ and the Port0 Data- and Port1 Data- pins.

Port0	PIN		PIN	Port1
Signal				Signal
TxD0	3		2	Data1-
RxD0	2		3	Data1+

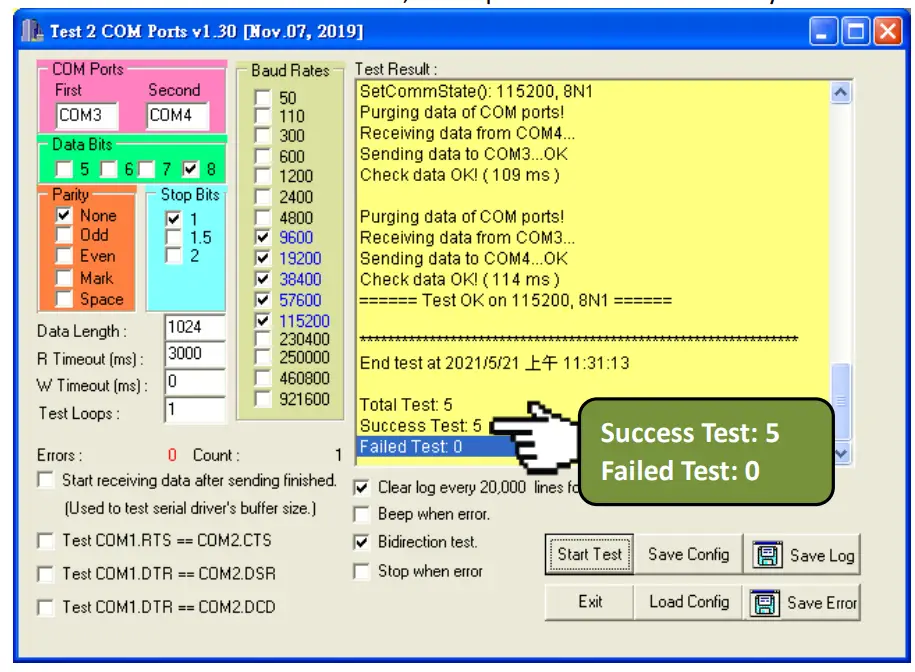

Execute the Test Program

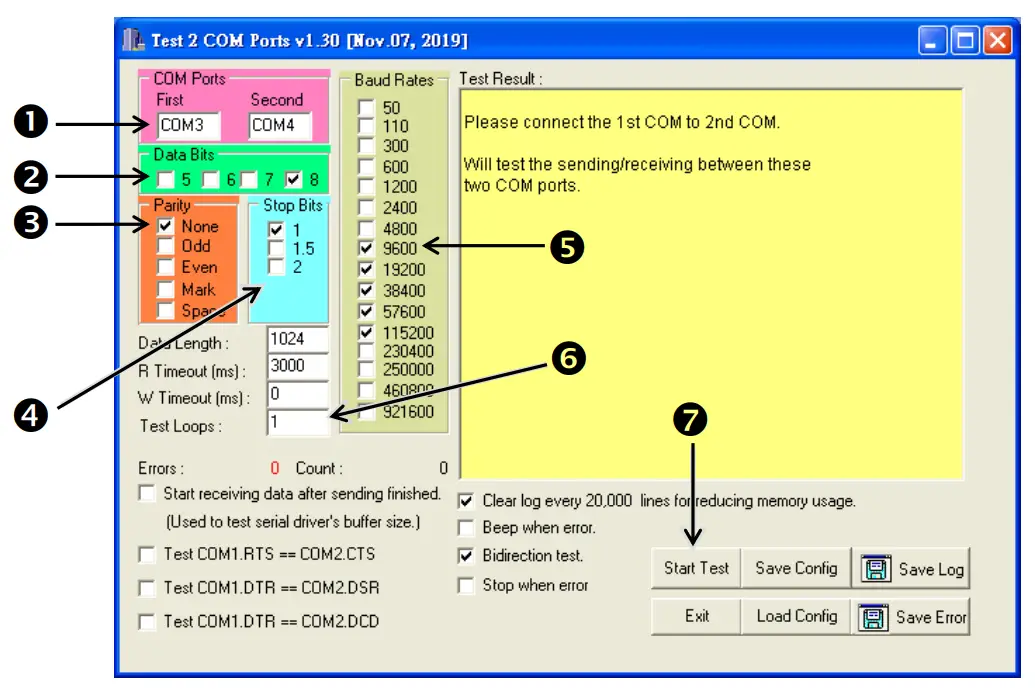

Step 1: Execute the Test2COM.exe program, which can be downloaded from:
Step 2: Set the appropriate COM Ports, Baud Rate and Data Format information to the values shown in the image below.

1. COM Ports: Enter COM3 (First), and COM4 (Second).
2. Data Bits: Check “8”
3. Parity: Check “None”
4. Stop Bits: Check “1”
5. Baud Rates: Check values 9600 to 115200
6. Test Loops: Type “1”
7. Click the “Start Test” button to begin the

Successful Testing
Once the test is complete, verify the test results.
If the result indicates that the test was successful, the expanded COM Port is ready-to-use.

Related Information

PCIe-S118/PCIe-S148 card product page:
https://www.icpdas.com/en/product/guide+Industrial__Communication+Serial__Communication+Multi-port__Serial__Board#793
DN-09-2, CA-0910F and CA-9-6210 product page (optional):
https://www.icpdas.com/en/product/DN-09-2
https://www.icpdas.com/en/product/CA-0910F
https://www.icpdas.com/en/product/CA-9-6210
Software and documentation:
CD: \Napdos\multiport\
https://www.icpdas.com/en/download/index.phpmodel=PCIe-S118
Copyright © 2014 ICP DAS Co., Ltd. All Rights Reserved.
 E-mail: [email protected]
