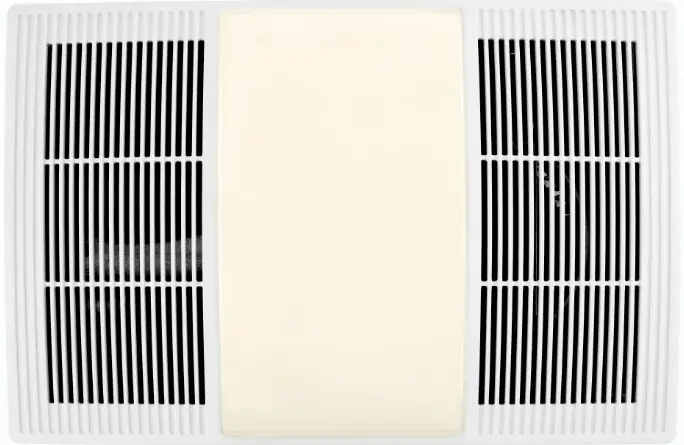

BROAN FG80HBS Heater Fan Light Upgrade Cover
WARNING: Switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally
CAUTION: Always wear safety gloves and glasses.
NOTE: Before installing your upgrade fan cover, plug in the light of your new fan cover (in any outlet) and select color temperature using CCT switch

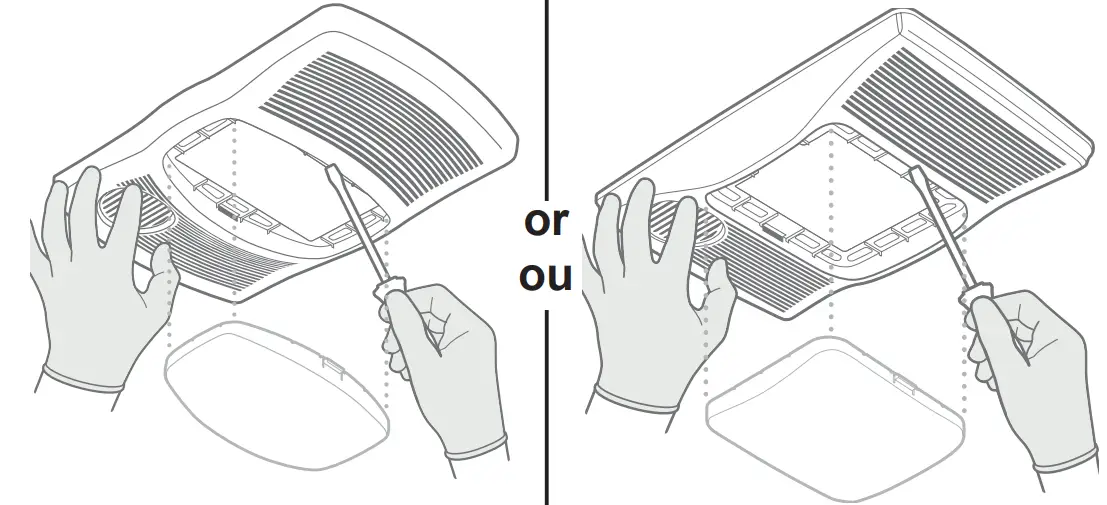

- Remove lens by disengaging tabs on both sides of lens. Your fan cover will look like one of these two options.
Scan this QR code to access the installation video

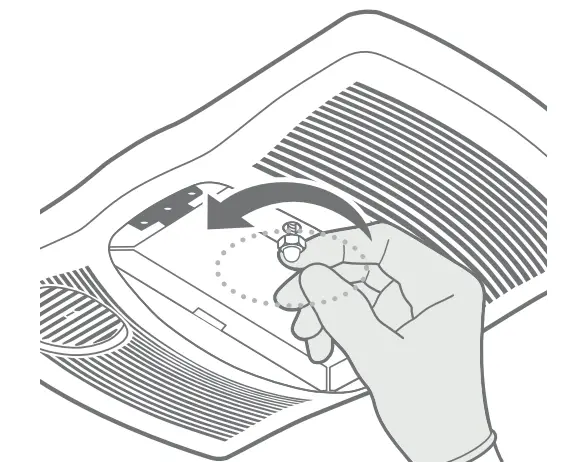

- Unscrew acorn nut
- Remove reflector by unplugging light plug.
- NOTE: Before installing your upgrade fan cover, plug in the light of your new fan cover (in any outlet) and select color temperature using CCT switch.

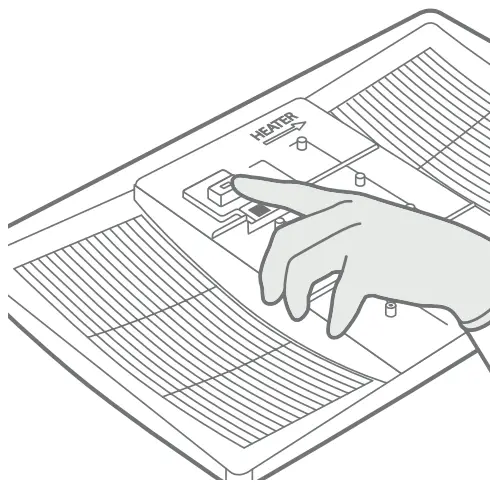

Select LED color temperature using CCT switch (see note above).

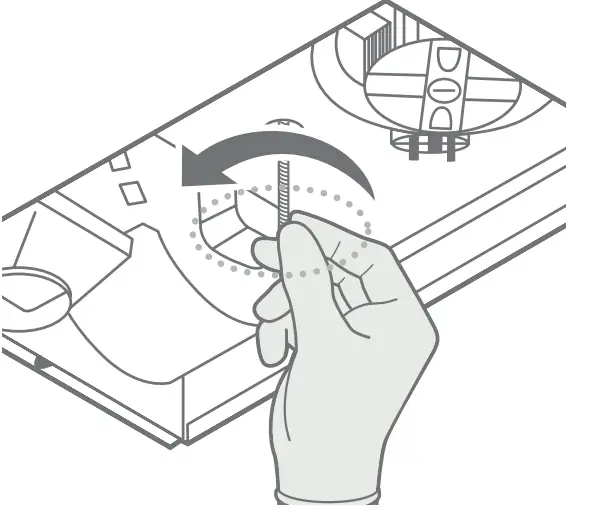

- Extend mounting screw as much as possible.

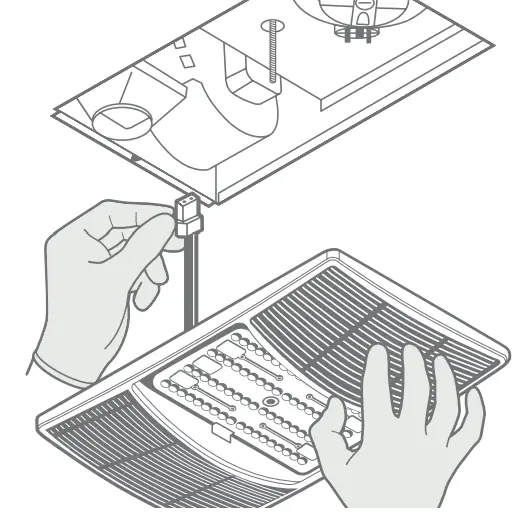

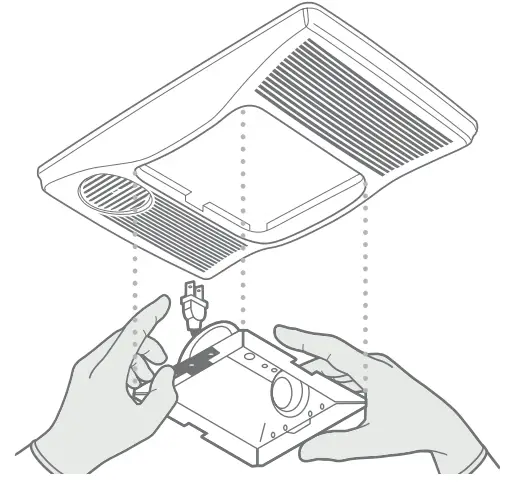

- Plug in light plug. (Note: Plug may differ from that pictured.)

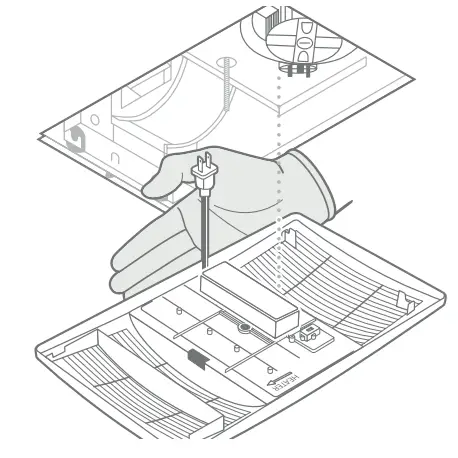

- Orientate LED driver on light cover toward fan side.
- Secure cover by threading mounting post over mounting screw. Hand-tighten mounting post until cover is secure against ceiling surface.

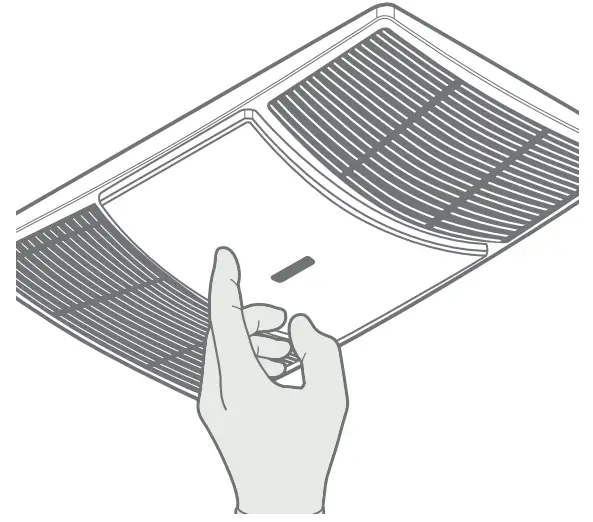

- Snap in lens.
