Nedis Htif20fyw Industrial Design Fan Heater User Guide

Industrial-Design Fan Heater
2000 W with PTC heating element and thermostat
HTIF20FYW

http://solutions.brother.com/videos/

Nedis BV
De Tweeling 28, 5215 MC ’s-Hertogenbosch – The Netherlands

Industrial-Design Fan Heater
For more information see the extended manual online:
ned.is/htif20fyw HTIF20FYW

Intended use

• The product is exclusively intended as a fan heater.
•  This product is only suitable for well insulated spaces or occasional use.
•  The product is not intended for professional use.
•  Any modification of the product may have consequences for safety, warranty, and proper functioning.

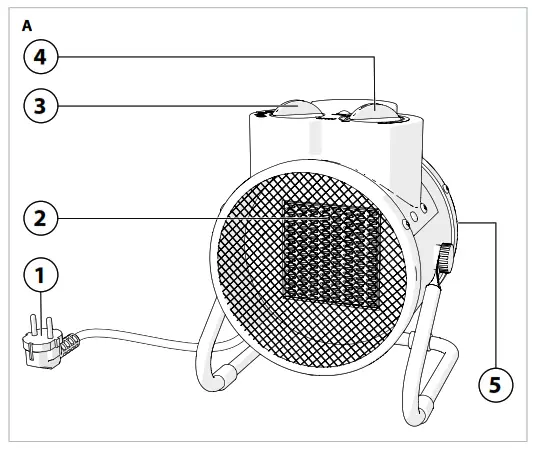

Parts list [Image A]

1.  Plug
2.  Heating element
3.  Power selector
4. Thermostat
5. Air inlet grill

Safety instructions

 WARNING ·

• Only use the product as described in this manual.
•  Do not use a damaged product.
•  Children of less than 3 years should be kept away unless continuously supervised.  Children aged from 3 years and less than 8 years shall only switch on/off the product provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the product or perform user maintenance.
•  This product can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be done by children without supervision.
• Do not splash water onto the product.
• Do not let water enter the product.
• Do not use the product in wet or damp environments.
• Do not use the product to dry your laundry.
• Do not use the product in dusty environments.
•  Do not use the product in rooms less than 4 m2.
•  Do not cover the product.
•  Keep the product far away from loose products (e.g. curtains, plastic bags, paper) that can cover the air inlet easily.
• Keep the product at a distance from flammable objects such as furniture, curtains and similar.
•  Do not use the product in rooms where flammable liquids or gases are used or stored.
• Do not place the product on moving vehicles or somewhere easy to be tipped over.
•  Unplug the power cord when the product is not in use for a long time.
•  Do not unplug the product by pulling on the cable. Always grasp the plug and pull.
•  When using an extension cord, use one which is as short as possible and fully extended.
•  Do not connect other products to the same power outlet as the product.
•  Do not use the product using an on/off timer or other equipment which can automatically switch the device on.
• Do not locate the product immediately below a power outlet.
•  Do not leave the heater unattended for a considerable amount of time when in use.
•  This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.
•  Only use attachments specified by the manufacturer.

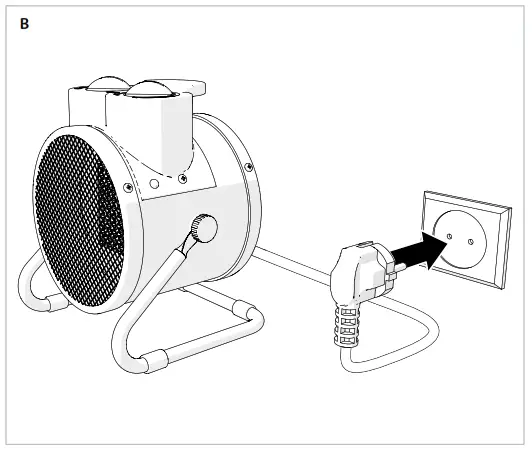

Connecting the heater to the mains [Image B]

Leave a minimum of 1 m space around the air inlet and outlet to allow a good circulation of airflow.

1. Place the fan heater on a leveled and firm surface.
2.  Plug the power plug 1 into a power outlet.

Turning on the heater
1.  When using the fan heater for the first time, a slight emission of smoke may occur. This is normal and stops after a short time.  Turn the thermostat 4 to the MAX position.
2. Turn the power selector 3 to the desired power setting.

Turning off the heater
3. Turn the power selector 3 to the 0 positions.
4. Unplug the power plug 1 out of the power outlet.

Specifications

Additional Warnings

This symbol on your device means: do not cover! Close supervision is necessary if the product is used near children or incapacitated persons. Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance. This appliance is not suitable to be operated by children or persons who have physical, sensory, and/or mental limitations, or by persons who have no knowledge of, or experience with, this appliance. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the

Be careful! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present. Do not let bare skin come into contact with hot surfaces.
