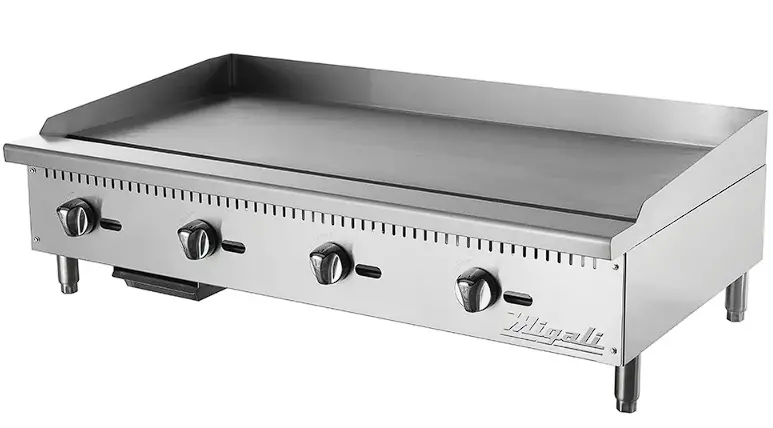

Migali C-G48 48 Inch Gas Griddle with Manual Controls
|
MODEL |
BURNERS |
TOTAL BTU NATURAL GAS / LP |
PER BTU NATURAL GAS / LP | IN TAKE TUBE PRESSURE (W.C.) NATURAL GAS / LP |
NOZZLE NO. NATURAL GAS / LP |
IGNITION |
VALVE TYPE |
GRIDDLE PLATE WORKING AREA W X D X H |
EXTERIOR DIMENSIONS W X D X H |
PACKAGING DIMENSIONS W X D X H |
WEIGHT |
PACKAGED WEIGHT |
| C-G24 | 2 | 60,000 | 30.000 BTU/h | 4/10 | #37 / #51 | Manual | Pilot Light | 23” x 19.9” x 3/4” | 24” x 28.6” x 15.2” | 26.8” x 31.1” x 18.2” | 160 lbs. | 195 lbs. |
| C-G36 | 3 | 90,000 | 30.000 BTU/h | 4/10 | #37 / #51 | Manual | Pilot Light | 35.7” x 19.9” x 3/4” | 36” x 28.6” x 15.2” | 38.6” x 31.1” x 18.2” | 230 lbs. | 281 lbs. |
| C-G48 | 4 | 120,000 | 30.000 BTU/h | 4/10 | #37 / #51 | Manual | Pilot Light | 47.9” x 19.9” x 3/4” | 48” x 28.6” x 15.2” | 51.6” x 32.7” x 17.6” | 295 lbs. | 415 lbs. |
- Gas Connection: 3/4” NPT on the irght
- Clearance for combustible work area: 6” rear & 15” sides
- Altitudes over 2,000 feet may need high altitude orifice adjustments to deliver BTU output listed

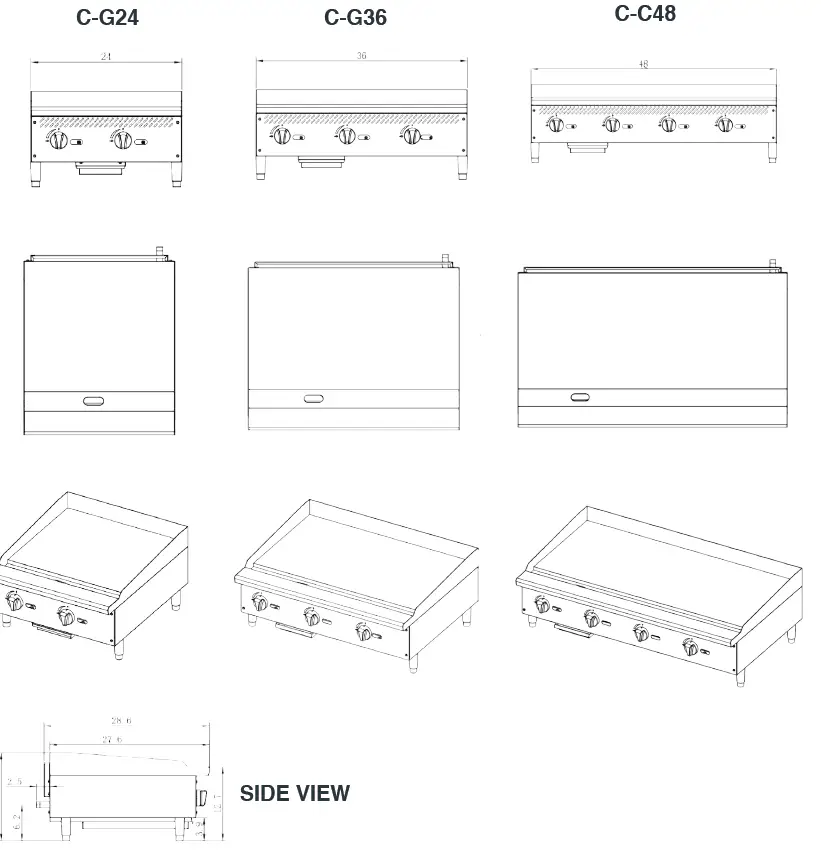

DIMENSIONAL DRAWINGS
