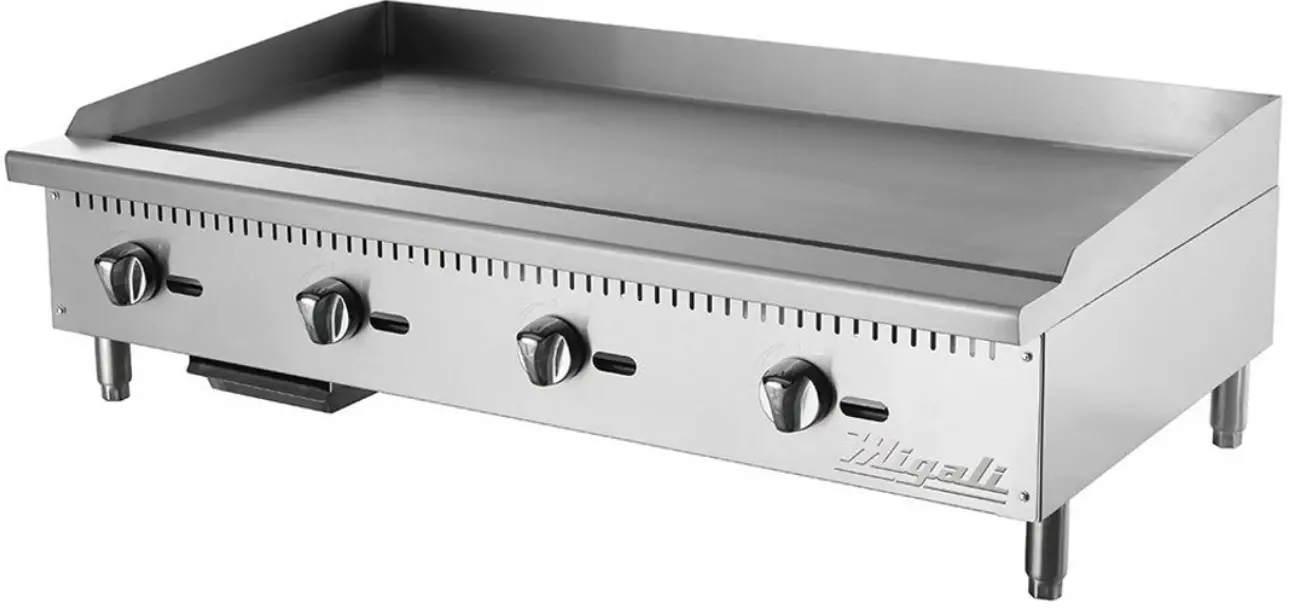

Migali C-G48 48 Inch Gas Griddles

GRIDDLES
- Manually controlled
- 3/4” thick polished steel cooking surface for quick, even heating
- 30,000 BTU per “U” shape burner
- Large 20” deep cooking surface
- Removable slide out waste tray
- Beautiful ergonomic design and easy to clean
- High polished, stainless steel feet
- Stainless steel grease trough with wide opening for easy cleaning
- Comes standard as natural gas with L.P orifice kit for in-field conversion
- Migali Industries® Protection Plan: 1 Year Parts & Labor Warranty
| MODEL | BURNERS | TOTAL BTU NATURAL GAS / LP | PER BTU NATURAL GAS / LP | IN TAKE TUBE PRESSURE (W.C.) NATURAL GAS / LP | NOZZLE NO. NATURAL GAS / LP | IGNITION | VALVE TYPE | GRIDDLE PLATE WORKING AREA W X D X H | EXTERIOR DIMENSIONS W X D X H | PACKAGING DIMENSIONS W X D X H | WEIGHT | PACKAGED WEIGHT |
| C-G24 | 2 | 60,000 | 30.000 BTU/h | 4/10 | #37 / #51 | Manual | Pilot Light | 23” x 19.9” x 3/4” | 24” x 28.6” x 15.2” | 26.8” x 31.1” x 18.2” | 160 lbs. | 195 lbs. |
| C-G36 | 3 | 90,000 | 30.000 BTU/h | 4/10 | #37 / #51 | Manual | Pilot Light | 35.7” x 19.9” x 3/4” | 36” x 28.6” x 15.2” | 38.6” x 31.1” x 18.2” | 230 lbs. | 281 lbs. |
| C-G48 | 4 | 120,000 | 30.000 BTU/h | 4/10 | #37 / #51 | Manual | Pilot Light | 47.9” x 19.9” x 3/4” | 48” x 28.6” x 15.2” | 51.6” x 32.7” x 17.6” | 295 lbs. | 415 lbs. |
- MIGALI RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE
- Gas Connection: 3/4” NPT on the irght
- Clearance for combustible work area: 6” rear & 15” sides
- Altitudes over 2,000 feet may need high altitude orifice adjustments to deliver BTU output listed

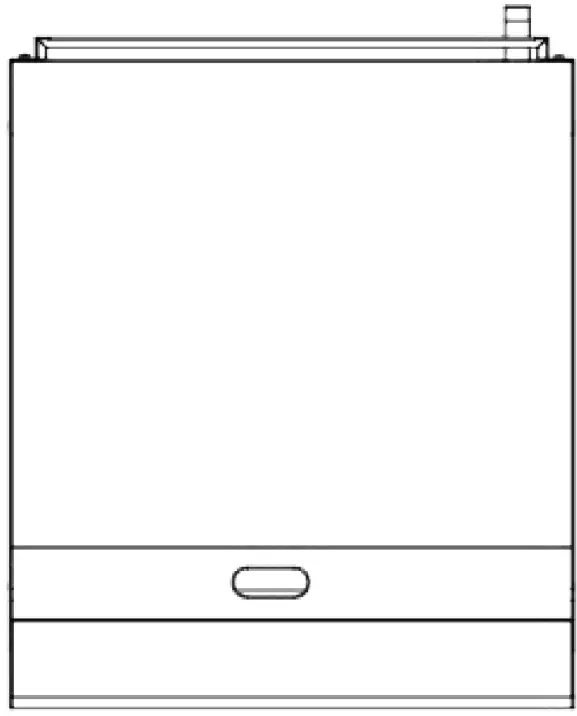

DIMENSIONAL DRAWINGS

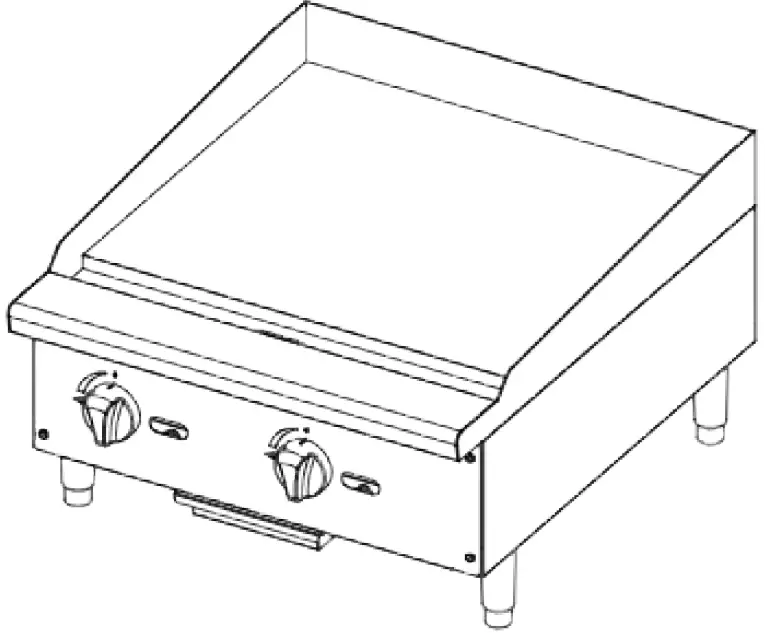

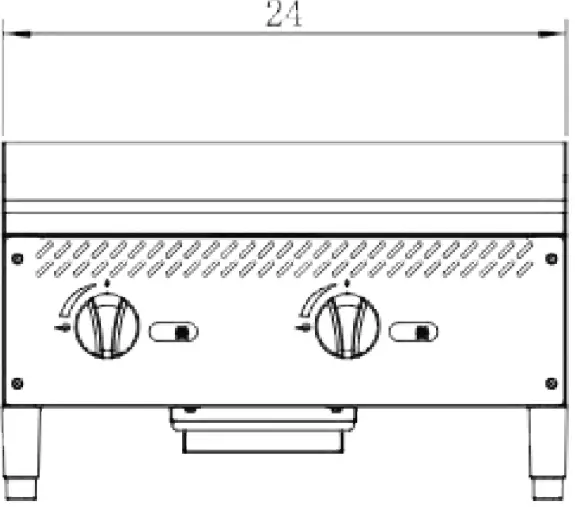

C-G24

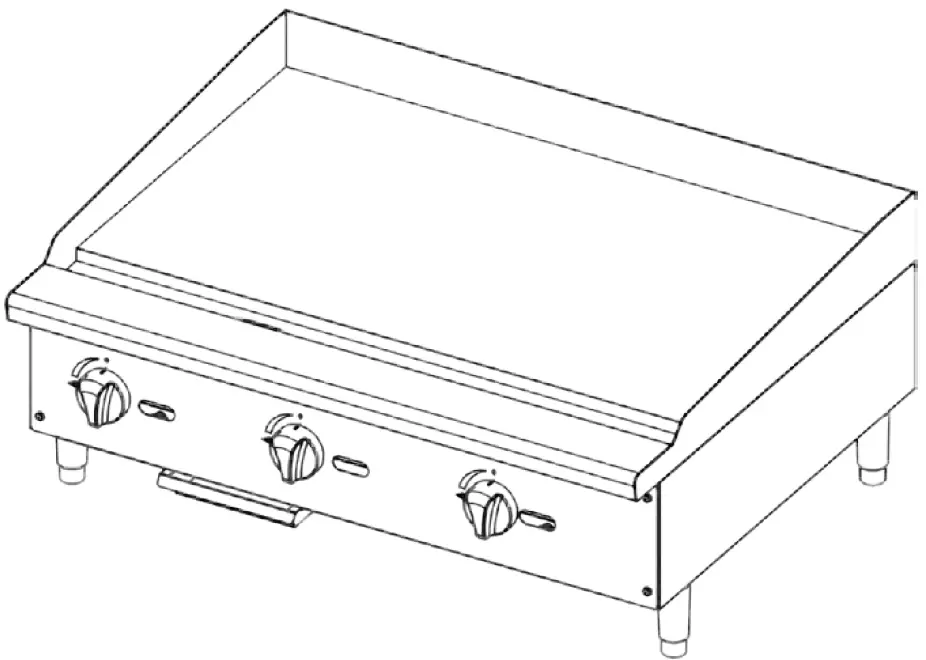

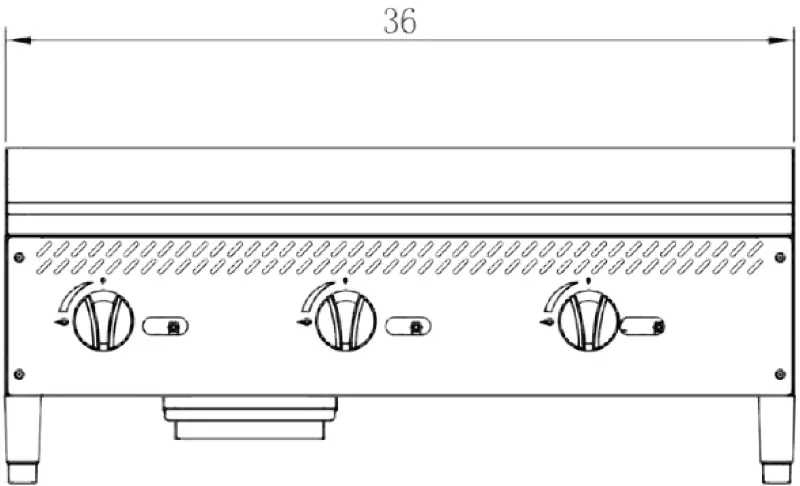

C-G36

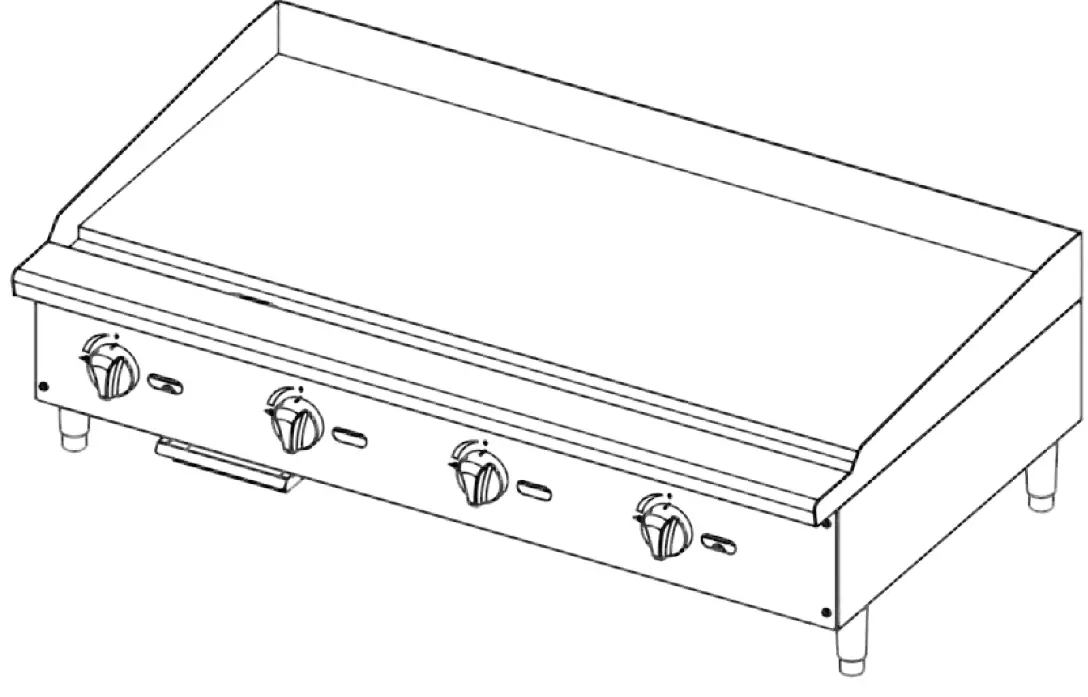

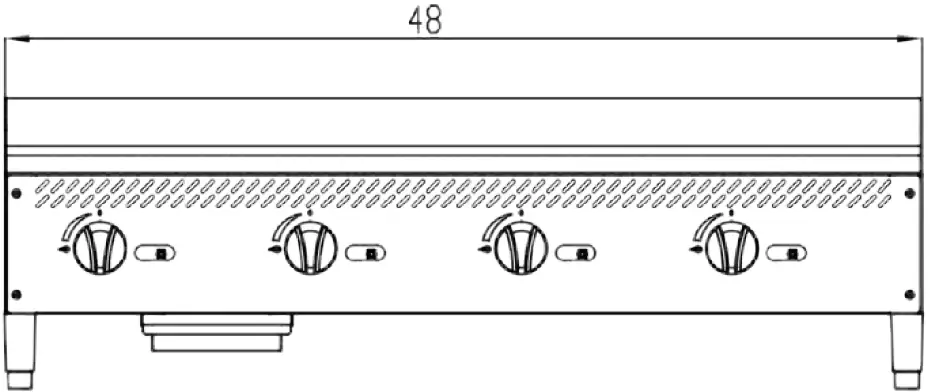

C-G48

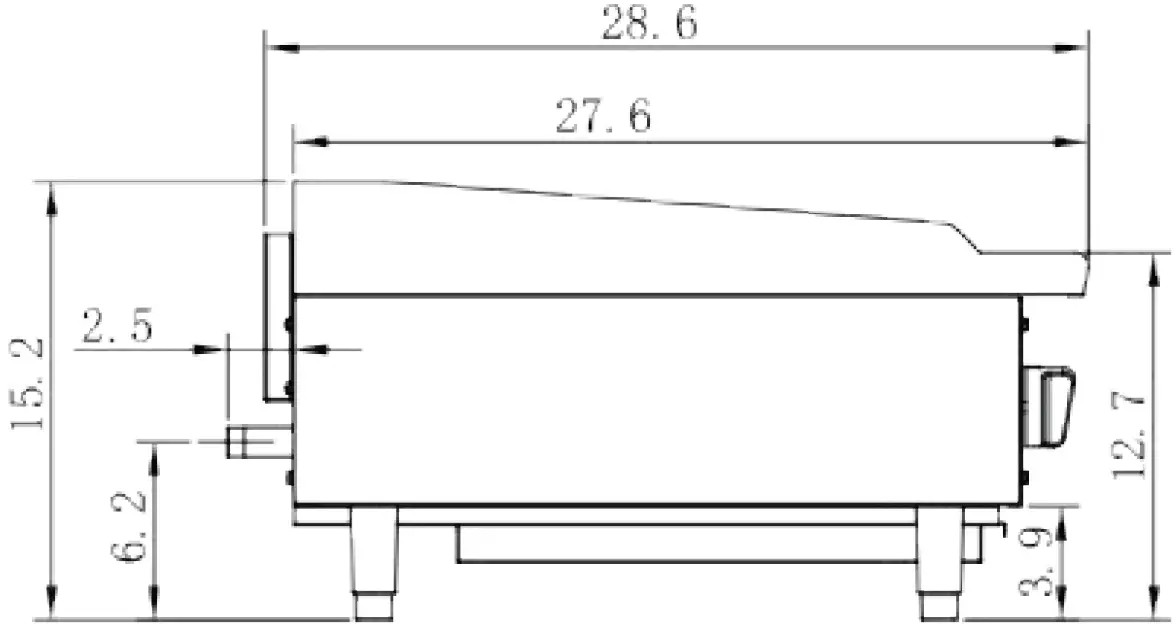

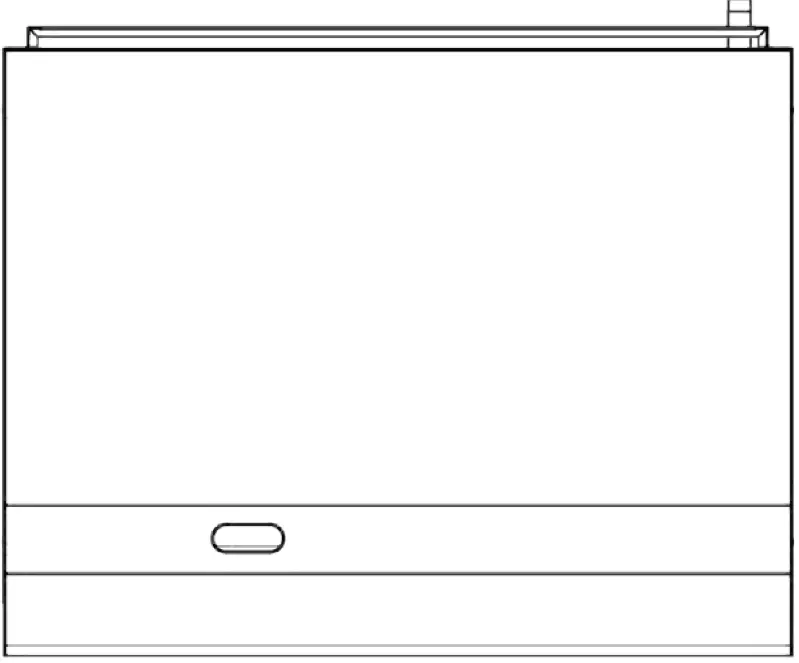

SIDE VIEW
