INSTRUCTIONS FOR USE (original)
CRE-DAC
SUPERSPEED USB-C & USB-A
SD/microSD MINI CARD READER
CRE-DAC SuperSpeed microSD Mini Card Reader
Turn on computer.
Plug the card reader to the USB port of the computer or phone.
An automatic installation will be performed.
No need to install any external drivers.
The memory card reader is ready to use.

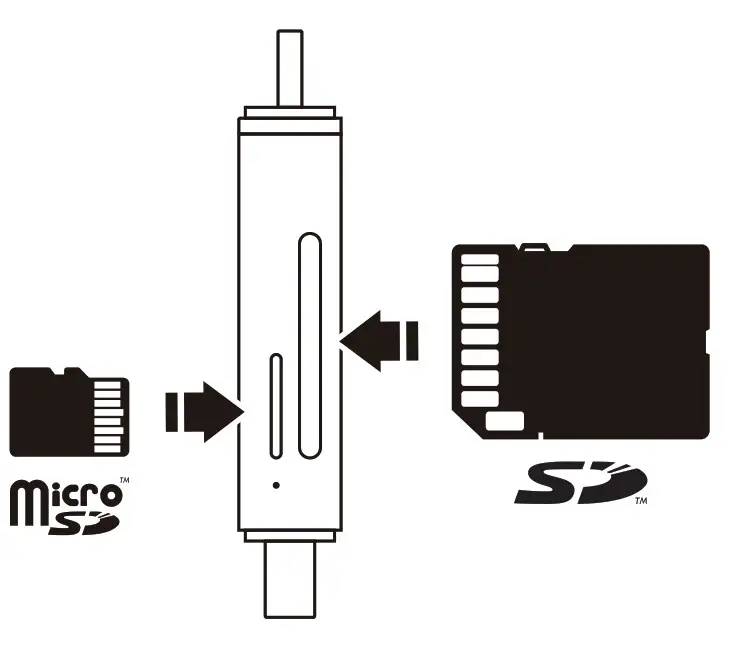

HOW TO INSERT CARDS
INSERT THE CARDS WITH THE TOPS APART.

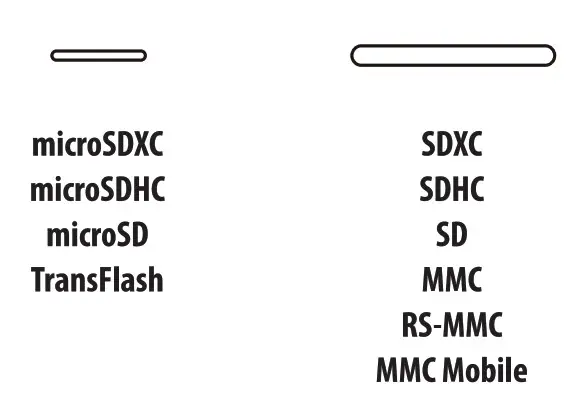

SUPPORTED CARDS
CARD TO CARD DIRECT COPY

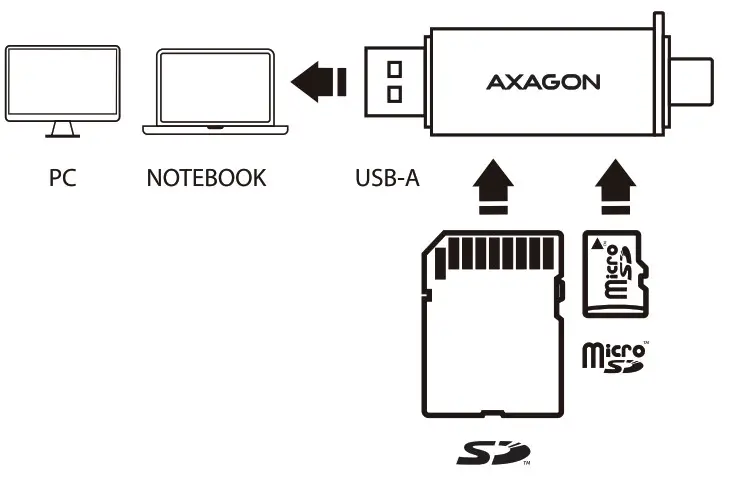

CONNECTION TO PC & NOTEBOOK

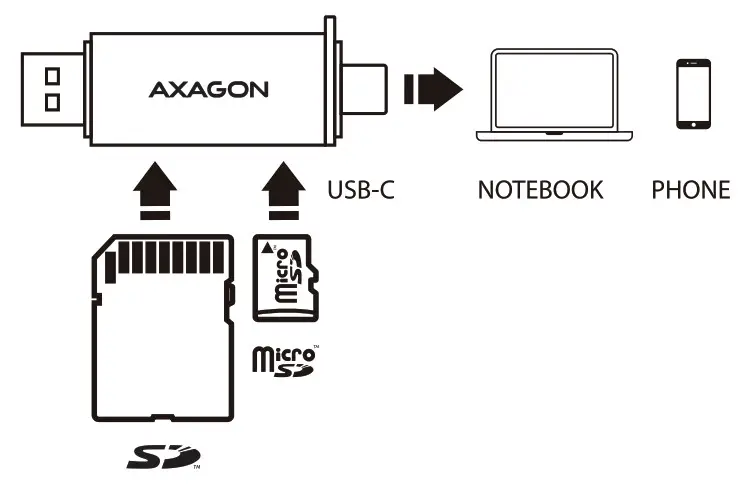

CONNECTION TO PHONE & NOTEBOOK
INPUT INTERFACE
USB 3.2 Gen 1 (USB 3.0) – USB 2.0
Backward compatible USB 2.0
Supported speeds 5000 / 480 Mbit/s (Super / High Speed) USB Type-C male connector & USB Type-A male connector
OUTPUT INTERFACE
2-slot USB 3.2 Gen 1 card reader
SD v1.0 /v1.1/ v2.0 / v3.0 (UHS-I)
SDHC <32GB / SDXC <2TB
MMC v3.x / v4.0 / v4.1 / v4.2 / v4.3 / v4.4
2 LUN – card to card direct copy
OTHER FEATURES
Plug & Play – Hot Plug – Hot Swap
automatic installation
power through USB bus
LED INDICATION
the LED indicates inecontin of the card reader to the power supply (lightning and data transfer (blinking).
0S SUPPORTED
WINDOWS XP –Vista-7-8+8.1- 10-11 &later Server 2008 + 2012 + 2016 + 2019 – 2022 & later 32 & 64bit versions supported 0S X 10.x & later Linux 2.6.x & later Android
TECHNICAL SUPPORT: More information, FAQs, manuals and drivers can be found on the product page in the PRODUCT SUPPORT tab at www.axagon.eu.
Nothing helped? Write to our technical support: [email protected].
At the end of its service life, do not throw the product into household waste; take it to a collection point for electrical equipment recycling. For information about collection and recycling programmes in your country, contact your local authorities or the retailer who sold you the product.
EU declaration of conformity: The device complies with the harmonisation legislation of the European Union 2014/30/EU (EMC) and 2011/65/EU (RoHS).
The complete EU declaration of conformity is available from the manufacturer.
Before using the product, the user is obliged to read the user instructions. The manufacturer disclaims any liability for damage that may occur due to improper use of the product or failure to follow the instructions contained herein. Product use other than specified must be consulted with the manufacturer.
Do not use the product in humid or explosive environments and near flammable substances.
www.axagon.eu
http://www.axagon.eu/produkty/cre-dac#supportLinkGoal
Two-slot SuperSpeed USB memory card reader
© 2022 AXAGON
Vyrobce / Manufacturer: RealQ s.r.o. – Zeleznd 5,619 00 Brno, Czech Republic
All rights reserved. All text and pictorial materials contained in this document are protected by Copyright Act.
All marks indicated here are the registered trademarks of their appropriate owners.
Specifications are subject to change without prior notice.
Made in CHINA for Axagon.
