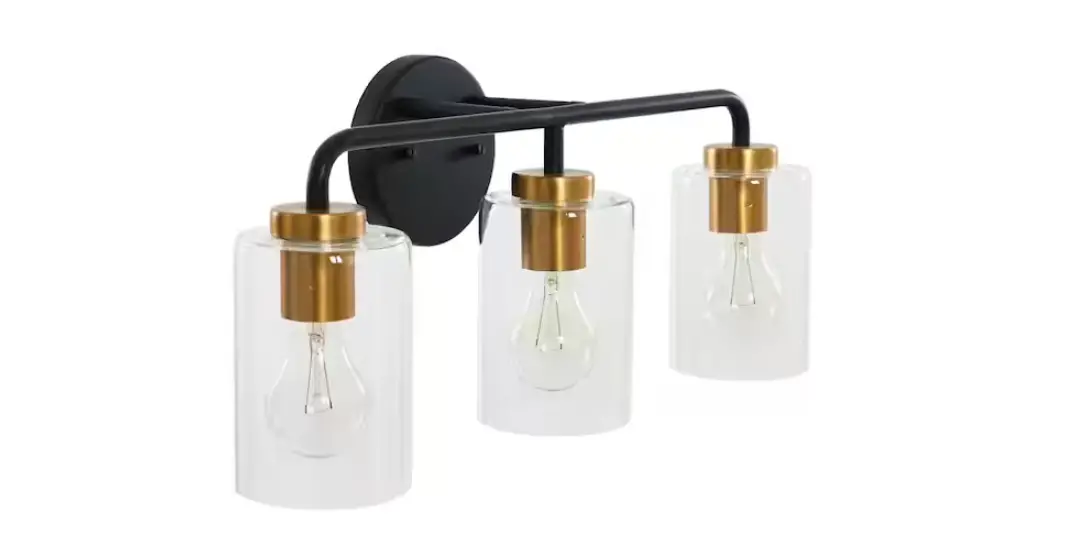

EC1176C/EC1177C
ASSEMBLY & INSTALLATION INSTRUCTIONS
Components List
| Item | Description | Quantity | Item | Description | Quantity |
| A | Wire Connector | 3 | D | Glass | 3 |
| B | Mounting Bracket | 1 | E | Socket Collar | 3 |
| C | Fixture Body | 1 | F | Bulb (Not Included) | 3 |
Hardware List
| Item | Description | Quantity | Item | Description | Quantity |
| a | Canopy Mounting Screws | 2 | c | Barrel Knobs | 2 |
| b | Long Screws (not included; | 2 |
WARNING
TO AVOID THE RISK OF ELECTRICAL SHOCK, BE SURE TO TURN OFF MAIN POWER PRIOR TO INSTALLATION.
CAUTION
Refer to the wattage caution label located near the socket for maximum rated wattage. Do not exceed maximum wattage.
ASSEMBLY & INSTALLATION
- Carefully unpack fixture from the carton. Take the parts out of the package and lay all the fixture components in a clean and flat surface.
- Attached Canopy Mounting Screws (a) to the Mounting Bracket (B) with screws facing outward. Attach Mounting Bracket (B) to the outlet box with Long Screws (b) (not included). Note: The side of mounting plate marked “GND” must face out.
- Connect the GROUND WIRE from the fixture and canopy to junction box, secure the electrical connections using the Wire Connector (A). Connect the NEUTRAL (OR WHITE) WIRE from the fixture to NEUTRAL WIRE from power supply with the Wire Connector (A). Connect the HOT (OR BLACK) WIRE from fixture to HOT WIRE from power supply with the Wire Connector (A). Tuck wires neatly back into the outlet box.
- Mount Fixture Body (C) on to the Mounting Bracket (B) by lifting it onto the screws facing outward, then tighten and secure in place with Barrel Knobs (c).
- Install Glass (D) onto the Fixture Body (C) and tighten the Glass (D) using the Socket Collar (E).
- Screw Bulb (not included) (F) into the lamp socket. Do not exceed the maximum wattage specified on the fixture’s wattage rating label. MAXIMUM 100 Watts.

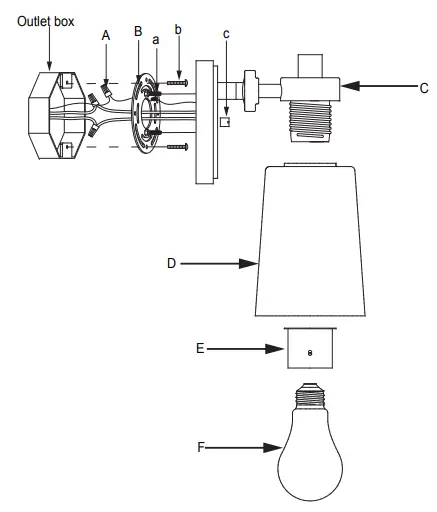

Note: (1). The above diagram illustrates the installation of your new light fixture. This is a representative drawing and may not match the style of your light fixture.
