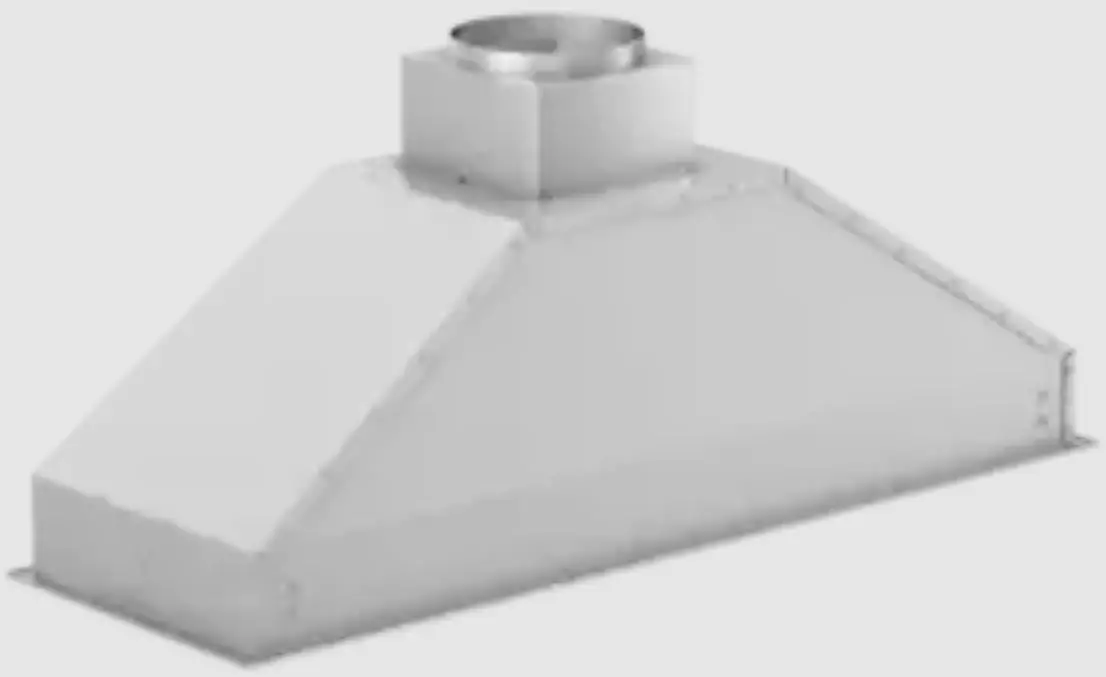

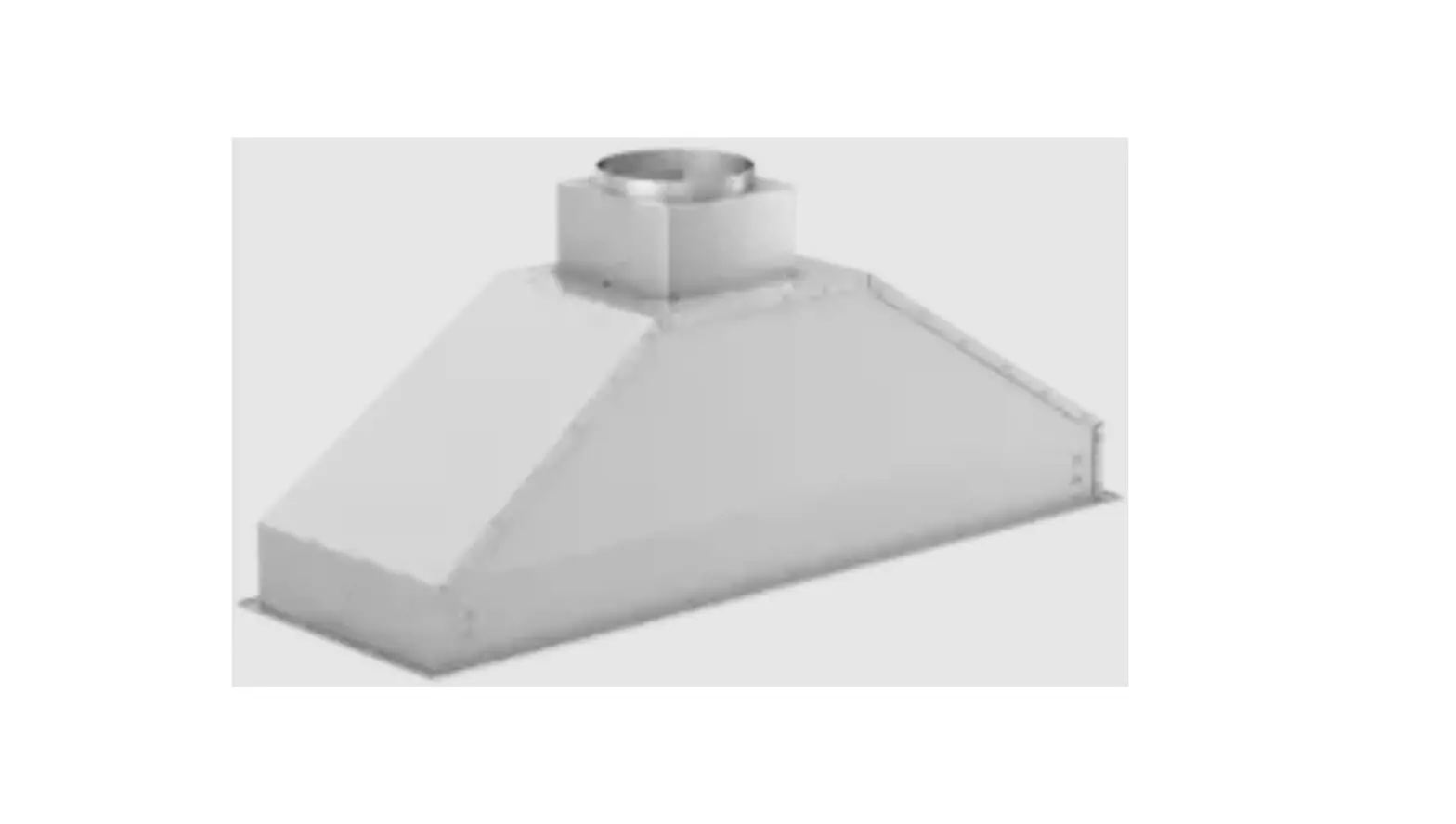

Elica EAS328SS Asti 300 Comfort Series Hood Insert Instructions
Metallic spacers Spacers has to be installed and used when cabinet depth is greater than 12”.
EAS328SS
| A | 28 1/4” (71.8 cm) |
| B | 26” (66.1 cm) |
| C | 1 1/8” (2.9 cm) |
| D | 10 3/4” (27.3 cm) |
| E | 9 1/2” (24.2 cm) |
| F | 3/8” (.95 cm) |
| G | 4 9/16” (37 cm) |
| H | 6” (15.2 cm) |
| I* | 1/2” (1.27 cm) |
