Installation Manual for
RockBoard® Frame 4 XL
Mounting Brace for large Multi-Power Supplies
Frame 4 XL Mounting Brace for Large Multi-Power Supplies
Thank you for choosing a RockBoard® Frame 4 XL! The Frame 4 XL is an optional replacement brace for the RockBoard® Quad 4.1, 4.2 & 4.3 pedalboards. This allows you to mount even larger and wider multi-power supplies without sacrificing the stability of your board.
Mounting
Step 1

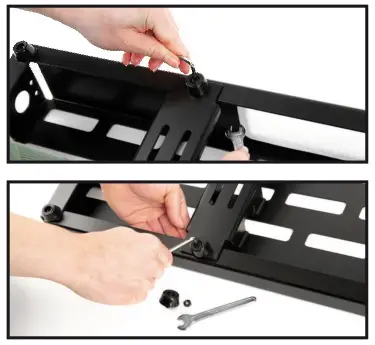

All tools required to mount the RockBoard® Frame XL are included. Remove one of the standard support braces on your RockBoard®. To do this, loosen and remove both screws on the rubber feet.
Step 2
Once both screws are removed, you can remove the support brace.
Step 3

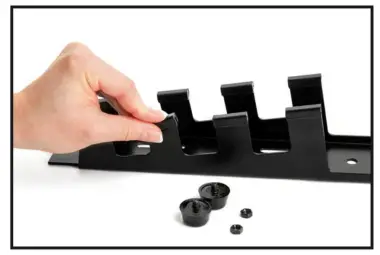

Place the rubber shock absorbers on the matching support pads of the RockBoard® Frame 4 XL.
Step 4

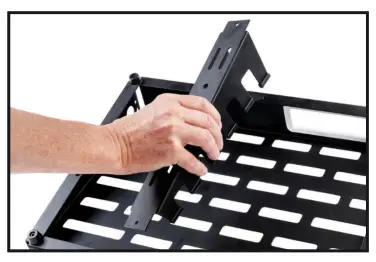

Place the Frame 4 XL into your RockBoard® pedalboard.
Step 5

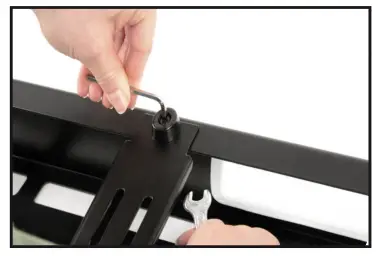

Screw the RockBoard® Frame 4 XL to the RockBoard® pedalboard.
Use the included wrench to position the nut. Ensure the Frame 4XL is secure.
Your RockBoard® Frame 4 XL is now completely mounted!

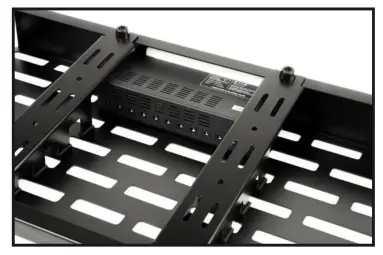

Mount two RockBoard® Frame 4 XL (Quad 4.2 & Quad 4.3 only)
You also have the option to install two RockBoard® Frame 4 XL on the Quad 4.2 and 4.3.
To do this, simply repeat the steps described above using a second Frame 4 XL in place of original bracket.

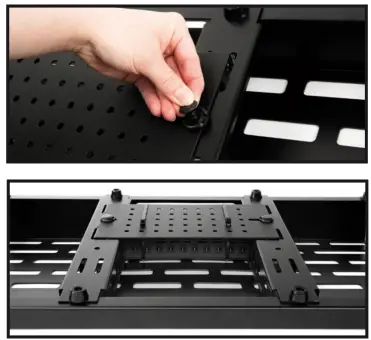

Mounting of a RockBoard® The Tray
If you also have a RockBoard® The Tray, you can now attach it as well, as described in the associated manual. The Frame 4 XL is fully compatible with The Tray system. To install, use the associated manual.
Note: The manufacturer reserves the right to change these specifications without notice.
