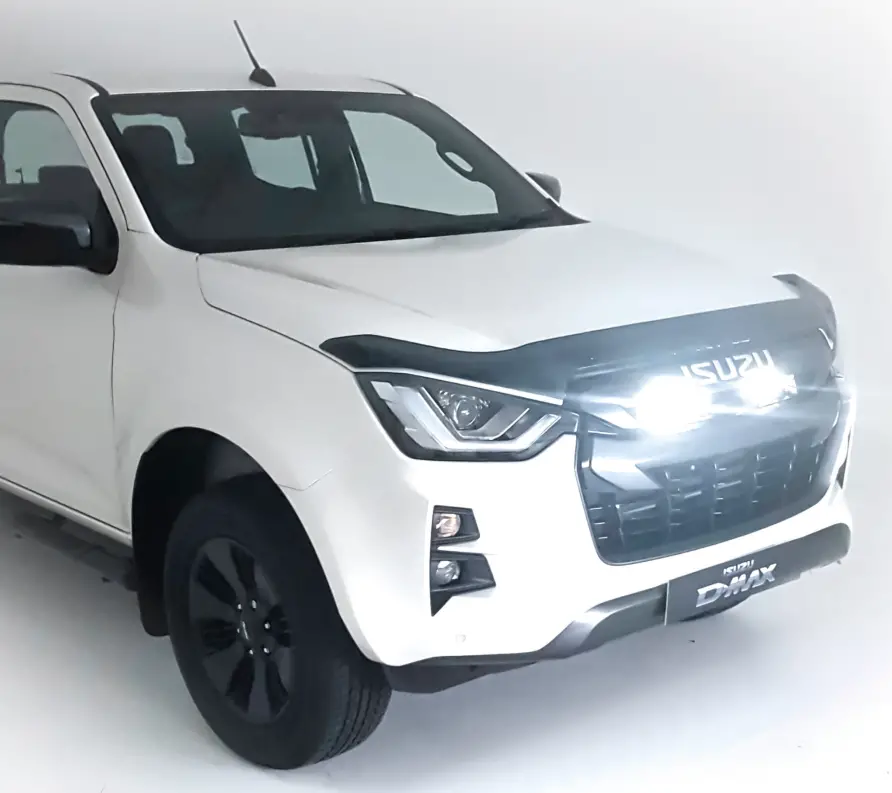

ISUZU DMAX 2017+
FITTING INSTRUCTIONS
GRILLE MOUNTING KIT FOR LINEAR-6

TECHNICAL SUPPORT

[email protected] / [email protected]
+44 (0)1992 945601 / +44 (0)1992 677374

WHAT’S REQUIRED

• 2x LINEAR-6 LIGHTS

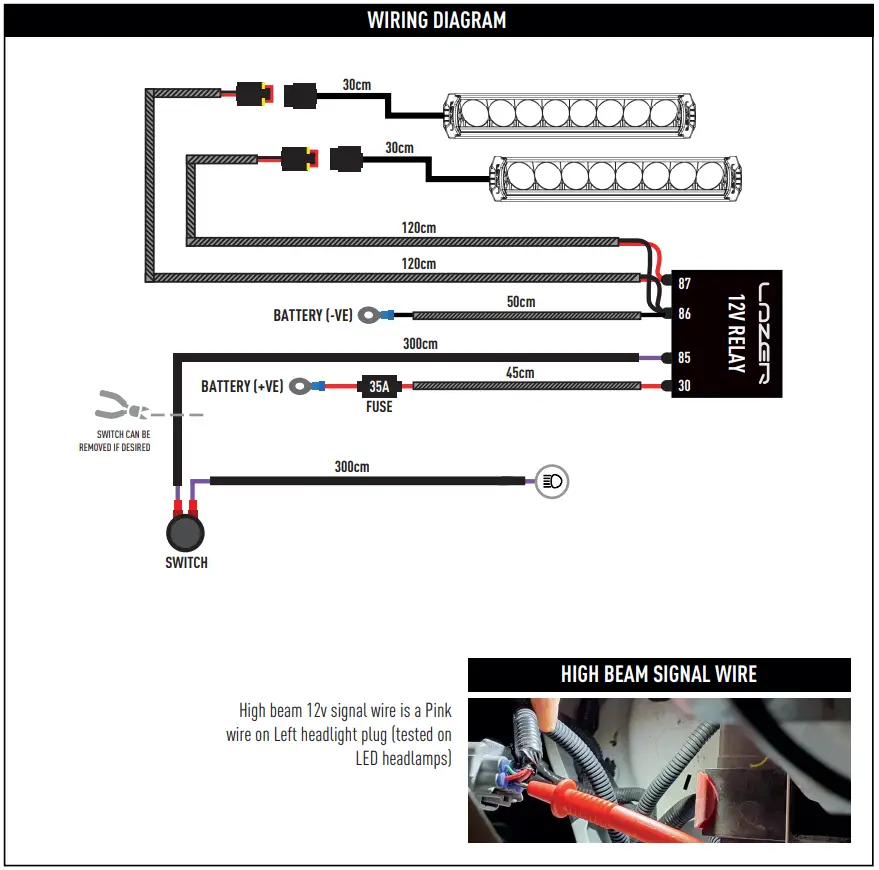

• 1x TWO LAMP HARNESS KIT
• 1x ISUZU DMAX 2021, LINEAR-6 MOUNTING KIT

DIFFICULTY LEVEL

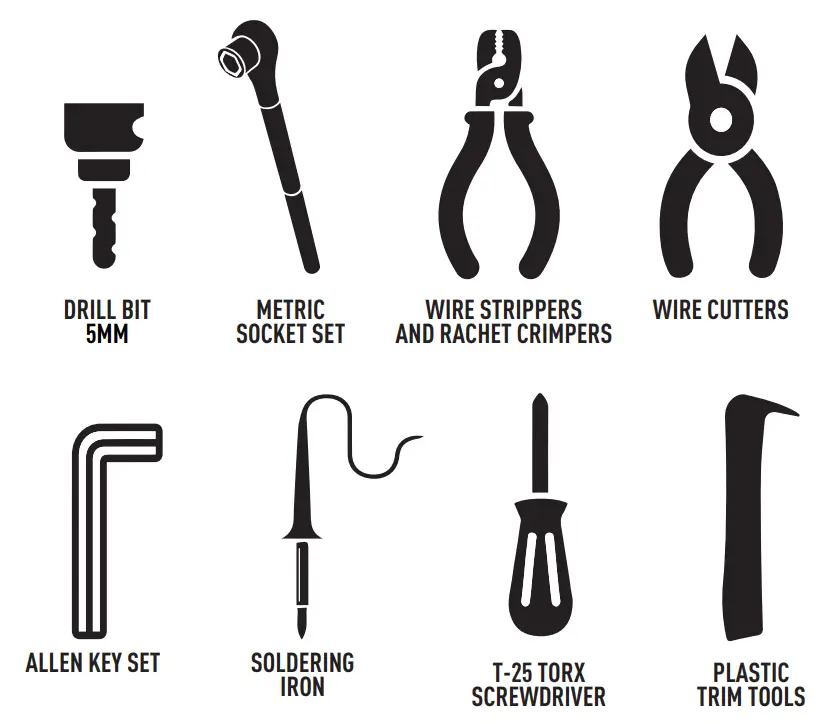

TOOLS REQUIRED

PRE-INSTALLATION CHECKS

1. Ensure the battery is disconnected.

INSTALL PROCESS

STEP 1

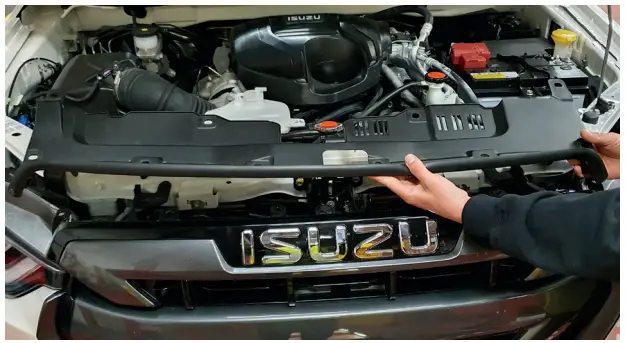

Remove the 10 plastic retaining rivets that hold the slam panel cover in place.

STEP 2
Remove the slam panel cover and set it to one side.

STEP 3

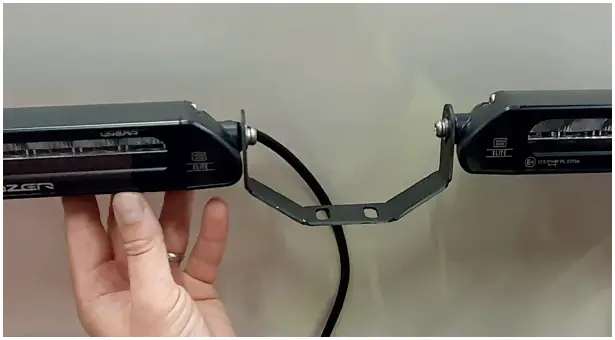

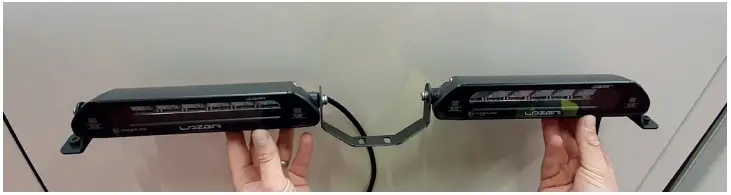

Assemble Lamps to the ‘U-shaped bracket as shown using the supplied fixings.

STEP 4

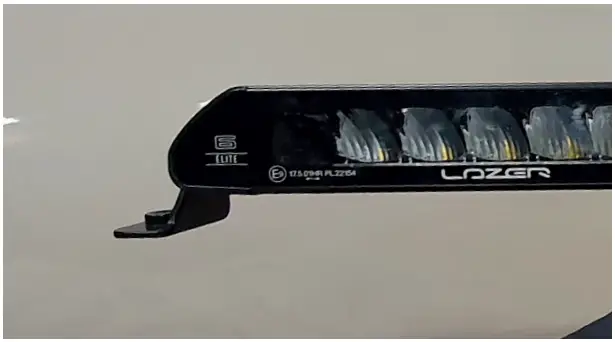

Fix the outboard side brackets to the Lamps.

STEP 5

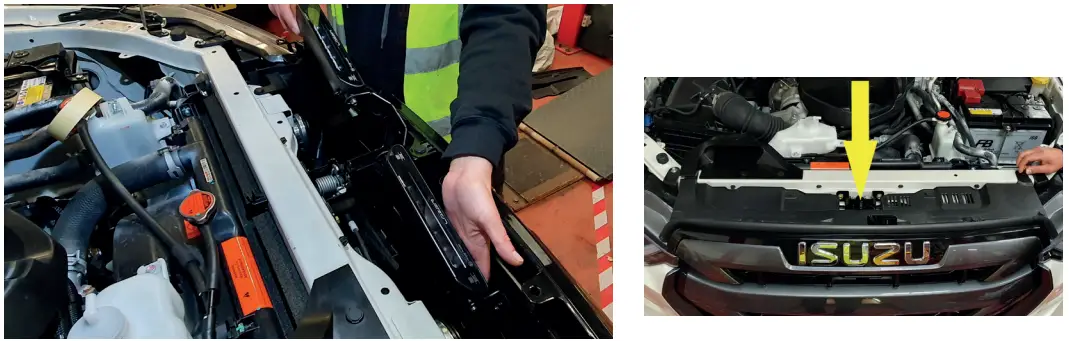

Carefully insert the lamp assembly into position behind the center grille.

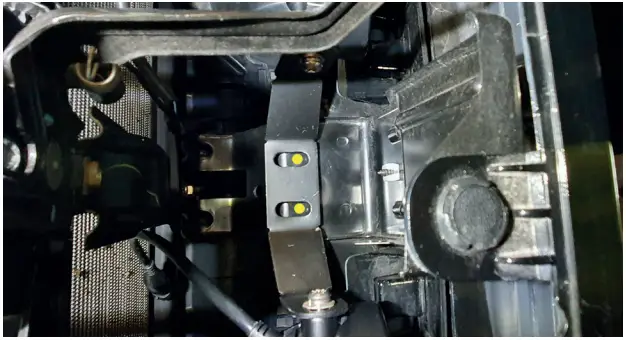

Mark the drill locations.

STEP 7

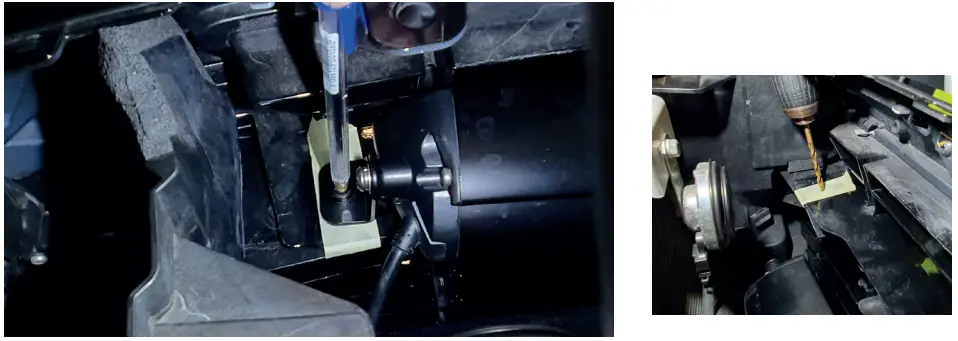

Drill x2 6mm holes and secure the center bracket to the metal support with the included fasteners.

STEP 8
Mark out where the end brackets need to be drilled and drill a 6mm hole.

STEP 9
Place the included 5mm spacer between the bracket and the grille to level the lamp and secure it with included fasteners.

STEP 10

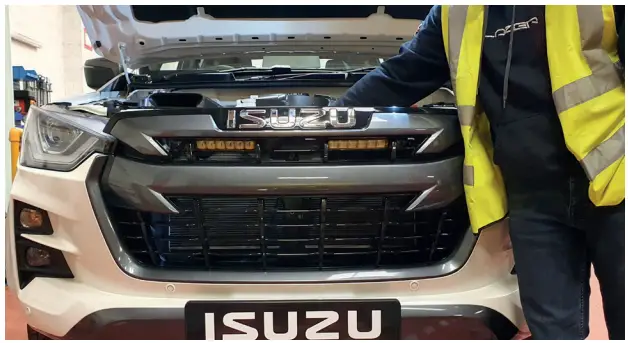

Aim lights, check functionality, and tighten, them before re-assembling the vehicle.

Thank you for choosing a Lazer Lamps product.
