GUJARAT HOSE PIPE Stainless Steel Corrugated Flexible Hose
SS304/SS316 Corrugated Flexible Metallic Hose

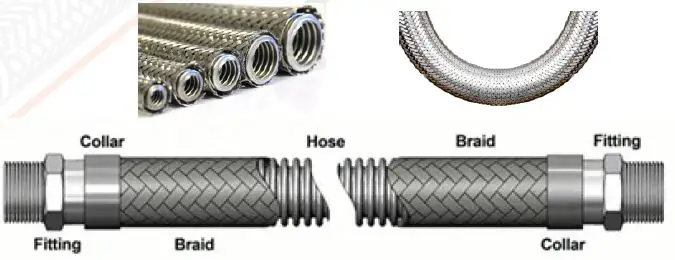

Corrugated Flexible Metal Hose Manufactured by Hydraulic Forming Annular Corrugations from two types of thin Gauge Butt Welded for Pressure Applications. One or Two Layers of Metallic Wire Braids are Applied Directly to the Hose having a Close Weave Braid at the Optimum Angle.
Hose Material: SS304/SS316
Braid Material: SS304/SS316
Size Range: ¼” to 12”
Temp. : 150 Deg. To 220 Deg.
Application: For High-Pressure Applications Involving Vibration and Temperature also.
| Nominal Size DN | Without Braid | Single Braid | Double Braid | Minimum Bend Radius | Minimum Bend Radius | |||||
| Max. Working Pressure | Test Pressure | Max. Working Pressure | Test Pressure | Max. Working Pressure | Test Pressure | Type-1 | Type-2 | |||
| Inch | mm | Kg/cm2 | Kg/cm2) | Kg/cm2 | Kg/cm2) | Kg/cm2 | Kg/cm2 | mm | mm | mm |
| 1/4 | 6 | 4 | 6 | 100 | 150 | 160 | 240 | 25 | 110 | 140 |
| 5/16 | 8 | 4 | 6 | 100 | 150 | 160 | 240 | 32 | 130 | 165 |
| 3/8 | 10 | 4 | 6 | 90 | 135 | 144 | 216 | 38 | 150 | 190 |
| 1/2 | 12 | 3 | 4.5 | 80 | 120 | 128 | 192 | 45 | 165 | 210 |
| 5/8 | 16 | 3 | 4.5 | 70 | 105 | 112 | 168 | 58 | 195 | 250 |
| 3/4 | 20 | 2 | 3 | 64 | 96 | 102 | 153 | 70 | 225 | 285 |
| 1 | 25 | 2 | 3 | 50 | 75 | 80 | 120 | 85 | 260 | 325 |
| 1.1/4 | 32 | 1.5 | 2.3 | 40 | 60 | 64 | 96 | 105 | 300 | 380 |
| 1.1/2 | 40 | 1.5 | 2.3 | 30 | 45 | 48 | 72 | 130 | 340 | 430 |
| 2 | 50 | 1 | 1.5 | 28 | 42 | 44 | 66 | 160 | 390 | 490 |
| 2.12 | 65 | 1 | 1.5 | 24 | 36 | 38 | 57 | 200 | 460 | 580 |
| 3 | 80 | 1 | 1.5 | 18 | 27 | 28 | 42 | 240 | 660 | 800 |
| 4 | 100 | 0.8 | 1.2 | 16 | 24 | 26 | 39 | 290 | 750 | 1000 |
| 5 | 125 | 0.6 | 0.9 | 12 | 18 | 20 | 30 | 350 | 1000 | 1250 |
| 6 | 150 | 0.6 | 0.9 | 10 | 15 | 16 | 24 | 400 | 1250 | 1550 |
| 8 | 200 | 0.5 | 0.75 | 8 | 12 | 12 | 18 | 520 | 1600 | 2000 |
| 10 | 250 | 0.25 | 0.36 | 6 | 9 | 9 | 14 | 620 | 2000 | 2500 |
| 12 | 300 | 0.20 | 0.30 | 4 | 6 | 6 | 9 | 720 | 2400 | 3000 |
Advantages of Flexible Metal Hoses
- Suitable for wide temperature range (-270°C to 600°C-650°C)
- Compensates for thermal expansion contraction in the piping system
- High physical strength
- Fire resistant
- Moisture resistant
- Longer life
- Good corrosion characteristics
- Resistant to abrasion, penetration and damage
- Connects misaligned rigid piping absorbs or dampens vibration and similar equipment.
- A flexible and quick option for rigid piping in difficult locations.
Industries To be Used
- Aerospace Industries
- Atomic Energy
- Boilers
- Chemical Industries
- Consultants
- Construction & Engineering
- Defence Industries
- Expansion Lines
- Fertiliser Industries
- Oil & Natural Gas
- Pulp & Paper Plant
- Petrochemical Industries
- Pharmaceutical Industries
- Refineries
- Shipping
- Steel Industries
- Textile Industries
- Thermal Power Station
- Lubrication Systems
- Nuclear Power Plant

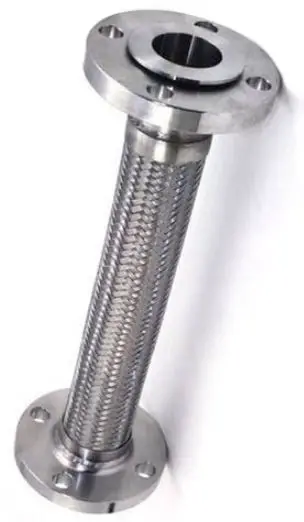

PUMP CONNECTORS:
Stainless Steel Flexible Pump Connectors are designed for mechanical equipment to isolate vibration, relieve stresses,reduce noise, absorb small movements and to facilitate installation. Flexible pump connectors to use suppress vibration from pump,to absorb intermittent lateral movements in pipelines and to compensate for subsidence when pipelines cross building movement lines.

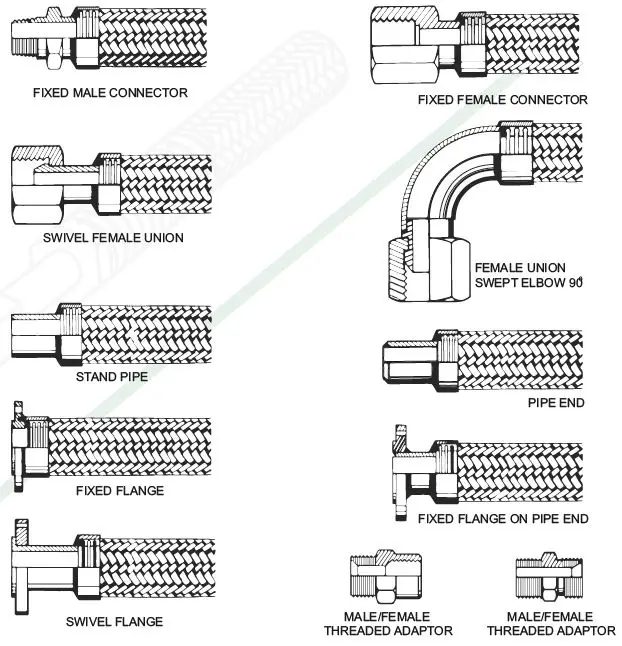

End Fittings:
- BSP/BSPT/NPT threads, Hexagonal Male fix type pipe threads
- Fixed Flange/Swivel Flange as per ANSI B16.5 150#,300#/ DIN PN 10/PN 16/PN 40
Note:
- Flexible pump connector are designed the test pressure is 1.5 times of the max. Working pressure.
- The burst pressure is 4 times of the working pressure. They are use for full vacuum and operating temperature of -200° C to +550° C.
- Flexible Pump Connectors are not suitable for absorbing AXIAL Movement.
- We are also manufacturing higher pressure Pump Connectors as per customer’s specification.
Advantages of Flexible pump connector:
- Absorbs misalignment, vibration and sound.
- Withstands high pressure.
- Excellent corrosion-resistance. Excellent for use with moderate many solvents, chemicals,most oils and grease
END CONNECTOR
TEFLON HOSE PRODUCTS
PTFE Corrugated Flexible Hose
Construction: Innercore of corrugated PTFE, externally reinforced with stainless steel wire braid of SS304/SS316
Temperature :
(- 54° C) to 204° C
Technical Details
| Technical Details | |||||
| Hose SIZE | Hose I.D. (Nom.) | Hose O.D (Nom) | Working Pressure | Min.Burst Pressure | Min. Bend Radius |
| (In.) | (mm) | (mm) | (Bar) | (Bar) | (mm) |
| 1/4 | 6.60 | 10.4 | 175 | 700 | 20 |
| 5/16 | 8.18 | 12.4 | 160 | 640 | 20 |
| 3/8 | 9.65 | 13.7 | 120 | 480 | 20 |
| 1/2 | 12.83 | 18.4 | 110 | 440 | 25 |
| 5/8 | 16.00 | 21.0 | 100 | 400 | 50 |
| 3/4 | 19.18 | 25.9 | 80 | 320 | 65 |
| 7/8 | 22.23 | 29.7 | 60 | 240 | 80 |
| 1 | 25.53 | 33.8 | 55 | 220 | 90 |
| 1.1/4 | 31.88 | 42.7 | 45 | 180 | 110 |
| 1.1/2 | 38.23 | 48.0 | 35 | 140 | 150 |
| 2 | 50.93 | 61.5 | 25 | 100 | 200 |
| 2.1/2 | 63.50 | 85.0 | 17.5 | 70 | 250 |
| 3 | 76.00 | 89.0 | 16.3 | 65 | 310 |
Advantages :
P.T.F.E hose has an excellent temperature characteristic both in high and low temperature. Excellent chemical resistance, non-contamination properties, low coefficient of friction and resists deterioration.
Applications
- Automotive Industries,
- Chemical Industries,
- Pharmaceutical Industries,
- Food processing Industries,
- Plastic & rubber molding machines.
SMOOTH BORE MEDIUM PRESSURE PTFE HOSE
Construction:
Smooth innercore of extruded white PTFE,with Stainless Steel wire braid reinforcement of SS304/SS316L
Temperature :
- (-54°C) to 232°C (-65°F to 450°F) for continuous service.
- (-73°C) to 260°C (-100°F to 500°F) for intermittent service.
Advantages :
PTFE is an ideal material for flexible hose, to which a wire over-braid is added for excellent pressure ratings. Such hose gives extremely long life because its inner core has out-standing resistance to steam,chemicals, solvents, heat pressure impulses, flexing,vibration and aging.
Applications :
- Automotive Industries,
- Chemical Industries,
- Pharmaceutical Industries,
- Food processing Industries,
- Plastic & rubber molding machines.

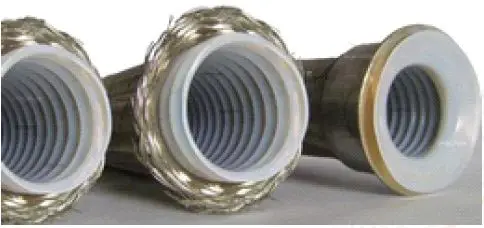

PTFE LINED HOSE
Description :
PTFE lined hose has the internal tube of PTFE inside the corrugated metallic hose. The flange is assembled with the internal tube providing a liner inside and across the face of the flange. Chemical inertness is therefore maintained throughout the entire assembly. PTFE lined hose assemblies permit full utilization of the wide operating extreme characteristics of PTFE and are rated for continuous service from (-70°C) to 240°C. These ratings can be exceeded for intermittent operations, depending on time and overall conditions.
| Technical Details | |||||
| Hose SIZE | Hose I.D. (Nom.) | Hose O.D (Nom) | Working Pressure | Min.Burst Pressure | Min. Bend Radius |
| (In.) | (mm) | (mm) | (Bar) | (Bar) | (mm) |
| 1/8 | 3.35 | 6.4 | 225 | 900 | 40 |
| 3/16 | 4.83 | 7.6 | 210 | 840 | 50 |
| 1/4 | 6.48 | 9.7 | 210 | 840 | 75 |
| 5/16 | 8.00 | 11.2 | 175 | 700 | 100 |
| 3/8 | 9.65 | 12.6 | 165 | 660 | 125 |
| 13/32 | 10.41 | 13.8 | 140 | 560 | 135 |
| 1/2 | 12.83 | 16.5 | 120 | 480 | 165 |
| 5/8 | 16.00 | 19.8 | 88 | 352 | 200 |
| 3/4 | 19.18 | 22.9 | 75 | 300 | 230 |
| 7/8 | 22.23 | 26.2 | 62 | 248 | 230 |
| 1 | 25.53 | 29.5 | 62 | 248 | 300 |
| 1.1/8 | 28.58 | 33.0 | 44 | 176 | 410 |
We Provide Complete PTFE Lined Hose as per Below Specifications:
- Hose Size: 1” to 8”
- Hose Length: 300MM to 3 Mtr
- Inner PTFE Thickness: 2MM to 4MM
- End Connection:
- Fixed Flange / Swivel Flange as per
- ANSI B16.5 150#, 300#/DIN PN 10, PN 16, PN
PIGTAIL HOSE
Oxygen Hose Pipe or Pigtail Hose Pipe is used for medical purposes, nitrogen gas, Oxygen Gas. These hoses have different end connections as per client use
- Core: Sintered Tube of polytetrafluoroethylene (PTFE).
- WORKING PRESSURE: 180 To 350 BAR
- Reinforcement: Single/Double Braid of SS304 series of stainless steel wire.
- Length: 1 MTR To As per Client Requirement
- End Connection: 1/4″ BSP female swivel nut , 1/4″ BSP fix female nut and NPT female and MOC ss 304 and SS 316 etc.
Applications: it is used for tranfer medical oxygen , nitrogen and also used in pharma and chemical industries etc.

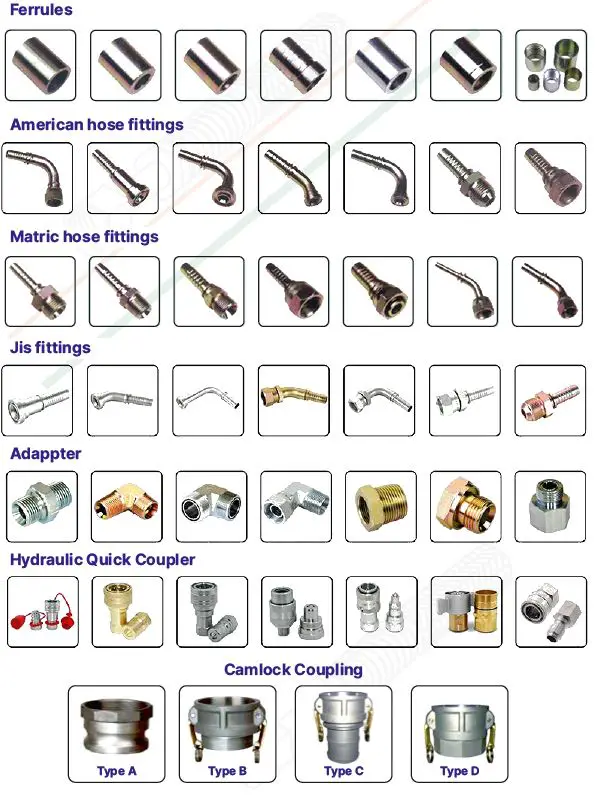

Hydraulic Hoses Fittings
