480014 Thea Trafo 12V 0-100W Thea Electronic Transformer
Installation Guide
480014 Thea Trafo 12V 0-100W Thea Electronic Transformer
| Rated supply voltage | 220-240V |
| Frequency | 50/60Hz |
| Input current | 0,48A |
| Secondary voltage | 11,2V |
| Lamp wattage | 0-100W lamp |
| Efficiency | ≥93% |
| Power factor | ≥0,99λ |
| Input capacitance | 100nF |
| Operating temperature to | 50°C |
| Max casing temperature tc | Max. 80°C |
| Dimming For LED Lamp, Proper matching between dimmer, lamp and driver is required | Leading and trailing edge dimmers |
| Primary terminal | 2-pole, screw terminal dia 5,2mm |
| Secondary terminal | 2-pole, screw terminal dia 5,2mm |
| Lifetime | 30 000h |
*Before use, always check the compatibility with the LED lamps of the application.
Installation
The electronic LED converter is exclusively designed for the Light Emitting Diode (LED) lamps and for indoor use. The electronic converter is a switch mode power supplier with 12VAC constant output voltage.
An electronic protection circuit switches off the electronic converter in case of short circuit in the secondary circuit, overheat as well as open circuit. This convertor is thermally protected device, the type of protection is automatic resetting type. After the removing of the faults, the electronic LED converter is ready for operation again.
The unit conforms to the directive 2006/95/EC for the electromagnetic compatibility and the low voltage directive 2014/35/EU.
- The electronic converter can only be used with the LED lamps.
- The electronic converter is only suitable for use indoors. Protect the electronic converter against excessive heat (for permissible operating temperature range see table).
- The loads indicated on the converter must neither exceed nor below the following values.

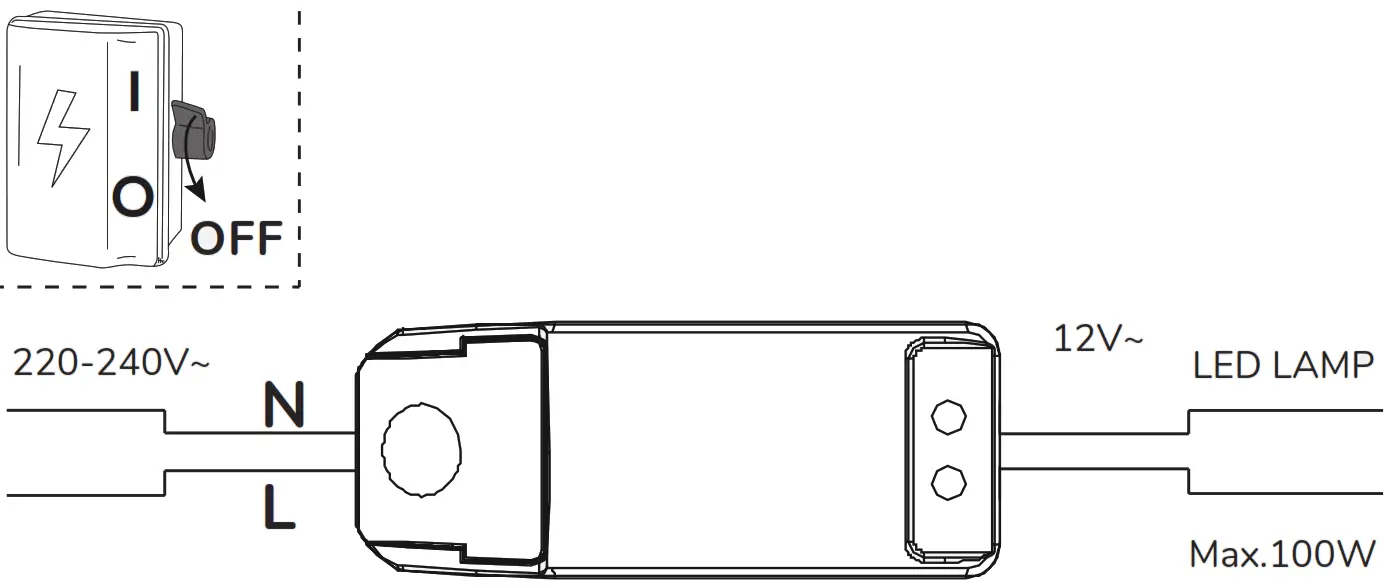

- Connect the LED lamps to the electronic LED converter with correct polarity according to the schematic drawing.
- If the electronic LED converter is used for purposes other than originally intended or it is connected in the wrong way, no liability can be taken over for possible damages.
SAFE INSTALLATION

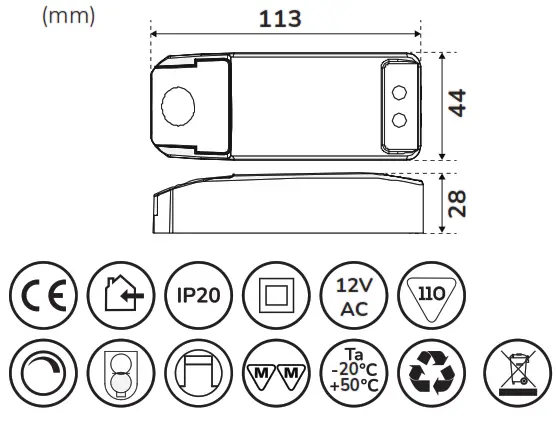

For explanation of the symbols, see www.llitt.com
Read these instructions before beginning the installation and hand them over to the user of the system. Only persons with the requisite knowledge are to perform the installation or main-tenance. If you lack this knowledge, contact a qualified electrician. Make sure that the mains power is switched off before installation or maintenance. Install the luminaire as described below. Position the LED luminaire and driver unit far from heat sources and in a well ventilated area.
* Scan QR code for more info.
We reserve the right to change specifications without notice.
The Swedish light.
www.llitt.com
Elektro Elco AB
Tallvagen 5, SE-564 35 Bankeryd,
Sweden
[email protected]
www.llitt.com
Keep for future reference.
Art.nr: UM 1002
Version: 2021/12
Art nr: 480014
