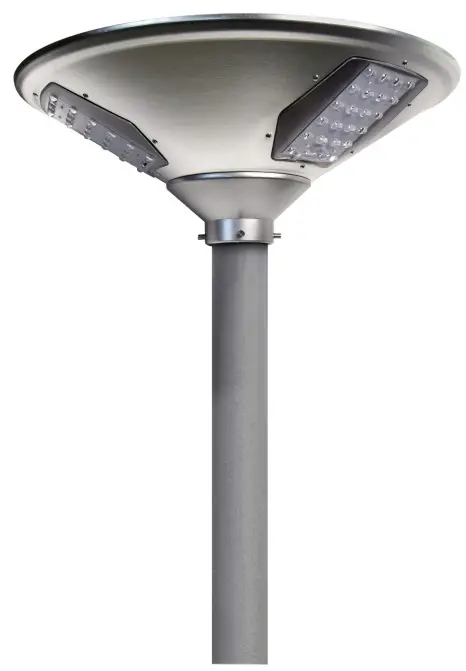

Anern AN-ISGL02 All-in-One Solar Garden Light Instruction Manual

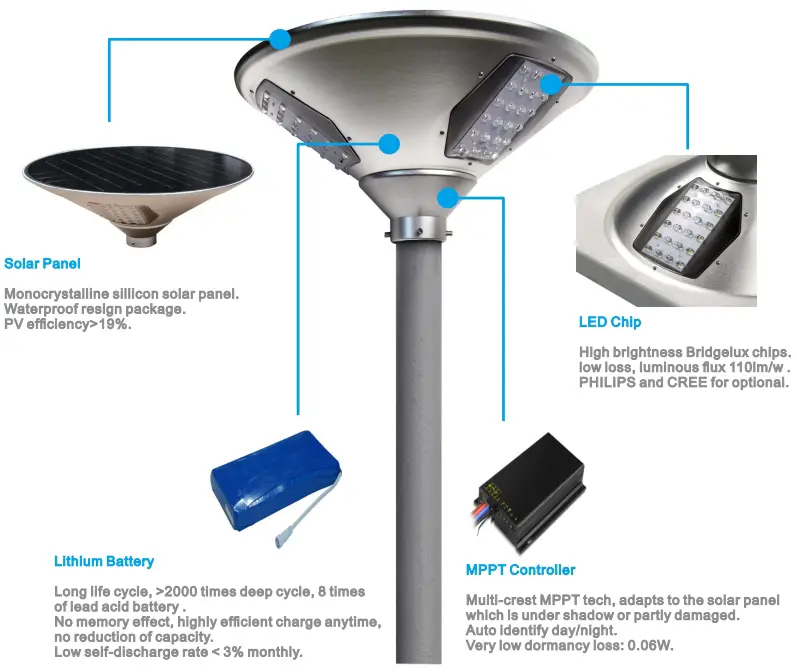

Lamp structure
Specification
 | |
| Model | AN-ISG02-20W |
| LED | 2000Lumens, 2700-6500K |
| Li-ion Battery | 15AH |
| Solar Panel(High efficiency mono) | 18V 30W |
| Solar Charging Time | 9-10 hours by bright sunlight |
| Lighting time | Over 3 nights |
| Install height | 3~4 meters |
| Waterproof | Ip65 |
| Material | Aluminium alloy + ABS |
| Size | 570*570*230mm |
| Work temperature | – 25 to 65 |
| Lighting Mode | 5 Hrs high bright + 7 Hrs 25% dim light |
| Packing Details | Carton size: 59*59*27CM QTY/CTNS: 1PCS G.W/CTNS:8KG |
| |
| Model | AN-ISG02-30W |
| LED | 3000Lumens, 2700-6500K |
| Li-ion Battery | 30AH |
| Solar Panel(High efficiency mono) | 18V 40W |
| Solar Charging Time | 9-10 hours by bright sunlight |
| Lighting time | Over 3 nights |
| Install height | 3~4 meters |
| Waterproof | Ip65 |
| Material | Aluminium alloy + ABS |
| Size | 660*660*240mm |
| Work temperature | – 25 to 65 |
| Lighting Mode | 5 Hrs high bright + 7 Hrs 25% dim light |
| Packing Details | Carton size: 68*68*28CM QTY/CTNS: 1PCS G.W/CTNS:10KG |
| |
| Model | AN-ISG02-50W |
| LED | 5000Lumens, 2700-6500K |
| Li-ion Battery | 40AH |
| Solar Panel(High efficiency mono) | 18V 50W |
| Solar Charging Time | 9-10 hours by bright sunlight |
| Lighting time | Over 3 nights |
| Install height | 3~4 meters |
| Waterproof | Ip65 |
| Material | Aluminium alloy + ABS |
| Size | 760*760*250mm |
| Work temperature | – 25 to 65 |
| Lighting Mode | 5 Hrs high bright + 7 Hrs 25% dim light |
| Packing Details | Carton size: 78*78*28CM QTY/CTNS: 1PCS G.W/CTNS:16KG |

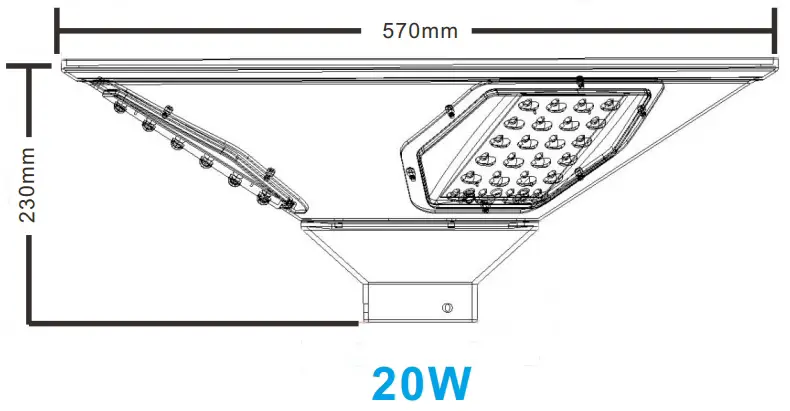

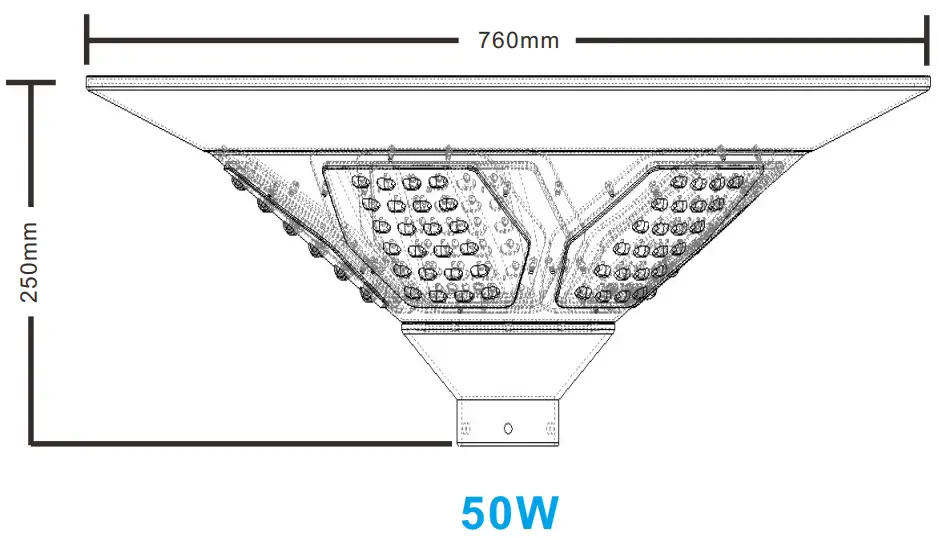

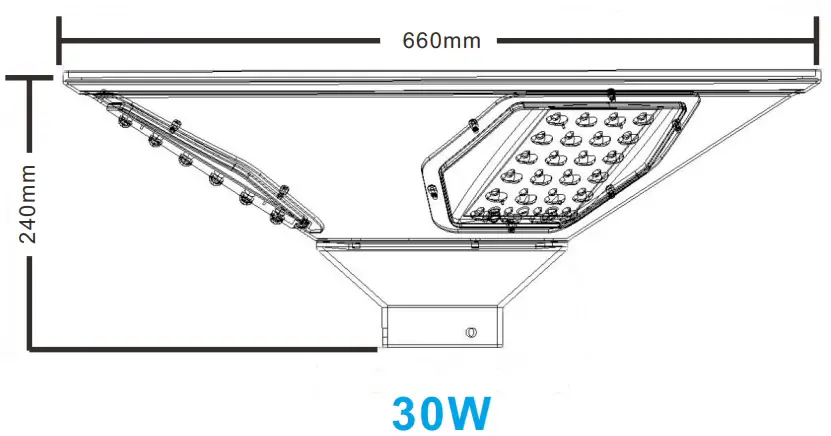

Dimension
Operation Instructions

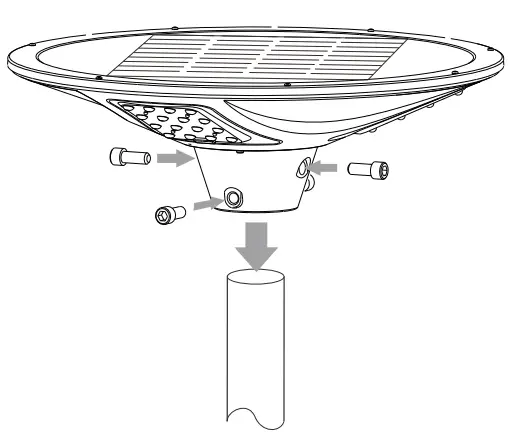

How to install the device ?
Very easy to install, just screw on the light to the pole by supplied screws.

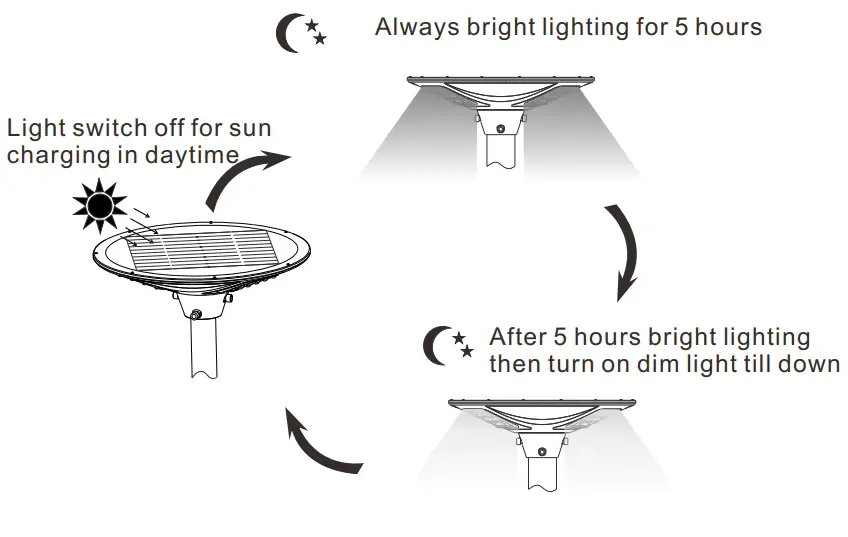

How to the light working ?

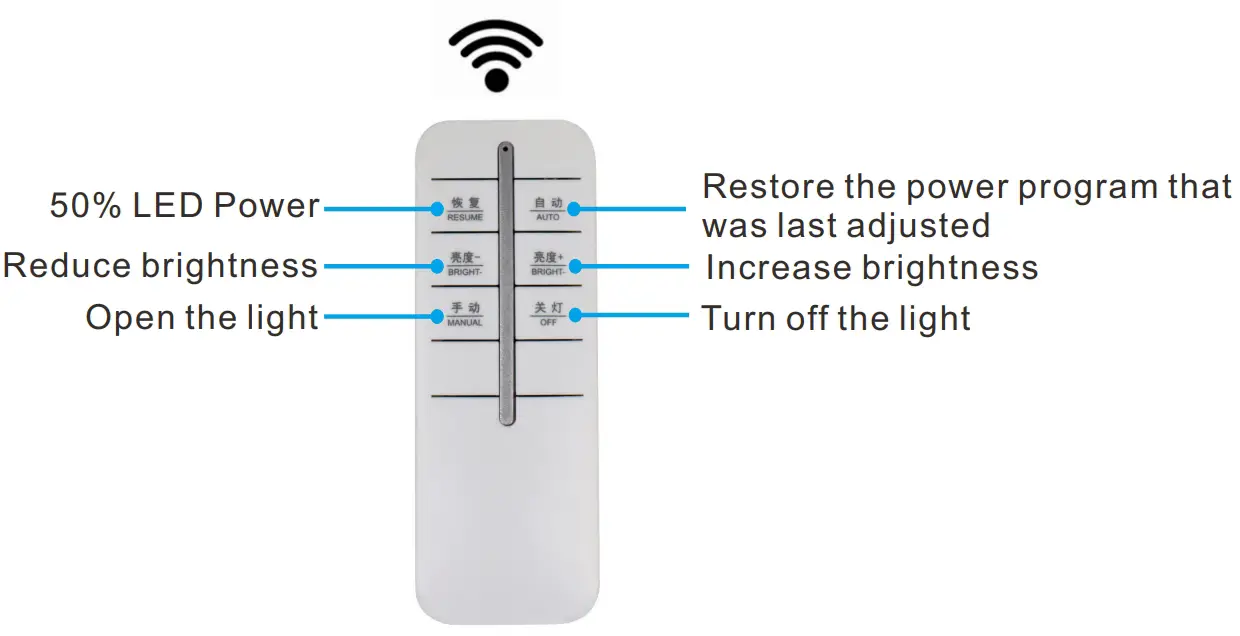

Remote Control
