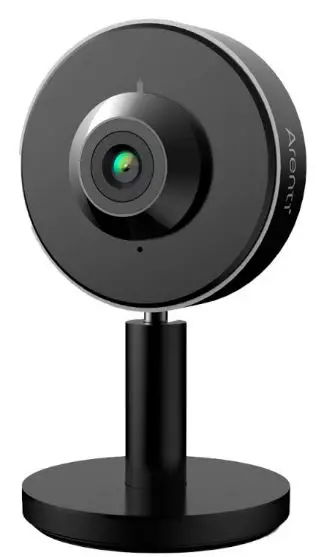

Arenti AR-INDOOR1 Smart Indoor Wi-Fi Camera

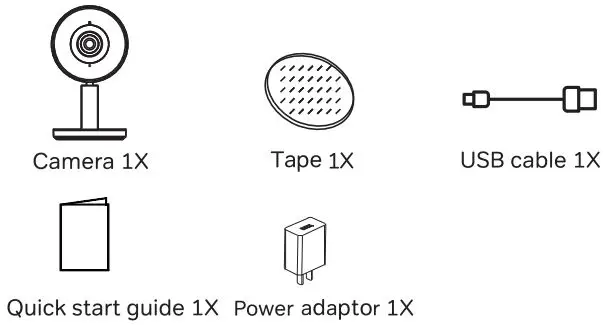

Packing list

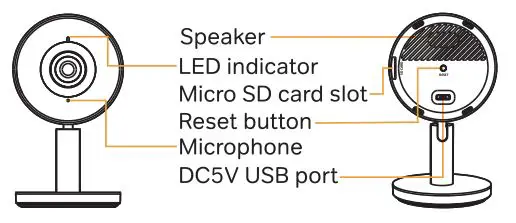

Product description
Note
To reset the device, press and hold the reset button for 5 seconds . The camera beeps when the operation is complete.
Camera configuration
- Step 1 Turn on your camera by plugging in the power adapter.
- Step 2 Connect your smartphone to the Wi-Fi network.
- Step 3 Download Arenti app from the App Store or Google Play depending on your device.
- Step 4 Launch Arenti app and sign up for the first use.
- Step 5 Follow the steps below to add your camera, then follow the on-screen instructions.
| Flashing red light (slow) | Waiting configuration |
| Flashing red light (fast) | Searching WiFi network |
| Fixed blue light | Camera connected to WiFi |
| Flashing blue light | Access point mode |
Note
- If you have multiple cameras, please follow step 5 again to add devices one by one.
- To change Wi-Fi network, please restore the camera to factory settings and follow step 5 to add the camera.
| Sensor type | 1/3″ CMOS |
| Min. brightness | Color [email protected] |
| Black and white [email protected] | |
| Resolution | 3 Mega pixels |
| Lens | 3.6 mm F2.0 |
| Shutter | 1/15-1/10,000 per second |
| Infrared | High power LED with ICR |
| Infrared distance | 10 meters |
| Video compression | H.264 |
| Bit rate | 32Kbps – 2Mbps |
| Max resolution | 2304 x 1296 |
| Framerate | 1-25 per second |
| Picture settings | Support HD/SD; support flip |
| Storage | SD card (Max 256GB) |
| Audio | Two-way audio |
| Protocols | HTTP, DHCP, DNS, RTSP |
| WiFi standard | IEEE802.11b/g/n |
| Frequency | 2.4 GHz – 2.4835 GHz |
| Bandwidth | 20/40MHz |
| WiFi encryption | WPA-PSK/WPA2-PSK |
| Security | AES128 |
| Working temperature | -20℃~50℃ |
| Power | DC5V,1A |
| Consumption | 2.5W MAX |
| Size(mm) | 60x57x105 |
| Model | TPA-67F050100VU01 |
| Input voltage | 100-240Vac |
| Input frequency | 50-60Hz |
| Output voltage | +5Vdc |
| Output current | 1A |
| Output power | 5W |
| Efficiency | 73,62% |
| No-load consumption | <0.1W |
Support
Symbols
Direct current (DC)
- Don’t throw batteries or out-of-order products with household waste (garbage). The dangerous substances that they are likely to include may harll\ health or the environment Make your retailer take back these products or use the selective collection of garbage proposed by your city.
- Hereby, Arenti declares that the radio equipment type• ‘is in compliance with the Directive 2014/53/EU.
- The full test of the EU declaration of conformity is available at the following Internet address: http://www.arenti.com
- For indoor use only
