niko 551-72101 Connected Single Switch Instruction Manual

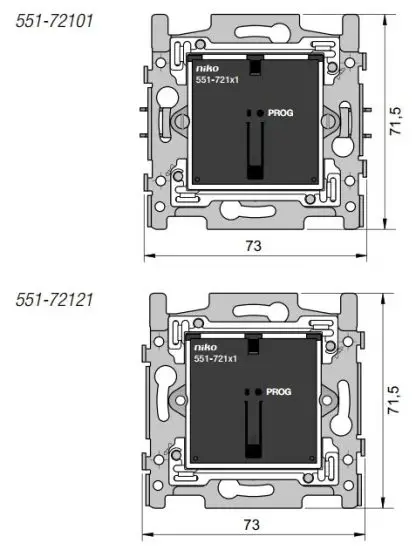

Dimensions

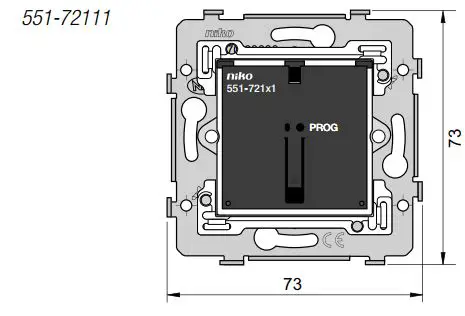

Dimensions

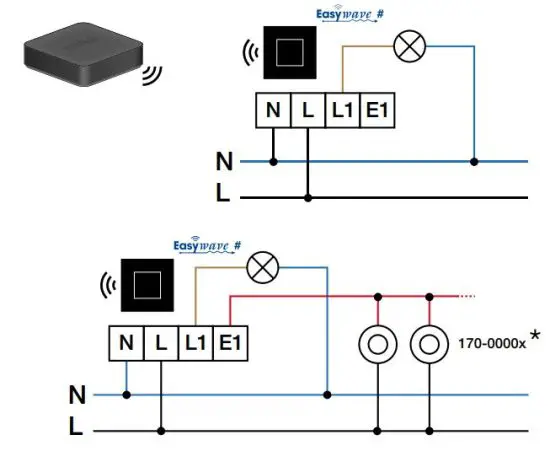

Wiring
230 V – OFF
This product must be secured with a Miniature Circuit Breaker (MCB) of max. 16 A in the electrical cabinet.
* All mechanical push-button extensions wired to the same terminal will show the same behaviour (either the standard behaviour of the actor or a programmed behaviour). It is not possible to configure the behaviour of these extension switches separately. Max. wire length for all extension buttons: 50 m. (Note that this is the total wire length for all extension switches connected to the Easy wave# switch)

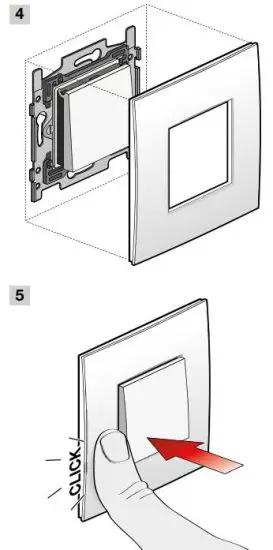

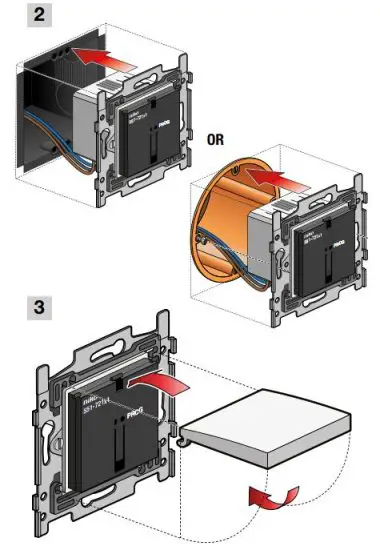

Installation

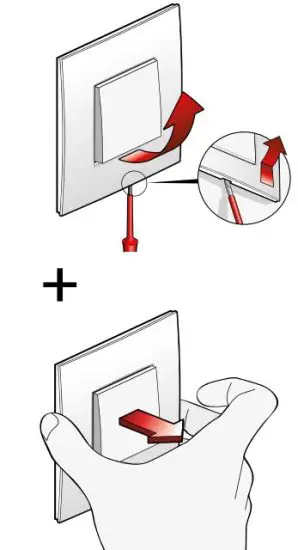

Dismantling
230 V – OFF
Settings
In an installation without a wireless smart hub, the switch will control the wired lamp. More advanced options become available if you use a wireless smart hub and the Niko Home Control programming software.
Download the Niko Home Control programming software
Niko Home Control programming software
www.niko.eu/article/550-99102 (Windows)
www.niko.eu/article/550-99202 (Mac )

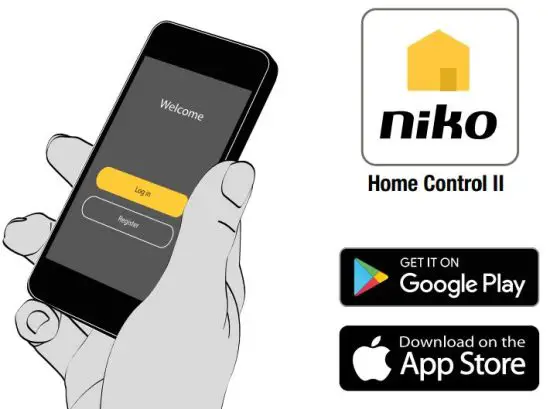

Control your switch with the Niko Home Control II app
Control
Reset
Specifications
- Article number: 551-721×1
- Power supply: 230 Vac
- Max. inrush current: 100 A
- Max. load channel: 10 A
- Max. load incandescent and halogen lamps (cosφ=1): 2300 W
- Max. load LED lamps 230 V: 100 W
- Maximum load fluorescent lamps (cosφ ≥ 0,5): 600 W
- Max. load low voltage halogen lamps: 600 VA
- Protocol: proprietary
- Mounting method: wall mounting
- Flush-mounting box specifications: Depth = min. 40 mm
Claw/screw fixing = 60 mm
Inner diameter box = 60 mm - Mounting height: 110 – 120 cm
- Weight: 70 g
- Ambient temperature: 0 – 40 °C
- Dimensions (HxWxD): (551-72101, 551-72121) 71,5 x 73 x 40mm
- Dimensions (HxWxD): (551-72111) 73 x 73 x 40 mm
- Protection degree: IP20
- Modification of settings: Niko Home Control programming software
(requires smart hub 552-00001) - Maximum range (from switch to smart hub): 30 m
- Operating frequency: 869,05 Mhz
- Maximum frequency power: 6 dBm
- Wire capacity: 2 x 1,5 mm2
- Marking: CE
Warnings regarding installation
The installation of products that will permanently be part of the electrical installation and which include dangerous voltages, should be carried out by a qualified installer and in accordance with the applicable regulations. This user manual must be presented to the user. It should be included in the electrical installation file and it should be passed on to any new owners. Additional copies are available on the Niko website or via Niko customer services.
CE marking
This product complies with all of the relevant European guidelines and regulations. For radio equipment Niko llc declares that the radio equipment in this manual conforms with the 2014/53/EU directive.
The full text of the EU declaration of conformity is available at www.niko.eu under the product reference, if applicable.
Environment
This product and/or the batteries provided cannot be disposed of in non-recyclable waste. Take your discarded product to a recognised collection point. Just like producers and importers, you too play an important role in the promotion of sorting, recycling and reuse of discarded electrical and electronic equipment. To finance the rubbish collection and waste treatment, the government levies recycling charges in certain cases (included in the price of this product).

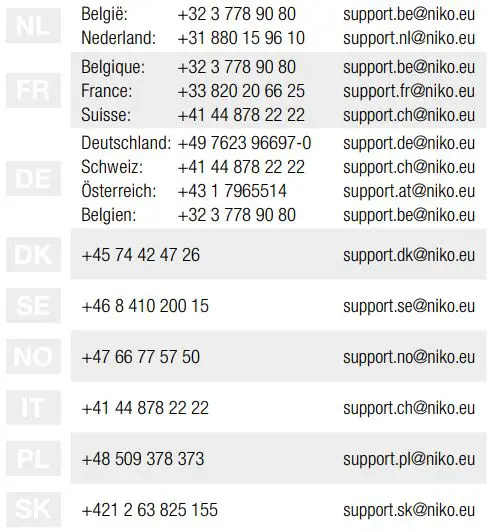

Support & contact
nv Niko sa
Industriepark West 40
9100 Sint-Niklaas, Belgium
+32 3 778 90 80 [email protected]
Niko prepares its manuals with the greatest care and strives to make them as complete, correct and up-to-date as possible. Nevertheless, some deficiencies may subsist. Niko cannot be held responsible for this, other than within the legal limits. Please inform us of any deficiencies in the manuals by contacting Niko customer services at [email protected].
