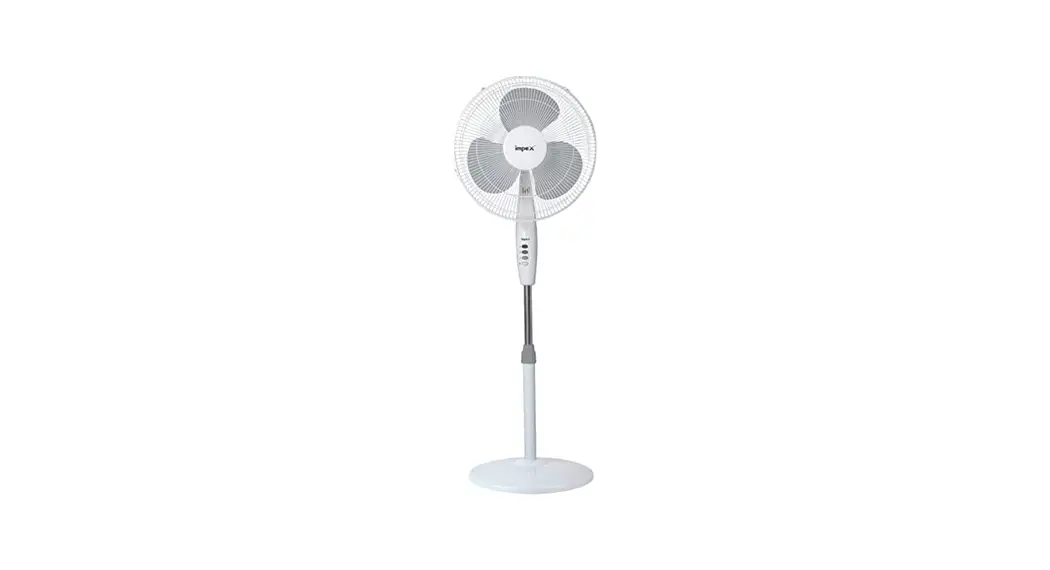

PF 7501 Blade High Speed Pedestal Fan
User Guide
PF 7501 Blade High Speed Pedestal Fan
| 1 | TYPE | MODEL 1 |
| 2 | MODEL NAME | PF 7501(Pedestal Fan) |
| 3 | SR NO ON PRODUCT | DPF7501BZ04UF00001—DPF7501BZ04UF00750 SPF7501BZ04UF00001—SPF7501BZ04UF00750 |
| 4 | SR NO ON WARRANTY CARD | DPF7501BZ04UF00001—DPF7501BZ04UF00750 SPF7501BZ04UF00001—SPF7501BZ04UF00750 |
| 5 | SR NO ON GIFT BOX | DPF7501BZ04UF00001—DPF7501BZ04UF00750 SPF7501BZ04UF00001—SPF7501BZ04UF00750 |
| 6 | VOLTAGE TYPE | 220V |
| 7 | SUPPLY FREQUENCY | 50Hz/60Hz |
| 8 | RATED POWER | 50W+20%(no limits on minus) |
| 9 | MAXIMUM CURRENT | 0.159A |
| 10 | STEP POWER IN HIGH | 35.5W(real test data,allow in CB certificate) |
| 11 | STEP POWER IN MIDDLE | 30.0W |
| 12 | STEP POWER IN LOW | 28.6W |
| 13 | SPEED IN HIGH | 1333 rpm |
| 14 | SPEED IN MIDDLE | 1082 rpm |
| 15 | SPEED IN LOW | 878 rpm |
| 16 | ENVIRONMENTAL TYPE | RoHS2.0 |
| 17 | BODY LENGTH | 43cm |
| 18 | BODY WIDTH | 40cm |
| 19 | BODY HEIGHT | 140cm |
| 21 | NET WEIGHT | 10.6KG(2PCS) |
| 22 | GROSS WEIGHT | 11.8KG(2PCS/MASTER CTN) |
| 23 | PACKING LENGTH | 51.5CM |
| 24 | PACKING WIDTH | 39CM |
| 25 | PACKING HEIGHT | 46CM |
| 26 | TIMER | No timer |
| 27 | BLADE MATERIAL | PP |
| 28 | BLADE DIAMETER | (I)364MM |
| 29 | MOTOR MODEL NO. | 71*16mm(without model number) |
| 30 | WINDING MATERIAL | COPPER |
| 31 | CAPACITOR | CBB61 1.2uF |
| 32 | FRONT GRILL | 430mm*120pcs*1.5mm |
| 33 | REAR GRILL | 430mm*120pcs*1.5mm |
| 34 | CHASSIS | 2.5 KG round base |
| 35 | WIND SPEED | L 2.9m/s M 4.0m/s H 4.6m/s |
| 36 | AIR VOLUME | No testing tools |
| 37 | Maximum current | 0.159A |
| 38 | MAX NOISE | 64dB |
| 39 | MIN STEP POWER NOISE | 50.5dB |
| 40 | OSCILLATING ANGLE | 90° |
| 41 | PITCHING ANGLE | 18° |
| 42 | SPEED REGULATION RATIO | 66.% |
| 43 | THERMAL FUSE | 130° |
| 44 | TEMPERATURE RISE | <80K |
