Operating Instruction
Thread Depth Plug Gauge “digital IW”
Made In Germany
Introduction

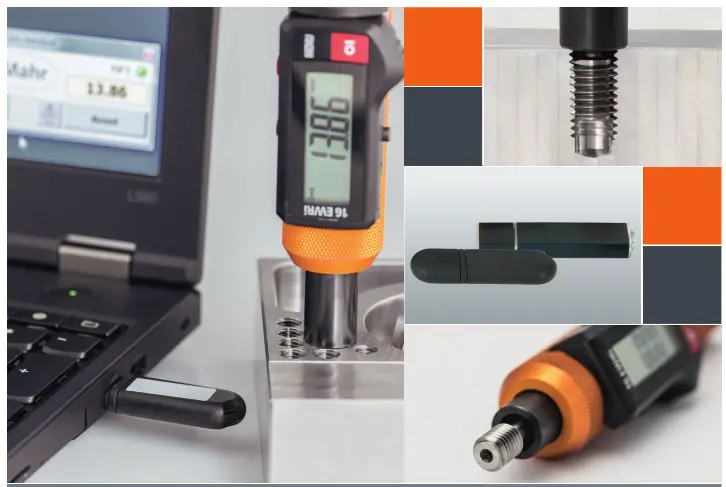

The EMUGE thread depth plug gauge “digital IW” permits gauging and measuring of threads in one single step.
The thread depth plug gauge complies with the DIN ISO 1502 criteria defined for thread plug gauges.
The large LCD display enables a reliable and fatigue-proof reading of measurement values.
The additional option “Integrated Wireless” (IW) allows to easily and reliably transfer data via wireless transmission and to integrate measuring values directly into Microsoft® Excel® or other Windows® applications and provides a reconfirmation of the process on the LCD display.
The option IW is not activated in the default factory setting.
For activation of this function, please refer to the operating instruction (see 8.5. wireless setup).
Permitted use is subject to compliance with all published information relating to this product.
Any other use is not in accordance with the permitted use. The manufacturer accepts no liability for damages resulting from improper use.
All statutory and other regulations and guidelines applicable to the area of use must be observed. The EMUGE thread depth plug gauges fulfill the protection class IP 67 according to DIN EN 60529 i.e.
- Protection against the penetration of solid contaminants (dust-tight)
- Protection against the effects of temporary immersion in water
In order to achieve the best results with this tool, it is important to read the operating instructions prior to first use.
We reserve the right to make changes to our products, especially due to technical improvements and further developments.
All illustrations and technical data are therefore without guarantee.

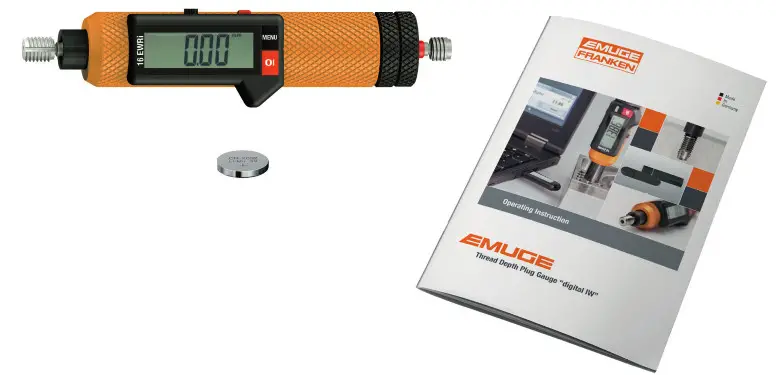

Scope of delivery
The basic equipment of the Thread Depth Plug Gauge “digital IW” consists of:
- Thread Depth Plug Gauges “digital IW”
- Battery (CR 2032, 3V, 230 mAh)
- Operating instructions
Accessories for wireless transmission to a PC

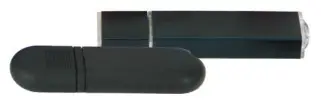

Wireless receiver i-Stick
Includes USB stick with MarCom Software Standard for use with a thread depth plug gauge
Order no.: L0091500.01
MarCom Software Professional
As an accessory for wireless receiver i-Stick for use with up to 8 thread depth plug gauges
Order no.: L0091510.08
Operating instructions for i-Stick and MarCom software can be found at www.mahr.com
Important hints prior to initial operation
- In order to ensure long use of this tool, any contamination on the thread depth plug gauge must be removed immediately after completion of usage. This can be done with a dry cloth. Subsequently, to conserve the metal components, they should be lightly oiled.
- Clean a dirty housing with a dry, soft cloth. Volatile organic solvents like thinners are not to be used, as these liquids can damage the housing.
- Any warranty claims become void when the digital measuring unit is opened.
- When the “Low-Bat” symbol appears the intended operation or function can no longer be guaranteed.
Safety information
Battery
- Not rechargeable
- Do not incinerate
- Dispose of off as prescribed (see page 17)

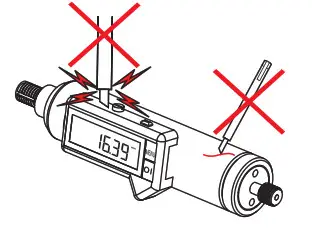

Do not use an electric marking tool

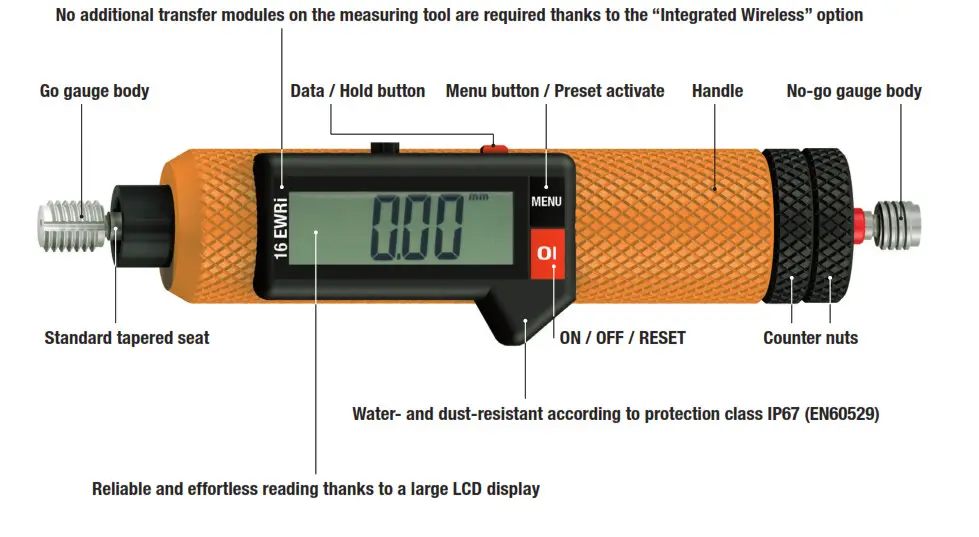

Technical data
- Inductive measuring system
11 mm liquid crystal display - Battery Lithium 3V, type CR2032, 230 mAh
Operating time approx. 2 years*
(2000 work. hrs/year)
* is reduced when operating with the wireless interface - Protection group IP67 acc. to DIN EN 60529
6 = dust-tight
7 = protected against the effects of temporary immersion - Wireless interface
RF Frequency band
Channel 1 2403 MHz
Channel 2 2439 MHz
Channel 3 2475 MHz - Communication range max. 6 m
Quality of connection depends on the environment - Operation temperature
+ 10°C … + 40°C - Storage temperature
− 10°C … + 60°C - Resolution
0.01 mm / .0005″ - Measuring range
0 – 100 mm - Error limit
0.02 mm - Max. measuring speed
2.5 m/s (100″/s)
GT-GR-LD „digital IW“

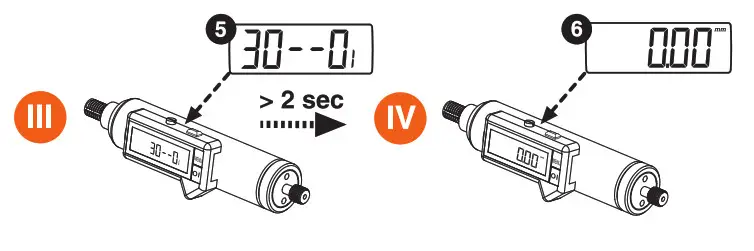

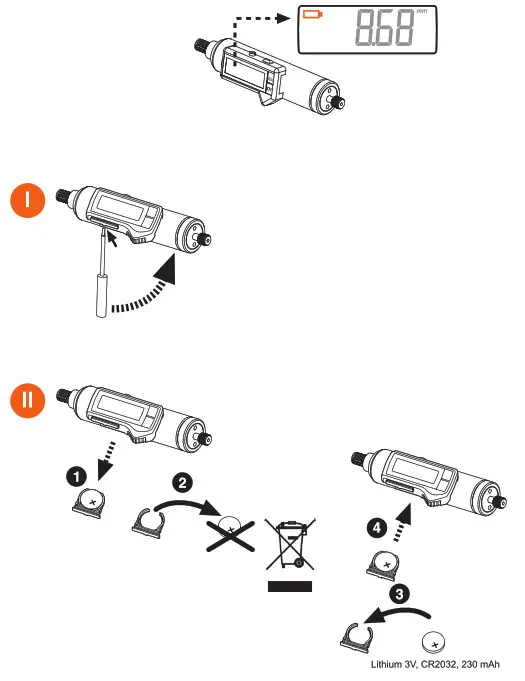

Inserting/changing the battery
Functions
Auto ON / OFF
Moving the sliding barrel will automatically switch ON the instrument.
If the instrument has not been used for 8 minutes or more, it will be automatically switched OFF.

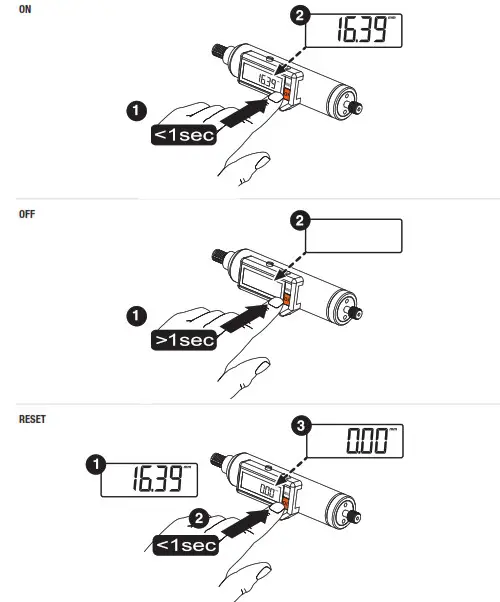

ON /OFF / RESET
This function is recommended when the zero point is frequently repositioned (for example comparative measurements)

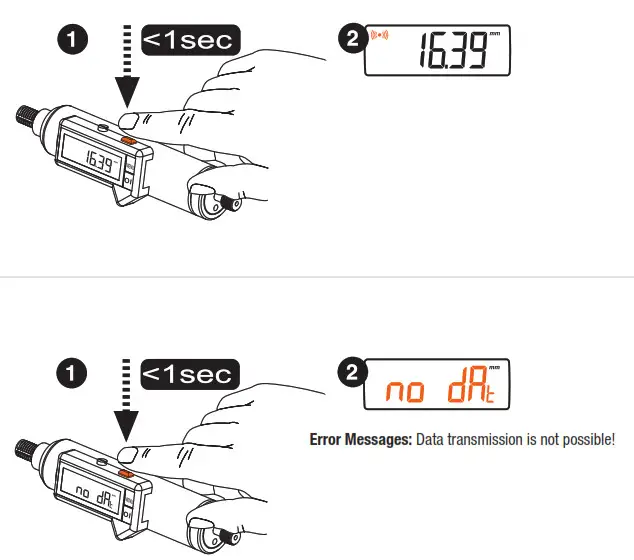

DATA
Pressing this button while the wireless mode is active, transmits the measured value.
Note:
When the wireless mode is not active, the measured value is frozen (see 7.4 HOLD function).

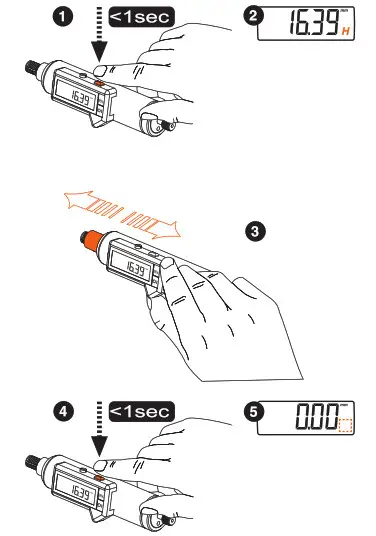

HOLD
Note:
When the HOLD function is activated, the “MENU” and “OI” are not available.
The message “Hold” appears in the display.
Intuitive menu guidance
Symbol
Open the menu
Symbol Change the value

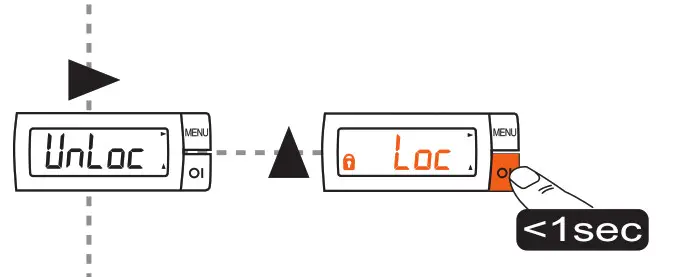

Lock function
Note:
When the LOCK function is activated the “MENU” and “OI” are not available.
The error message “Loc” appears in the display.
The previous settings are maintained!

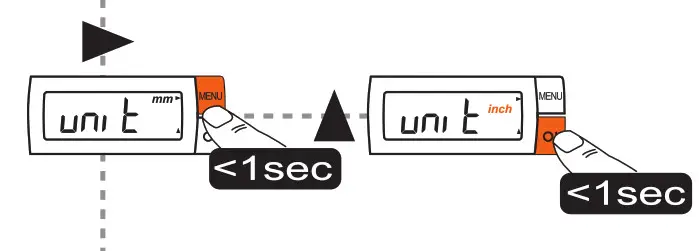

Unit

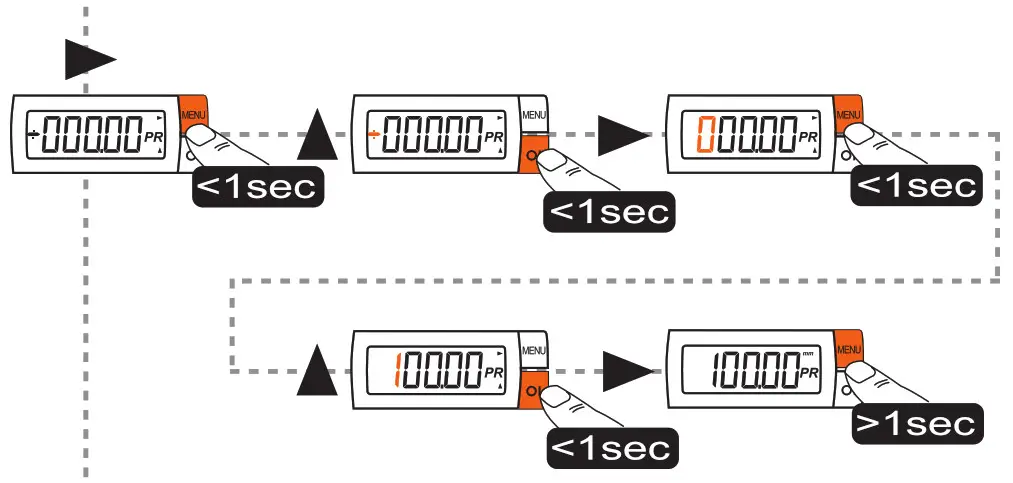

Enter PRESET

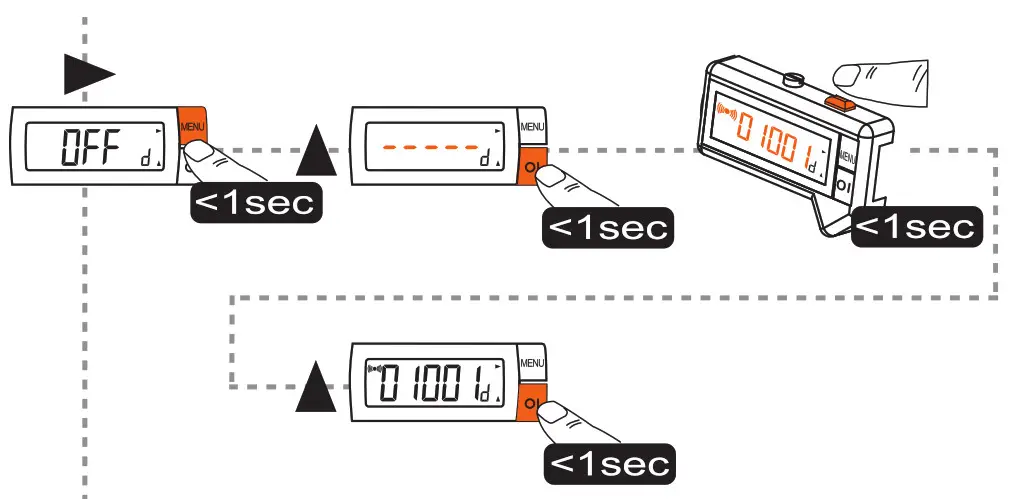

Funkaufbau
Note:
The wireless setup takes place by pressing the Data / Hold button once the address has been assigned in the MarCom Software. The address will appear in the display.
Operating instructions for i-Stick and MarCom software can be found at www.mahr.com

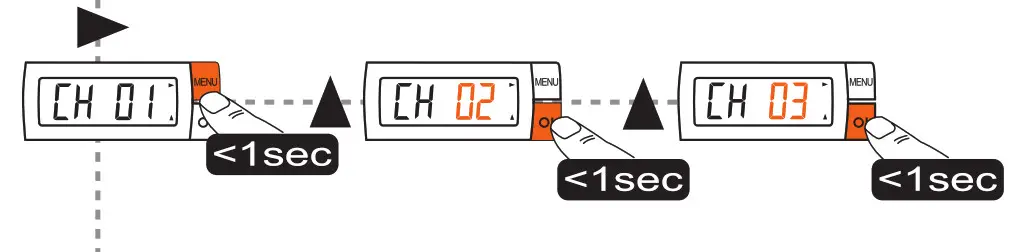

Channel selection
Note:
The standard factory setting is Channel CH 01.
It is only necessary to change this wireless frequency when it conflicts with other devices.

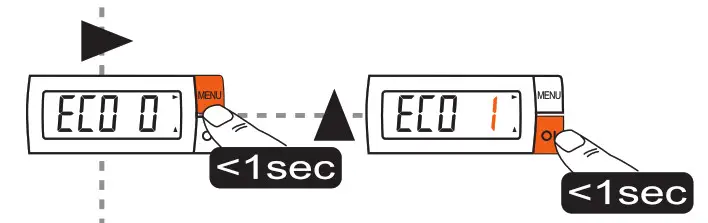

Note:
The rate of transmission is reduced in the ECO mode.
If the ECO mode is activated, it must also be activated in the MarCom Software.

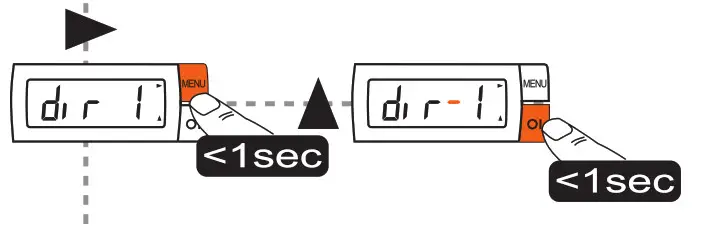

Measuring direction
Note:
Changes the counting direction of the measuring system.
Note:

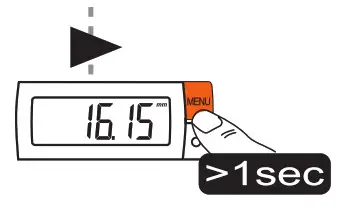

Press and hold the MENU button to leave the menu at any time and/or to accept the selected changes.

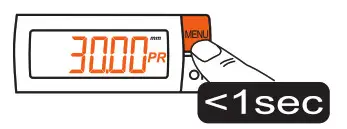

Call up PRESET
Note:
If a PRESET value has been entered, this can be called up by pressing the MENU button and will appear in the display.
Notes for disposal
The measuring instrument contains a non-rechargeable Lithium battery.
If the battery is empty, it may not be disposed of in the household waste!
Spent batteries contain toxic waste which can cause harm to the environment and cause damage to health.
Spent batteries and accumulators either must be returned to an outlet where batteries or accumulators are sold, or taken to a municipal collection point, these have an (unpaid) and legal obligation to take back batteries.
Please only dispose of spent batteries in the provided collection containers, when disposing of Lithium batteries please cover up the Poles.
Removing the battery is described on pages 8 to 9 (6. Inserting/changing the battery).
All batteries can be recycled; raw materials such as iron, zinc, or nickel can be obtained from recycled batteries, thus battery recycling helps with the protection of the environment.
Used electrical devices put on the market by EMUGE can be returned to us.
We will ensure environmentally safe disposal.
The current EU directives “RoHS” and “WEEE” respectively the “Electrical and Electronic Equipment Act” are observed.
Declaration of Conformity
This device contains license-exempt transmitter(s)/receiver(s) that complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
- This device may not cause harmful interference.
- This device must accept any interference received, including interference that may cause undesired operation of the device.
Changes or modifications made to this equipment not expressly approved by EMUGE-Werk Richard Glimpel GmbH & Co. KG
may void the FCC authorization to operate this equipment.
Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
GT-GR-LD
FCC ID: 2AZTLGT-GR-LD
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
- this device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation.
