sylvac Digital Thickness Feeler Gauge Instruction Manual

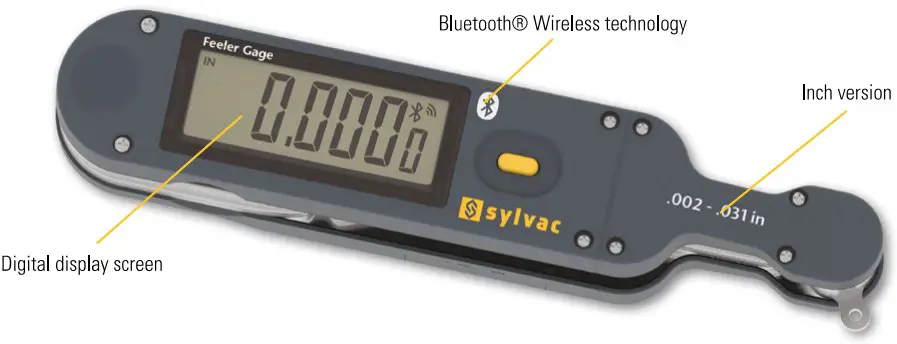

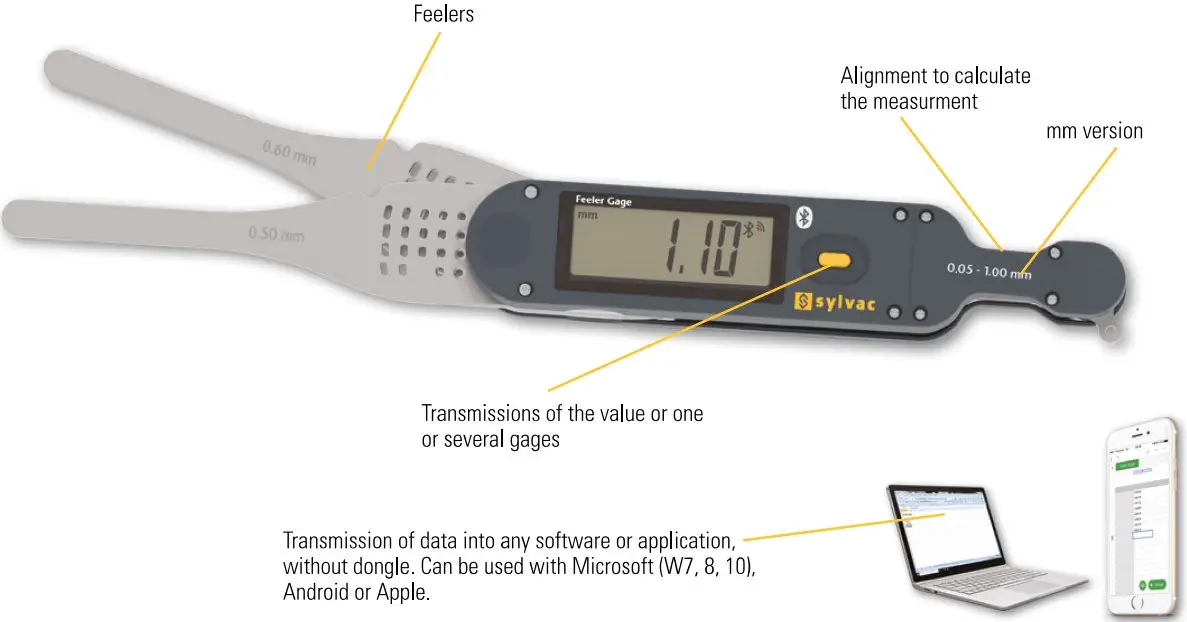

DESCRIPTION
- World novelty, the first set of thickness gages with digital display of the total thickness of all feelers removed from the case.

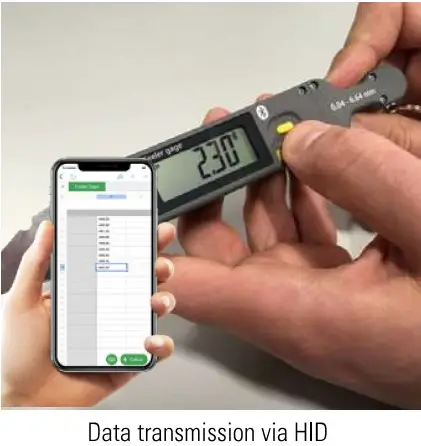

- Integrated Bluetooth® system
- Developed for sensitive applications (aerospace, automotive, defence, etc.) where error is prohibited
- Available with steel feelers with thickness in mm or inches.
- Accuracy of feeler thickness according to DIN 2275: 2014-03 class TC1
- Sets in mm with 19 or 20 feelers, useful length 99 mm
- Set in inch with 14 feelers, usable length 3.9″
- Individual replacement feelers available on request
- Display resolution 0.01 mm and .001 ».
- IP65 protection

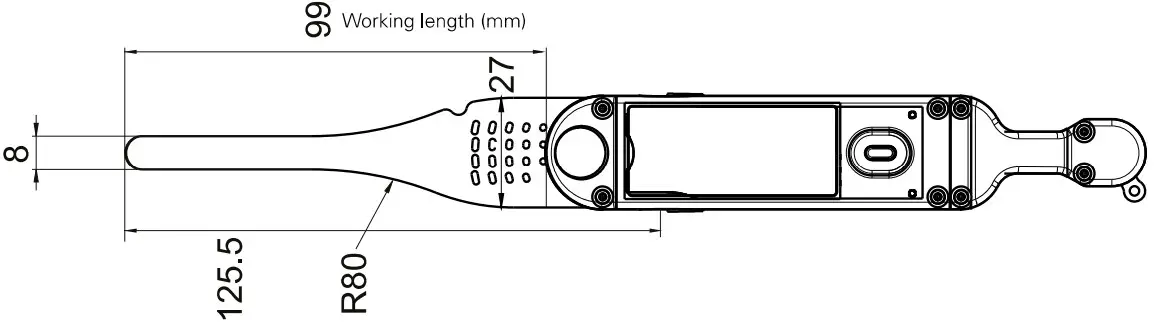

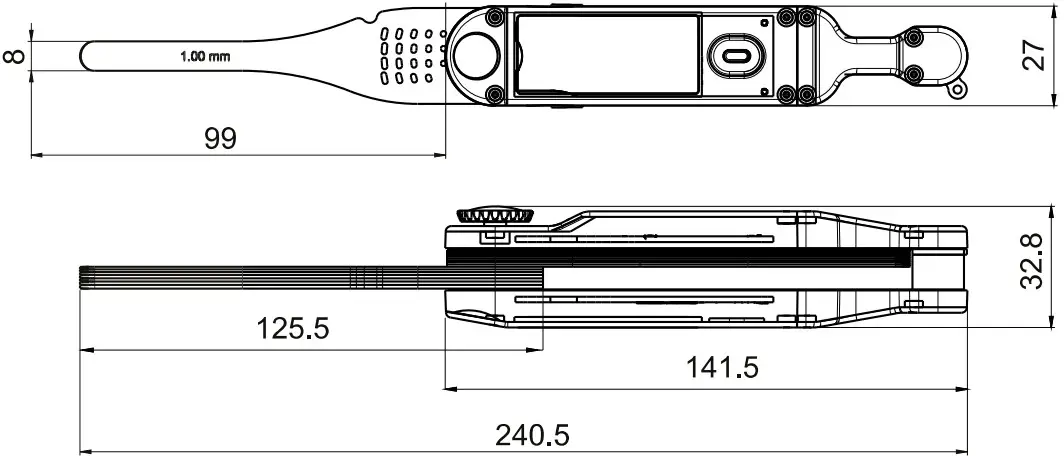

DIMENSIONAL DRAWING
MODEL
THE THICKNESS MAY DIFFER SLIGHTLY FOR THE OTHER MODELS ACCORDING TO THE NUMBER OF GAGES.
TECHNICAL SPECIFICATIONS
| 921-0100 | 921-0110 | 921-0114 | |
| Type of version | mm | mm | inth |
| Measurement capacité mm/in | 0.05..1.00mm | 0.04…1.00 mm | 0.0020. 0.0310 in |
| Feelers thickness | 0.05, 0.10, 0.15, 0.20, 0.25,0.30, 0.35, 0.40,0.45, 0.50,0.55, 0.60, 0.65, 0.70, 0.75,0.80, 0.85, 0.90, 0.95, 1.00 | 0.04,0.05, 0.05, 0.07,0.08,0.09,0.10,0.15,0.20,0T5,o.3 so,70,o.80,o. 4, l 00 | 0.0020, 0.0030, 0.0040, 0.0050,0.0060, 0.0070, 0.0080, 0.0090,0.0100, 0.0120, 0.0150, 0.0200,0.0250, 0.0310 |
| Usabelength mm | 99 | ||
| Thickness Tolerante Class attording to DIN 2275 | TC1 | ||
| Protection rating according to IEC 529 | IP65 | ||
| Output data | BllJetOOth”Wi reless teChn0|0gy | ||
| Number of feelers | 20 | 19 | 14 |
| W9Îgtls | 280 | 224 | 212 |
| Functions | Unit (mm/inch) | ||
REPLACEMENT FEELERS
| Reference | Th( ickn)ess | To( lera)nce |
| 921-1001 | 0.05 | +0.004 |
| 921-1006 | 0.10 | +0.005 |
| 921-1007 | 0.15 | +0.006 |
| 921-1008 | 0.20 | +0.006 |
| 921-1009 | 0.25 | +0.007 |
| 921-1010 | 0.30 | +0.007 |
| 921-1011 | 0.35 | +0.008 |
| 921-1012 | 0.40 | +0.009 |
| 921-1013 | 0.45 | +0.009 |
| 921-1014 | 0.50 | +0.010 |
| 921-1015 | 0.55 | +0.011 |
| 921-1016 | 0.60 | +0.011 |
| 921-1017 | 0.65 | +0.012 |
| 921-1018 | 0.70 | +0.012 |
| 921-1019 | 0.75 | +0.013 |
| 921-1020 | 0.80 | +0.014 |
| 921-1021 | 0.85 | +0.014 |
| 921-1022 | 0.90 | +0.015 |
| 921-1023 | 0.95 | +0.016 |
| 921-1024 | 1.00 | +0.017 |
| Reference | Th( ickn)ess | To( lera)nce |
| 921-1000 | 0.04 | +0.004 |
| 921-1001 | 0.05 | +0.004 |
| 921-1002 | 0.06 | +0.004 |
| 921-1003 | 0.07 | +0.004 |
| 921-1004 | 0.08 | +0.004 |
| 921-1005 | 0.09 | +0.004 |
| 921-1006 | 0.10 | +0.005 |
| 921-1007 | 0.15 | +0.006 |
| 921-1008 | 0.20 | +0.006 |
| 921-1009 | 0.25 | +0.007 |
| 921-1010 | 0.30 | +0.007 |
| 921-1011 | 0.35 | +0.008 |
| 921-1012 | 0.40 | +0.009 |
| 921-1014 | 0.50 | +0.010 |
| 921-1016 | 0.60 | +0.011 |
| 921-1018 | 0.70 | +0.012 |
| 921-1020 | 0.80 | +0.014 |
| 921-1022 | 0.90 | +0.015 |
| 921-1024 | 1.00 | +0.017 |
| Reference | Thickness (in) | Tolerance (mm) |
| 921-1025 | 0.0020 | +0.004 |
| 921-1026 | 0.0030 | +0.004 |
| 921-1027 | 0.0040 | +0.004 |
| 921-1028 | 0.0050 | +0.005 |
| 921-1029 | 0.0060 | +0.005 |
| 921-1030 | 0.0070 | +0.006 |
| 921-1031 | 0.0080 | +0.006 |
| 921-1032 | 0.0090 | +0.006 |
| 921-1033 | 0.0100 | +0.006 |
| 921-1034 | 0.0120 | +0.007 |
| 921-1035 | 0.0150 | +0.008 |
| 921-1036 | 0.0200 | +0.009 |
| 921-1037 | 0.0250 | +0.011 |
| 921-1038 | 0.0301 | +0.012 |
STANDARD DELIVERY
- Instrument according to technical specifications
- Lithium battery CR2032 included
- Instruction manual
- Lanyard

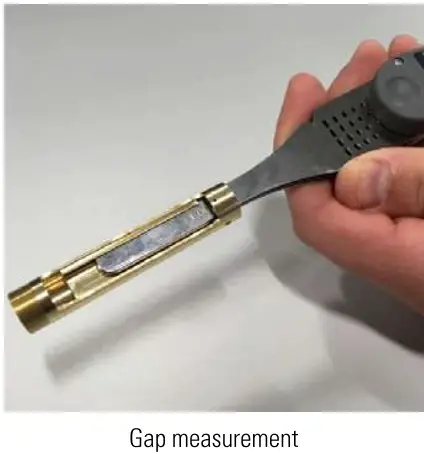

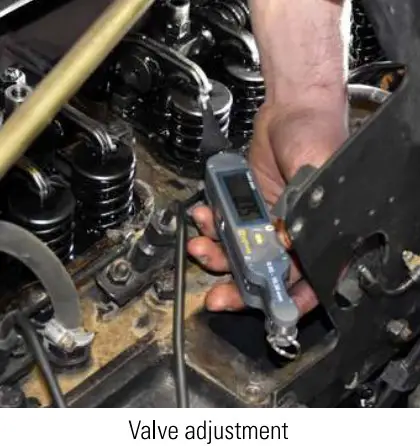

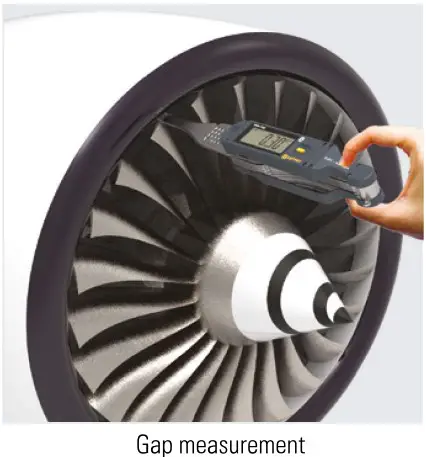

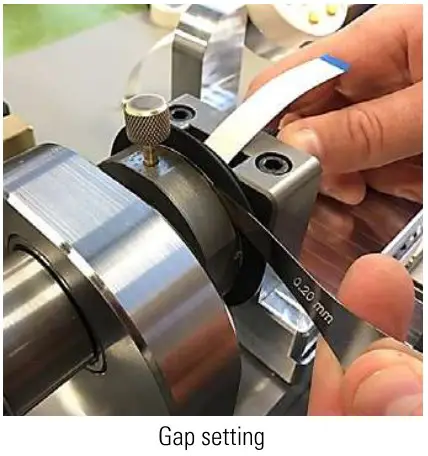

APPLECATIONS
