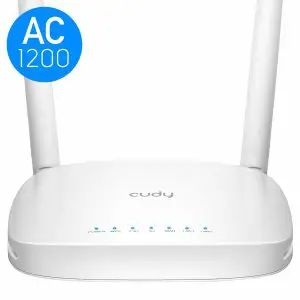

cudy AC1200 Dual Band Smart Wi-Fi Router Instructions
Features
- Dual Band Wi-Fi Router, Range Extender
- 2.4 GHz 300Mbps + 5 GHz 867Mbps Wi-Fi Speeds
- 5dBi High Gain Antennas for large home coverage
- Built-in Firewall protect your home network
- Guest network protect your privacy
- Support VPN pass through for IPSec, PPTP and L2TP
- Compatible with IPv6
- Easy wireless security encryption at a push of WPS button
Specifications
| Product Name | AC1200 Dual Band Smart Wi-Fi Router |
| Product Model | WR1000 |
| Standard | 2.4GHz：IEEE802.11n、 IEEE802.11g、IEEE 802.11b 5.0GHz：802.11ac、IEEE 802.11n、IEEE 802.11a IEEE802.3、IEEE802.3u、IEEE802.3ab |
| Interface | LAN 2 *10/100M Auto MDI/MDIX RJ45 port WAN 1* 10/100M Auto MDI/MDIX RJ45 port |
| Frequency Range | 2.4GHz、5GHz |
| Wireless Speed | 2.4G: 300Mbps 5G: 867Mbps |
| Spread Spectrum | DSSS |
| Modulation | BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM) |
| Transmission Distance | Indoor up to 100m , outdoor up to 300m (it is limited in an environment) |
| Receive Sensitivity@PE |
|
| Antenna | 2x5dBi Fixed Antenna |
| Data Security | 64/128-bits WEP; WPA/WPA2 |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Operating Humidity: 10%~90%RH (non-condensing) |
| Power | 9V/ 800mA |
| Safety & Emission | CE/FCC
|
