All for better networking.
AC6

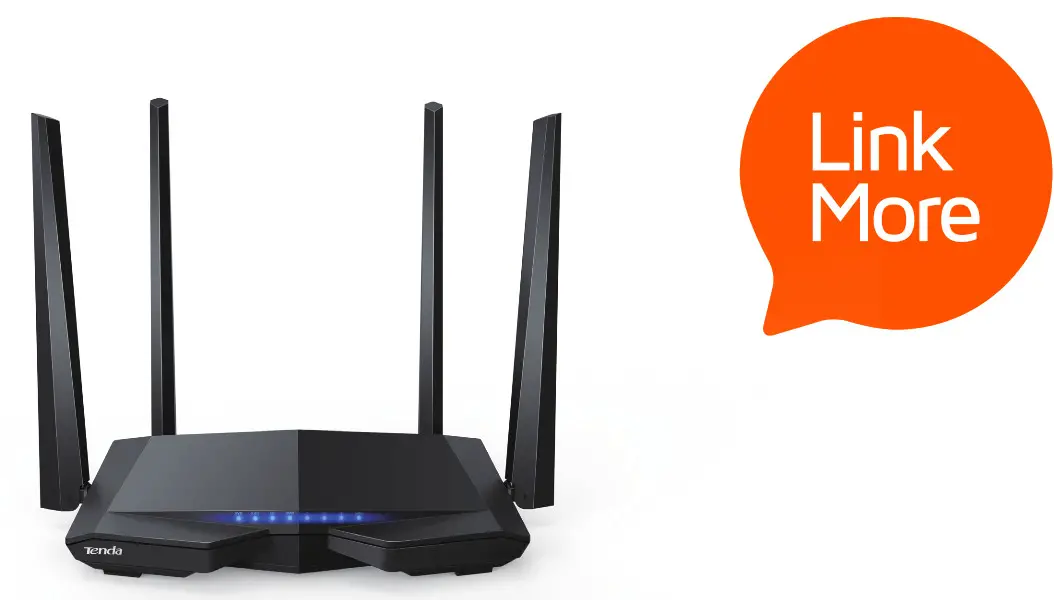

AC1200 Smart Dual-Band WiFi Router
www.tendacn.com
AC6
AC1200 Smart Dual-band WiFi Router
Product Overview
With Gigabit speeds complaint with IEEE802.11ac, the TENDA AC6 smart dual-band WiFi router offers
throughput as high as 1167Mbps.
Powered with the latest features including beamforming+ technology and the innovative MU-MIMO, that’s
just the start. With the 28nm CPU, independent power amplifiers, four 5dBi high-gain antennas, you are
assured to have an uninterrupted gaming experience and 4K video streaming.
Tenda’s AC6 has great eco credentials too. With a power saving function, App-based management and migration of PPPoE user credentials allows for a smarter and eco-friendly digital life.
Features
- 11ac speed up to 1167Mbps (5GHz: 867Mbps + 2.4GHz: 300Mbps)
- Realtek chipset for stable and fast WiFi connection
- High powered amplifiers and external antennas for whole-home coverage
- Beamforming+ for longer range of IEEE802.11ac-compliant WiFi clients
- Innovative MU-MIMO technology for more connected clients
- Smart WiFi Schedule for lower power consumption
- Migration PPPoE user name and password for hassle-free configuration
5th Generation WiFi: 802.11ac with Dual-band Connectivity
Compliant with IEEE802.11ac, AC6 offers a data rate as high as of 1167Mbps (5GHz: 867Mbps + 2.4GHz: 300Mbps), triple times faster than 11n-compliant routers. Its fast and stable performance makes it the ideal choice for lag-free HD streaming, online gaming and other bandwidth-intensive tasks.

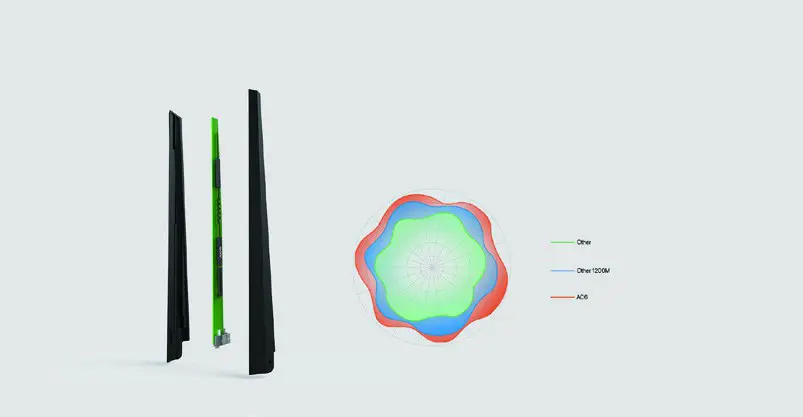

Four 5dBi high-gain antennas for whole-home WiFi coverage
With four 5dBi high-gain antennas that powered by the multi-oscillator radiation technology, AC6 blankets you home with reliable WiFi.

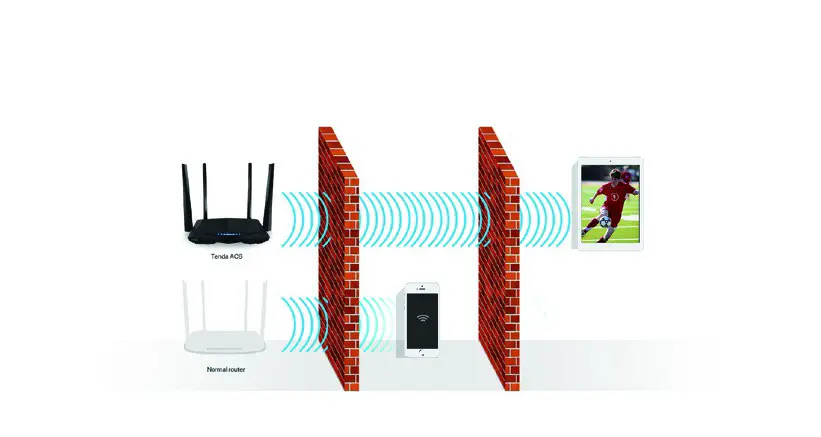

High-powered amplifiers
With the high-powered amplifiers for WiFi on both 2.4GHz and 5GHz bands, Tenda’s AC6 delivers a stronger signal through walls, allowing you to enjoy uninterrupted connection in every corner of your home.

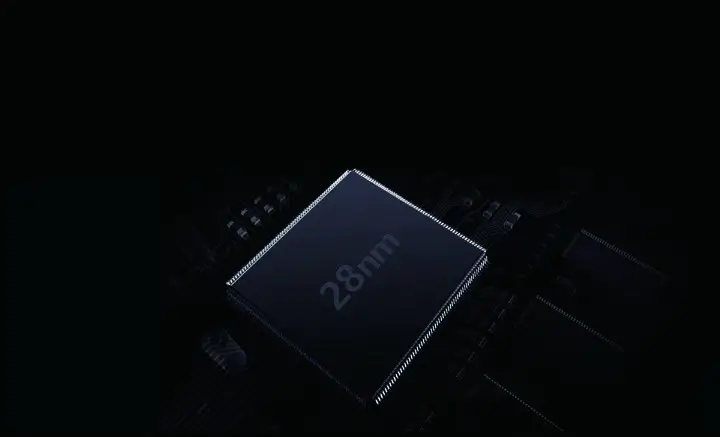

28nm CPU for stability
With 28nm CPU, AC6 allows you to enjoy a fast and stable connection throughout your home.
Innovative MU-MIMO technology
The innovative MU-MIMO technology delivered in AC6 allows communication with more wireless devices simultaneously and offers you the fastest possible connection.

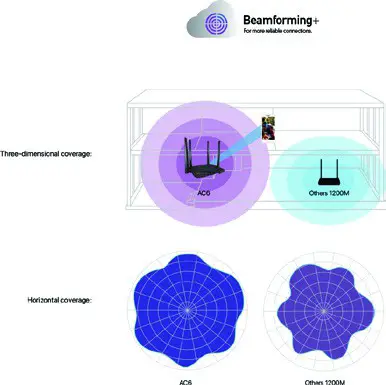

Beamforming+ for wider WiFi coverage and internet stability
Beamforming+ technology enables AC6 to lock on to your WiFi receiving clients rather than blast WiFi in all directions, and mitigates co-channel interference, letting you enjoy fast internet connection.

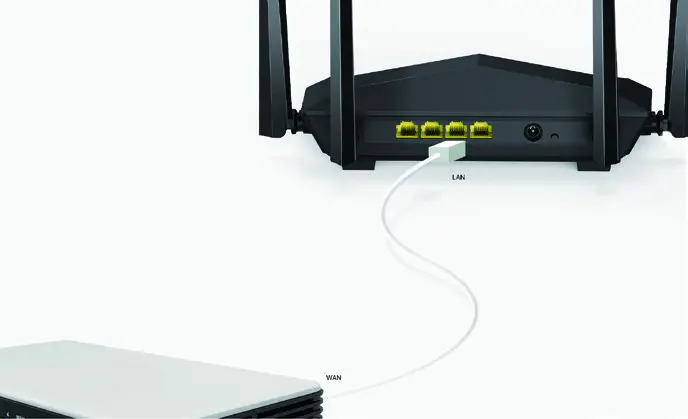

Hassle-free configuration
What if you forget your PPPoE user name or password when replacing your older router? Are you still troubled by complicated setup and configurations?
AC6 allows you to replicate the user name and password provided by your ISP by connecting the WAN port of your old router to the LAN port of AC6, letting you go from laborious configurations.
Specification
AC6 AC1200 Smart Dual-Band WiFi Router
| Hardware Specification | |
| Standards | IEEE802.3; IEEE802.3u |
| Interface | 1*10/100Mbps WAN port 3*10/100Mbps LAN ports |
| Antenna | 4*5dBi external dual band antennas |
| Button | 1*WiFi on/off, 1* Reset/WPS button |
| Power | Input：100-240V—50/60Hz, 0.2A Output：DC 9V==1A |
| Dimensions | 220mm*141.5mm*49mm |
| Weight | Net weight：340g ±50g Weight：700g ±100g |
| LED Indicator | System*1,WAN*1, LAN*1, 2.4G*1, 5G*1,WPS*1 |
| Wireless Features | |
| Wireless Standards | IEEE 802.11ac/a/n 5GHz; IEEE 802.11b/g/n 2.4GHz |
| Data Rate | 5GHz: Up to 867Mbps 2.4GHz: Up to 300Mbps |
| Frequency | Simultaneous dual band 2.4 & 5GHz |
| Transmit Power | CE: <20dBm(2.4G) <23dBm(5G) FCC: <30dBm |
| Basic Features | SSID Broadcast: Enable/Disable; Transmission Power: high, medium, low Beamforming, MU-MIMO |
| wireless Security | WPA-PSK/WPA2-PSK, WPA/WPA2; Wireless Security: Enable/Disable; WPS(WiFi Protected Set-up) fast encryption |
| Software Features | |
| Internet Connection Type | PPPoE, Dynamic IP, Static IP PPPoE(Russia), PPTP(Russia), L2TP(Russia) |
| Operating Mode | Wireless Router Mode Universal Repeater Mode WISP Mode |
| DHCP Server | DHCP Server DHCP Client List DHCP Reservation |
| Virtual Server | Port Forwarding DMZ Host UPnP |
| Security | Client Filter Parental Control(support black list and white list) Remote Web Management |
| Firewall | Forbid UDP flood attack Forbid TCP flood attack Forbid flood attack Forbid WAN PING from internet |
| DDNS | Support DynDNS, Oray.com, 88ip |
| VPN | IPsec pass through PPTP pass through L2TP pass through PPTP server PPTP client L2TP client |
| Special Features | PPPoE Username/password Clone Smart WiFi Schedule Smart Power Saving Smart LED on/off Tenda Cloud Tenda App |
| Others | Bandwidth Control Guest Network IPTV MAC Clone Static Routing System Log Backup & Restore configurations Firmware upgrade online Firmware upgradeable via browser |
| Others | |
| Temperature | Operating Temperature: 0℃ ~ 40℃ Storage Temperature: -40℃ ~ 70℃ |
| Humidity | Operating Humidity:10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90%RH non-condensing |
| Factory Defaul Settings | Default Access: tendawifi.com |
| Certificates | CE, FCC, RoHS |
| Package Contents | AC1200 Smart Dual-Band Gigabit WiFi Router Power Adapter Install Guide Ethernet Cable |
https://www.facebook.com/tendatechnology
https://www.facebook.com/tendatechnology
SHENZHEN TENDA TECHNOLOGGY CO,LTD.
Tenda Technology Bldg.Int’ IE-City,
#1001 Zhong Shan Yuan Rd.,Nanshan District,Shenzhen China.
E-mail:[email protected]
Tel:+86-755-2765 7098
Fax:+86-755-2765 7178
PC:518055
Specifications are subject to change without notice.Copyright ©2017
SHENZHEN TENDA TECHNOLOGY CO.,LTD.
All rights reserved. Tenda is the trademark of SHENZHEN TENDA TECHNOLOGY CO.,LTD.
