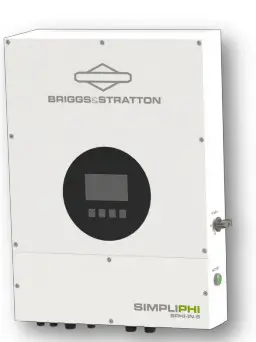

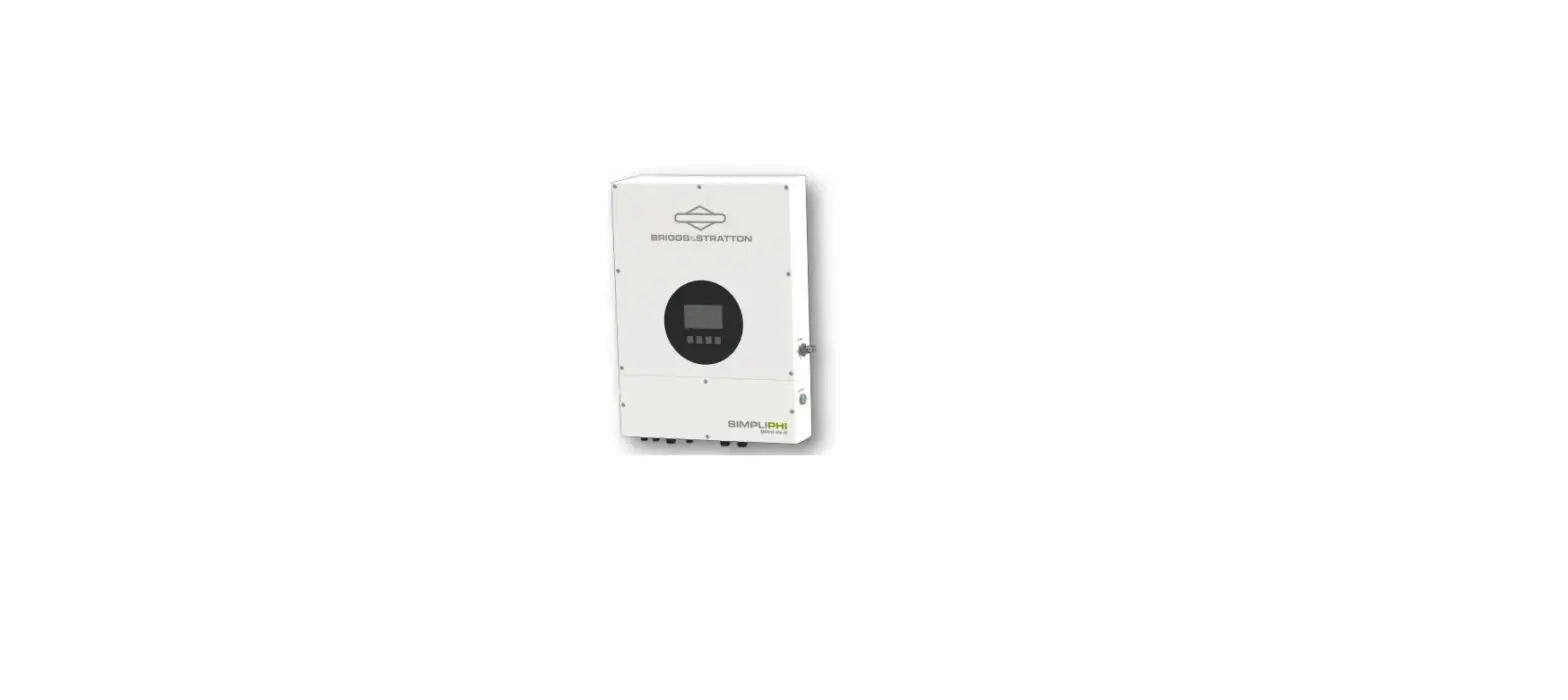

BRIGGS STRATTON SimpliPHI 6kW Hybrid Inverter
Warranty Statement
Failure to adhere to the Warranty and Installation Manual requirements will Violate the terms of the Warranty. Read the SimpliPHI ESS Warranty prior to installation and register the inverter or ESS system according to the form found at the bottom of the same web page address: https://simpliphipower.com/wp- content/uploads/re/products/ess-6-kw-inverter/warranty/briggs-%26-stratton-limited-warranty-for- simpliphi-ess.pdf
Introduction
Online Resources
The Product Documentation section of SimpliPhi’s website (https://simpliphipower.com/product- documentation/) includes Specification Sheets, Warranties, Installation & Operator’s Manuals, and Integration Guides for all SimpliPhi’s current and legacy products.
SimpliPhi’s YouTube channel (https://www.youtube.com/channel/UCcuCaLT_G3Hhumteh-pI5yg/videos) has instructional videos showing various steps of the battery installation process in detail.
Technical Support
SimpliPhi Technical Support (805-640-6700 x 1, [email protected]) is available to take any questions regarding this manual or general installation questions. For assistance with battery system commissioning, SimpliPhi asks that a commissioning call be scheduled ahead of time with Technical Support.
We encourage you or your installer to contact SimpliPhi with any questions. We are committed to working with you and your installation team to achieve a safe, reliable storage system that will provide years of maintenance-free service that is covered by our Warranty terms & conditions.
Approved Battery List
| Battery Brand | Model | Voltage |
| SimpliPHI | SPHI-B-4.9 | 48V |
| SimpliPHI | APHI-B-3.8 | 48V |
| SimpliPHI | PHI-B-3.8 | 48V |
Adding Batteries to the List
If you are interested in having SimpliPHI evaluate the compatibility of a different battery, please reach out to our engineering team directly. SimpliPHI Engineering
Specific Operating Parameters
Operating Parameters for PHI Batteries Related to Cycle Life To maintain optimal PHI Battery health and longevity adhere to the operating parameters outlined in Tables 3.1 and 3.2 below. This is specific to integration with the SimpliPHI 6 kW Inverter only.
Table 3.1 – Optimal Operation Parameters
| Recommended Operating Conditions for 10-Year Warranty on PHI Batteries | |||
| Equivalent to 80% Retained Capacity | 10,000 Cycles | 5,000 Cycles | 3,500 Cycles |
| Depth of Discharge (DoD) | 80% | 90% | 100% |
| Operating Temperature °F (°C) | 32 to 120 (0 to 49) | ||
| Low Battery Cut-Off Voltage (V) | 50.2 | 49.6 | 48 |
| Bulk Charge Voltage (V) | 56 | 56 | 56 |
Table 3.2 – Operating Limitations
| Notes/Operating Limitations for PHI 48V Batteries | |
| Continuous Discharge (ADC) | 37.5 |
| Surge Discharge Rate (ADC) 10 minutes maximum | 80 |
| Continuous Charge Rate (ADC) | 37.5 |
- Levels are typical @ 25°C and may need adjusting at temperature extremes.
- When performing rapid deep charge/discharge cycles, the PHI Battery should be allowed to “rest” for 15 mins in between. Although the PHI battery charges to the voltages outlined above, the battery “rests” at approximately 53.3V. Refer to Table 3.3 below for a complete Battery Voltage versus State of Charge (SOC) gauge.
Table 3.3 – Optimal Operation Parameters
| SOC | 48V |
| 100% | >52.5VDC |
| 95% | 51.7 VDC |
| 90% | 51.65 VDC |
| 75% | 51.4 VDC |
| 50% | 51.0 VDC |
| 20% | 50.2 VDC |
| 10% | 49.5 VDC |
| 0% | 48.0 VDC |
