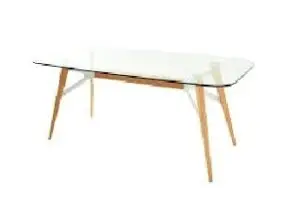

MATT BLATT MBWOODGDTBA Woodford Glass Table User Guide

COMPONENTS

1. Table top

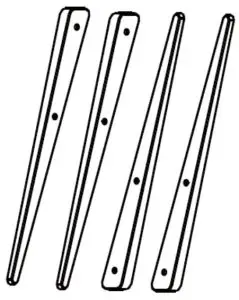

2. Table Legs (x4)

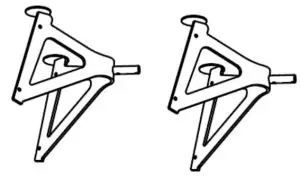

3. Leg Brackets (x2)

4. Crossbeam

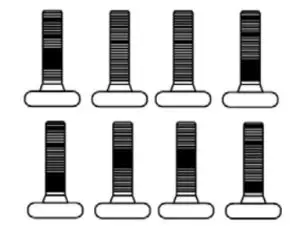

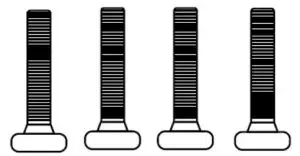

5. 25mm M6 Screws (x8)

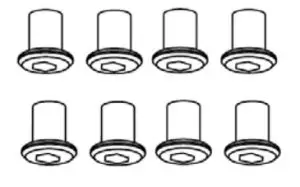

6. 12mm M6 Screws (x8

7. 30mm M6 Screws (x4)

8. 16mm M4 Screws (x8)

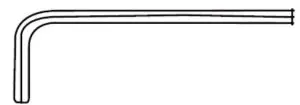

9. Allen key (5.0)

10. Allen key (4.0)

11. Allen key (2.5)


ASSEMBLY

Step 1

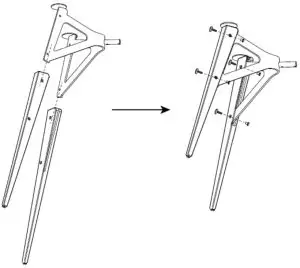

Using the 5.0 and 4.0 Allen keys [9, 10], attach the Table Legs [2] to the Leg Brackets [3] with the 25mm M6 Screws [5] and 12mm M6 Screws [6]. This forms x2 leg assemblies.

Step 2

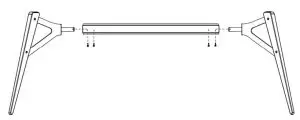

Using the 4.0 Allen Key [10], attach the Crossbeam [4] to the Leg Bracket assemblies with the 30mm M6 Screws [7]. This forms the frame assembly.

Step 3

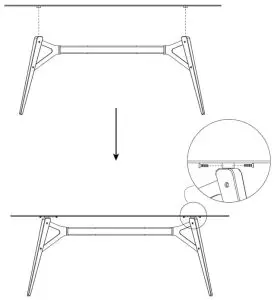

Then, using the 2.5 Allen Key [11] and the 16mm M4 Screws [8], attach the Table top [1] to the frame assembly.

NEED MORE INFORMATION?
We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.mattblatt.com.au
