50 ohm bnc twist-on
& 2-piece connectOrs
The 2-piece crimp and solderless twist-on designs offer the installer an easier choice for terminating onto coaxial cables. The 2-piece design features a captivated center contact design so that crimping of the center contact is eliminated. Only the outer shield and jacket are crimped. The twist-on design can be terminated without the need of crimping tools and can be re-used simply by un-twisting the connector and re-twisting on the next termination. These are 50-OHM designs.

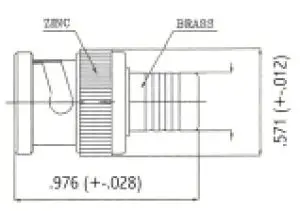

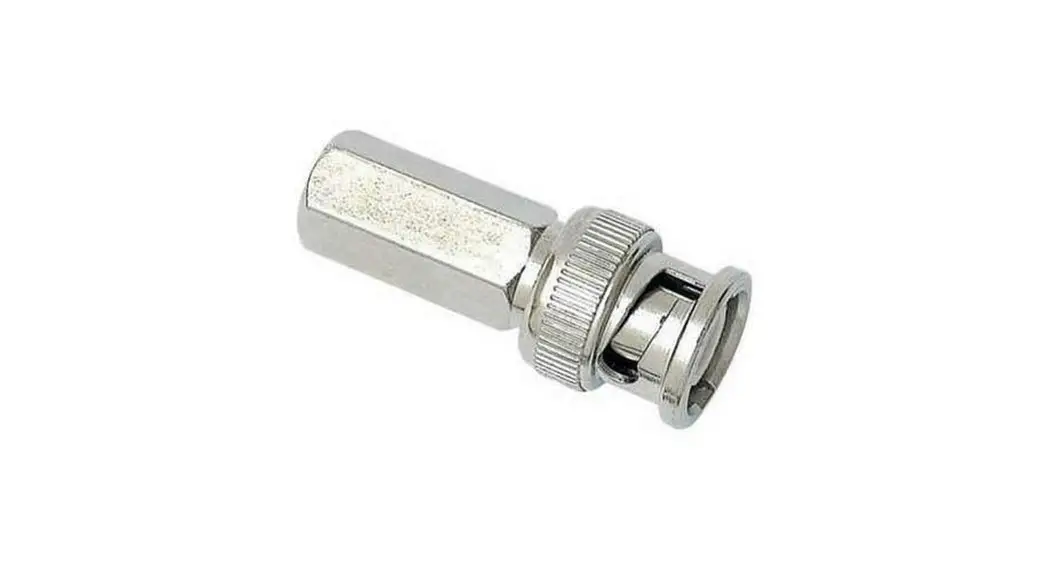

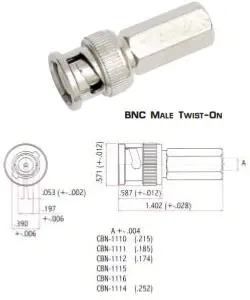

Twist-on
| item # | description |
| CBN-1110 | TWIST-ON BNC MALE FOR RG59/62 PVC |
| CBN-1111 | TWIST-ON BNC MALE FOR RG59/62 PLENUM |
| CBN-1112 | TWIST-ON BNC MALE FOR RG58 PVC |
| CBN-1115 | TWIST-ON BNC MALE FOR RG58 THINNET |
| CBN-1116 | TWIST-ON BNC MALE FOR RG58 PLENUM |
| CBN-1114 | TWIST-ON BNC MALE FOR RG6 PVC |
| CBN-1117 | TWIST-ON BNC MALE FOR BELDEN 8281 |

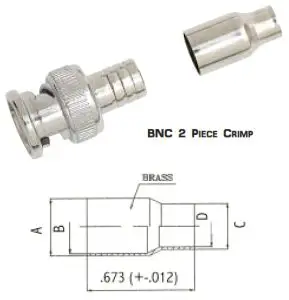

2-piece crimp
| item # | description |
| CBN-2110 | 2 PC. BNC MALE CRIMP FOR RG59/62 PVC |
| CBN-2111 | 2 PC. BNC MALE CRIMP FOR RG59/62 PLENUM |
| CBN-2112 | 2 PC. BNC MALE CRIMP FOR RG58 PVC |
| CBN-2114 | 2 PC. BNC MALE CRIMP FOR RG6 PVC |
| CBN-2115 | 2 PC. BNC MALE CRIMP FOR RG6 PLENUM |
| CBN-2120 | 2 PC. BNC MALE CRIMP FOR BELDEN 8281 |
| CBN-2122 | 2 PC. BNC MALE CRIMP FOR RG174 |
Please contact the distributor for connector dimensions
