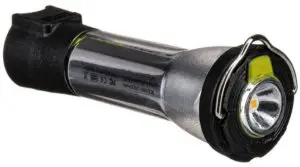

GOAL ZERO Lighthouse LED Latern + Flashlight + Recharger User Guide
BEFORE FIRST USE:
Take the Lighthouse Micro Charge out of DEMO mode by plugging it into a powered USB port.
Not near a USB port? Press the On/Off/Dimmer button five (5) times and hold on the sixth (6). The Battery Indicator will flash, indicating the Lighthouse is out of DEMO MODE.
GET TO KNOW YOUR GEAR
- PHONE 1 Recharge
- USB Rechargeable
- Hour Runtime on Lowest Setting
- Weatherproof IPX6 Rated
HOW IT WORKS
- Push the On/Off/Dimmer Button once for flashlight mode, twice for full-brightness lantern mode, and three times for half-brightness lantern mode.
- Press and hold to dim each mode.
- Using the flip-out USB tip, plug Lighthouse Micro Flash Charge into any powered USB port to charge it up in 3.5 hours. Also charges from 3.5 hours of full sun from the Nomad® 7 (Sold Separately)
- Using an appropriate charging cable, plug into the USB output to charge your gear. Still in DEMO MODE? See the front cover for instructions.
RUNTIME | – | LUMENS | CHARGE TIME | – |
Lantern – One Side (Low) | 170 hours | 7 lumens | USB source | 3.5 hours |
| Lantern – One Side (High) | 15 hours | 75 lumens | Nomad 7 | 3.5 hours |
| Lantern – Both Sides (Low) | 80 hours | 20 lumens | – | – |
Lantern – Both Sides (High) | 7 hours | 150 lumens | – | – |
Flashlight (Low) | 100 hours | 15 Lumens | – | – |
| Flashlight (High) | 8.5 hours | 115 Lumens | – | – |
RECHARGE YOUR LIGHTHOUSE MICRO FLASH
Recharge from USB or solar panel
TECHNICAL SPECIFICATIONS
Battery | |
| Cell chemistry | Li-ion NMC |
Cell type | 18650 |
| Cell capacity | 9.62Wh (3.7V, 2600mAh) |
Lifecycles | hundreds of cycles |
Shelf-life | Charge every 3-6 months |
Ports | |
USB port (input) | 5V, up to 1A (5W max |
General | |
Durability | IPX6 |
| Weight | 3.07 oz (87g) |
Dimensions | 4.4 x 1.5in (112 x 37.75mm) |
| Operating usage temp. | 32-104 F (0-40 C) |
Certs |  |
| Warranty | 12 months |
GOAL ZERO HEADQUARTERS
675 West 14600 South
Bluffdale, UT 84065
1-888-794-6250
Designed in the U.S.A.
Made in China
Nomad is a trademark of Goal Zero.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
