Rechargeable LED Camping Light
User Manual

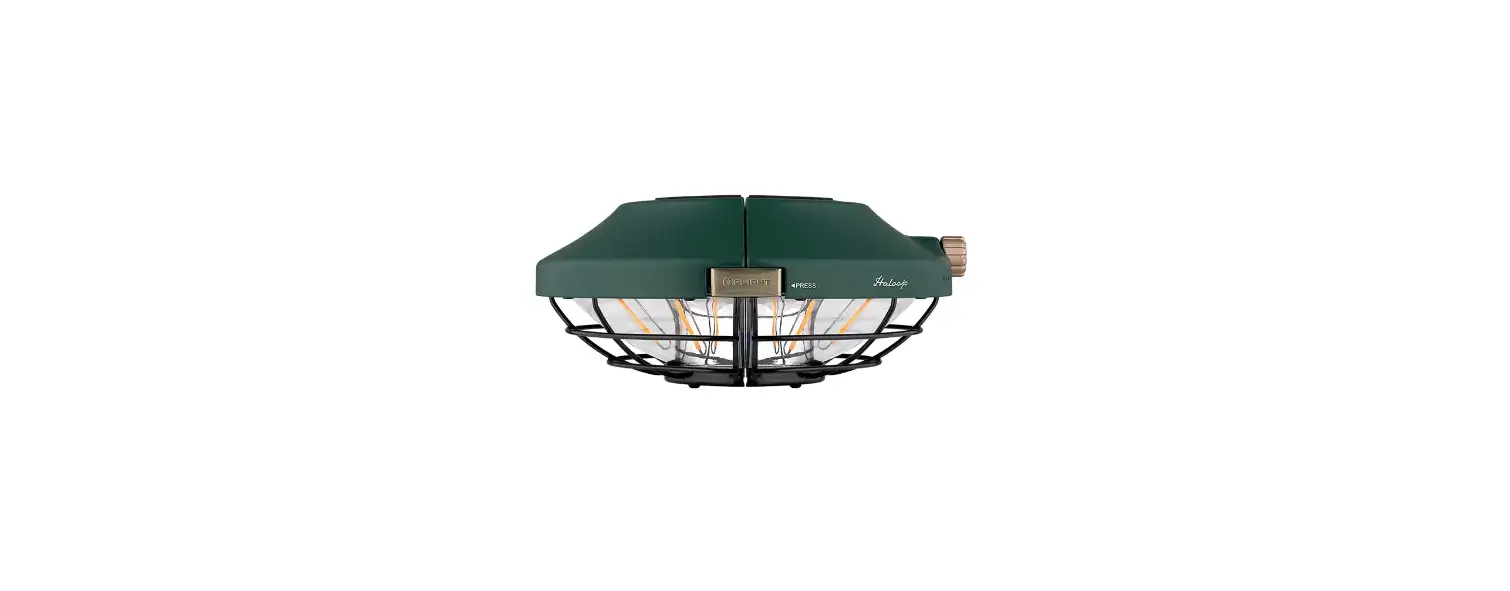

Haloop Rechargeable LED Camping Light
Thank you for purchasing this Olight Product. Please read this manual carefully before use and keep it for future reference!

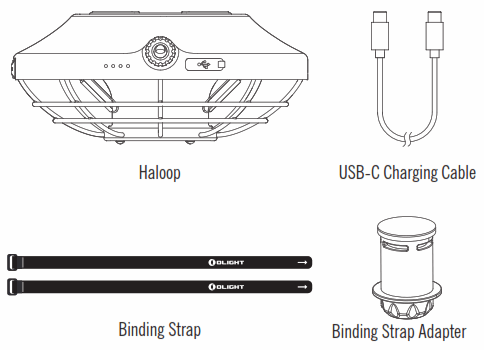

IN THE BOX

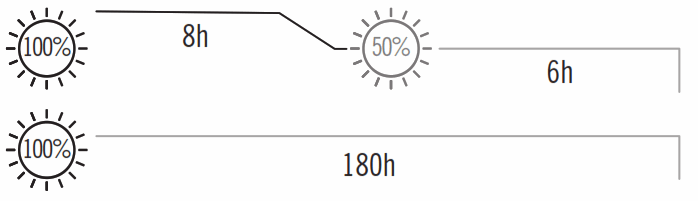

SPECIFICATIONS
White Light Mode
| HIGH | 600 lumens |  |
| LOW | 200 lumens |
Orange Light Mode
| HIGH | 200 lumens |  |
| LOW | 10 lumens |
 | HIGH | LOW |
| White Light Mode | 30m | 20m |
| Orange Light Mode | 10m | 2m |
 | ||||
| IPX5 | 260cd | 0.8m | (L)204*(W)198*(H)96.5mm (L)8.0*(W)7.8*(H)3.8in | 950 g 33.5oz |
All above specifications are test results based on ANSI/NEMA FL1-2009 Standard.
The tests are performed indoors under a room temperature of 25 degrees celsius with windless conditions. The runtime may vary depending on the external temperatureand ventilation conditions, and these biases may affect the results of testing.

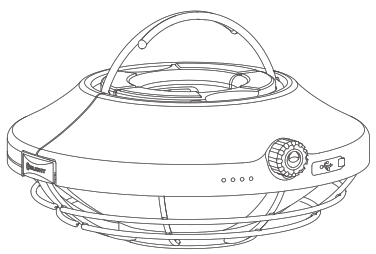

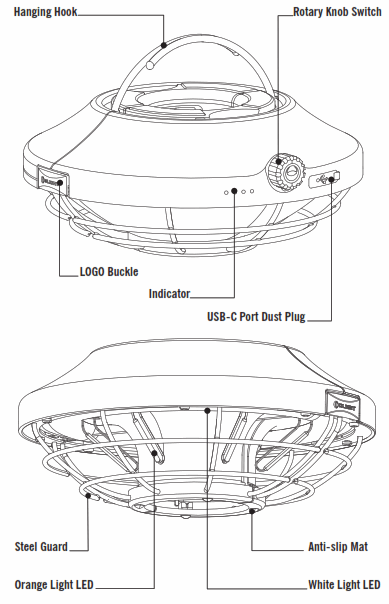

PRODUCT OVERVIEW

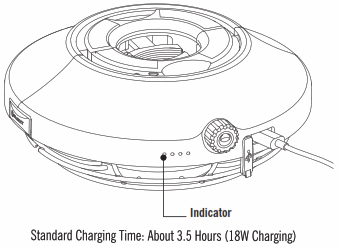

CHARGING
Before first use, please fully charge the product. Connect one end of the provided USB-C cable to an external USB-C power source (power adapter not included), open the silicone dust plug that shields the USB-C charging port of the product, and then insert the other end of the cable into the USB-C charging port.
NOTE: Best charging efficiency with an 18W or higher-capacity power source.
BATTERY LEVEL INDICATOR
Flashing Blue
Constant Blue
a. When charging, the battery-icon indicator displays the remaining battery level.
| 100% |  |
| 75%-100% | |
| 50%-75% | |
| 25%-50% | |
| 0%-25% |
b. When discharging, the battery-icon indicator displays the remaining battery level.
| 75%-100% |  |
| 50%-75% | |
| 25%-50% | |
| 5%-25% | |
| 0%-5% |
c. When rotating the rotary knob switch, the battery-icon indicator turns on (automatically turns off after 5 seconds), and the battery-icon indicator displays the remaining battery level.
| 75%-100% |  |
| 50%-75% | |
| 25%-50% | |
| 5%-25% | |
| 0%-5% |

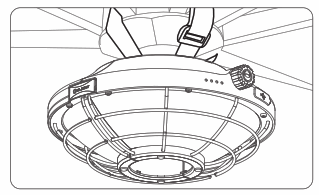

FIXING ACCESSORY INSTALLATION GUIDE

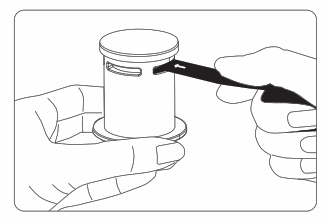

- Pass the two attachment straps through the holes on the top of the adapter.

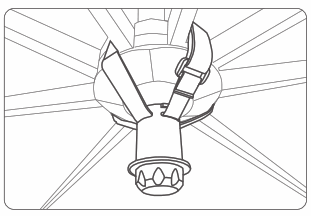

- Affix the adapter to the hub of the hanging umbrella using its strap.
- Hold down the LOGO buckle and pull the lamp body outwards.
- Close the lamp body around the installed adapter and ensure the latch is secure.
DANGER
- DO NOT shine the light directly into human eyes. This may cause temporary blindness or permanent damage to the eyes.
WARNING
- DO NOT store the product in a car or any place where the temperature may exceed 60°.
- When the charging port is not in use, please keep the dust plug inserted to prevent dust or foreign matters from entering.
- DO NOT place the product in any dusty environment. Otherwise, the dust may enter the rotary knob switch and cause it to malfunction.
- DO NOT disassemble the product.
- DO NOT immerse the product in seawater or other corrosive media to avoid damage to the product.
- Please prevent it from falling and handle it with care.
- Please DO NOT try to open the spring clamp wider than the allowed range. Otherwise the product may suffer irreversible damage.
NOTICE
• Please keep the product away from radios, as the PWM modulation of the rotary knob may cause noise to the radio signals.
• Please fully charge the battery before storing the product for a long period of time.
EXCLUSION CLAUSE
Olight is not liable for damages or injuries sustained resulting from the usage of the product inconsistent with the warnings in the manual.
HOW TO OPERATE
ON/OFF: Turn on by rotating the rotary knob clockwise and turn off by rotating counter-clockwise.
Change Light Output: When the light is on, keep rotating the rotary knob clockwise for the stepless adjustment of the light output in the following order: low orange light, high orange light, low warm white light, and high warm white light. Rotating the rotary knob counter-clockwise will change the light output in the reverse order.
WARRANTY
Within 30 days of purchase: Contact the original seller for repair or replacement.
Within 2 years of purchase: Contact Olight for repair or replacement.
This warranty does not cover normal wear and tear, modifications, misuse, disintegrations, negligence, accidents, improper maintenance, or repair by anyone other than an Authorized retailer or Olight itself.
USA Customer Support
[email protected]
Global Customer Support
[email protected]
Visit www.olightworld.com to see our complete product line of portable illumination tools.
Dongguan Olight E-Commerce Technology Co., Ltd
4th Floor, Building 4, Kegu Industrial Park, No 6 Zhongnan Road, Changan Town,
Dongguan City, Guangdong, China.
Made in China
THANK YOU!
