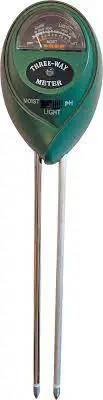

St Helens GH616 3-Way Soil Meter
IMPORTANT
Installer and users please note:
Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data.
PRODUCT SAFETY
- WARNING: Choking hazard. Small parts. Keep away from children and pets
- Children shall not play with the unit.
- Cleaning and maintenance shall not be made by children without supervision.
- Do not use the meter for anything other than its intended use.
USAGE INSTRUCTIONS
- Moisture
Push switch to left. Insert probe deeply into the soil, reaching root level. Keep probe close to plant. Note moisture level and refer to chart overleaf for plants watering needs - Light
Push switch to centre. Facing the light source, hold the meter next to the plant. Avoid touching the sensing element located underneath the gauge. Note light level and refer to chart overleaf. - Soil pH
Push switch to the right, insert probe deeply into soil. A pH reading greater than 7 is alkaline, a reading less than 7 is acidic. Most indoor plants prefer a slightly acidic soil with a pH between 6.5 and 7. Soil that is highly alkaline will cause the leaves to lose their colour and stunt the growth of the plant. Acidic soil will cause the leaves to wilt and drop.
CLEANING INSTRUCTIONS
The soil meter probes should be wiped cleaned before and after each use with a damp cloth.
STORAGE INSTRUCTIONS
Store in a cool, dry place.
Light and Moisture Chart
| Plant | Light | Moisture | Plant | Light | Moisture |
| African Violet | 500-2000 | 6 | Hoya | 500-2000 | 4 |
| Aglaonema | 50-500 | 7 | Ivy, English | 500-2000 | 7 |
| Aphelandra | 100-1000 | 9 | Ivy, Grape | 100-1000 | 6 |
| Aralia | 100-1000 | 7 | Ivy, Swedish | 500-2000 | 7 |
| Ardisia | 100-1000 | 6 | Jade Plant | 500-2000 | 3 |
| Azalea | 500-2000 | 6 | Kalancho | 500-2000 | 4 |
| Baby’s Tears | 100-1000 | 9 | Landscape Plants | 500-2000 | 4 |
| Begonia | 100-1000 | 7 | Lawns | 500-2000 | 5 |
| Bromeliad | 50-500 | 4 | Maranta | 100-1000 | 8 |
| Cactus | 500-2000 | 3 | Ming Aralia | 500-2000 | 6 |
| Cladium | 100-1000 | 8 | Nepthytis | 100-1000 | 7 |
| Chinese Evergreen | 50-500 | 6 | Norfolk Island Pine | 500-2000 | 5 |
| Christmas Cactus | 100-1000 | 3 | Palms | 100-1000 | 8 |
| Coffee | 100-1000 | 7 | Areca, Bamboo, Fishtail, Kentia, Lady, Ponytail Pador | ||
| Coleus | 500-2000 | 6 | Peperomia | 100-1000 | 4 |
| Crassula | 500-2000 | 4 | Philodendron | 100-1000 | 6 |
| Croton | 500-2000 | 6 | Pilea | 100-1000 | 7 |
| Cryptanthus | 500-2000 | 4 | Podocarpus | 500-2000 | 8 |
| Dieffenbachia | 100-1000 | 5 | Pothos | 100-1000 | 6 |
| Dracaena | 100-1000 | 8 | Prayer Plant | 100-1000 | 6 |
| Janet Craig, Lance, Marginata, Warneckei | Rubber Plant | 100-1000 | 4 | ||
| Euonymus | 100-1000 | 6 | Sanseveria | 100-1000 | 3 |
| False Aralia | 500-2000 | 7 | Schefflera | 500-2000 | 6 |
| Ferms | 100-1000 | 4 | Scindapsus | 100-1000 | 6 |
| Birds Nest, Boston, Bear’s Paw, Cycus, Holly, Maidenhiar, Mini Rabbit’s Foot, Pteris, Staghorn | Sparthiphyllum | 50-500 | 6 | ||
| Spider Plant | 100-1000 | 4 | |||
| Ficus | 100-1000 | 4 | Spineless Yucca | 500-2000 | 3 |
| Fiddleleaf Fig | 100-1000 | 4 | Succulents and Cactus | 500-2000 | 3 |
| Fittonia | 100-1000 | 6 | Tiger Jaws | 500-2000 | 4 |
| Flame Violet | 100-1000 | 6 | Wandering Jew | 100-1000 | 4 |
| Gynura | 500-2000 | 6 | Zebra Plant | 500-2000 | 6 |
| Hawaiian Ti | 500-2000 | 6 | |||
| Hoya | 500-2000 | 4 | |||
SERVICE WARRANTY
Electrovision guarantees the product free from defects in materials and workmanship for a period of 1 year. Should this unit be used under conditions other than those recommended, or any attempts made to service or modify the unit, then the warranty will be rendered void. The product you buy may sometimes differ slightly from illustrations. This warranty is in addition to, and does not affect, your statutory rights. If you have any problems with this product, please call our help desk on (0845) 459 4816.
Electrovision Ltd. Lancots Lane, Sutton, St. Helens, Merseyside, WA9 3EX
www.Electrovision.co.uk
Electrovision - Leaders in Electronics
