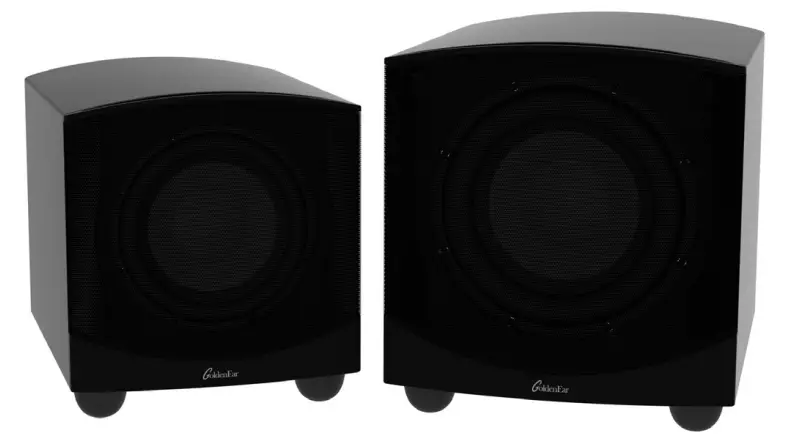

ForceField
Powered Subwoofers
Quick Start Guide
The crossed-out wheeled bin is the European Union symbol for indicating a separate collection of electrical and electronic equipment. This product contains electrical and electronic equipment which should be reused, recycled or recovered and should not be disposed of with unsorted regular waste. Please return the unit or contact the authorized dealer from whom you purchased this product for more information.
 |  |  |
| Read All Instructions | Avoid Extreme Temperatures | Avoid Moisture |
 |  |  |
| Avoid Direct Sunlight | Avoid Solvents | Secure Cables |
Technical Specifications
| ForceField 30 | ForceField 40 | |

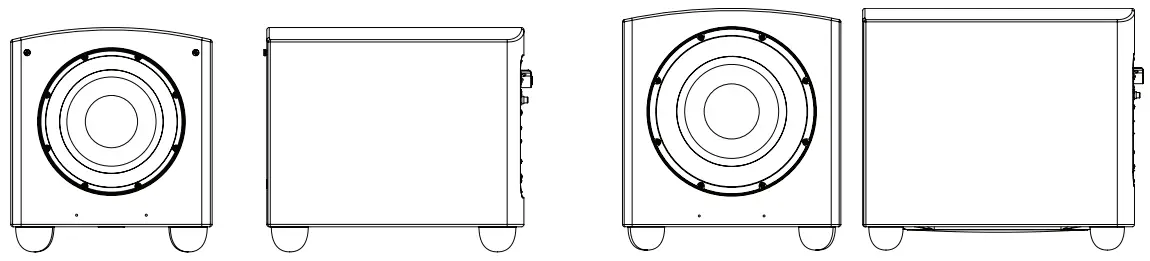

| Dimensions | 1112 ⁄16″ (32.2 cm) H (w/feet) x 11 3 ⁄8″ (28.9 cm) W x 15 31 ⁄32″ (40.6 cm) D | 14⁄16″ (37.3 cm) H (w/feet) x 13 ⁄32″ (33.7 cm) W x 18 ⁄16″ (46.5 cm) D |
| Weight | 31.50 lbs. (14.29 kg) | 40.50 lbs. (18.37 kg) |
| Frequency Response | 18 Hz – 250 Hz | 14 Hz – 250 Hz |
| Driver Complement | One 8″ (20.3cm) long-throw high-output bass driver | One 10″ (25.4cm) long-throw high-output bass driver |
| Amplifier | 1000 Watt ForceField Digital Amplifier | 1200 Watt ForceField Digital Amplifier |
| LFE Line-Level Input | Unfiltered (no low pass), direct-coupled | Unfiltered (no low pass), direct-coupled |
| Right/Left Line-Level Input | Variable Low-Pass from 40 Hz – 150 Hz | Variable Low-Pass from 40 Hz – 150 Hz |
| Voltage Input | North America: 120v 60 Hz, Europe: 230v 50 Hz | North America: 120v 60 Hz, Europe: 230v 50 Hz |
| Fuse Size | North America: 5-amp 250-volt slow blow fuse (110-volt version) | North America: 5-amp 250-volt slow blow fuse (110-volt version) |
| Power Requirements/ | North America: 120v at 50 or 60Hz / 1000 Watts | North America: 120v at 50 or 60Hz / 1200 Watts |
Specifications Subject to Change Without Notice
Unpacking – Please Follow These Steps to Safely Unpack Your Subwoofer
ForceField Subwoofers are heavy, we recommend 2 people to unpack them.
 |  |

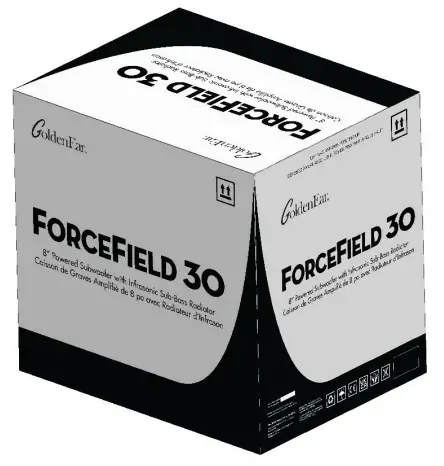

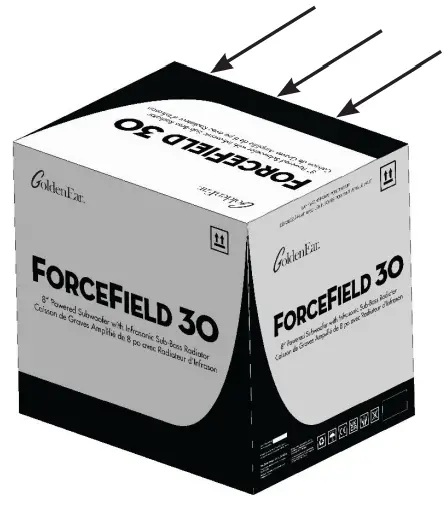

| 1. Remove any wrapping and stand up as shown. | 2. Carefully cut tape. |
 |  |

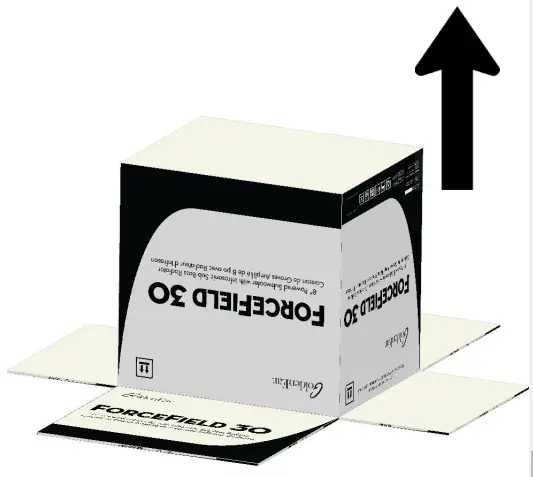

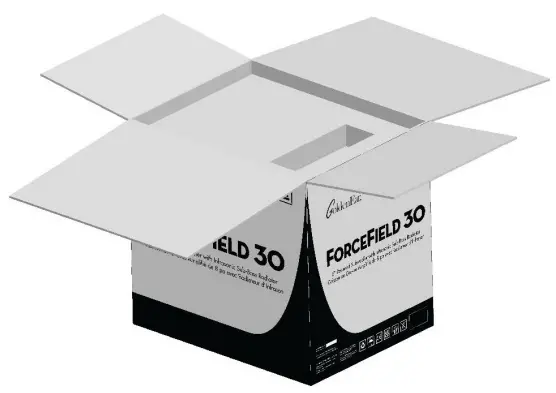

| 3. Open box flaps. | 4. Turn over and lift off the box. |
 |  |

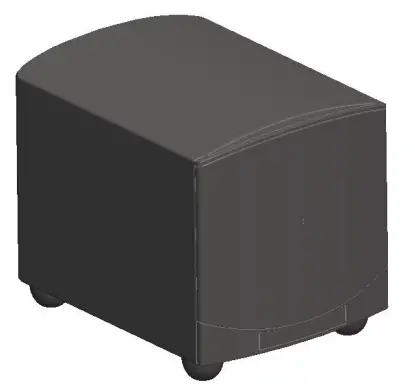

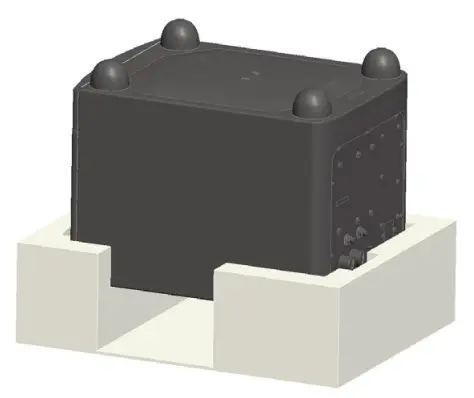

| 5. Remove internal packing, and turn the subwoofer over onto its feet. | 6. Subwoofer is ready to place in the room, and connect to power and signal. |

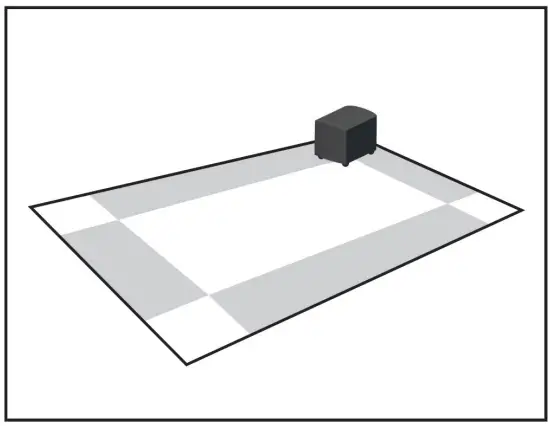

Positioning – Check the User Manual for Detailed Instructions
 |  |

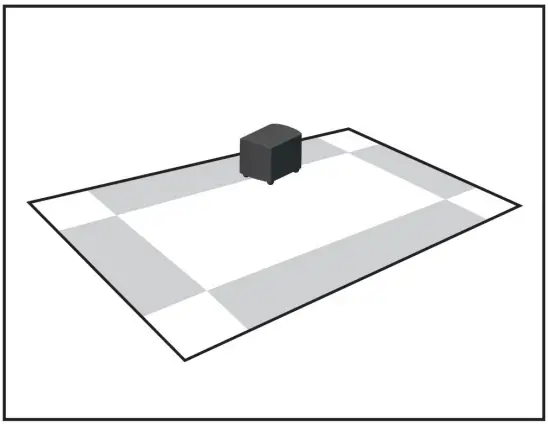

| Corner placement shoud be avoided | Place in shaded areas for best performance |
Connections – Check the User Manual for Detailed Instructions

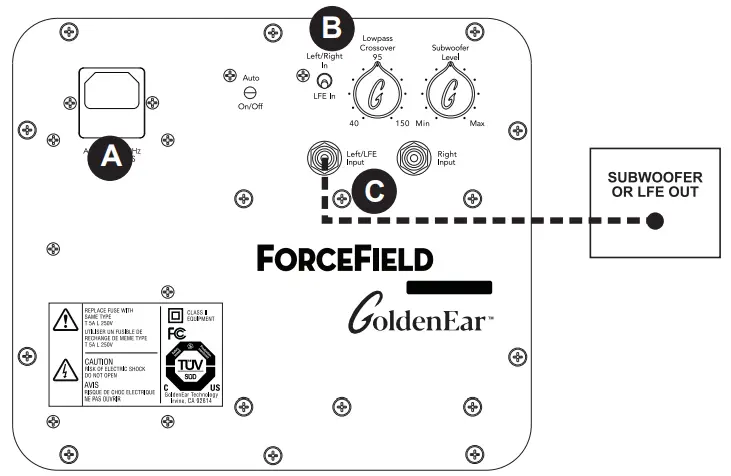

Left/LFE Input From Sub/LFE Output – For use with an A/V receiver, processor or subwoofer control unit
 | |
| Connect AC power cable | Select input |

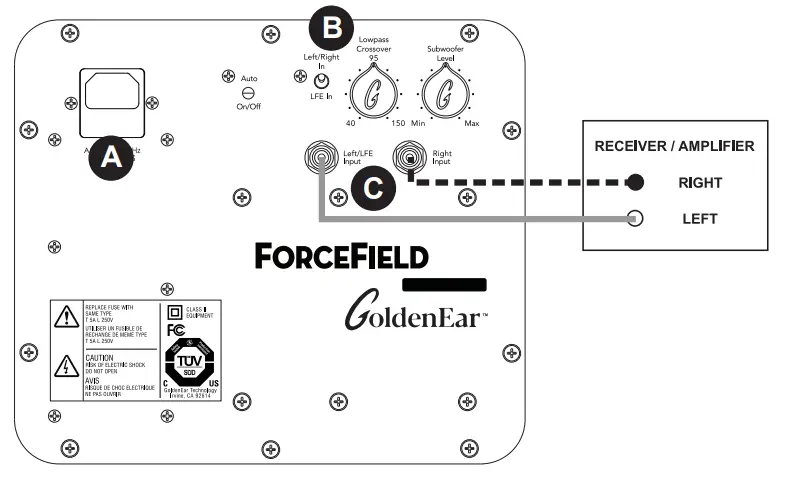

Left and Right Inputs – For use in a stereo configuration
 |
| Left/LFE and Right channel inputs |
ForceField
Powered Subwoofers
For Additional Help With Installation Visit: www.goldenear.com
This product complies with the essential requirements of the EMC directive 89/336/EEC
