Elliptical Insportline User Manual

USER MANUAL ­ EN

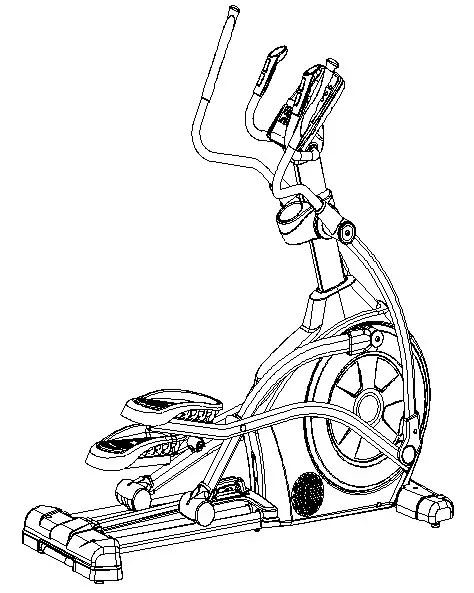

IN 21341 Elliptical inSPORTline inCondi ET660i II

SAFETY INSTRUCTIONS

• Read the manual carefully and keep it for future reference.
• To ensure the best safety of the exerciser, regularly check it on damages and worn parts.
• If you pass on this exerciser to another person or if you allow another person to use it, make sure that that person is familiar with the content and instructions in these instructions.
• Only one person should use the exerciser at a time.
• Before the first use and regularly make sure that all screws, bolts and other joints are properly tightened and firmly seated.
• Before you start your work-out, remove all sharp-edged objects around the exerciser.
• Only use the exercise for your work-out if it works flawlessly.
• Any broken, worn or defective part must immediately be replaced and/or the exerciser must no longer be used until it has been properly maintained and repaired.
• Parents and other supervisory persons should be aware of their responsibility, due to situations which may arise for which the exerciser has not been designed and which may occur due to children’s natural play instinct and interest in experimenting.
• If you do allow children to use this exerciser, be sure to take into consideration and assess their mental and physical condition and development, and above all their temperament. Children should use the exerciser only under adult supervision and be instructed on the correct and proper use of the exerciser. The exerciser is not a toy.
• For your own safety, always ensure that there is at least 0.6 meter of free space in all directions around your product while you are exercising.
• To avoid possible accidents, do not allow children to approach the exerciser without supervision, since they may use it in a way for which it is not intended due to their natural play instinct and interest in experimenting.
• Please note that an improper and excessive work-out may be harmful to your health.
• Please note that levers and other adjustment mechanisms are not projecting into the area of movement during the work-out.
• When setting up the exerciser, please make sure that the exerciser is standing in a stable way and that any possible unevenness of the floor is evened out.
• Always wear appropriate clothing and shoes which are suitable for your work-out on the exerciser. The clothes must be designed in a way so that they will not get caught in any part of the exerciser during the work-out due to their form (for example, length). Be sure to wear appropriate shoes which are suitable for the work-out, firmly support the feet and which are provided with a non-slip sole.
• Be sure to consult a physician before you start any exercise program. He may give you proper hints and advice with respect to the individual intensity of stress for you as well as to your work-out and sensible eating habits.
• Weight limit: 150 kg
• WARNING! The hart rate monitor may not be accurate. Overloading during training may cause serious injury or death. If you feel any discomfort, immediately stop the exercise!
• Category: SC for professional and commercial use (according to EN 957)

IMPORTANT NOTES

• Assemble the exerciser as per assembly instructions and be sure to only use the structural parts provided with the exerciser and designed for it. Prior to the assembly, make sure the contents of the delivery is complete by referring to the parts list of the assembly and operating instructions.
• Be sure to set up the exerciser in a dry and even place and always protect it from humidity. If you wish to protect the place particularly against pressure points, contamination, etc., it is recommended to put a suitable, non-slip mat under the exerciser.
• The general rule is that exercisers and training devices are no toys. Therefore, they must only be used by properly informed or instructed persons.
• Stop your work-out immediately in case of dizziness, nausea, chest pain or any other physical symptoms. In case of doubt, consult your physician immediately.
• Children, disabled and handicapped persons should use the exercise only under supervision and in presence of another person who may give support and useful instructions.
• Be sure that your body parts and those of other persons are never close to any moving parts of the exerciser during its use.
• When adjusting the adjustable parts, make sure they are adjusted properly and note the marked, maximum adjusting position, for example of the saddle support, respectively.
• Do not work out immediately after meals!

ASSEMBLY

Make sure you have enough free space before assembly.
Before assembly, make sure you have all the parts, and none are missing.

STEP 1

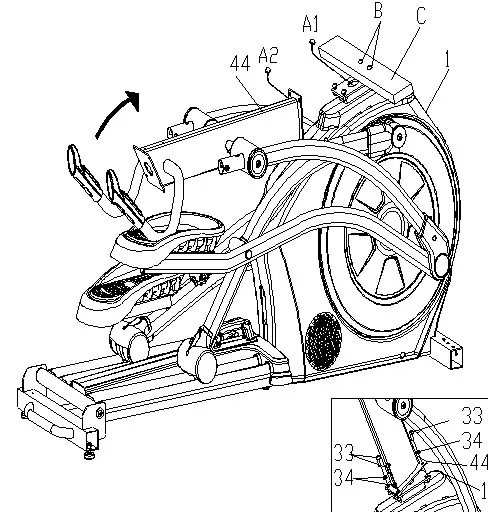

Remove the attached plate (C) by unscrewing the two screws (B) on the front of the main frame (1). The plate and screws are not required for the next steps.

Lift the post (44) in the direction of the arrow in the figure as close as possible to the main frame (1). One person holds the post and the other connects the cables (A1 and A2). Then insert the cable into the main frame (1). Secure the post with the screws (33) and washers (34).
STEP 2

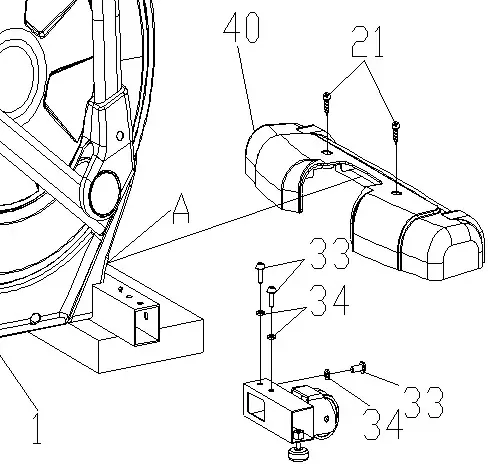

The mainframe (1) is supported by the packing material (A). There are 3 bolts (33) and 3 washers (34) on the right and left stabilizer (3, 2) with foot. The screws (21) are screwed in front of the mainframe (1). Unscrew these screws and keep them, the screws are still used. Attach the right and left stabilizer with foot (3, 2) to the mainframe (1) with 3 screws (33) and 3 washers (34) on each side. Remove the packing material (A) under the mainframe (1). Attach the front rail cover (40) to the mainframe (1) with 2 screws (21).

STEP 3

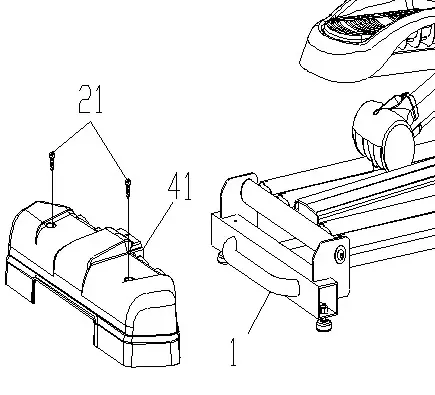

Remove the 2 screws (21) from the main frame and attach the rear stabilizer cover with the 2 screws (21).
STEP 4

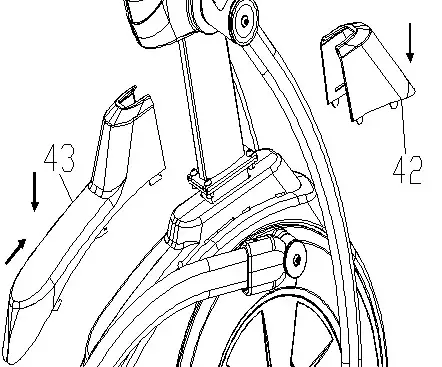

Attach the chain guards (42 and 43) to the main frame (1) as shown.
STEP 5

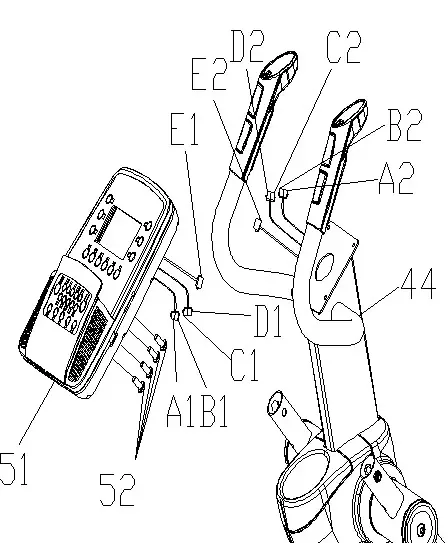

Connect the console cables (51) as shown. Connect the cables (A1 – A2), (B1 – B2), (C1 – C2), (D1 D2), (E1 – E2) and plug the excess cables into the post (44). Then attach the console (51) to the post (44) with 4 screws (52).
STEP 6

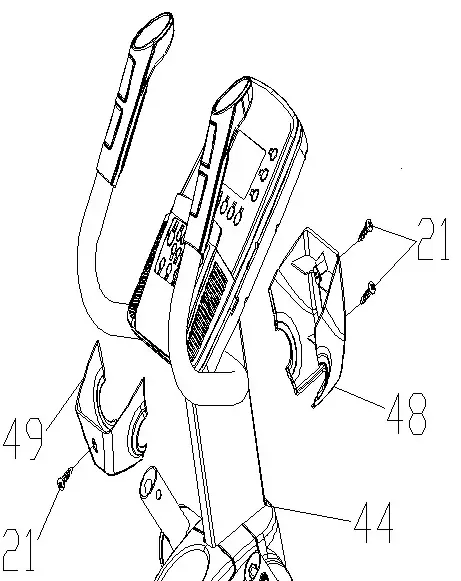

Remove the 3 screws (21) from the post (44). Then attach the covers (48 and 49) to the post with 3 screws (21).
STEP 7

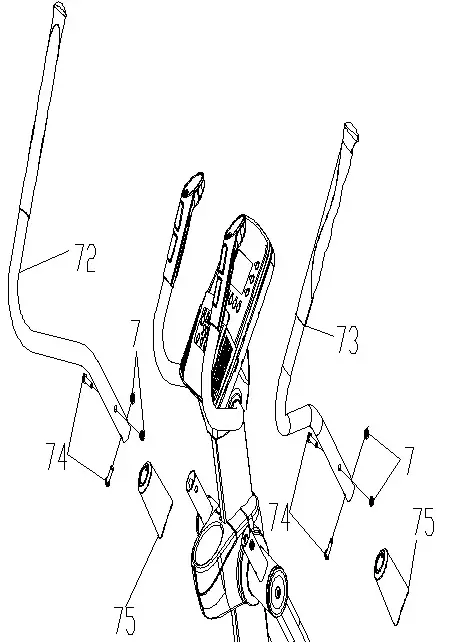

Remove the 4 screws (74) and 4 nuts (7) from the left and right handlebars (72 and 73). Install the covers (75) on the left and right handlebars (72 and 73). Then attach the left and right handlebars with the screws (74) and nuts (7). Then slide the covers (75) down.

INCLINE ADJUSTMENT

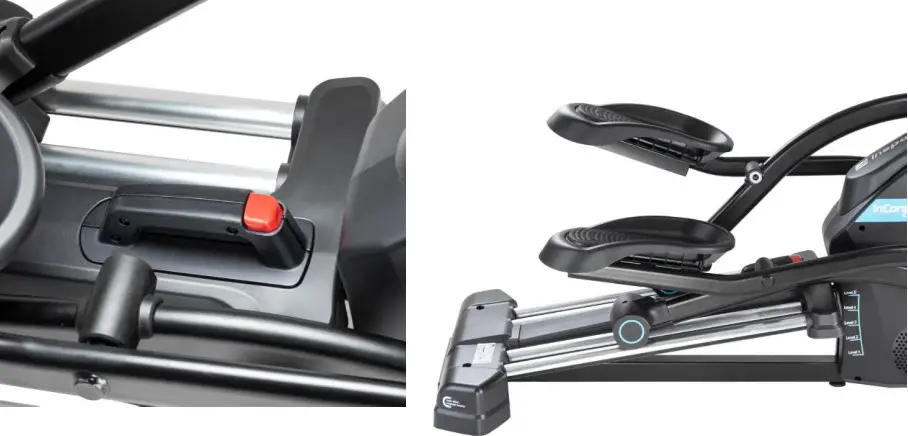

You can adjust pedal’s incline with handle. You can choose from levels 1 ­ 5.
CONSOLE

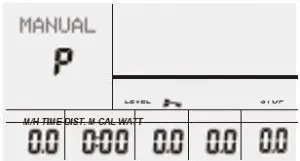

Console contains 21 programs:

1 Manual program
10 presets programs
P1: Rolling	P2: Valley
P3: Fat burn	P4: Ramp
P5: Mountain	P6: Interval
P7: Cardio	P8: Endurance
P9: Slope	P10: Rally
WATT program
HRC program
55% H.R	75% H.R
90% H.R	TARGET H.R
User programs 1 – 4
User program 1	User program 2
User program 3	User program 4
BODY FAT
Gender, height, weight, and age data are saved even when you disconnect the device. The dot display shows the current status.

The heart rate is displayed. Speed, RPM, time, distance, power, WATT, pulse, level are displayed at the same time. The console will automatically shut down if the console does not receive the signal for 4 minutes.

BUTTONS

USE

A. TURN ON
Plug the device into the power outlet, the console will start up, a beep will sound and enter the home screen (Pic. 24)

Pic. 24

B. PROGRAM SELECTION
Manual program or preset programs P1-P10

1. Select a program using the navigation buttons UP / DOWN (Pic. 25)
2. Press ENTER to confirm your selection and enter the time setting
3. TIME starts flashing and use UP / DOWN navigation buttons to set the value, then press ENTER to confirm (Pic. 26)


   Pic. 25	Pic. 26

4. Then set DISTANCE using the UP / DOWN navigation buttons to set the value, then press ENTER to confirm (Pic. 27)
5. Then set CALORIES using the UP / DOWN navigation buttons to set the value, then confirm with ENTER (Pic. 28)


   Pic. 27	Pic. 28

6. Press START / STOP to start the program.
   NOTE: In the WATT program, the load is set by torque and RPM. The WATT value will remain the same if you pedal fast, the load will decrease and if you pedal slowly, the load will increase

C. HRC PROGRAM
Values 55 %, 75 % a 90 %
The maximum value depends on age

1. Select the heart rate control program
2. Confirm with ENTER and set the time
3. Use the navigation buttons to set the time and confirm with ENTER, then set the distance
4. Use the navigation buttons to set the distance and confirm with ENTER, then set the calories burned
5. Use the navigation buttons to set the desired calories burned and confirm with ENTER, then set the age
6. Use the navigation buttons to set the age and confirm with ENTER
7. Then the program sets the appropriate value according to the set age
8. Press START / STOP to start the program


   Pic. 31	Pic. 32 13

D. TARGET HEART RATE
The user can set his own heart rate value

1. Choose TARGET HEART RATE
2. Confirm with ENTER and set the time
3. Use the navigation buttons to set the time and confirm with ENTER, then set the distance
4. Use the navigation buttons to set the distance and confirm with ENTER, then set the calories burned
5. Use the navigation buttons to set the desired calories burned and confirm with ENTER, then set the target heart rate
6. Use the navigation buttons to set the target heart rate and confirm with ENTER Press START / STOP to start the program NOTE: Heart rate depends on speed and exercise. If the heart rate is higher than the set value, the load is reduced. If the heart rate is lower than the specified value, the load will increase.

USER PROGRAMS (CUSTOM 1 ­ CUSTOM 4)

1. Use the navigation keys to select a user.
2. Confirm with ENTER and set the time.
3. se the navigation buttons to set the time and confirm with ENTER, then set the distance
4. Use the navigation buttons to set the distance and confirm with ENTER, then set the calories burned
5. Use the navigation buttons to set the desired calories burned and confirm with ENTER, then set the load
6. Use the navigation buttons to set the load on all parts, always press ENTER to confirm.
7. Press START / STOP to start the program

E. BODY FAT MEASUREMENT PROGRAM

1. Use the navigation keys to select the BODY FAT TEST program (Pic. 34)
2. Confirm with ENTER
3. Use the navigation keys to adjust the height and confirm with ENTER (Pic. 35)
4. Use the navigation keys to set the weight and confirm with ENTER (Pic. 36)
5. Use the navigation keys to set the age and confirm with ENTER (Pic. 37)
6. Use the navigation keys to set the gender and confirm with ENTER (Pic. 38)
7. Press START / STOP to start the program


   Pic. 33	Pic. 34
   Pic. 35	Pic. 36
   Pic. 37	Pic. 38
   Pic. 39	Pic. 40

NOTE: Grasp both body pulse plates. FAT%, BMR, BMI and body status results are displayed. (Pic. 40).
FAT%: Body fat measured in %.
BMR: Metabolism
BMI: Body mass index
If the pulse pads do not work properly and do not transmit a signal during the measurement, ERROR2 is displayed. Press START / STOP and try running the test again. You cannot exit the test after running the test. When finished, press UP / DOWN to exit.
F. PULSE RECOVERY TEST
A test that compares heart rate before and after exercise. The result is the ability of the heart to recover from exercise.

1. Grasp the pulse sensors or attach the chest strap (if applicable to the device)
2. Press RECOVERY to start the program (Pic. 41)
3. The 60-second countdown starts.
4. The result is then displayed
   F1 ­ F6. F1 – excellent / F2 – good / F3 – average / F4 below average / F5 – poor / F6 – worst result

   Pic. 41	Pic. 42

G. MEASUREMENT OF THE PULSE
Grasp both pulse sensors. The heart rate is displayed after 3-4 seconds. The heart icon is displayed along with the ECG.

NOTE: Values are for guidance only and not for medical purposes. You can use the chest strap, if supported.

ERROR 1 ­ check motor and motor connection
ERROR 2 ­ check the pulse sensors

MP3 PLAYER (if available)
Connect the audio device to the console. Then start the audio device and then the console. If the console starts audio itself, it should start playing automatically.

USB PORT (if available)
Insert the USB device into the console.

	Play next
	Play the following
	START / PAUSE
	Volume up
	Volume down

APPLICATION MEPANEL
You can find current version of Mepanel manual on your websites.

USE OF ELEPTICAL TRAINER
The elliptical trainer is a popular fitness machine, one of the newest and most effective home training machines. When you are exercising on an elliptical treadmill, your feet move along the elliptical curve. The elliptical treadmill is a frequent replacement for exercise bikes and treadmills because it is gentler for your joints. With the handles, you are also exercising the upper half of your body. During exercise, you transfer the weight from one foot to the other. Try to maintain an upright and natural position. Handlers will help you. Find the perfect place to hold the grip and try to move as naturally as possible.

THE WARM-UP PHASE
This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as shown below. Each stretch should be held for approximately 30 seconds, do not force or jerk your muscles into a stretch. If it hurts, STOP.

Touching your toes
Slowly bend your back from hips. Keep your back and arms relaxed while stretching downwards to your toes. Do it as far as you are able and hold the position for 15 seconds. Bend your knees slightly.

Upper thigh
Lean against a wall with one hand. Reach down and behind you. Lift up your right or left foot to your buttock as high as possible. Keep for 30 seconds and repeat twice for each leg.

Hamstring stretched
Sit and outstretch your right leg. Rest the sole of your left foot against the inside of your right tight. Stretch out your right arm along your right leg as far as you can. Hold for 15 seconds and relax. Repeat all with your left leg and left arm.

Inside upper thigh
Sit on the floor and place your feet together. Knees are pointed outwards. Pull your feet as close as possible to your groin. Press your knees carefully downwards. Keep this position for 30-40 seconds if possible.

Calves and Achilles tendon
Lean against a wall with your left leg in front of the right one and your arms forward. Stretch out your right leg and keep your left foot on the floor. Bend your left leg and lean forwards by moving your right hip in the direction of the wall. Hold for 30-40 seconds. Keep your leg stretched and repeat exercising with other leg.

MAINTENANCE

• Use only a soft cloth and a mild detergent.
• Do not clean the plastic parts with abrasives or solvents.
• Wipe the sweat after each use. · Protect the device from moisture and extreme temperatures.
• Protect your device, computer and console from direct sunlight.
• Check the tightening of all bolts and nuts regularly.
• Store in a dry and clean place away from children.

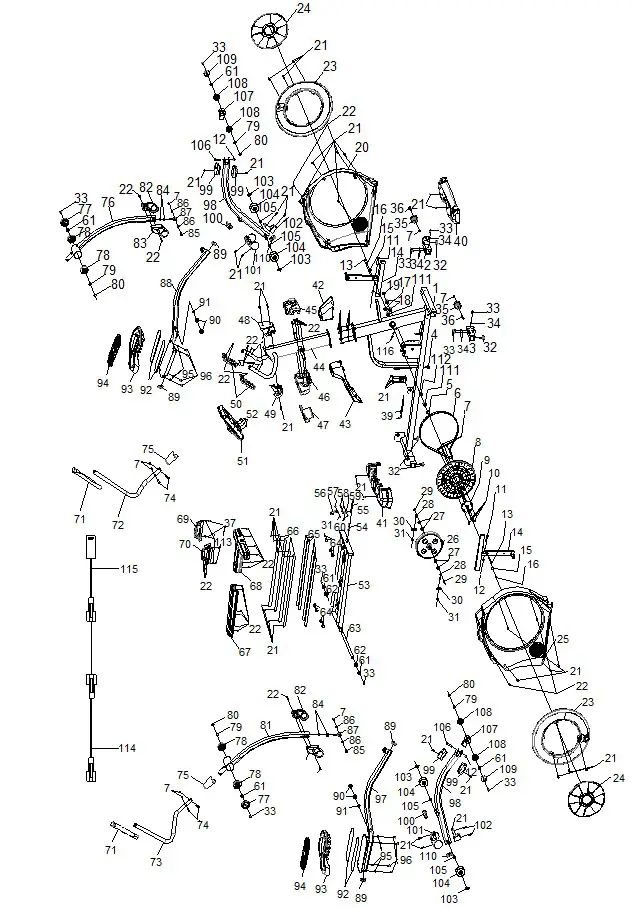

DIAGRAM

PARTS LIST

ENVIRONMENT PROTECTION

After the product lifespan expired or if the possible repairing is uneconomic, dispose it according to the local laws and environmentally friendly in the nearest scrapyard.
By proper disposal you will protect the environment and natural sources. Moreover, you can help protect human health. If you are not sure incorrect disposing, ask local authorities to avoid law violation or sanctions.
Don’t put the batteries among house waste but hand them in to the recycling place.
