128RT(3U) 128CH 8MP NVR with RAID
Owner’s Manual
NVR SERIES
Provision-ISR conventional NVRs are intended for obtaining video streams from the IP cameras via the IP networks for the purpose of their storage and subsequent playback. These devices communicates with the IP cameras through the general network, without the need of direct IP camera connection, providing the installerwith the highest flexibility in the design of the system and the wiring.

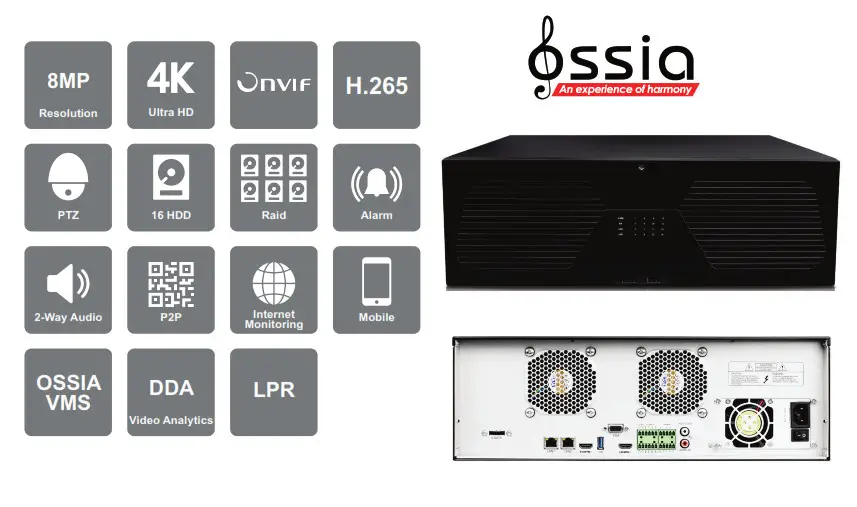

NVR8-128RT(3U)
128CH 8MP NVR WITH RAID
Provision-ISR NVR8-128RT(3U) is an easy-to-install solution suitable for big-sized installations (up to 128 channels). The device features 8 alarm inputs + 4 alarm outputs and provides you with everything you need for a trouble-free CCTV project. All hardware components, including the Raid, are validated to meet the demands for reliable high-definition surveillance.
MAIN FEATURES
- Channels: 128 Over Network
- Video output: HDM 11 (4K, 1080P,1280X1024), HDMI2+VGA (1080P,1280X1024) 32CH per monitor
- Max. Recording: 128CH 8MP Real Time
- HDD: 16 SATA (8TB each) with Smart Management, 2 E-SATA Port
- RAID Support
- Alarms: 8 In / 4 Out (+ IPC Inputs/Outputs)
- Audio: 1 In / 1 Out (+ IPC Inputs/Outputs)
- Video Analytics: Yes (Must be supported by IPC)
- DDA. LPR and Fish-Eve support
SPAECIFITIONS
| Input | 128Ch Over Network |
| Output | HDMI1 (4K 30/60Hz, 1080P1280x1024), HDMI2 +VGA (1280×1024, 1080P) |
| Video | |
| View Mode | Independent. Up to 64th Per Monitor |
| Decoding Format | H.265 / H.265+/ H.265S / H.264 |
| Decoding Capabilities | 1Ch – 8MP; 4Ch – 2x8MP + 2x5MP ; 9/16Ch – 1MP ; 32Ch – 20x1MP + 12xD1 ; 64Ch – D1 |
| Input | 1CH RCA (Linear. 1k(1)+ PC Inputs |
| Audio | |
| Output | 1CH RCA (2.0 Vp-p, 1 k(1) + IPC Inputs |
| Compression | G.711NG.711U |
| Two Way Audio | Yes |
| Analytics Channels | 128Ch (Requires supporting IPC) |
| Analytics | |
| Supported Analytics | Camera Tampering, Line Crossing (DDA/ Pixel Based). Sterile Area (DDA/ Pixel Based). ObjectMonitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, LPR |
| Face Recognition Rate | N/A |
| Incoming | 384Mbps |
| Bandwidth | |
| Outgoing | 384Mbps |
| Real-Time Recording | 128CH 8MP Real-Time |
| Record / Remote Recode/ main Stream | |
| Record Type | Video / Video + Audio |
| 5 Mp and Lower | 3840FPS (NTSC)/3200FPS (PAL) |
| 5MP and lower | 3840FPS (NTSC)/3200FPS (PAL) |
| Master strem over network | Up to 128 CH @recokiding Resolution |
| Resolution | . Depends on IPC |
| Sub Stream | |
| Sub-Streams over Network | Up to Outgoing Bandwidth Capacity |
| General | |
| Recording Modes | Schedule, Manual, Motion, Sensor, Analytics, POS and all of its combinations |
| Recode | |
| User Access | 20 Users Online with Professional Autorithy Management |
| Record /Remote | |
| Mobile App | Provision Cam2 for iOS/Android |
| PC/Mac Software | Ossia VMS Standard / Enterprise |
| Lucal Playback | Chrome, FireFox, Safari, Edge, Opera. (All Limited to 4Ch Live View / Playback) |
| Remot Playback (web,app) | Internet Exporer |
| Playback | |
| Local Playback | 16Ch |
| Remote Playback (Web, App,VMS) | 16Ch |
| Search Mode | DDA Object, Smart Search, LPR, Time-Slice, Time, Event, POS |
| Backup | |
| USB | 2 USB 2.0 Port + 1 USB 3.0 Port |
| Backup Format | AVI (Unencrypted) / Private Format (Encrypted / Unencrypted) |
| Alarm | |
| Input | 5+IPC |
| Output | 4+IPC |
| HDD | 16 |
| E-SATA | 2 |
| Storang | |
| Max Capacity | 128TB (Up to 8TB Each) External: 16TB (Up to 8TB Each) |
| RAID | Yes (0/1/5/6/10) |
| Connection | Via Network |
| PTZ | |
| Suported Controls | Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus |
| RS-485 | Yes (C06 Keyboard Connection) |
| Ethernet | 2×1000/100/10Mbps self-adaptive Ethernet interface with Fault Tolerance / Dual Network Configu ration |
| Network | |
| Protocols | TCP/IPv4/1Pv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, FTP, HTTPS, 820.1X, SNMP, Auto Report (Ossia VMS) |
| ONVIF | Full Device Support (Profile T/G, ONVIF Version 20.12) |
| Ports | N/A |
| Speed | N/A |
| Standard | N/A |
| PoE | |
| CCTV Mode | N/A |
| Total Power | N/A |
| Max. Power Output (Per Ch.) | N/A |
| Power Supply | AC100-240V |
| Other | |
| Power consumption (No H DD) | 15W |
| Dimension | W440xD485xH 148mm |
| Operation Temperature | 0-50C |
Provision-ISR
