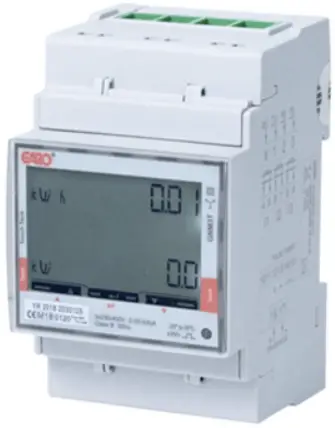

GARO DLM250 Dynamic Load Management Kit 250 Amp User Manual

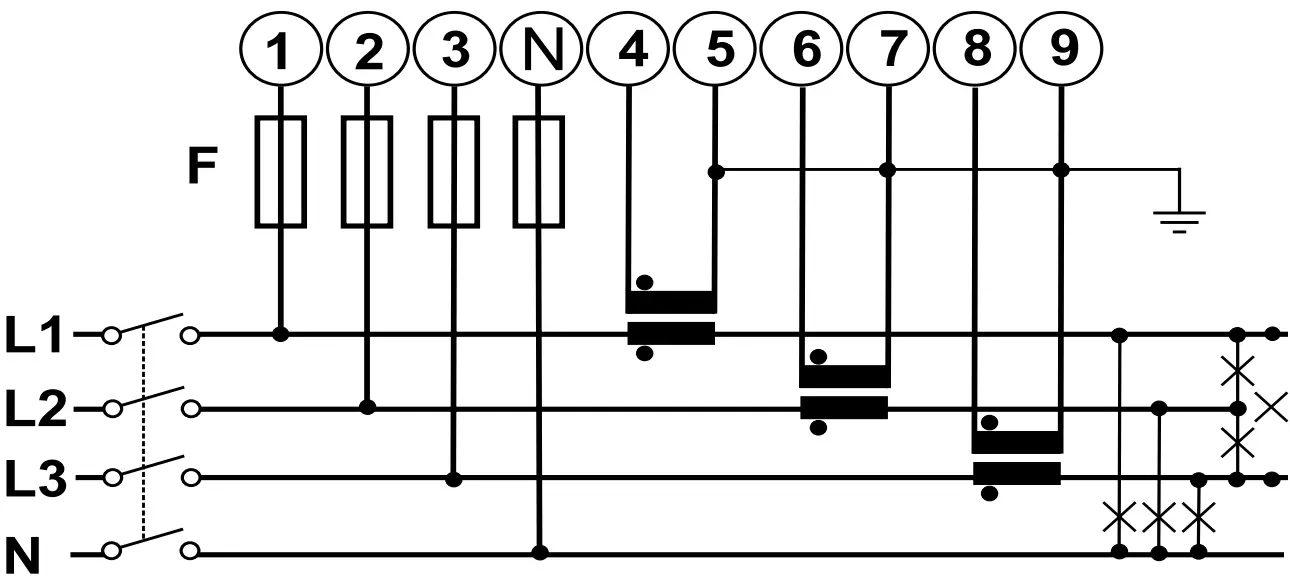

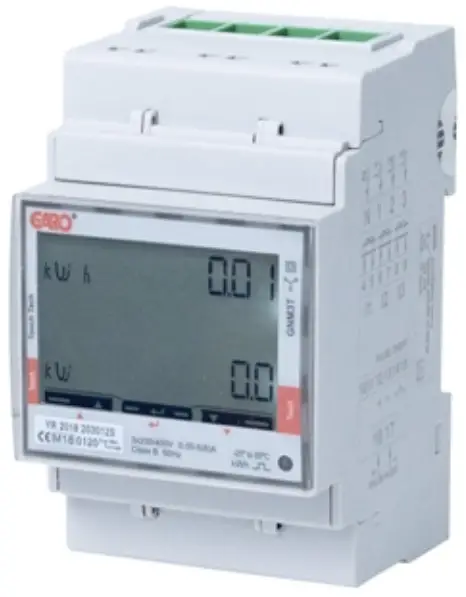

Meter specifications
- Power: Aux. power supply 90-260v AC/DC
- Consumption: ≤ 1 W, ≤ 8 VA
- Base current: 5A
- Maximum current (continuing): 6A
- Minimum current: 0.05 A
- Start up current: 0.05 A
- Working voltage: 400 V ac,
- Frequency: 50Hz (in case of MID certification) 45-65 Hz
- Accuracy class: Active energy: Class 1 (EN62053-21) / Class B (EN50470-3) Reactive energy: Class 2 (EN62053-23)
Environmental specifications
- Working temperature: From –25 to +55 °C/from –13 to +131 °F (in case of MID certification)
From –25 to +65 °C/from –13 to +149 °F From –30 to +80 °C/from –22 to +176 °F - Storage temperature R.H Environment.: From 0 to 90% non-condensing @ 40°C) Intended for Indoor use only.

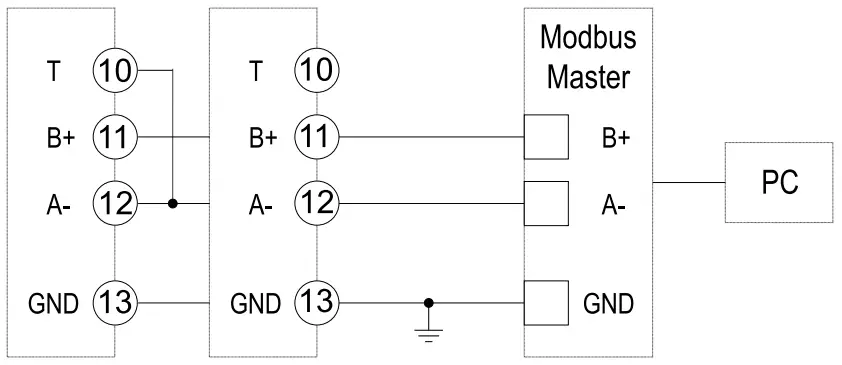

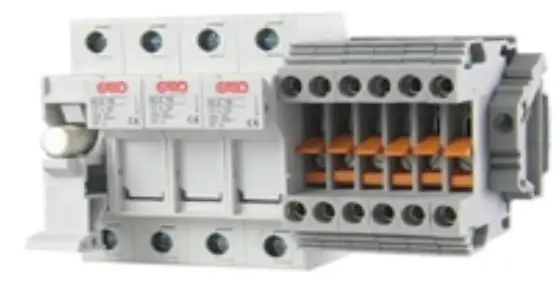

RS485 Modbus communication port
Current Transformer specification
- Ratio: 250 / 5
- Class: 1
- Width: 93mm
- Height: 106mm
- Depth: 58mm
- Core: 23 x 33mm
