JTS PM-35USB Boundary Microphones Instructions
Instructions

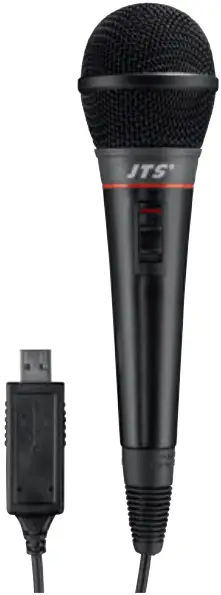

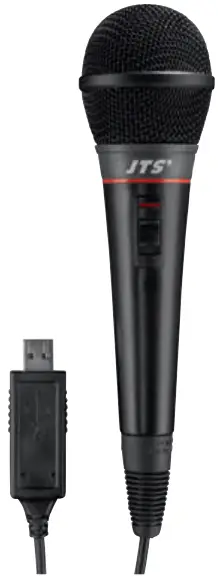

PM-35USB
Order No. 1000673
Dynamic microphone, with USB connector.
- For operating directly at a PC
- No driver installation required, device will be identified automatically
- Microphone cartridge with cardioid polar pattern
- Integrated A/D converter (16 bits/48 KHz)
- On/off switch
- For Windows XP/Vista/Win7/Win10 or Mac
| Model | PM-35USB |
| Polar pattern | cardioid |
| System | dynamic |
| Audio frequency range | 100-10,000 Hz |
| Nominal impedance | 600 Ω |
| Sensitivity | 2.5 mV/Pa |
| Max. sound pressure | 145 dB |
| Housing materia | plastic |
| Dimensions | Ø 50 mm x 200 mm |
| Weight | 202 g |
| Cable | 4 m, assembled |
| Connection | plug Type-A |

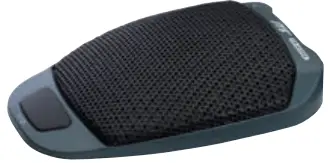

CM-601
Order No. 0235010
Electret boundary microphone
- For theatrical performances, discussions, conferences and in churches
- A direct alignment to the sound source is not essential due to the special characteristics of a boundary microphone
- Dual low cut filter (80 Hz/120 Hz)
- Configurable push-button (PTT, PTM or switching function)
- Standby LED
- Robust and shock-absorbing body
- Elastic cartridge suspension for preventing structure-borne noise and impact sound
| Model | CM-601 |
| Transmission method | cable |
| Polar pattern | semi-cardioid |
| System | electret |
| Audio frequency range | 30-12,000 Hz |
| Nominal impedance | 100 Ω |
| Sensitivity | 2.2 mV/Pa |
| Max. sound pressure | 125 dB |
| Power supply | ⎓ 15-48 V, phantom power |
| Housing material | diecast metal |
| Weight | 0.85 kg |
| Connection | 3-pin mini XLR plug, unbal |
- With 8 m cable mini XLR jack to XLR plug
- Connection via 3-pin mini XLR plug, unbal.
- With preformed outline at the bottom for possible wall mounting

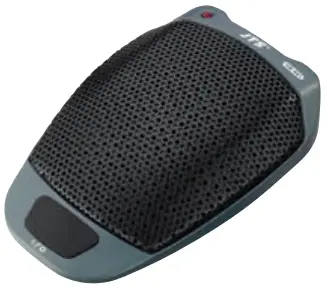

CM-602USB
Order No. 0231870
Electret boundary microphone, with USB port.
- On/off switch with power LED
- Elastic cartridge suspension for preventing impact sound and structure-borne noise
- With 1.8 m USB connection cable
| Model | CM-602USB |
| Polar pattern | semi-cardioid |
| System | electret |
| Audio frequency range | 30-12,000 Hz |
| Nominal impedance | 100 Ω |
| Sensitivity | 2.2 mV/Pa |
| Max. sound pressure | 125 dB |
| Power supply | via USB interface |
| Housing material | plastic |
| Dimensions | 72 x 23 x 110 mm |
| Weight | 88 g |
| Cable | 1.8 m |
| Connection | USB type B jack |
R138
Full specifications can be found on our website www.monacor-international.com.
