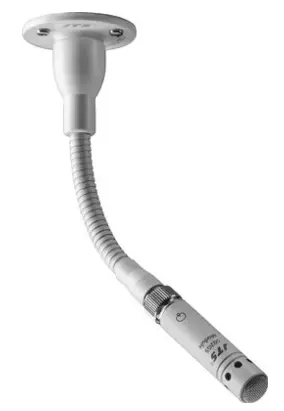

JTS CM-502G6W Overhead Hanging Electret Microphone
Overhead hanging electret microphone
- For suspended installations, especially suitable for applications in which a direct microphonic effect is undesired for optical or operational reasons, e.g. sound pickup of choirs or on theatre stages or school stages
- Microphone cartridge with supercardioid polar pattern
- Integrated phantom power supply adapter
- Flexible alignment due to gooseneck
- Easy-to-replace cartridge unit
- Black (CM-502G…B) or white (CM-502G…W) version
- Supplied with windshield
Total length
- CM-502G6…: 180 mm
- CM-502G12…: 320 mm
TECHNICAL SPECIFICATIONS
CM-502G6W
- Description overhead hanging microphone
- Transmission method cable
- Polar pattern supercardioid
- System electret
- Audio frequency range 100-18,000 Hz
- Nominal impedance 220 Ω
- Sensitivity 4 mV/Pa
- Max. sound pressure 125 dB
- Power supply DC 48 V, phantom power
- Housing material metal
- Admiss. ambient temp. 0-40 °C
- Weight 100 g
- Cable 8 m
- Connection XLR, bal.
- Packing dimensions (W x H x L) 0.095 x 0.065 x 0.38 m
- Gross weight 0.41 kg
- Net weight 0.28 kg
