1528 Mini WiFi Camera
User Manual
Mini WiFi Camera
User Manual
APP：iWFCam
1528 Mini WiFi Camera
Thanks for choosing our small wireless camera. Please follow the manual to set up the camera.
ON/OFF: Press once to turn on the camera; Press for 3 seconds to turn it off;
MODE: Press for 6 seconds to reset the camera;
CARD PORT: Insert Micro SD card to save recordings(Max 128G, not included)；
APP Settings

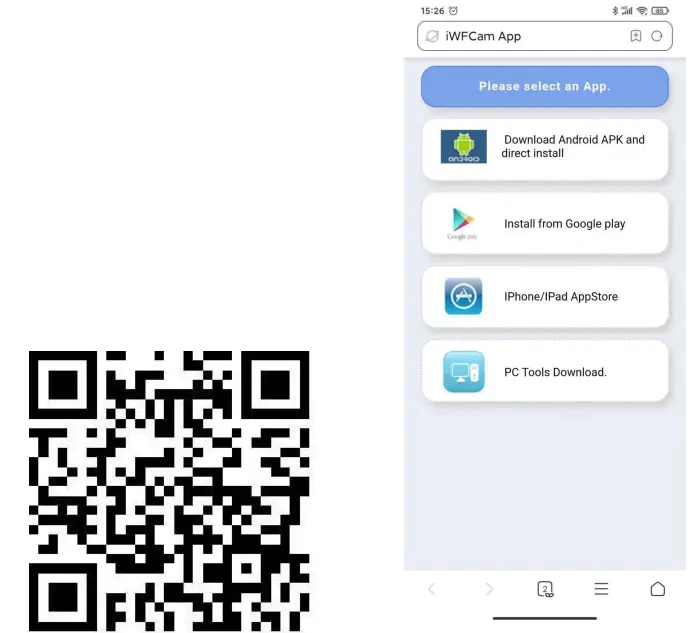

1. Download the app “iWFCam”
Scan the QR code below to download the APP compatible with your phone system.
http://app.iWFCam.com/app/iWFCam.html

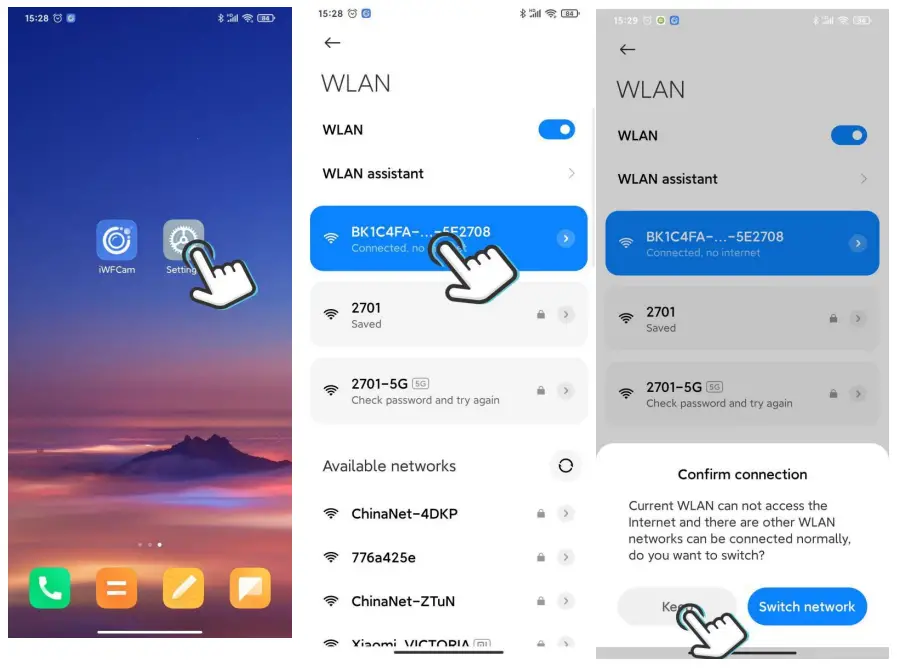

2. Camera-Phone Connection(AP Mode):
—Press ON/OFF button once to turn on the camera;
—Tap into your phone Settings WLAN, find the camera hotspot signal(named with BK*** without password), then connect it;
—If you are using Android phones, it’ll pop-up a message to Confirm Connection, please keep connecting with the camera;
Please refer to the below pics.
Note: Camera-phone connection should be finished within 5 meters for strong signal.

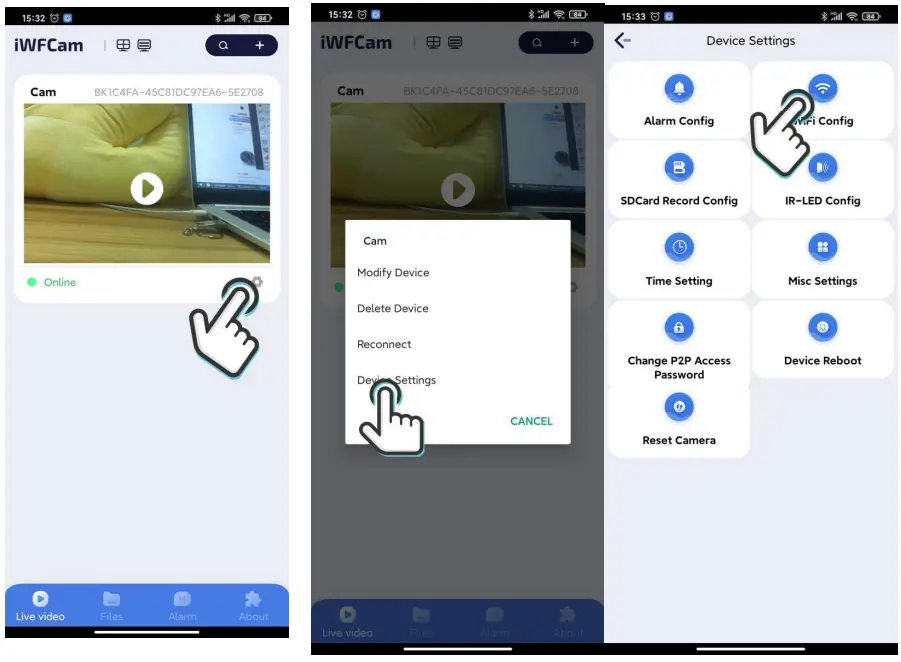

3. Camera-APP Remote Connection(IP Mode)
—Start APP iWFCam, the camera will auto be added Online;
—Click Setting icon beside the camera in the APP, set Wifi Config; choose the router and enter the router network password;
—Wait for the camera’s update process for remote control; Once it shows Online, it means you have successfully done it;
Please refer to the below pics.
Note: Camera-router connection should be finished within 5 meters for strong signal.

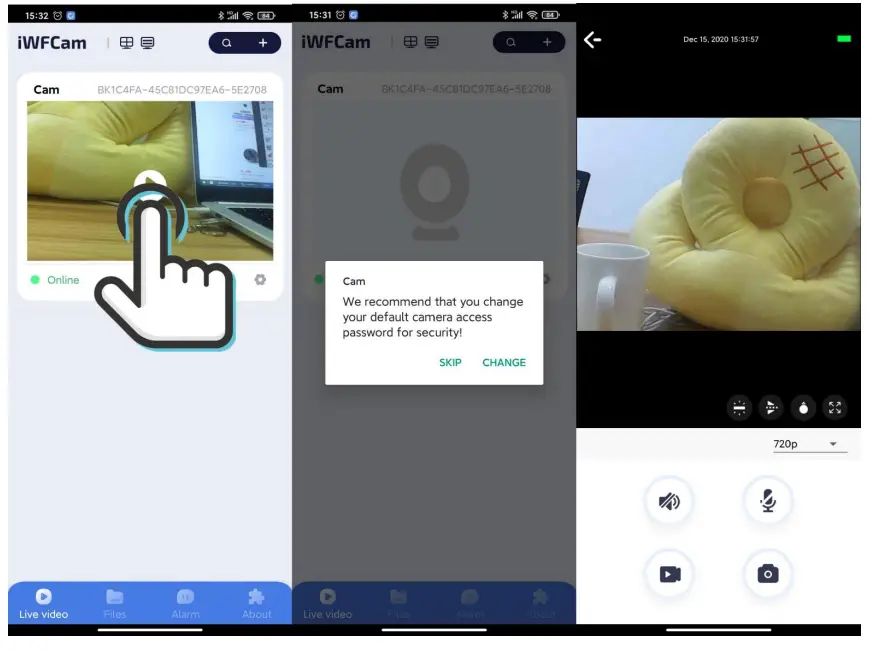

4. Camera Live-feed Page
—Click the camera in the APP, it will pop-up message to change the password; skip or change it for security;
—Then you can see the live feed camera; in this page, you can adjust the Brightness, Night Vision, Video Resolution, Audio, Microphone, Video, Photo, etc.
Please refer to the below pics.
