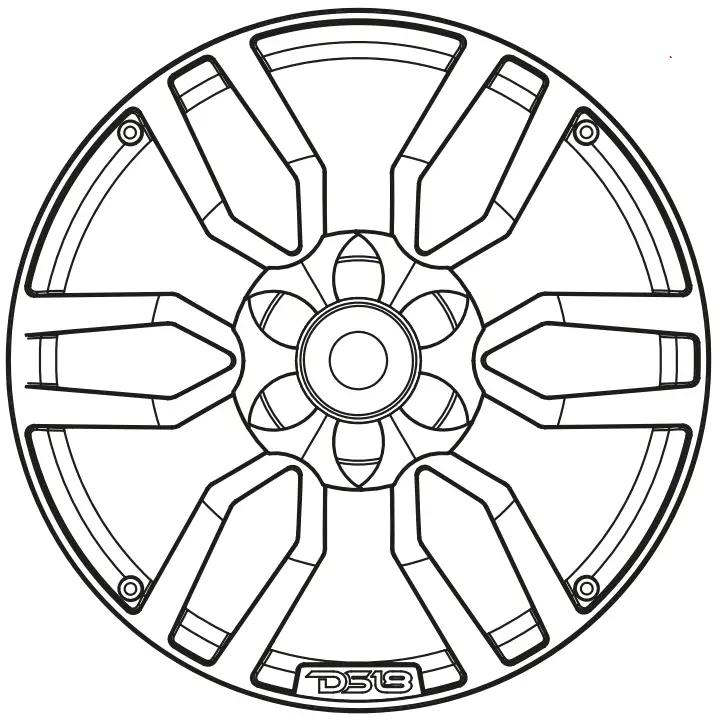

DS18 PRO-GRT6BK 6.5 Inch Speaker Grill with Built-in 1.75 Inch Voice Coil Neod
Dimensions
SPECIFICATIONS
Nominal Diameter ……………………………………………………….6.5” / 165 mm
Nominal Impedance ………………………………………………………………..4 OHMS
AES Power Handling …………………………………………………….. 125 Watts
Program Power Handling ……………………………….. 250 Watts
Peak Power Handling ……………………………………………… 500 Watts
Sensitivity (1w/1m) ………………………………………………………………….98 dB

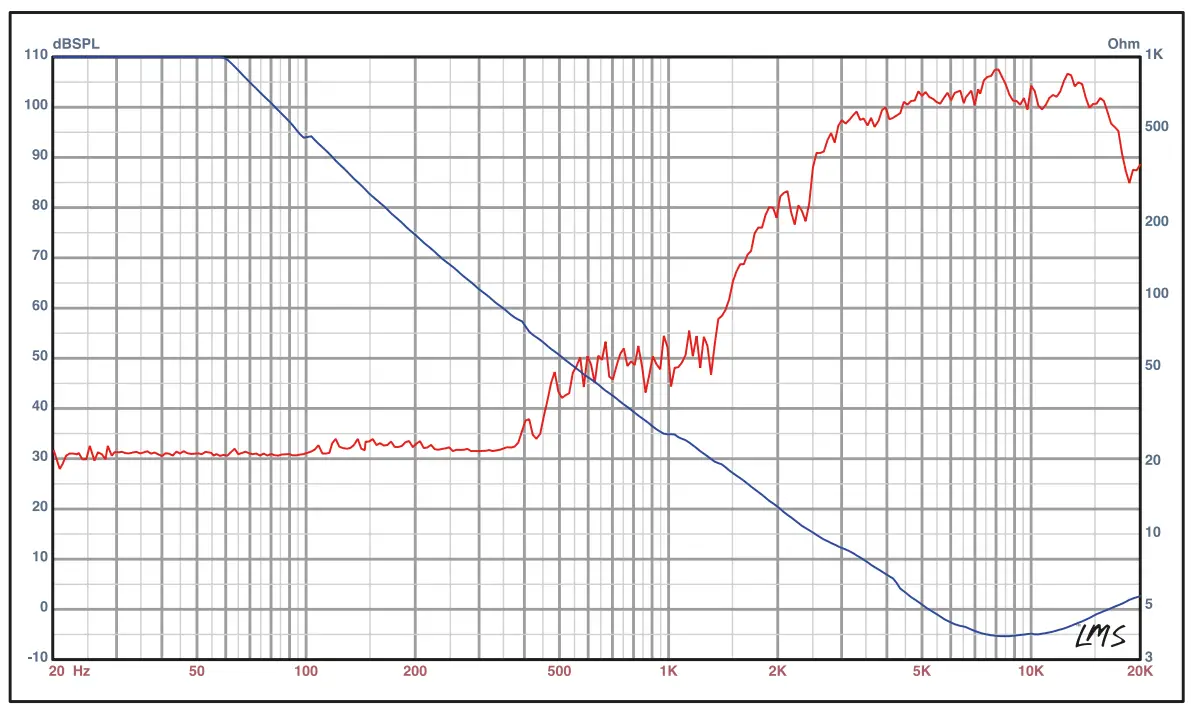

Frequency Response ……………………………………………1.6KHz – 20KHz
Recommended Hi Pass Crossover ………………………………..2KHz
BODY | FEATURES
Pair or Single ……………………………………………………………………………Single
Body (Grill) Material ……………………………………………………………..
High Temperature ABS …………………………………………..Hot Stamping (Silver) Caliente (Plata)
TWEETER SPECIFICATIONS
Type ……………………………………………………………. Compression Bullet
Voice Coil Diameter ……………………………………. 1.75“
Voice Coil Former Material ……………………………………Kapton
Winding Material ………………………………………………………………………CCAW
Bullet Material …………………………………………CNC Aluminum
Diaphragm Material ……………………………………………..Titanium
Magnet Material ………………………….Neodymium (N40H)
Capacitor ( Crossover)……………………………………………Mylar 6 dB

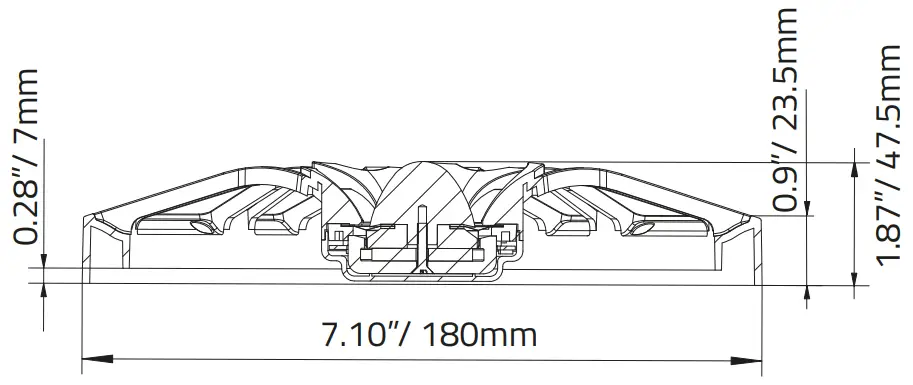

MEASUREMENTS
Overall Diameter ……………………………………………………………………7.1”/ 180 mm
Overall Depth …………………………………………………………………. 1.87”/ 47.5 mm

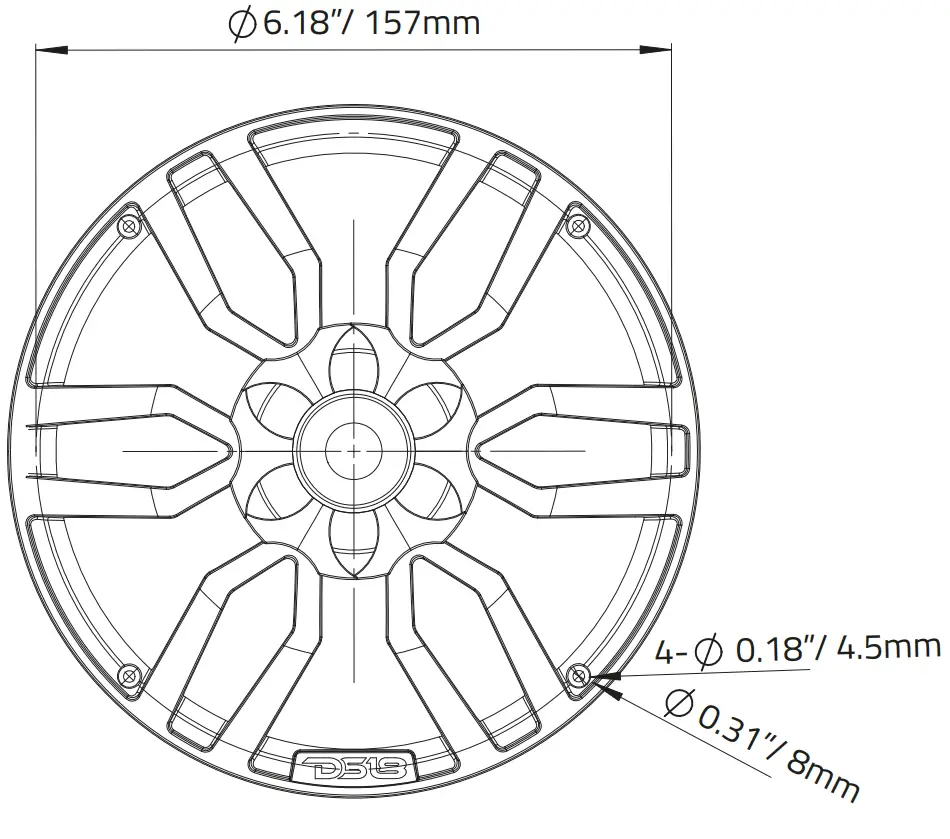

Bolt Pattern ……………………………………………………………… 6.18”/ 157 mm
Mounting Inside Height ………………………………………….. 0.28” / 7 mm
Mounting Outside Ring Height ………………0.9” / 23.5 mm
Tweeter Wire Length …………………………………………….2ft / 0.6 m
COLOR AVAILABLE
Glossy Black ………………………………………………………………………..PRO-GRT6/BK
Glossy Red …………………………………………………………………………….. PRO-GRT6/RD
