TERATRON BLEM0288 Bluetooth Low Energy Transceiver Modul 2.4ghz
Information
| project number | 0288.01 |
| version | 1.0 |
| created | 21.06.2022 / SAL |
| editet | 23.06.2022 |
| category | confidential |
| status | not released |
Applicability

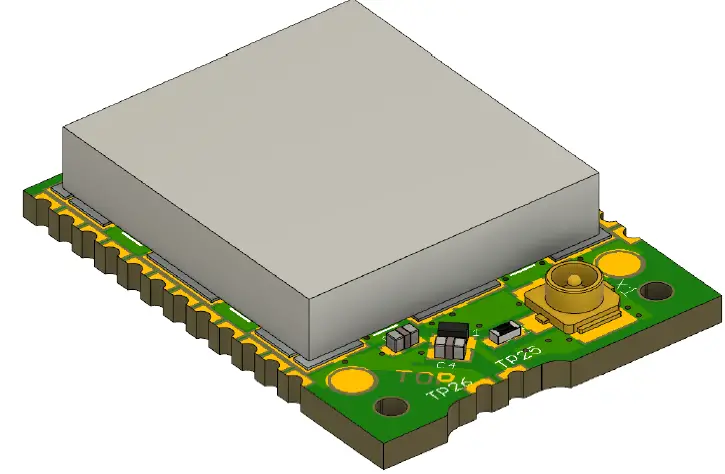

The BLEM0288 is a bluetooth low energy 2.4GHz transceiver modul. It is intended for the implementation of internal projects
Functional discription
Block diagram

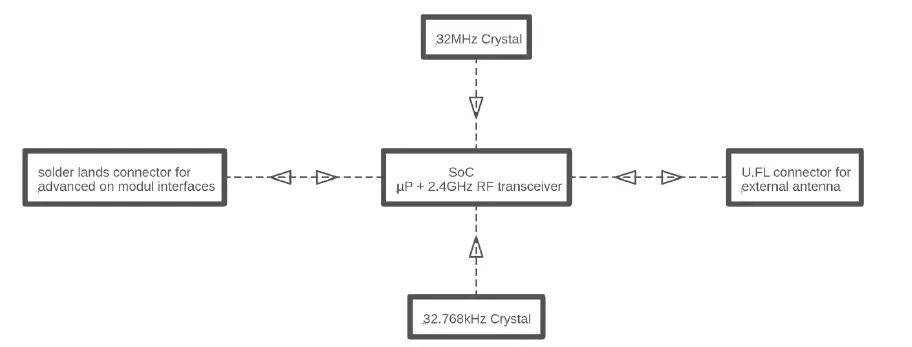

BLEM0288 block diagram
Product discription
The module BLEM0288 is used to integrate bluetooth applicatios in new own products. It supports interfaces like USB 2.0, SPI, NFC-A tag, programmable peripheral interconnect and general purpose I/O pins.
Technical Specification
Electrical characteristics
| supply voltage | 2,5 – 3,6VDC |
| operating frequency | 2.36 GHz – 2.5 GHz |
| bluetooth version | 5.1 |
| transmitter output power | +8 dBm max. |
| standby current | down to 1.5 µA @ 3V |
| max. current consumption | 40 mA @ 3V |
| interfaces | SPI USB 2.0 NFC-A tag U.FL connector for external antenna General purpose I/O pins |
| operating temperature range | -40°C to +85°C |
| dimension (L x B x H) | 20,0mm x 14,8mm x 3,6mm |
ESD precautions
ODEN-W16 series modules are Electrostatic Sensitive Devices (ESD) and require special ESD precautions typically applied to ESD sensitive components.
ESD precautions should be implemented on the application board where the module is mounted.
Pin assignment
| PIN | SIGNAL |
| TP1 | NC |
| TP2 | NC |
| TP3 | optional input |
| TP4 | bootloader input |
| TP5 | NC |
| TP6 | NC |
| TP7 | TxD output |
| TP8 | RxD input |
| TP9 | Reset |
| TP10 | NC |
| TP11 | SWDIO |
| TP12 | SWDCLK |
| TP13 | NC |
| TP14 | NC |
| TP15 | NC |
| TP16 | NC |
| TP17 | NC |
| TP18 | DTM EN IN |
| TP19 | DTM RX IN |
| TP20 | DTM TX OUT |
| TP21 | VDD(H) |
| TP22 | VBUS |
| TP23 | VSS |
| TP24 | VSS |
| TP25 | ANT |
| TP26 | VSS-ANT |
Internal photos

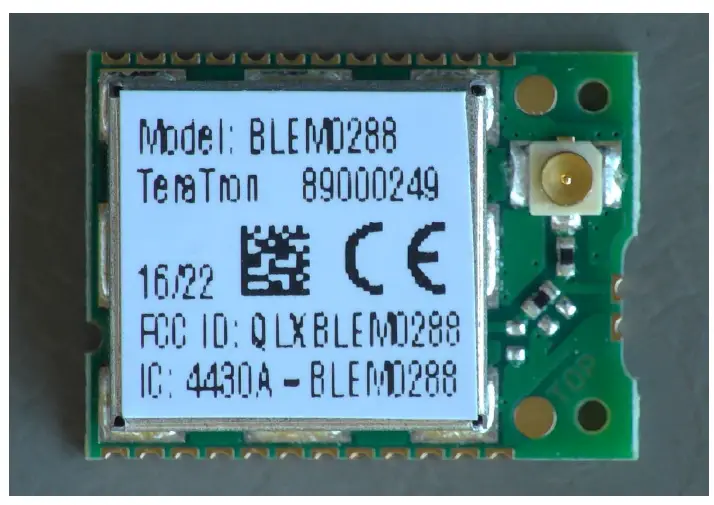

top view (and label location)

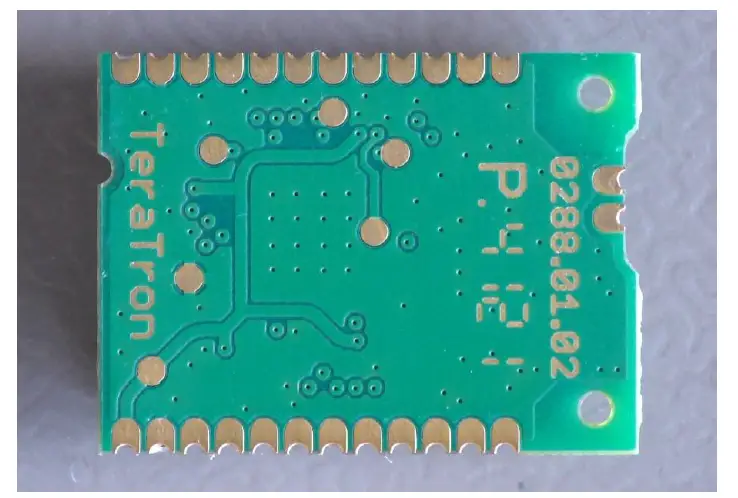

bottom view
Product labeling
The following label is shown as an example

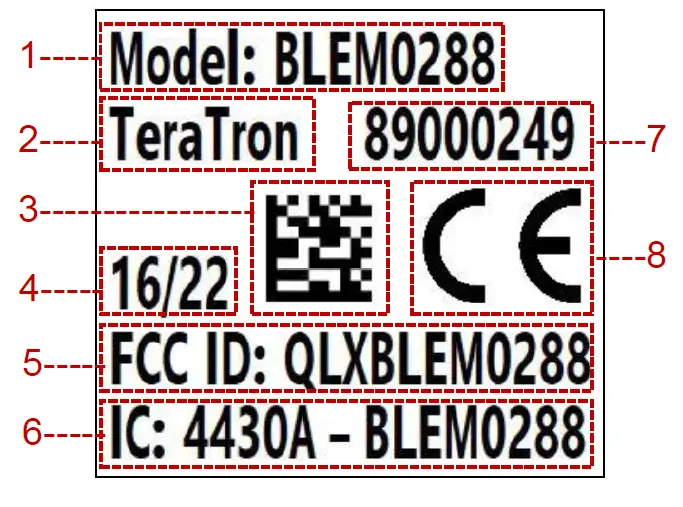

BLEM0288 modul label
| Reference | Description |
| 1 | Product name ID |
| 2 | manufacturer |
| 3 | Data matrix code (unit serial number) |
| 4 | Date of unit production (week/year) |
| 5 | FCC ID number |
| 6 | ISED ID number |
| 7 | part number |
| 8 | CE marking |
FCC
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference
- This device must accept any interference received, including interference that may cause undesired operation.
You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.
ISED
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
- This device may not cause interference
- This device must accept any interference, including interference that may cause undesired operation of the device
Change Index
| 01 | creation of specification sheet | SAL | 22.06.2022 |
